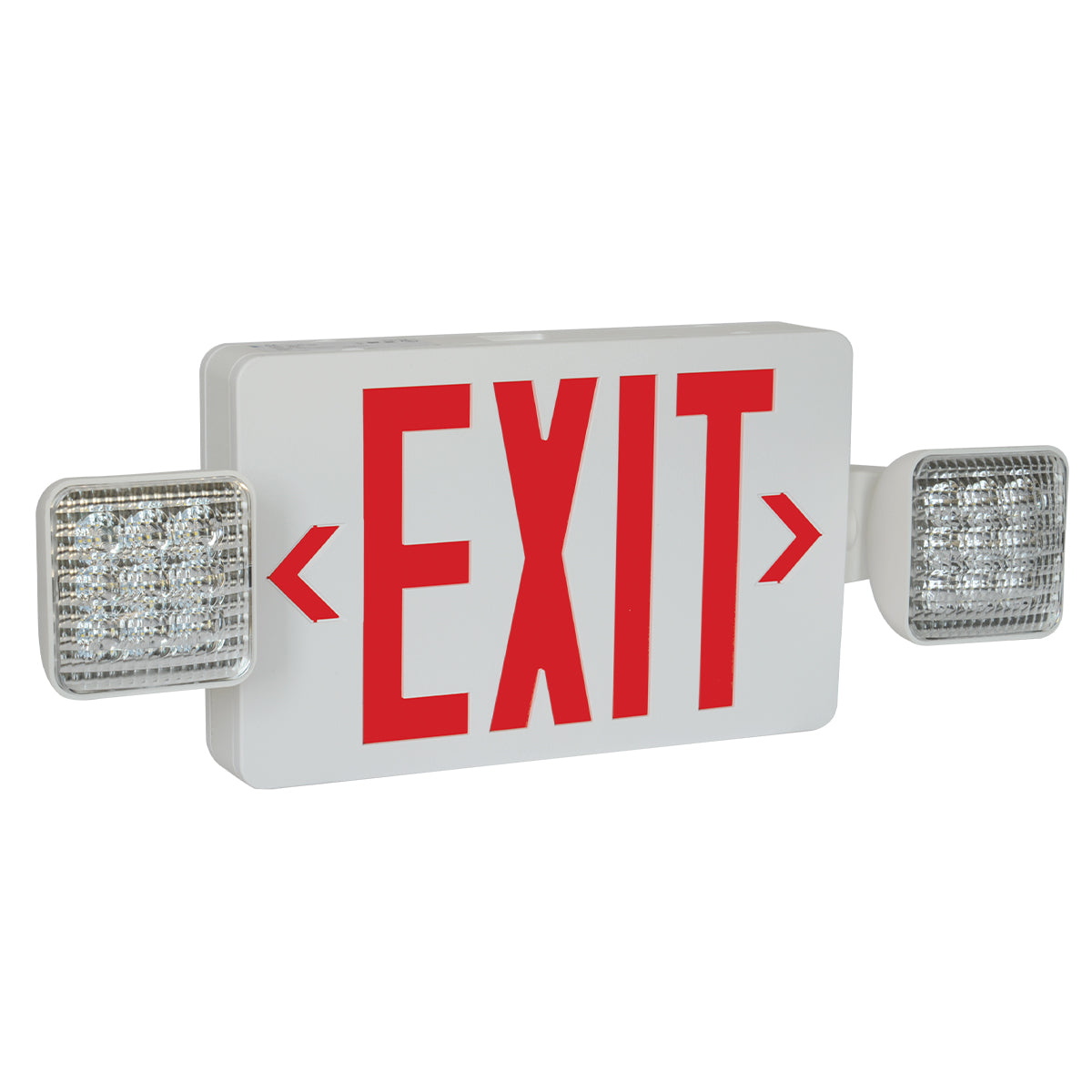

Red Slim thermoplastic LED exit/emergency combo – front view with twin lamp heads

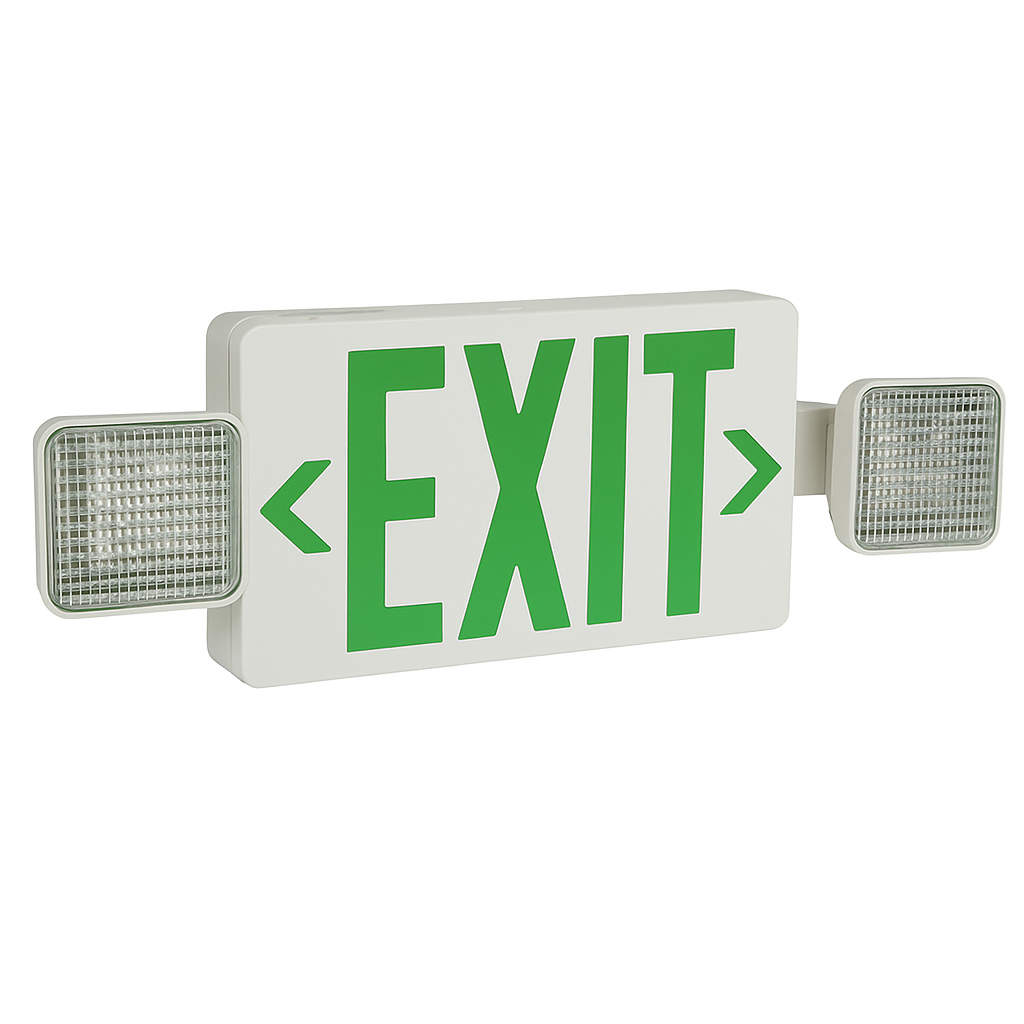

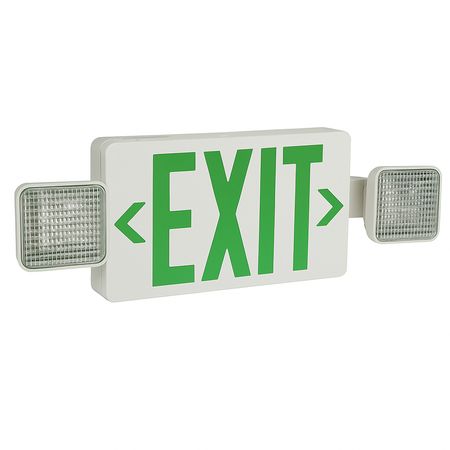

Green Slim thermoplastic LED exit/emergency combo – front view with twin lamp heads
Red Slim thermoplastic LED exit/emergency combo – front view with twin lamp heads
Green Slim thermoplastic LED exit/emergency combo – front view with twin lamp heads

Thermoplastic LED Exit & Emergency Combo – Remote Capable Option

SKU: EQCSS-R-WH
$70.74

Got questions?

Give us a call 800-847-1955!

EQCSS Series – Thermoplastic LED Exit & Emergency Combo with Remote‑Capable Option

The EQCSS Series thermoplastic LED exit / emergency combo pairs a low‑profile LED exit sign combo with two fully adjustable 0.75 W LED heads in a slim, UL 94 5VA ABS cabinet. This emergency exit sign with lights is engineered for life‑safety and egress lighting compliance with dual‑voltage electronics, field‑selectable chevrons, and an optional 1.5 W @ 3.6 V remote‑capable output—ideal for doorways, corridors, stairwells, and ceiling‑constrained areas.

UL 924 Damp Location 120/277 VAC Ni‑Cd / ≥90 min Dual 0.75 W Heads Remote‑Capable 1.5 W UL 94 5VA Low Profile 1.81" CEC Compliant

Key Features

  • 6" EXIT legend with 3/4" stroke; long‑life red or green LEDs; field‑selectable chevrons (arrows)
  • Two fully adjustable 0.75 W LED heads; ≈150 lumens combined for even egress‑path coverage
  • Design‑aid spacing @ 7.5' MH: up to 26' CTC (3' path) or 19' (6' path)
  • Dual‑primary 120/277 VAC, 60 Hz; maintenance‑free Ni‑Cd battery
  • ≥ 90‑minute emergency runtime; ~24‑hour recharge; LVD, solid‑state transfer, status LED & push‑to‑test
  • Optional R: 1.5 W @ 3.6 V remote capacity for compatible LED remote heads (JLED, RL1‑WP, RL52)
  • Injection‑molded UL 94 5VA thermoplastic resists denting, peeling, and corrosion
  • Operating temp: 10–40 °C (50–104 °F); Damp Location listed
  • Slim 1.81" cabinet; finishes: White (WH) or Black (BL)

Related Exit/Emergency Combo Guides

Exit Sign & Emergency Light Combos — Ultimate Guide Remote‑Capable Combos — Watt Budget, Runs & Voltage Drop

Spec Sheet

Download EQCSS Exit & Emergency Combo Spec Sheet (PDF)

Illumination

  • Even‑light diffuser minimizes hot spots on the EXIT legend (red or green)
  • Two 0.75 W white LED heads — ≈150 lm total
  • Design‑aid spacing @ 7.5' MH: up to 26' (3' path) or 19' (6' path)

Electrical

  • Universal 120/277 VAC, 60 Hz input
  • 3.6 V Ni‑Cd battery; ≥ 90‑minute runtime
  • ~24‑hour recharge; LVD and solid‑state transfer; easy‑access test button
  • Operating temperature: 10–40 °C (50–104 °F)

Housing / Finish

  • Injection‑molded UL 94 5VA thermoplastic cabinet
  • Finish: White (WH) or Black (BL)
  • Profile: 11.75" W × 7.25" H × 1.81" D

Mounting

  • Surface wall (back‑plate) or ceiling mount with snap‑fit canopy
  • Universal kit includes two faceplates (single/double), backplate, and canopy
  • Tool‑free snap‑together design; compatible with standard J‑box patterns

Options

  • R — Remote‑capable output (1.5 W @ 3.6 V) for JLED, RL1‑WP, or RL52 LED remote heads
  • WG‑L — Wire guard • XG‑EL90 — Polycarbonate guard
  • ER1‑KIT / ER2‑KIT — 1 ft / 2 ft pendant kits (require VEPA adapter)

Warranty / Listings

  • 5‑year warranty on housing & electronics; Ni‑Cd battery 5‑year prorated
  • UL 924 listed for damp locations; meets or exceeds NFPA 101, NEC, OSHA; CEC compliant
