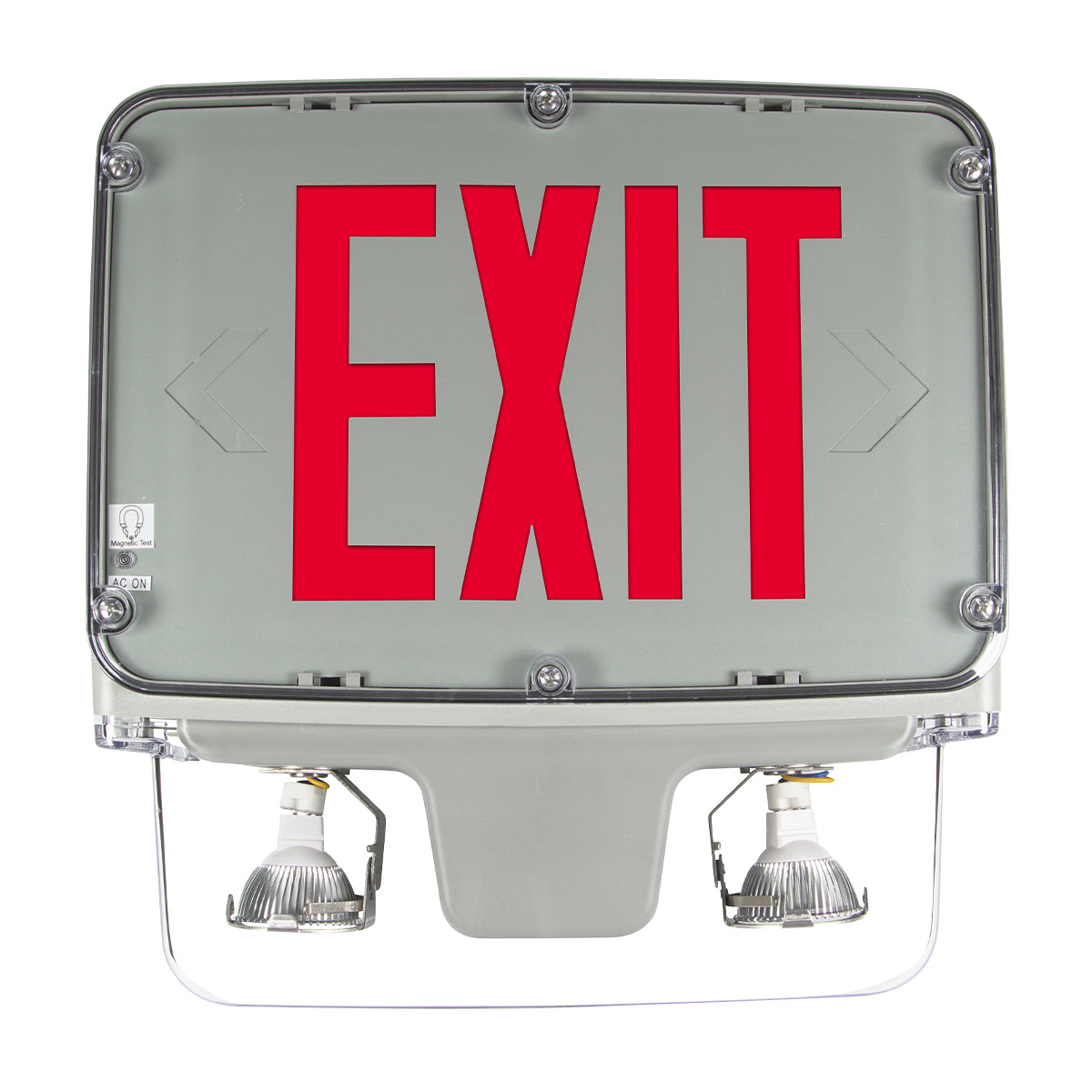

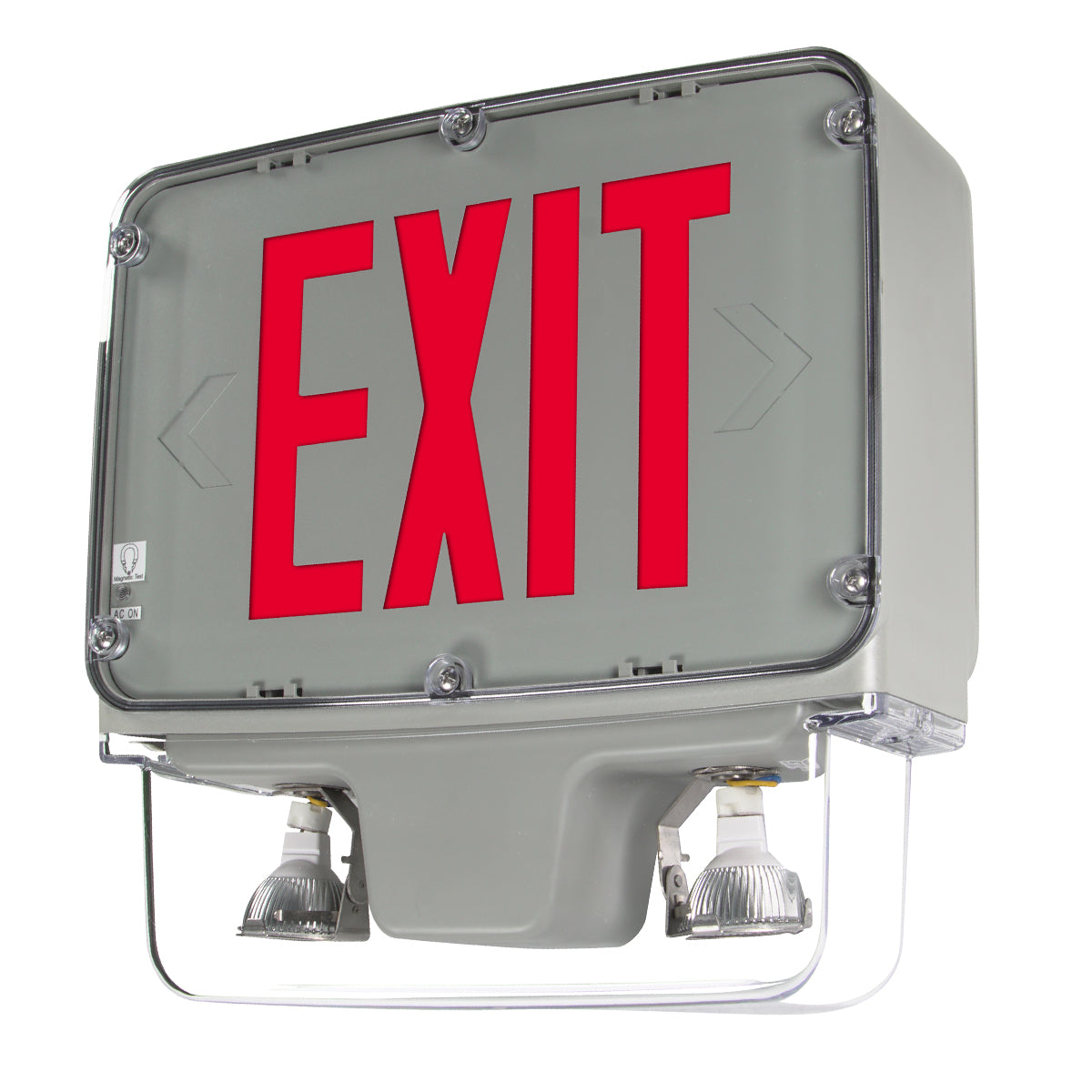

HLC Series – Hazardous Location LED Exit / Emergency Combo (Class I Div 2)
The HLC Series Hazardous Location LED Exit / Emergency Combo is built to perform in tough environments, featuring a corrosion-resistant, IP66-rated fiberglass enclosure, a UV-stabilized polycarbonate lens, and stainless steel hardware. Ideal for harsh and hazardous environment exit signs, the HLC is UL 844 and UL 924 listed for Class I, Division 2, Groups A–D. Two integrated 3.6W LED lamp heads deliver up to 350 lumens of emergency lighting, and the no-head (NHR) option supports remote capacity up to 15W.
Download HLC Hazardous Location Exit Combo Spec Sheet (PDF)
Illumination

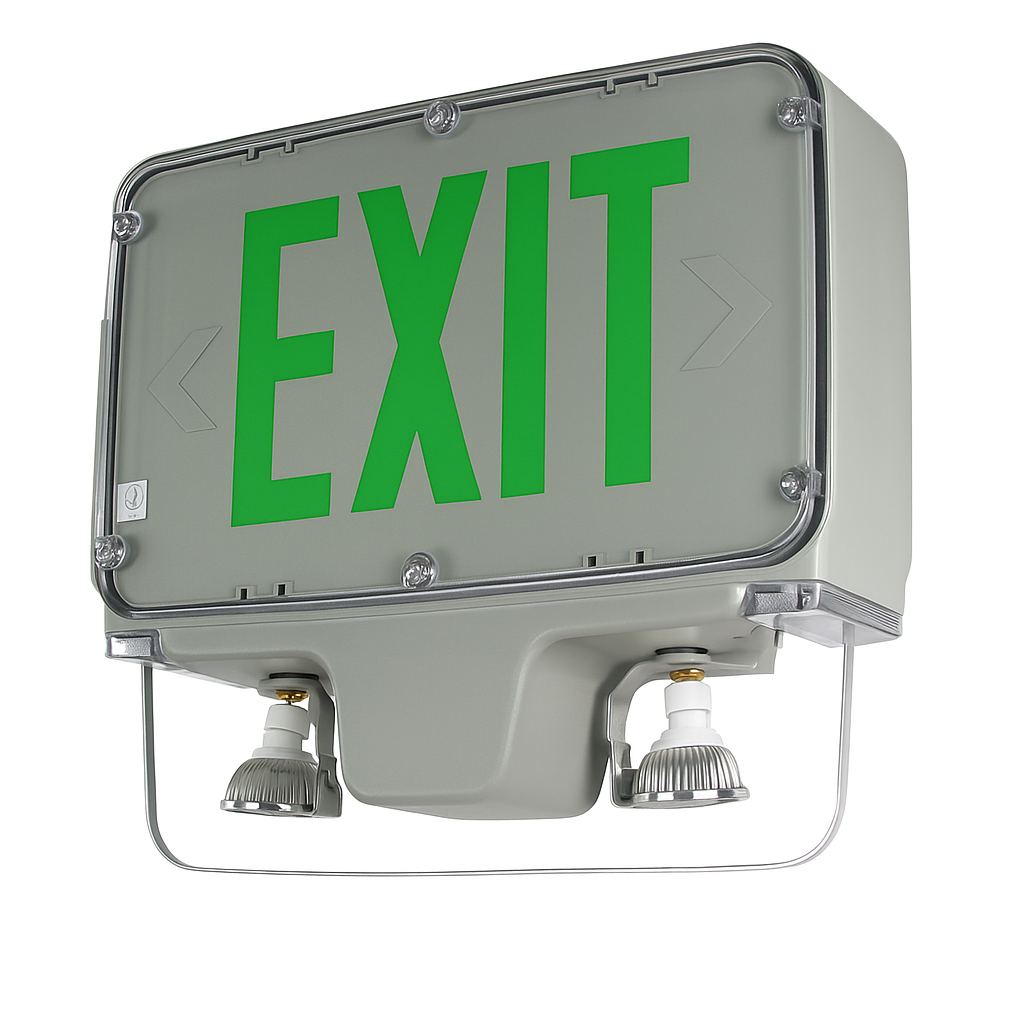

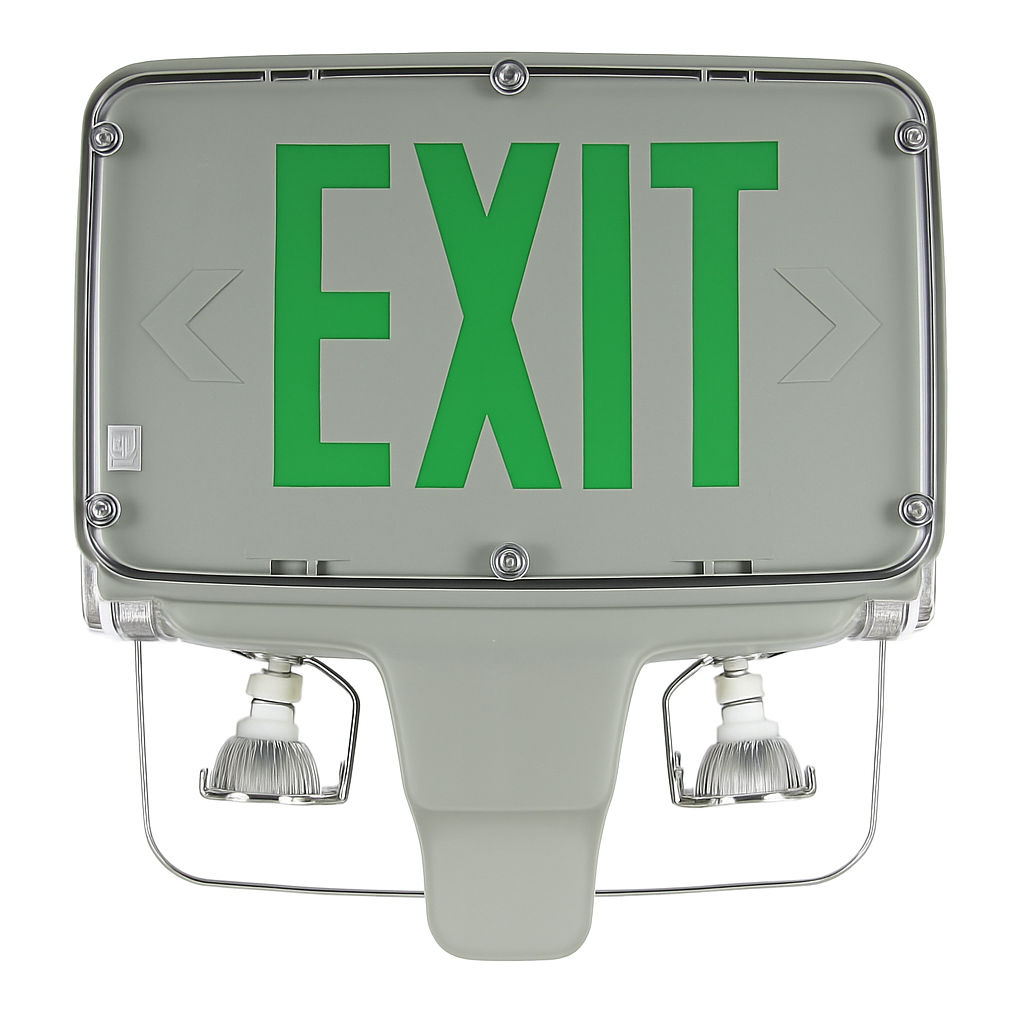

- Bold red or green high-output LEDs with 6" characters and a ¾" stroke for maximum visibility
- Two 3.6W LED emergency lamp heads provide a combined 350 lumens of bright, focused egress lighting
- Rated for up to 47 feet on-center spacing when mounted at 7.5 feet with a 3-foot wide path of egress
- Field-selectable chevrons allow for easy directional customization on-site
Electrical
- Dual-voltage 120/277 VAC input, 60 Hz
- 6 V or 12 V Ni-Cd battery with 90-minute runtime, 24-hour recharge
- Remote capacity: up to 15 W (single-face, NHR configuration)
- Solid-state transfer, brownout protection, low-voltage disconnect
- Easy-to-use test button and optional Guardian G2 self-diagnostics
Construction / Finish
- Durable fiberglass-reinforced polycarbonate housing with a clean gray finish
- High-impact, UV-stabilized polycarbonate lens sealed with a molded gasket for weather resistance
- Stainless steel hardware with an optional tamper-resistant combo sign setup for high-security applications
- IK10 impact rated and salt-spray tested for 1,000 hours to withstand harsh conditions
Mounting
- Surface mount with pre-installed conduit hub
- Pendant-mount compatible using existing hub
Options & Accessories
- G2 – Includes Guardian self-diagnostics system for automated testing and status alerts
- CL – Cold location package rated for extreme temps from -20 °C to 50 °C
- NHR – No-heads configuration with maximum remote capacity exit combo support
- TRH – Tamper-resistant hardware for added security in public or high-abuse areas
Compliance
- UL 844 and UL 924 listed as a Class I Div 2 exit sign combo, approved for Groups A–D
- Fully compliant with NFPA 101, NEC, OSHA, and CEC Title 20 regulations
- IP66 rated for dust and water resistance — a reliable outdoor-rated exit sign for harsh environments
Warranty
- 5-year warranty on electronics and housing
- 5-year prorated warranty on Ni-Cd battery
Frequently Asked Questions
Is the HLC rated for hazardous environments?
Yes. The unit is UL 844 listed for Class I Division 2, Groups A–D and is IP66 rated for wet and dusty environments.
What remote capacity does the unit support?
Single-face NHR models provide up to 15 W remote capacity; double-face up to 12 W. Standard units support up to 7.8 W or 4.8 W depending on configuration.
Can it operate in cold environments?
Yes. The CL
cold-location option enables operation down to -20?°C (-4?°F) using an internal heater and battery blanket.
What are the lamp spacing specs?
The 3.6 W LED heads provide up to 47 ft spacing on a 3 ft path at 7.5 ft mounting height (1 fc average).
Is it tamper-resistant?
Yes. The TRH
option includes tamper-proof hardware for high-security installations like industrial or institutional sites.
Product Features
- Brand: Exitronix
- Class I Div 2
- Damp Location
- Hazardous Location
- LED
- Low Profile
- Product: HLC
- Remote Capable
- Self Testing
- Tamper Resistant
- Exit Signs Combo
- Vandal Proof
- Wet Location
