Class I Div 2 MR-16 LED Remote Head — IP66 — Features & Specs
The HLRHLED16 hazardous-location MR-16 LED remote head extends emergency egress lighting into classified and wash-down areas. Built for IP66 wet locations and rated Class I, Division 2 (Groups A–D), this sealed, corrosion-resistant lamphead assembly connects to a remote-capable 6 V or 12 V DC emergency unit (not included). Explore more in our hazardous-location egress lighting or compare C1D2 options across the Class I Division 2 product family.
Class I Div 2
IP66
MR-16 LED
3.3 W / Head
6 V / 12 V DC
Single / Twin
Key Features
- IP66 ingress protection and Class I, Division 2 (Groups A–D) hazardous-location rating.
- 3.3 W MR-16 LED per head (order as single-head or twin-head assembly).
- Powered by a 6 V or 12 V DC remote-capable emergency unit — no onboard battery/charger.
- Adjustable lampheads to fine-tune center-to-center spacing and door/turn coverage.
- Die-cast mounting bracket for surface wall-mount installation.
- Fiberglass-reinforced housing, one-piece UV-stabilized polycarbonate lens with molded gasket, and stainless hardware for wash-down/corrosive sites.
- UL listing with approved host systems; system compliance to UL 924 when used with a listed emergency unit. Aligns with NFPA 101, NEC, OSHA life-safety intents.
- 5-year fixture warranty.
Related Emergency Lighting Guides
Spec Sheet
Download Remote Head Spec Sheet (PDF)
HLRHLED16 — product overview.
Illumination
- High-efficiency 3.3 W MR-16 LEDs per head (single or twin).
- Aimable lampheads help achieve uniform paths and wider spacing while limiting glare on door hardware/signage.
Electrical
- Requires a 6 V or 12 V DC feed from a compatible remote-capable emergency unit (host not included).
- Maximum remote distance depends on wire gauge (AWG), voltage, and total remote load — verify with voltage-drop tables.
Mounting
- Die-cast wall bracket for surface wall-mount installation; maintain gasket compression at penetrations for IP66 integrity.
Housing / Lens
- Fiberglass-reinforced enclosure (gray) with stainless-steel fasteners for corrosion resistance.
- One-piece, UV-stabilized polycarbonate lens with molded gasket; sealed to IP66.
Options
- TP — tamper-resistant hardware kit.
Warranty / Listings
- 5-year warranty (fixture).
- UL listed with approved hosts; system meets UL 924 with a listed emergency unit.
- Rated Class I, Division 2, Groups A–D; IP66 ingress protection.

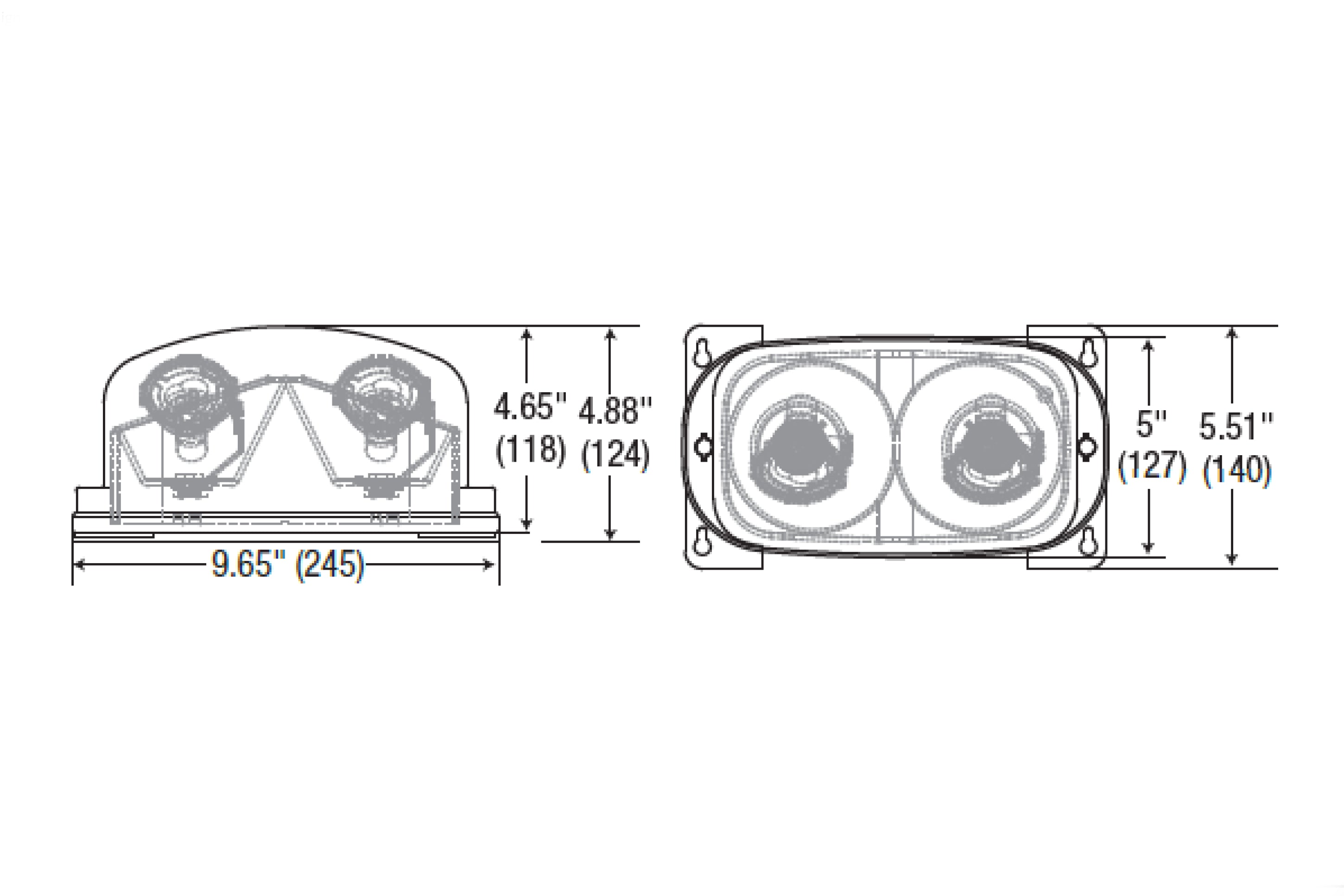

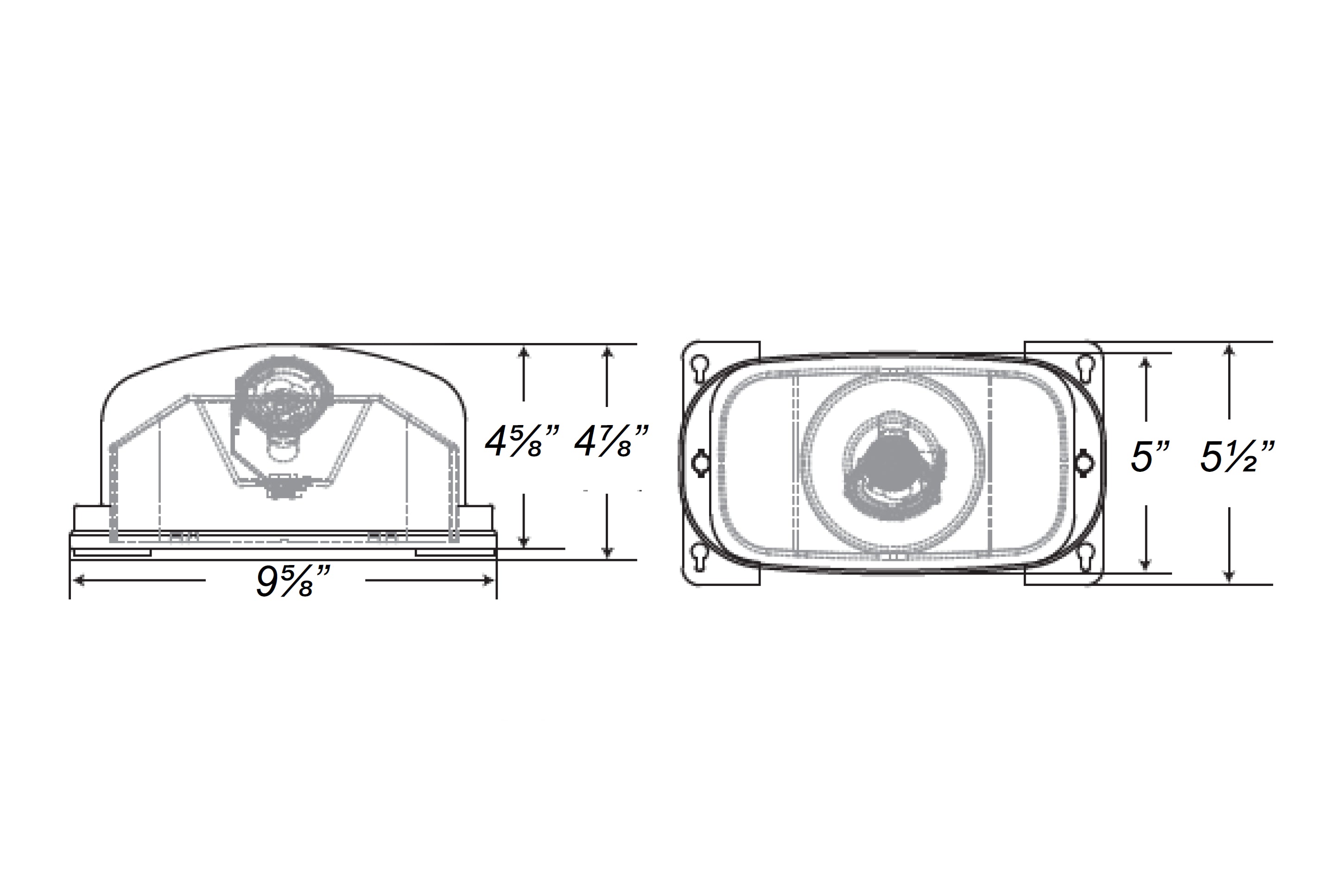

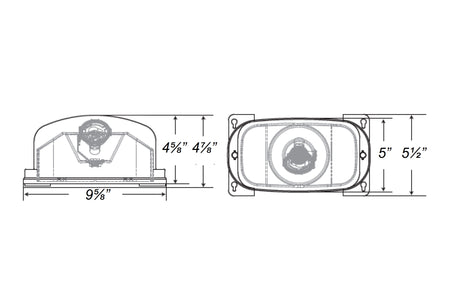

Dimensions
- 9 ?? W × 5 ½? H × ~4 ?? D (see spec diagram for model-specific callouts).
Compare Popular Hazardous-Location Egress Solutions
Choose the right C1D2 component—remote head vs unit equipment vs combo vs exit-only sign.
| Model / Link | What It Is | Ingress / Rating | Light Source | Power / Remote Capacity | Best Use |
|---|---|---|---|---|---|
| This page: C1D2 MR-16 remote head | Lamphead(s) only; powered by host unit | IP66 / Class I Div 2 | MR-16 LED, 3.3 W per head | 6 V or 12 V DC from host | Extend light to far doors/turns without adding another unit |
| C1D2 MR-16 emergency unit (battery inside) | Self-contained unit equipment | NEMA 4X / IP66 / Class I Div 2 | Dual MR-16 LED heads | 90-min runtime; 7.8 W remote output | Standalone hazardous egress where no EXIT legend is needed |
| NEMA 4X exit & emergency combo (red/green legend) | Signage + lampheads in one enclosure | NEMA 4X / IP66 (select C1D2 builds) | EXIT legend + dual MR-16 LED | Up to 20.8 W remote (model dependent) | Doors/corridors that need both signage and emergency light |
| C1D2 LED exit sign (no heads) | EXIT legend only | IP66 / Class I Div 2 | LED legend panel | — | Sites using separate remote heads or unit equipment for lighting |
