Low-Profile Exit Sign - Red/Green Universal Mount

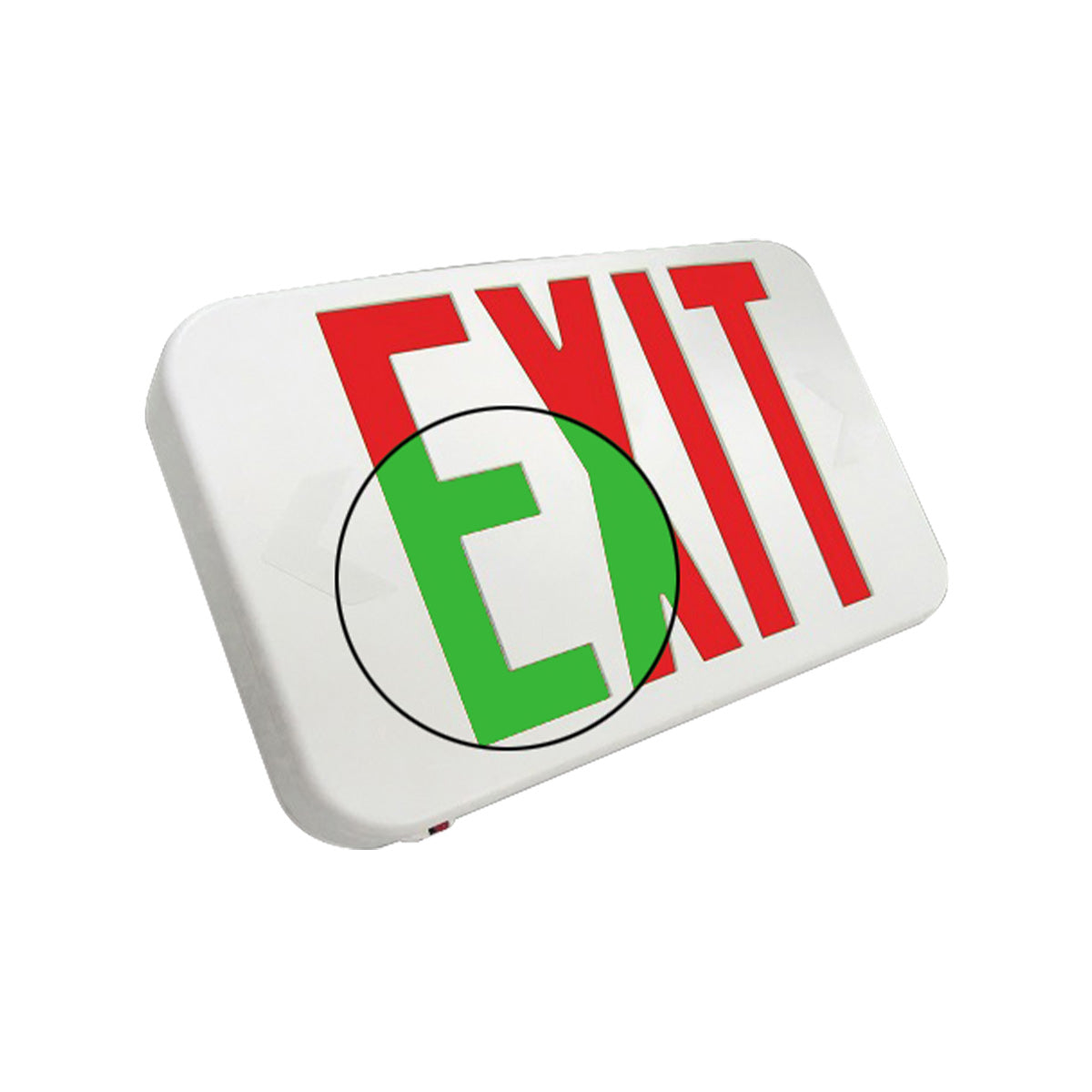

The ILX-RG Series Thermoplastic LED Exit Sign includes everything you need to configure a single- or double-face, ceiling, end, or wall-mounted installation on-site. A DIP switch lets you toggle the legend color from red to green instantly, while long-life LEDs, optional Ni-Cd emergency mode ( EM ) — and CEC Title 20 compliance — make this low-profile LED exit sign a versatile, energy-efficient egress solution. For simplified installs, it’s offered as a universal-mount LED exit sign .
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- NFPA 101
- Damp Location
- LED
- emergency
- Exit
- Exit Signs
Key features
- Field-switchable red/green legend via built-in DIP switch
- Universal mount: wall (backplate) or ceiling/end with snap-fit canopy; single or double face configurable
- Dual-primary 120/277 VAC input; ~ 1 W AC power draw
- EM model: 3.6 V Ni-Cd battery with 90-minute backup; push-to-test & low-voltage disconnect
- UL 924 Listed for Damp Location (0–50 °C / 32–122 °F)
- Injection-molded UL 94 5VA thermoplastic; compact 11.63" × 7.88" × 1.63"
- CEC Title 20 compliant; optional USA (BABA) build and pendant kits ( ER1-KIT / ER2-KIT )
- Snap-out directional chevrons included for on-site arrow selection
Documents
Illumination
- High-efficiency LEDs rated for 100,000 hours
- 6" EXIT characters with ¾" stroke; snap-out chevrons included
- DIP switch toggles between red and green legend colors
Electrical
- Universal 120/277 VAC , 60 Hz input (~ 1 W AC power)
- EM model: 3.6 V Ni-Cd battery with 90-minute backup — see battery-backup exit signs
- Solid-state transfer, low-voltage disconnect, and push-to-test button
Construction
- Injection-molded housing for thermoplastic LED exit signs ( UL 94 5VA flame-rated)
- Standard finishes: white or black
- Compact size: 11.63" W × 7.88" H × 1.63" D
Mounting
- Wall mounting with backplate or ceiling/end mounting with snap-fit canopy — see wall-mount exit signs and ceiling-mount exit signs
- Includes two faceplates, diffuser sets, backplate, and canopy
- Snap-together design allows easy single/double-face conversion
Options / Accessories
- USA — Buy America (BABA) compliant
- ER1-KIT-WH / BL — 1 ft pendant-mount kit (white/black)
- ER2-KIT-WH / BL — 2 ft pendant-mount kit (white/black)
- WG-S — Wire guard • XG-1 — Polycarbonate guard
- WPV-1 — Weatherproof, tamper-resistant exit signs enclosure
Warranty / Listings
- 5-year warranty on electronics and housing; Ni-Cd battery prorated 5 years
- UL 924 listed for damp locations (0 °C – 50 °C)
- CEC Title 20 , NFPA 101 , and NEC compliant
Compliance notes
- Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
