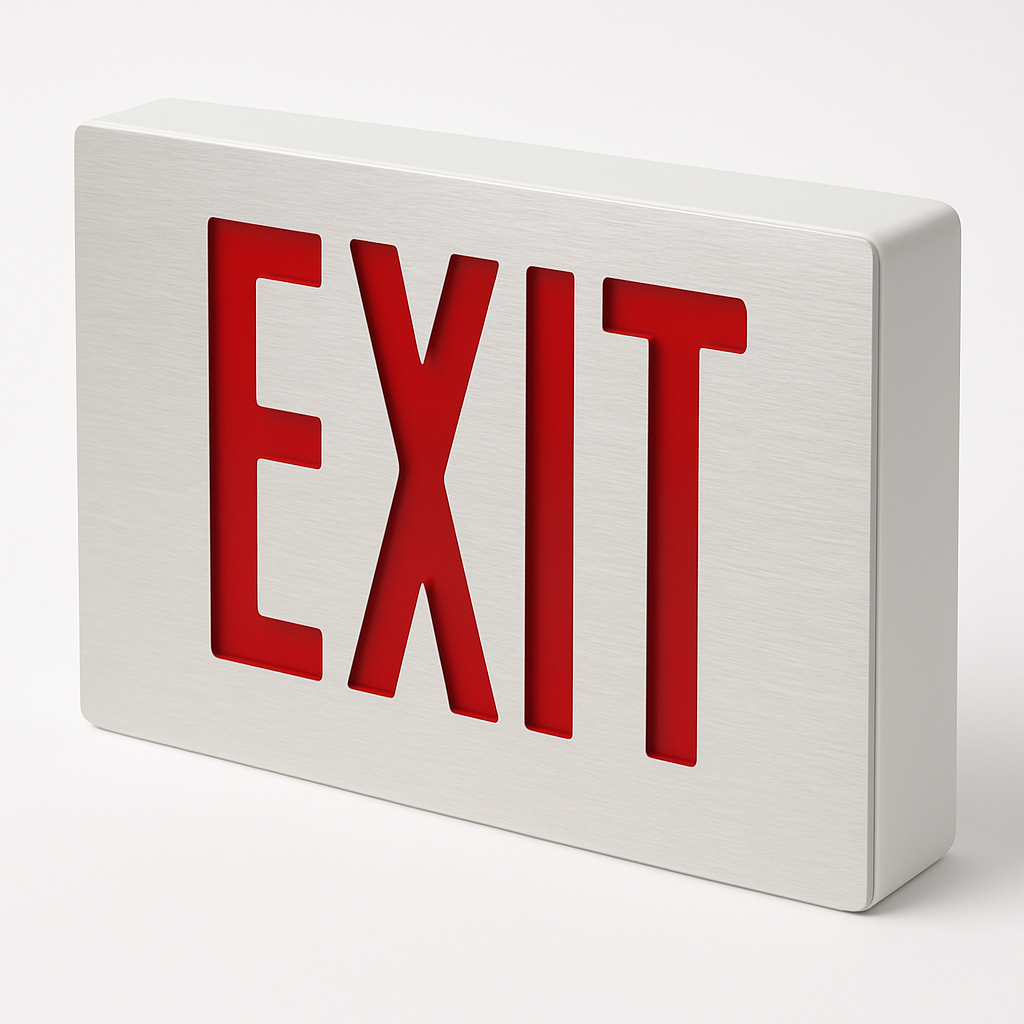

Red Die-Cast White Housing LED Exit Sign
Green Die-Cast White Housing LED Exit Sign

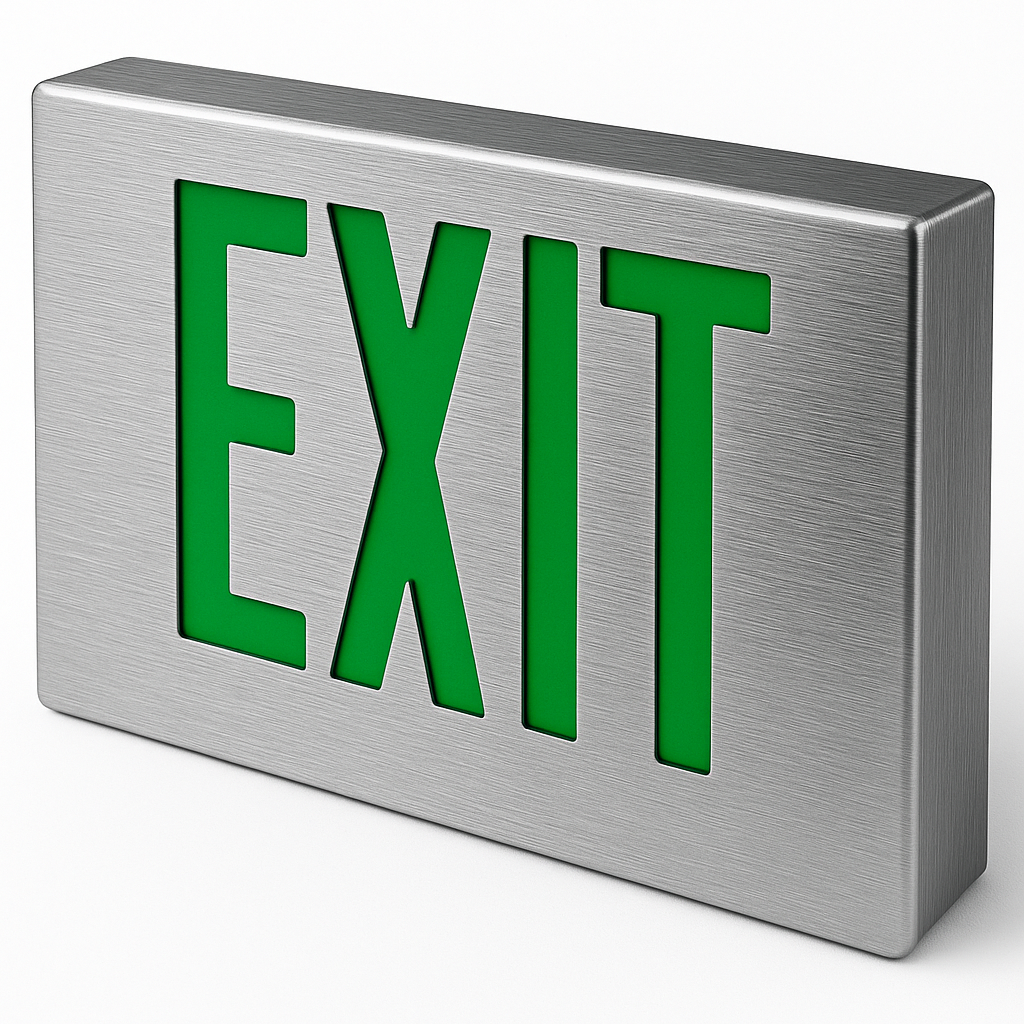

Green Die-Cast Aluminum LED Exit Sign

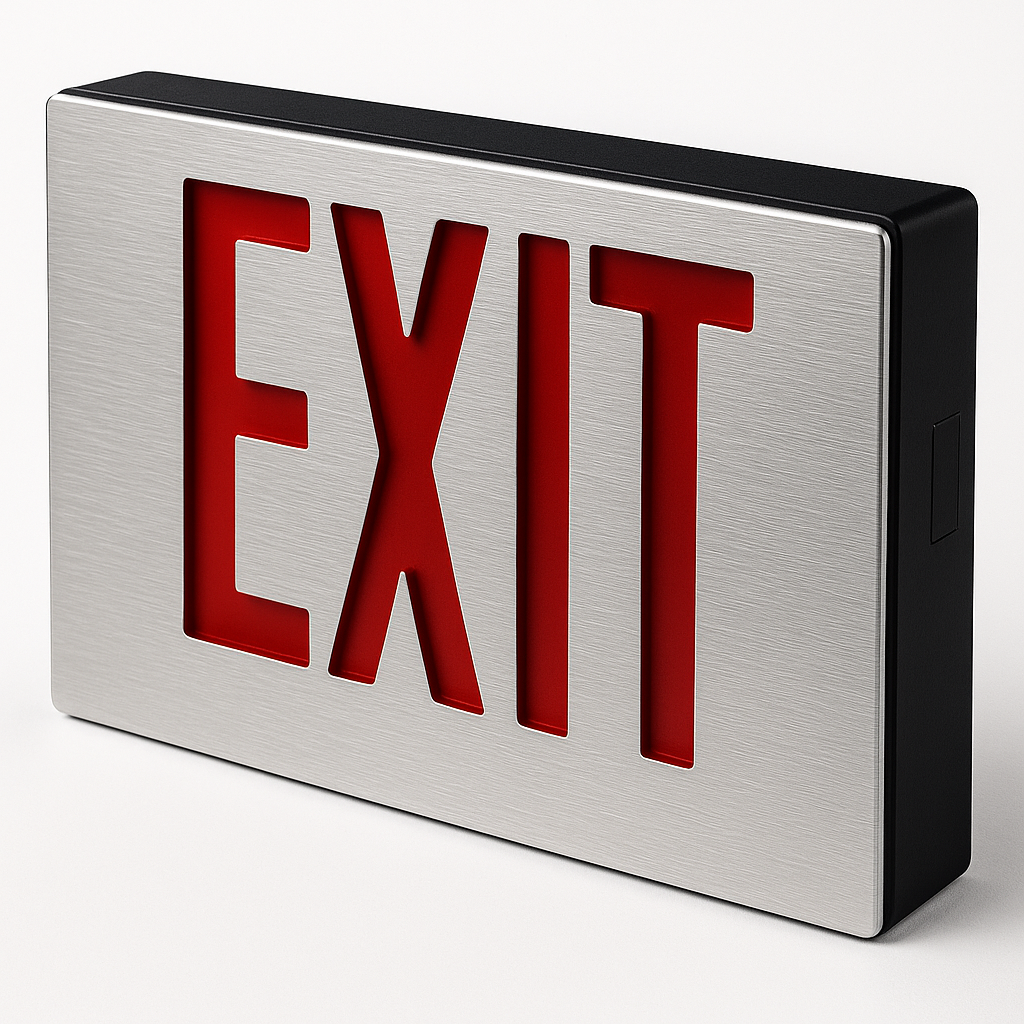

Red Die-Cast Aluminum LED Exit Sign

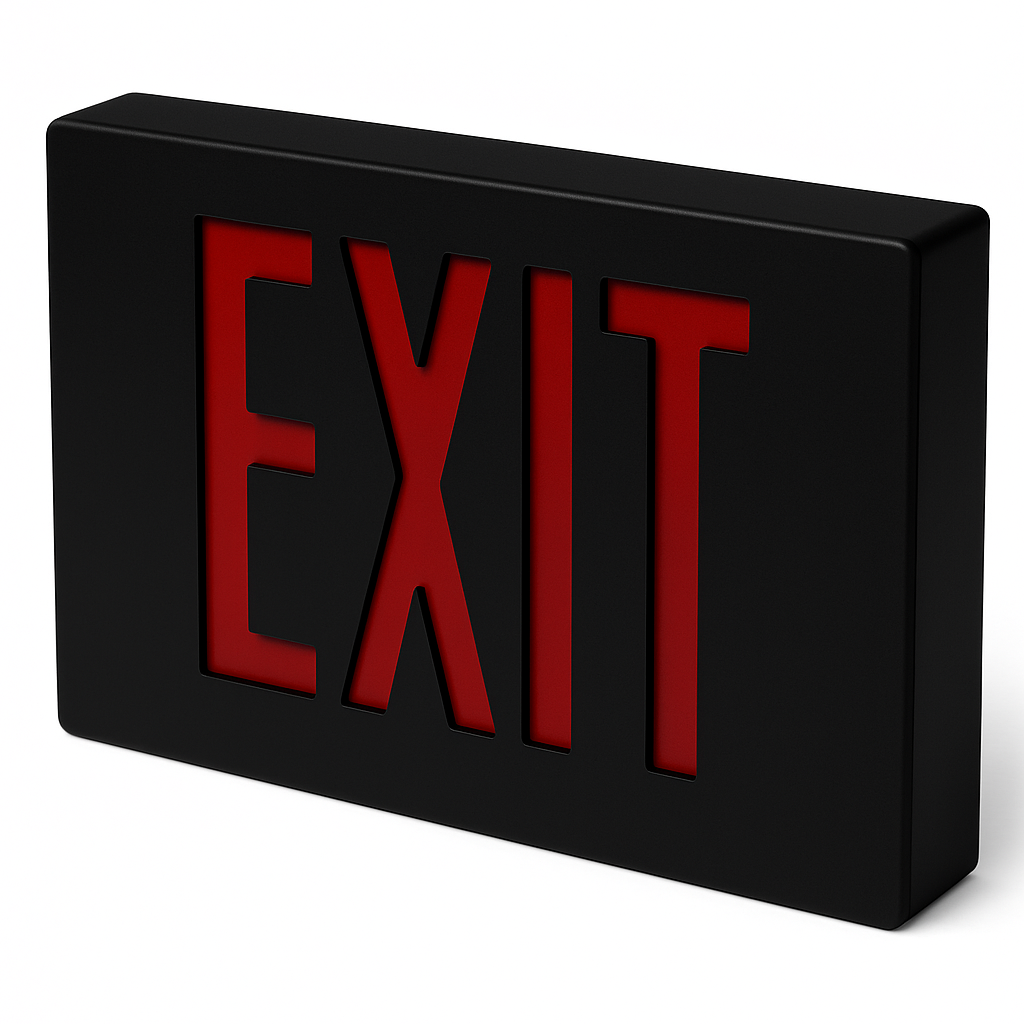

Red Die-Cast Black Housing LED Exit Sign

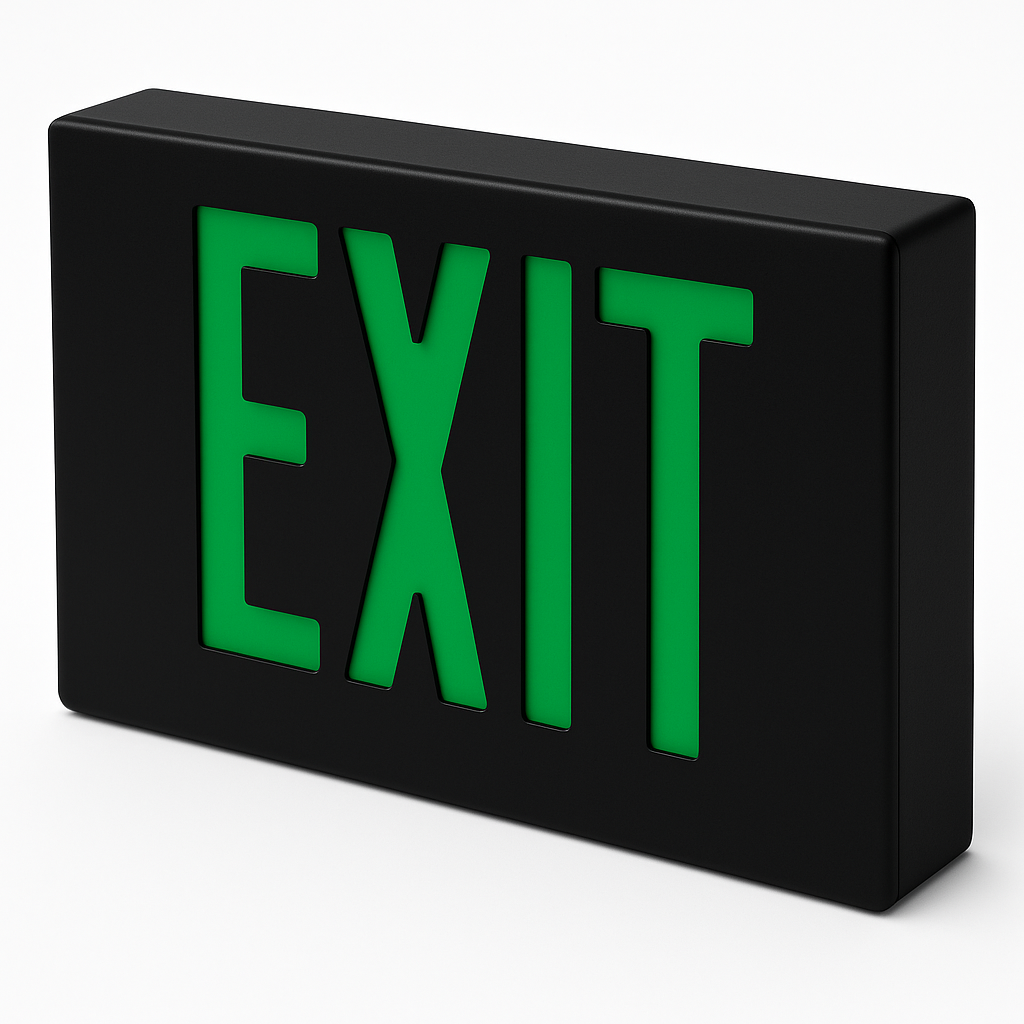

Green Die-Cast Black Housing LED Exit Sign
Red Die-Cast White Housing LED Exit Sign
Green Die-Cast White Housing LED Exit Sign
Green Die-Cast Aluminum LED Exit Sign
Red Die-Cast Aluminum LED Exit Sign
Red Die-Cast Black Housing LED Exit Sign
Green Die-Cast Black Housing LED Exit Sign

Die-Cast Aluminum LED Thin Exit Sign

SKU: KXTEU1RWW
$114.95

Got questions?

Give us a call 800-847-1955!

Thin Die-Cast Aluminum LED Exit Sign - Red/Green Legend, 90-min EM, 120/277 V, Universal Mount - Features & Specs

The KXTEU thin die-cast aluminum LED exit sign delivers a premium, low-profile aesthetic with crisp, uniform illumination and field-selectable red or green letters. Ideal for modern interiors, it pairs a slim metal frame with fast, universal mounting and optional 90-minute emergency backup. Explore our die-cast aluminum exit signs and compare design alternatives in edge-lit exit signs.

UL 924 Red / Green Legend Ni-Cd · 90 min (opt.) 120/277 V Universal Mount Damp Location Thin Aluminum

Key Features

  • Slim, die-cast aluminum housing with refined trim for high-visibility, low-profile egress marking.
  • Field-selectable legend color (red or green) plus snap-out chevrons for directional arrows.
  • Universal faces: ships single-face; converts to double-face in minutes.
  • 120/277 V input, status LED, push-to-test, solid-state transfer & two-rate charging.
  • Optional EM with 4.8 V Ni-Cd for 90-minute battery backup (typical ~24 h recharge).
  • Options include SDT self-diagnostics, 2C-120 / 2C-277 dual-circuit AC, and TP tamper hardware.
  • Ceiling/end mount via canopy or direct wall mount with rear knockouts.

Spec Sheet

Download KXTEU Aluminum Exit Sign Spec Sheet (PDF)

Illumination

Electrical

  • Universal 120/277 VAC input with bi-color status LED and push-to-test.
  • EM models: 4.8 V Ni-Cd battery supports 90-minute emergency operation; ~24 h typical recharge.
  • Solid-state transfer; two-rate automatic charger for battery longevity.

Mounting

  • Die-cast canopy for ceiling (top) or end (flag) mounting.
  • Rear knockouts for wall mounting; keep legend plumb to reduce glare.

Housing / Finish

  • Premium die-cast aluminum body available in brushed aluminum, white, or black.
  • Quick-snap faceplate for tool-free service; robust frame resists flexing.
  • Convertible single/double-face during install for on-site flexibility.

Options

  • SDT — self-testing diagnostics (auto monthly & annual).
  • 2C-120 / 2C-277 — Dual-circuit AC (no battery) for emergency + normal feeds.
  • TP — Tamper-resistant hardware kit.
  • USA — Assembled in the USA (specified variants).

Warranty / Listings

  • 5-year warranty on electronics & housing; battery 5-year prorated.
  • UL 924 listed for damp locations (0–50 °C); meets NFPA 101, NEC, OSHA, CEC Title 20.

Dimensions

  • Approx. 12" W × 8 ¾" H × 2" D (see spec sheet for detailed drawing).

Compare Die-Cast EXIT Choices by Faces, Power & Finish

All items below come from our die-cast LED exit signs catalog . Pick based on faces & legend, power mode, diagnostics / dual-circuit, and finish.

Model / Link Faces & Legend Power Mode Diagnostics / Dual-Circuit Housing & Finish Mounting Best Fit
This model — thin die-cast aluminum exit sign (universal faces) Single → Double; red/green selectable; chevrons EM (Ni-Cd 90-min) or AC-only SDT (opt.); 2C-120/2C-277 (opt.) Die-cast; brushed / white / black Ceiling / end canopy; wall via knockouts Modern interiors seeking thin metal trim
low-profile die-cast LED exit sign (ultra-thin trim) Single / Double; red or green; chevrons EM or AC-only SDT (opt.); dual-circuit (opt.) Die-cast; designer finishes Universal canopy; wall knockouts Tight corridors; architectural retrofits
die-cast exit & light combo (one-box compliance) Single / Double; red legend; chevrons EM battery w/ heads SDT (opt.); dual-circuit (opt.) Die-cast; matches metal trim Canopy or wall; integrated heads When EXIT + egress lighting is required
  • thin die-cast aluminum exit sign
  • metal exit sign red or green letters
  • universal canopy top / end mount
  • Ni-Cd 90-minute battery backup
  • self-testing exit sign option (SDT)
  • dual-circuit 2C-120 / 2C-277
