Compact LED Emergency Lighting for Damp Locations – Features & Specs
The LEDR-1 low-profile LED emergency unit delivers code-compliant egress lighting from two 1 W LED heads in a compact thermoplastic housing. Its 3.6 V Ni-Cd battery provides 90 minutes of illumination, while optional self-diagnostics and high-lumen emergency lights increase spacing. Ideal for commercial interiors and damp location emergency lights. Browse all LED emergency lights.
Key Features
- UL 924 listed; damp-location rated (0–50 °C)

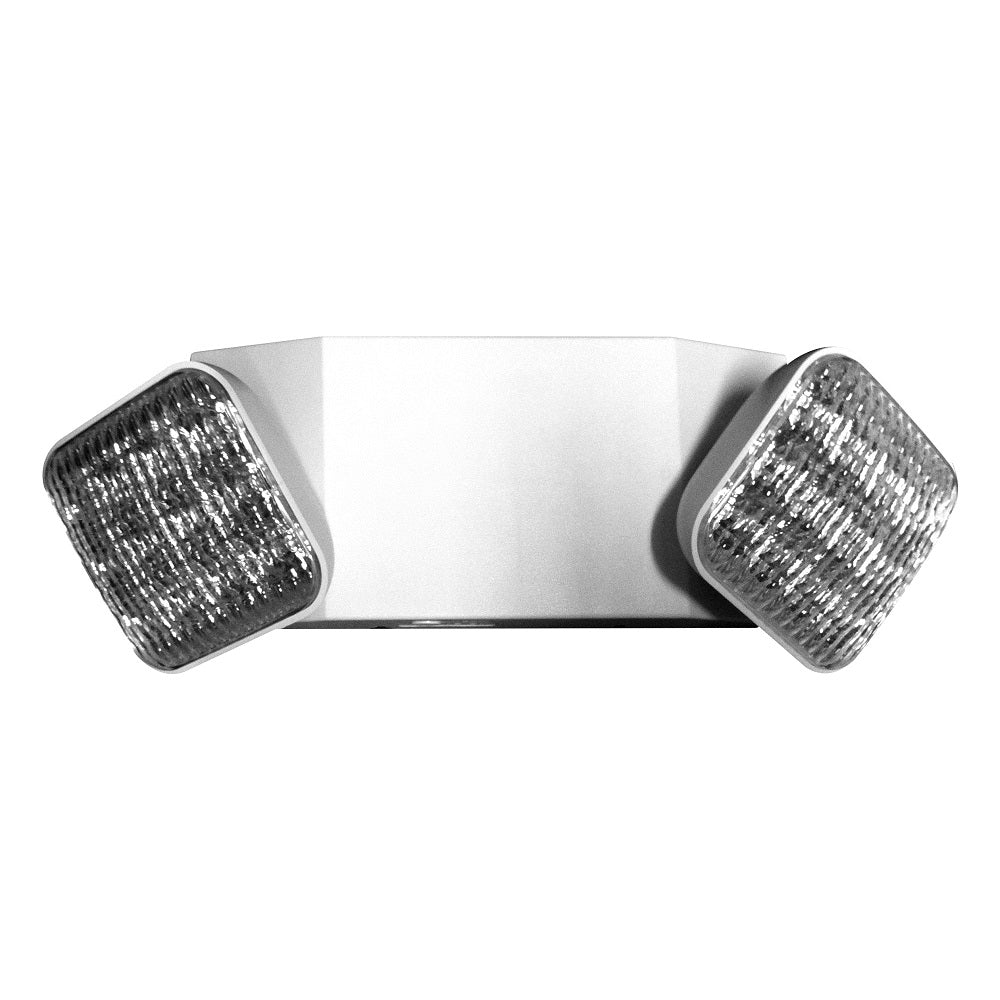

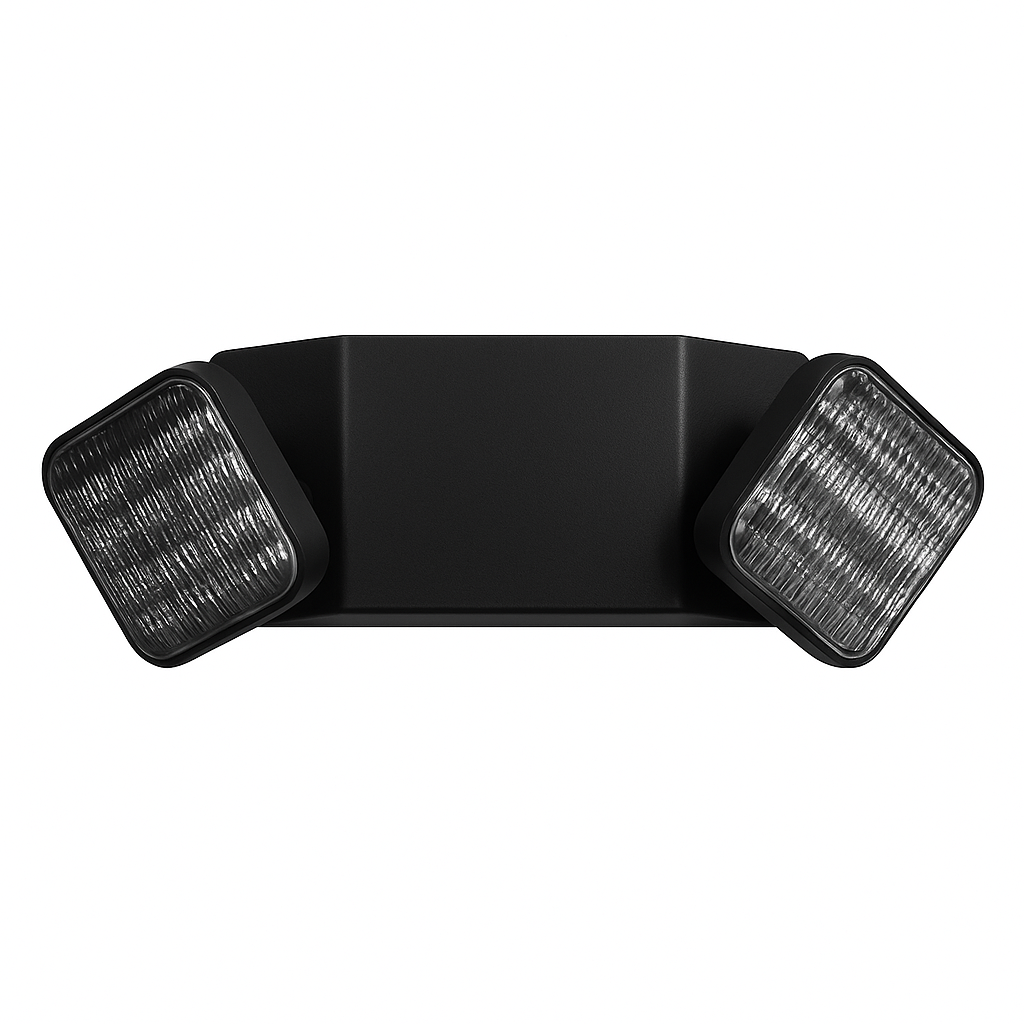

- Low-profile 5VA thermoplastic housing (white or black)
- Dual adjustable LED heads 1.0 W each (HL option: 2.0 W each)
- Spacing up to 30 ft on a 3 ft path at 10 ft mounting height
- Universal 120/277 VAC input (optional SPV 208/220/240 VAC)
- 3.6 V Ni-Cd battery with 90-minute emergency runtime
- Status LED & push-to-test; solid-state transfer; two-rate charger (~24 h)
- Snap-fit backplate fits 4" J-box; wall/ceiling surface mount; ½" conduit knockouts
- Optional SDT self-diagnostics (monthly/biannual/annual)
- Compliance: NFPA 101, NEC, OSHA; CEC Title 20
- Warranty: 5-year electronics/housing; battery 5-year prorated
Spec Sheet
Download LEDR-1 Emergency Unit Spec Sheet (PDF)
Illumination
- Two 1 W white LED heads (8 LEDs × 0.125 W each) with chrome-plated reflectors and lenses
- Up to 30 ft center-to-center spacing on a 3 ft egress path at 10 ft mounting height
- HL option: higher-output heads for extended spacing
Electrical
- 120/277 VAC universal input (optional SPV 208/220/240 VAC)
- 3.6 V Ni-Cd battery; 90-minute emergency runtime
- Bi-color LED status indicator and push-to-test switch
- Solid-state transfer; two-rate charger (24-hour full recharge)
- Input power: 1.8 W
- Input current: 0.022 A @ 120 V | 0.010 A @ 277 V
Mounting
- Snap-fit backplate fits standard 4" junction boxes
- ½" knockouts for top and side conduit feeds
- Wall or ceiling surface-mount
Housing
- 5VA flame-retardant, high-impact thermoplastic — white or black
Options
- HL — higher-lumen heads for greater spacing
- SDT — self-testing emergency lights (automatic monthly/biannual/annual)
- SPV — special-voltage 208/220/240 VAC input
- CSA / CEC / USA — jurisdictional listings; Assembled-in-the-USA emergency lights
Warranty / Listings
- 5-year warranty on electronics and housing; battery prorated 5 years
- UL 924 listed for damp locations (0°C to 50°C)
- Meets NFPA 101, NEC, OSHA, and CEC Title 20
Dimensions
- Cabinet: 10 ¼" W × 5 ½" H × 2 ½" D
- Overall width with heads: 14 ¾"
Frequently Asked Questions
What is the runtime during an outage?
The LEDR-1 provides a minimum of 90 minutes of emergency illumination from its 3.6 V Ni-Cd battery (UL 924 / NFPA 101 compliant).
How far apart can fixtures be spaced?
Up to 30 ft center-to-center on a 3 ft egress path at 10 ft mounting height under standard conditions; the HL head option increases spacing.
Can it mount on ceilings as well as walls?
Yes. The snap-fit backplate supports surface mounting to ceilings or walls and aligns with standard 4" junction boxes.
Is it suitable for wet areas?
No. It is damp-location listed (0°C to 50°C). For exterior or wet environments, see our wet-location emergency lights.
Does this model support remote heads?
The LEDR-1 series does not include remote capacity. For remote-capable units, see our emergency lighting remote heads and compatible remote-capacity fixtures.
