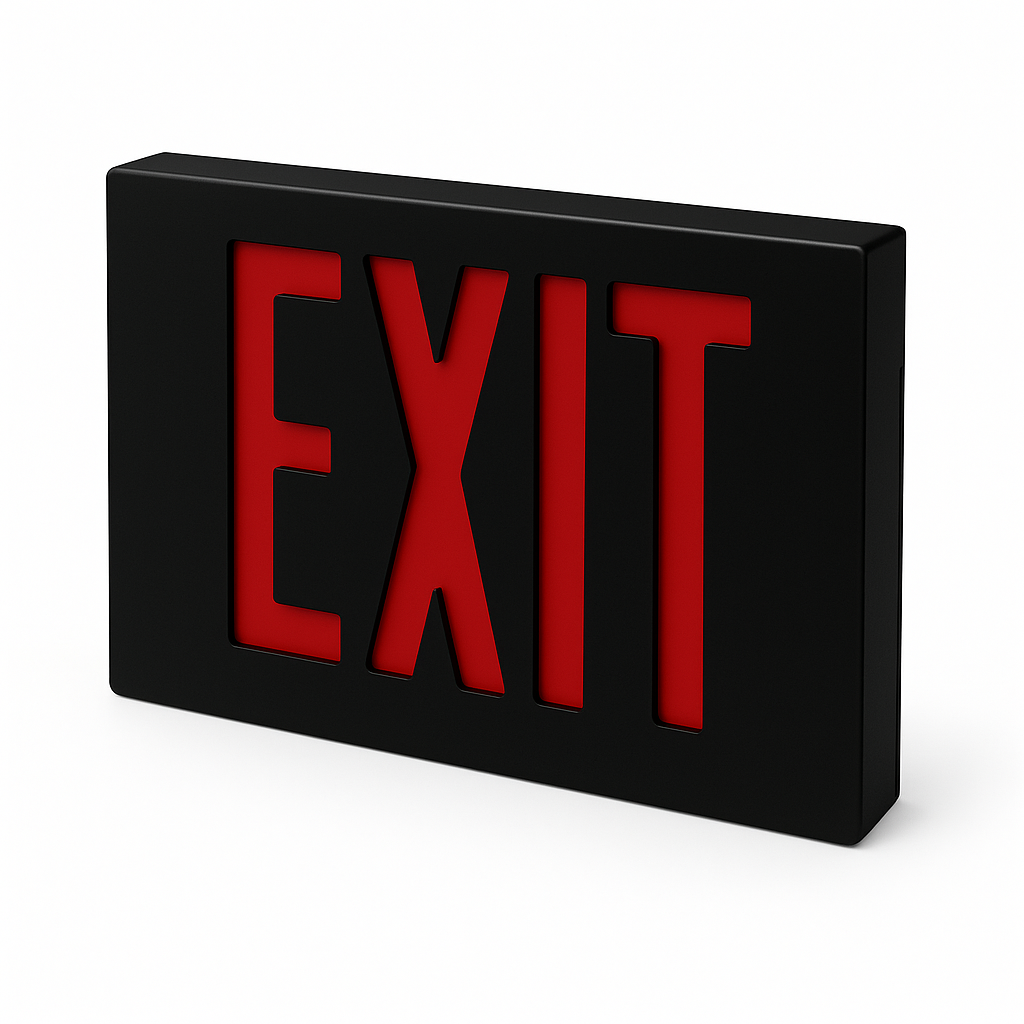

New-York-City-Compliant Black Die-Cast Aluminum Exit Sign

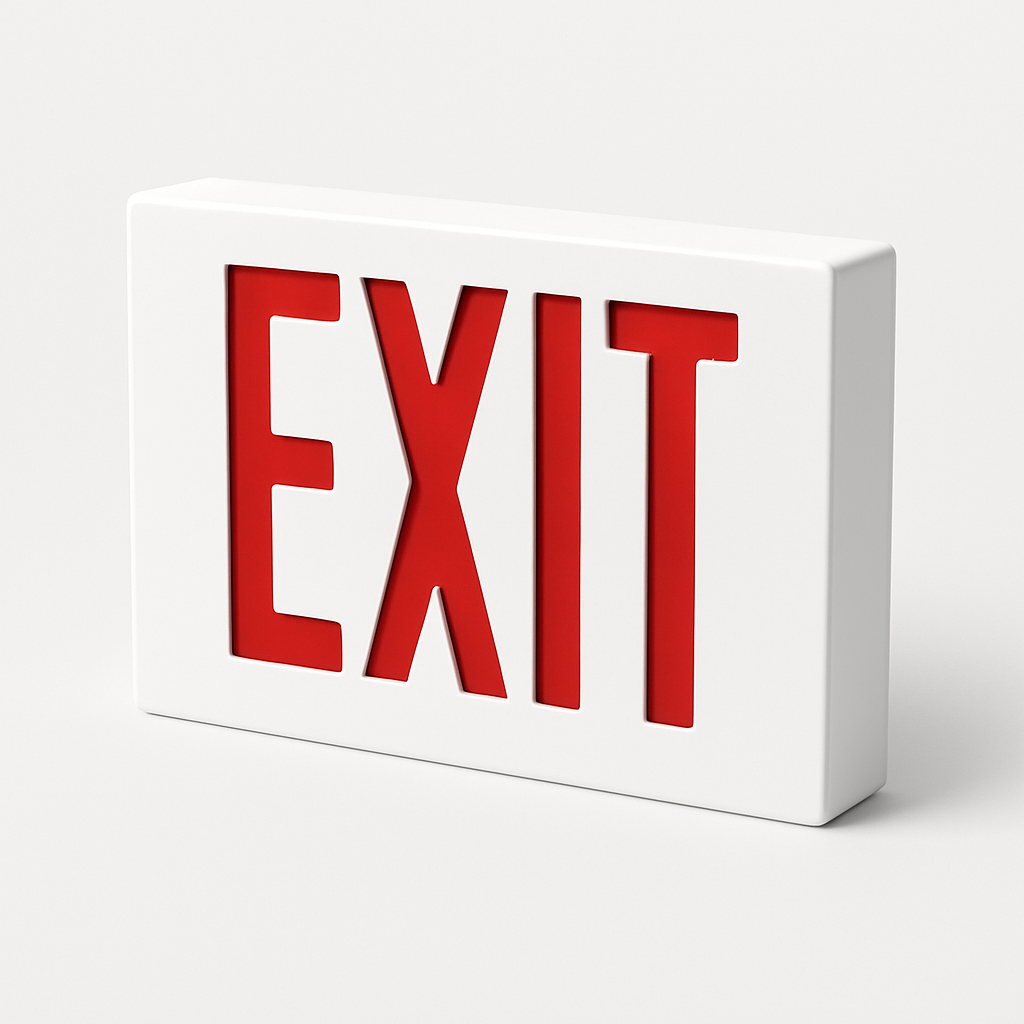

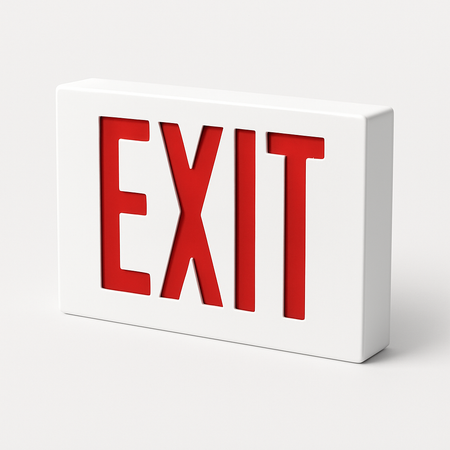

New-York-City-Compliant White Die-Cast Aluminum Exit Sign
New-York-City-Compliant Die-Cast Aluminum Exit Sign
New-York-City-Compliant Black Die-Cast Aluminum Exit Sign
New-York-City-Compliant White Die-Cast Aluminum Exit Sign

New York City - Compliant Die-Cast Aluminum Exit Sign

SKU: NYKXTEU1RWW
$123.72

Got questions?

Give us a call 800-847-1955!

NYC Die-Cast EXIT Sign — 8? Red Letters, 120/277 VAC, Ni-Cd 90-Minute Backup, Self-Testing Option — Features & Specs

The NYKXTEU New-York-City-compliant die-cast aluminum exit sign is engineered for heavy-use commercial interiors where an architectural metal housing and 8-inch red EXIT letters are required by code. A rugged die-cast enclosure resists abuse and keeps lines crisp, while high-efficacy LEDs maintain a bright, even legend for long corridors and large viewing distances. Universal 120/277 VAC input and a dependable 4.8 V Ni-Cd emergency pack (EM models) deliver the required 90-minute runtime. For portfolio maintenance, specify the SDT self-testing option to automate monthly and annual exercises. Compare more metal-body units in our die-cast aluminum exit signs collection, and see the broader NYC assortment under NYC-approved exit signs.

NYC Approved UL 924 8? Red Letters Die-Cast Aluminum Ni-Cd / 90 min 120/277 VAC Universal Mount Single / Double Face Damp Location Self-Testing (opt.)

Key Features

  • NYC-compliant 8? red legend with bold strokes for long viewing distances in corridors, lobbies, and assembly spaces.
  • Heavy-duty die-cast aluminum housing (brushed, white, or black) with tight seams and a quick-release faceplate for service.
  • Universal 120/277 VAC input; bi-color charge/fault LED and push-to-test for NFPA 101 checks.
  • EM models include a 4.8 V Ni-Cd battery for 90-minute emergency illumination; solid-state transfer and two-rate charger (~24 h recharge).
  • Universal canopy supports top or end mount; back-plate knockouts simplify wall mounting.
  • Single- or double-face configurations with snap-out chevron arrows for directional egress.
  • Damp-location rated (0–50 °C) and UL 924 listed; compliant with NFPA 101, NEC, and OSHA.
  • Warranty: 5-year electronics/housing; battery 5-year prorated.

Spec Sheet

Download NYKXTEU Spec Sheet (PDF)

Illumination

  • High-output red LED array tuned for 8-inch characters maintains uniform stroke brightness without hot spots.
  • Optical diffusion and mask geometry preserve legibility at oblique angles common to wide corridors and open lobbies.
  • Double-face models use an internal separator/backer to keep contrast high from both approaches.

Electrical

  • 120/277 VAC universal input, 60 Hz; low standby power for energy-sensitive projects.
  • 4.8 V Ni-Cd emergency pack (EM models) supplies a code-minimum 90-minute duration; full recharge in approximately 24 hours.
  • Solid-state transfer with brownout protection, low-voltage disconnect, and short-circuit safeguards.
  • Front-accessible push-to-test streamlines monthly and annual exercises; indicator LED shows charge/ready/fault.

Mounting

  • Top mount aligns the legend perpendicular to the corridor; end mount projects the face into cross-aisles and vestibules; back mount offers a tidy over-door install using J-box knockouts.
  • Universal die-cast canopy included; hardware kit supports typical gypsum, concrete, and tile substrates (anchors by others).
  • Field-selectable chevrons ship intact—remove only what you need after routes are confirmed with the AHJ.

Housing / Construction

  • One-piece die-cast aluminum body with robust corner bosses reduces flexing and maintains door clearance lines.
  • Durable powder-coat in brushed aluminum, white, or black to coordinate with modern interiors.
  • Quick-snap faceplate keeps service times low and limits exposed fasteners in public spaces.

Options & Diagnostics

  • SDT self-testing automates the 30-second monthly and 90-minute annual tests and annunciates faults (battery, charger, board) on the status LED.
  • Specify double-face where two-way viewing is required at intersections or open lobbies.
  • Pair with damp-location EXIT models outdoors or in high-moisture zones.

NYC Code Checklist

  • Letter size & color: 8-inch red letters (NYC requirement) with continuous strokes and clear internal counters.
  • Duration: 90-minute emergency operation via integral battery (EM versions).
  • Listing: UL 924 emergency lighting and power equipment.
  • Installation: Chevrons must indicate the actual direction of travel; remove only the correct arrowheads.
  • Testing & logs: Maintain monthly/annual records; SDT reduces manual labor by automating the tests.

Dimensions

  • Approx. 15½? W × 10? H × 2? D (verify canopy/clearance on the spec sheet).
NYKXTEU die-cast exit sign transparent sketch — 15½″ W × 10″ H × 2″ D

Related Blog Posts

NYC Exit Signs — Requirements & Submittal Tips Self-Testing Exit Signs — Benefits & Compliance

Compare Die-Cast Aluminum EXIT Signs

Model / Variant Legend Power Diagnostics Mounting Listings Best For
NYC Die-Cast — 8? Red, Single-Face 8? red (NYC) 120/277 VAC • Ni-Cd 90 min SDT self-testing (option) Top / End / Wall UL 924, Damp Corridors, lobbies, retail
NYC Die-Cast — 8? Red, Double-Face 8? red (NYC) 120/277 VAC • Ni-Cd 90 min SDT self-testing (option) Top / End UL 924, Damp Intersections, open corridors
NYC Die-Cast — Self-Testing Package 8? red (NYC) 120/277 VAC • Ni-Cd 90 min Included SDT (factory) Top / End / Wall UL 924, Damp Portfolios needing automated testing

Tip: NYC requires 8? red letters and a minimum 90-minute emergency duration. When selecting between single- and double-face, follow the actual travel path and sightlines your AHJ approves.
