Low-Profile Wet-Location LED Combo Exit Sign

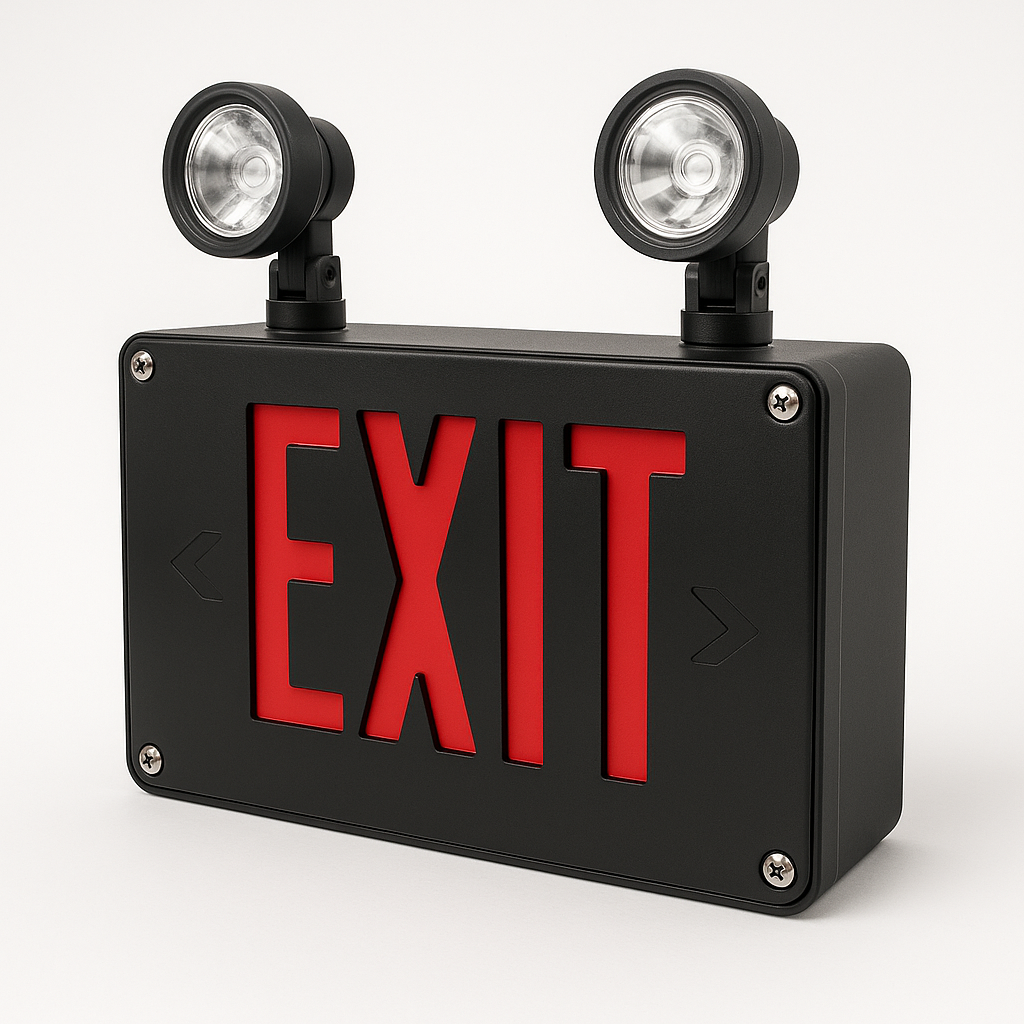

Low-Profile Wet-Location LED Combo Exit Sign with black housing

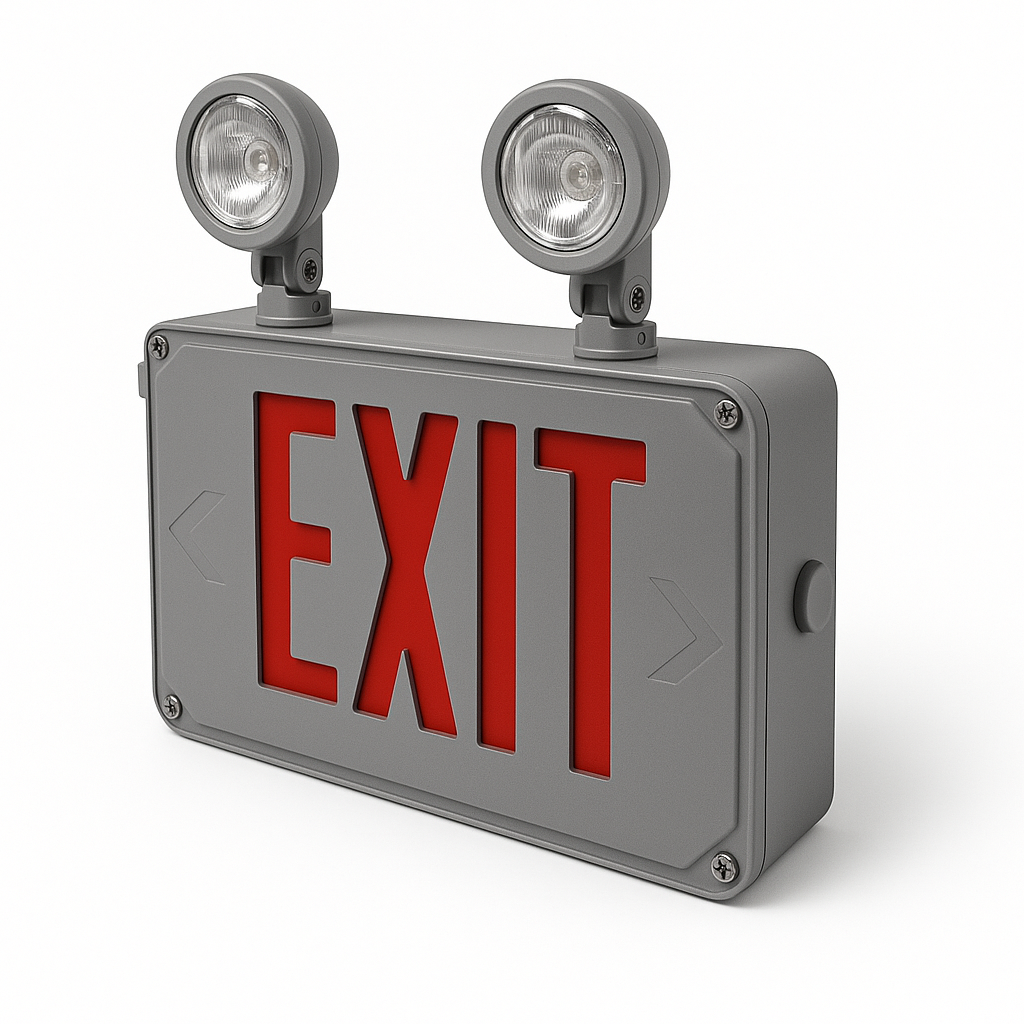

Low-Profile Wet-Location LED Combo Exit Sign with gray housing
Low-Profile Wet-Location LED Combo Exit Sign
Low-Profile Wet-Location LED Combo Exit Sign with black housing
Low-Profile Wet-Location LED Combo Exit Sign with gray housing

Low-Profile Wet-Location LED Combo Exit Sign

SKU: WLCEM1RGW
$181.35

Got questions?

Give us a call 800-847-1955!

Low‑Profile Wet‑Location Exit & Emergency Combo — Polycarbonate, Red/Green Legend, Dual 1 W Heads, Remote 2 W (Opt.), 120/277V, UL 924 / 90‑min — Features & Specs

The WLCEM Low‑Profile Wet‑Location Exit / Emergency Combo delivers dependable egress lighting in harsh, damp, or hose‑down environments. A gasket‑sealed polycarbonate housing protects dual 1 W LED lampheads and a field‑selectable red or green LED EXIT legend. Tool‑friendly mounting, a 90‑minute Ni‑Cd backup, and optional RC 2 W remote capacity or cold‑weather package make code compliance straightforward. Explore our wet‑location exit sign combos, exit sign & emergency light combos, low‑profile exit signs, and—for classified sites— hazardous‑location exit sign & light combos.

UL 924 Red / Green Dual 1 W Heads 120/277 VAC Ni‑Cd / 90 min Wet Location Polycarbonate Remote 2 W (Opt.) Cold Weather (Opt.) Low Profile

Key Features

  • UL 924 wet‑location listing (0–50 °C) for wash‑down / outdoor exposure
  • Gasketed, impact‑resistant polycarbonate housing with clear sealed lens
  • Dual 1 W LED heads; design‑aid spacing up to 18 ft at 7.5 ft mounting height
  • Field‑selectable EXIT legend: red or green; snap‑out chevrons for wayfinding
  • Universal 120/277 VAC input; status LED & push‑to‑test for code checks
  • 3.6 V Ni‑Cd battery with ≥ 90 min runtime; solid‑state transfer; two‑rate charger (~24 h)
  • Mounting: snap‑fit canopy (top/end) + universal backplate for wall / conduit; standard J‑box pattern
  • Options: CW cold‑weather to −20 °C; RC 2 W remote capacity (see compatible remote LED heads); TP tamper‑resistant kit
  • Compliance: NFPA 101, NEC, OSHA; CEC Title 20
  • Warranty: 5‑year electronics/housing; battery 5‑year prorated

Related Wet‑Location Combo Guides

Wet‑Location Emergency Lighting — NEMA 4X/IP65/IP66 & Gasketed Enclosures Exit/Emergency Combos — Code Triggers, Mounting & Sizing

Spec Sheet

Download WLCEM Exit Combo Spec Sheet (PDF)

Illumination

  • Two high‑output 1 W LED lampheads; design‑aid spacing up to 18 ft at 7.5 ft height
  • Field‑selectable red or green LED EXIT legend; chevrons included

Electrical

  • 120/277 VAC input with test button and bi‑color status LED
  • 3.6 V Ni‑Cd battery provides ≥ 90‑minute emergency runtime
  • Solid‑state transfer switch and two‑rate charger (~24‑hour recharge)

Mounting

  • Snap‑fit polycarbonate canopy for top or end mount
  • Universal backplate with knockouts for wall / conduit mounting; compatible with common J‑box layouts
  • Field‑selectable chevrons with snap‑out arrows

Housing / Lens

Options

  • CW — cold‑weather battery (operates down to −20 °C)
  • RC — 2 W remote‑head capacity
  • TP — tamper‑resistant hardware kit

Warranty / Listings

  • 5‑year warranty on electronics & housing; battery prorated 5 years
  • Listed to UL 924 for wet locations (0 °C – 50 °C)
  • NFPA 101, NEC, OSHA, and CEC Title 20 compliant

Dimensions

  • See spec sheet for detailed dimensions and knockout locations
