Steel Emergency Lights Buyers Guide

Steel Emergency Lights Buyers Guide

Overview

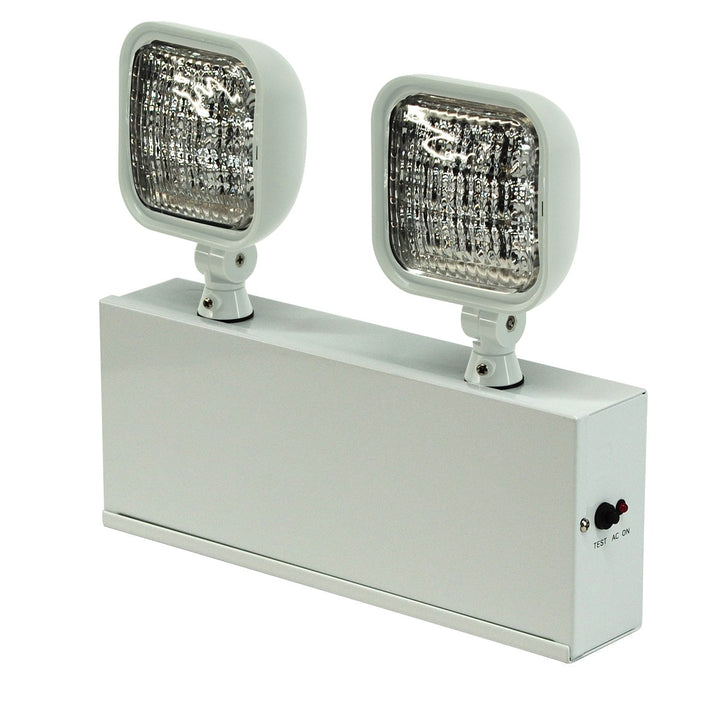

Steel Emergency Light Housing

The industrial-grade steel emergency lighting fixtures known as steel emergency lights use heavy-duty steel housings to provide reliable illumination during power outages in tough conditions.

Typically constructed from 18–20 gauge steel, these units offer superior impact resistance, fire tolerance, and tamper protection compared to standard thermoplastic emergency lights. Inside the steel housing, you’ll find a battery backup system and bright LED lamp heads that automatically turn on when normal power fails, ensuring at least 90 minutes of light to safely guide occupants to exits in an emergency.

Steel-bodied emergency lights are commonly used in demanding environments such as warehouses, stairwells, factories, correctional facilities, and loading docks – anywhere the lights must remain operational in high-risk or rough conditions. The durable powder-coated steel enclosures resist rust and corrosion and often include features like gasketed covers or tamper-resistant screws for additional protection. Steel units are also “remote-capable,” meaning they house larger batteries that can power additional remote lamp heads in other locations, extending emergency lighting coverage without installing separate fixtures.

Like all code-compliant emergency lights, steel units are UL 924 listed and meet NFPA 101 Life Safety Code and OSHA requirements for emergency egress lighting, so they perform the same lifesaving function as other emergency lights but with a tougher build.

Highlight: One advantage of steel emergency lights is their capacity for larger batteries and remote heads. A single steel unit can often support multiple remote lamps from one central battery, reducing the number of batteries to maintain. This “one big unit” approach lowers long-term upkeep costs while still providing wide emergency illumination coverage.

Brightness, Charging, and Lifespan

Steel emergency lights use high-efficiency LEDs (light-emitting diodes) to provide bright illumination that meets or exceeds code requirements. All modern emergency lights are designed to provide at least 1 foot-candle of illumination along the egress path at floor level. A typical dual-head LED emergency light—commonly called a "bug-eye"—can cover about 14 to 18 feet of hallway when mounted 7.5 feet high, delivering adequate floor-level brightness.

Each lamp head typically emits between a few dozen to a couple hundred lumens, with standard units producing about 80 lumens per lamp—sufficient to light up doorways, aisles, or corridors in the dark. For larger facilities or open areas, steel models can accommodate higher-wattage lamp heads or include additional heads to expand the coverage zone.

Battery Charging: Steel emergency lights are hardwired to building power at 120V or 277V AC. The internal charger maintains the battery’s full charge and automatically switches to battery power during an outage. After discharging, the battery usually recharges within 24 hours per UL 924 compliance. Charging systems include built-in protections like overcharge prevention and low-battery cutoffs to extend battery lifespan and avoid damage. As long as the unit remains powered, the charger will keep the battery topped off and healthy.

Lifespan and Maintenance: The steel housing is built to last decades, and the LED lamp heads commonly have rated lifespans of over 50,000 hours—about 10 years or more of service. LEDs typically never need replacement. However, batteries are consumables and must be replaced every 3 to 5 years to ensure the 90-minute runtime is maintained. Most steel emergency lights offer convenient features like front-access panels, quick-connect battery packs, or built-in self-testing circuits that flash alerts when maintenance is required. With occasional battery care, a steel unit can easily deliver 10 to 20 years of reliable performance.

Note: Steel construction enhances durability—not brightness. The runtime and intensity still rely on the battery size and LED efficiency. Many steel and plastic units use the same lamp heads and batteries; what sets steel apart is its ability to protect those components in harsh or demanding environments.

Safety and Compliance Requirements

Steel emergency lights must meet the same baseline safety codes as any other emergency lighting. In the U.S., this includes UL 924 listing (the national standard for emergency lighting equipment), NFPA 101 Life Safety Code, and OSHA requirements. UL 924 certification ensures the unit has been tested to deliver at least 90 minutes of backup lighting, recharge correctly, and protect its battery.

According to NFPA 101 and the National Electrical Code (NEC), emergency lighting must automatically activate during a power failure and provide at least 1 foot-candle of illumination along the egress path for a minimum of 90 minutes. These standards apply to most commercial and public buildings, meaning a steel emergency light can be used anywhere a standard emergency light is required—provided it's installed and maintained properly.

Local Code Differences: Some cities enforce stricter standards that require steel or metal construction specifically. For example, New York City mandates metal housings (no plastic) for both emergency lights and exit signs. NYC also requires double the national minimum brightness—2 foot-candles at floor level. Likewise, Chicago's code requires a metal faceplate or housing to improve tamper resistance and durability. These local codes reflect the need for tougher, longer-lasting safety equipment in dense urban environments.

Outside these cities, thermoplastic emergency lights are generally allowed as long as they meet the UL 924 requirements. However, steel models are still a preferred option in high-risk or high-traffic areas due to their rugged design and superior resistance to wear and damage. Always verify your project’s compliance with local, state, and national codes when specifying emergency lighting.

Reminder: In New York City and Chicago, plastic-bodied emergency lights are not permitted. NYC requires metal housings, and Chicago demands metal faceplates. Using a thermoplastic unit in these cities may lead to failed inspections—stick with steel or aluminum models to remain compliant.

Ideal Use Cases

Steel emergency lights are best suited for tough environments where durability and reliability are critical. While thermoplastic units may suffice in offices and dry retail locations, steel lights shine in harsher conditions. Their rugged construction ensures performance in the face of vibration, heat, impact, or tampering.

  • Industrial Facilities & Warehouses: These areas experience heavy equipment traffic and vibrations. Steel emergency lights resist damage from impacts and machinery while providing high-output illumination across large spaces.
  • Public Stairwells & Corridors: High-traffic zones like parking garages, schools, and transit terminals benefit from steel units' tamper resistance. They hold up better against vandalism or accidental contact than plastic models.
  • High-Temperature Zones: Mechanical rooms, boiler areas, or ceilings near hot industrial equipment require lights that won't warp or degrade from heat. Steel housings maintain structural integrity at temperatures that might deform plastic.
  • Correctional & Institutional Buildings: Jails, psychiatric centers, and similar environments demand secure emergency lighting. Steel lights with tamper-resistant screws and thick enclosures prevent unauthorized access and damage.
  • NYC / Chicago Compliance: In cities with stricter codes—like New York City and Chicago—metal construction is required by law. Steel emergency lights ensure compliance with these enhanced safety regulations.

Use steel emergency lighting strategically: place them in high-risk or mission-critical areas where failure is not an option, and consider thermoplastic fixtures in safer zones to balance cost and coverage.

Pro Tip: Mix and match for savings. Use steel units in harsh or vandal-prone zones—like warehouses or stairwells—and reserve thermoplastic lights for office interiors. This hybrid approach balances durability, compliance, and budget.

Installation, Inspection, and Testing

Installation: Installing a steel emergency light follows the same general process as any emergency lighting fixture but requires secure anchoring due to its heavier weight. Units can be mounted on ceilings or walls using the manufacturer’s mounting bracket or a universal plate. For best support, mount to studs or masonry and ensure the junction box is firmly secured. Once mounted, connect the 120V or 277V AC building power and attach the internal battery leads. Some models also support remote heads; if using this feature, run the appropriate wires to external remote lamp locations.

After setup, adjust the LED lamp heads to illuminate exits and egress paths effectively. Most units include a green “AC On” LED indicator that shows charging status. A quick push-button test should be conducted immediately after installation to verify battery operation and proper wiring.

Inspection & Maintenance: Steel emergency lights are low-maintenance but not maintenance-free. NFPA 101 and OSHA require a 30-second monthly functionality test and a full 90-minute test annually. During monthly checks, inspect the housing, ensure lamp heads are unblocked, and verify the unit remains firmly mounted. In industrial settings, you may also need to wipe down or vacuum vents to prevent dust buildup around electronics.

Testing & Diagnostics: Annual tests can be performed manually by shutting off power or pressing the unit’s test switch for 90 minutes. Some models offer self-diagnostic features that conduct automated monthly and annual tests and flash a warning if an issue is detected. Even with self-testing, it’s critical to replace batteries every few years and act promptly if indicators signal failure.

Highlight: Maintenance matters. Monthly test buttons confirm battery function, and annual runtime tests validate full compliance. Even the toughest steel light relies on a healthy battery—replace it every 3–5 years to stay safe and code-compliant.

Steel vs Other Material Options

While steel emergency lights offer unmatched strength and reliability, other material options may better suit specific needs or budgets. Thermoplastic, polycarbonate and die-cast aluminum exit sign housings each serve distinct use cases.

Thermoplastic Emergency Lights

  • Affordable & Lightweight: Thermoplastic lights are the most budget-friendly and are easy to install. A basic unit may cost as little as $20–$40, making them ideal for large-scale, low-risk deployments.
  • Standard Indoor Use: Best for dry, climate-controlled locations like offices, classrooms, and retail stores. Most are flame-retardant and UL 924 listed but lack heavy-duty features.
  • Durability Limitations: Prone to cracking under impact or degrading in extreme heat or UV exposure. Not recommended for rough or public areas where tampering is possible.
  • Not Always Code-Compliant: Cities like NYC prohibit plastic emergency light housings. Always verify local code before installation.

Steel Emergency Lights

  • High Durability: Made with 20-gauge or thicker steel, these units resist impact, corrosion, vibration, and heat—ideal for warehouses, industrial zones, and correctional facilities.
  • Higher Price Point: A basic steel unit can cost $80–$150 or more. However, remote-capable units may replace multiple thermoplastic lights by covering larger areas from a single battery source.
  • Remote Head Support: Many steel lights are designed to power multiple remote lamp heads. This makes them more scalable and efficient in large or complex layouts.
  • Meets All Local Codes: Fully compliant with national and local standards including NYC and Chicago mandates.

Other Metal & Specialty Housings

  • Die-Cast Aluminum: Lighter than steel and corrosion-resistant. Popular in architectural environments or coastal installations. Accepted in NYC/Chicago where metal is required.
  • Polycarbonate & Hybrid: Some vandal-resistant or wet-location units use polycarbonate housings reinforced with metal plates. These serve niche roles but can combine impact resistance with lightweight construction.

Ultimately, the best material choice depends on your environment and code obligations. Thermoplastic is cost-effective for low-risk areas. Steel is the default for heavy-duty use. Aluminum strikes a balance for architectural or coastal locations.

Insight: Don’t default to one material for every room. Choose thermoplastic for office interiors, steel for industrial or vandal-prone spaces, and aluminum for sleek or corrosion-resistant applications.

Steel vs Other Material Options

While steel emergency lights offer unmatched strength and reliability, other material options may better suit specific needs or budgets. Thermoplastic, die-cast aluminum, and polycarbonate housings each serve distinct use cases.

Thermoplastic Emergency Lights

  • Affordable & Lightweight: Thermoplastic lights are the most budget-friendly and are easy to install. A basic unit may cost as little as $20–$40, making them ideal for large-scale, low-risk deployments.
  • Standard Indoor Use: Best for dry, climate-controlled locations like offices, classrooms, and retail stores. Most are flame-retardant and UL 924 listed but lack heavy-duty features.
  • Durability Limitations: Prone to cracking under impact or degrading in extreme heat or UV exposure. Not recommended for rough or public areas where tampering is possible.
  • Not Always Code-Compliant: Cities like NYC prohibit plastic emergency light housings. Always verify local code before installation.

Steel Emergency Lights

  • High Durability: Made with 20-gauge or thicker steel, these units resist impact, corrosion, vibration, and heat—ideal for warehouses, industrial zones, and correctional facilities.
  • Higher Price Point: A basic steel unit can cost $80–$150 or more. However, remote-capable units may replace multiple thermoplastic lights by covering larger areas from a single battery source.
  • Remote Head Support: Many steel lights are designed to power multiple remote lamp heads. This makes them more scalable and efficient in large or complex layouts.
  • Meets All Local Codes: Fully compliant with national and local standards including NYC and Chicago mandates.

Other Metal & Specialty Housings

  • Die-Cast Aluminum: Lighter than steel and corrosion-resistant. Popular in architectural environments or coastal installations. Accepted in NYC/Chicago where metal is required.
  • Polycarbonate & Hybrid: Some vandal-resistant or wet-location units use polycarbonate housings reinforced with metal plates. These serve niche roles but can combine impact resistance with lightweight construction.

Ultimately, the best material choice depends on your environment and code obligations. Thermoplastic is cost-effective for low-risk areas. Steel is the default for heavy-duty use. Aluminum strikes a balance for architectural or coastal locations.

Insight: Don’t default to one material for every room. Choose thermoplastic for office interiors, steel for industrial or vandal-prone spaces, and aluminum for sleek or corrosion-resistant applications.

Conclusion and Additional Tips

Steel emergency lights provide rugged, code-compliant protection for egress pathways in the most demanding environments. Built to handle impact, heat, and tampering, these units are ideal for industrial, institutional, and high-traffic settings where performance under stress is essential. They function just like standard emergency lights—activating during power loss and delivering 90+ minutes of illumination—but offer longer physical life and lower maintenance when installed correctly.

To get the most from your steel emergency lighting investment, keep the following in mind:

  • Mount Securely: These fixtures are heavier than thermoplastic units, so install them into studs, solid surfaces, or masonry using proper anchors and the manufacturer’s mounting bracket.
  • Optimize Lamp Head Coverage: Aim the heads to ensure egress routes, doorways, and corners are well-lit. One unit can often serve multiple purposes in a corridor or industrial area.
  • Replace Batteries Proactively: Even if your steel unit still looks perfect after 5 years, its battery might not be. Replace batteries every 3–5 years to preserve full 90-minute operation.
  • Mix Materials Strategically: Use steel where toughness is needed, but don’t hesitate to install plastic lights in clean, controlled environments. This balanced approach keeps your facility safe without overspending.
  • Keep a Test Log: NFPA and OSHA require regular testing. Maintain written records to satisfy fire inspectors and identify issues early.

Choosing steel emergency lights means prioritizing resilience, compliance, and peace of mind. Though they cost more upfront, their performance and durability justify the investment—especially in areas where failure is not an option.
