600E Series Steel Direct View LED Exit - Letter-Color: Red - Face: Double - Finish: White

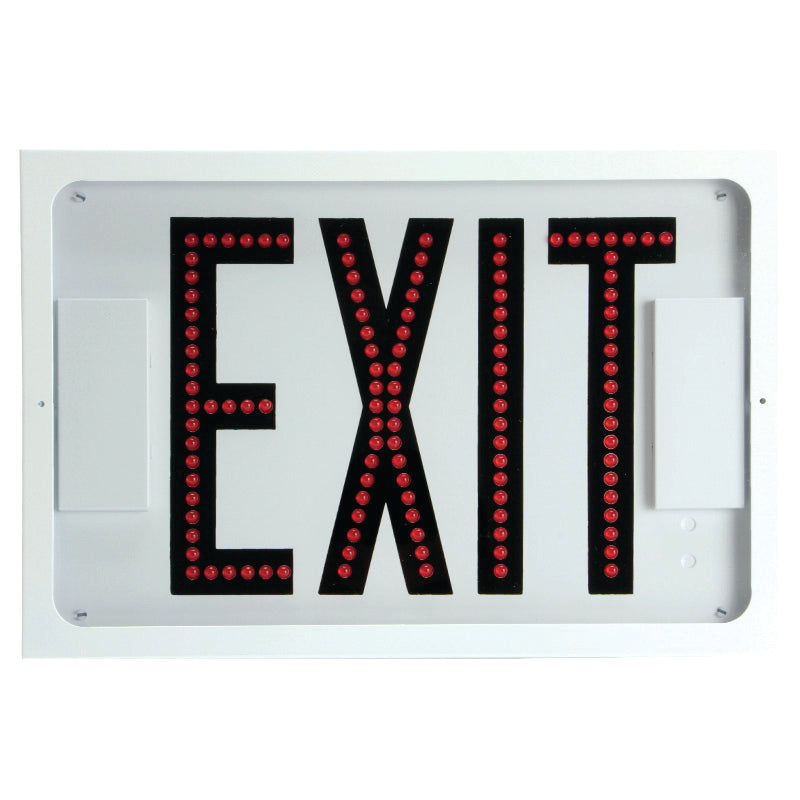

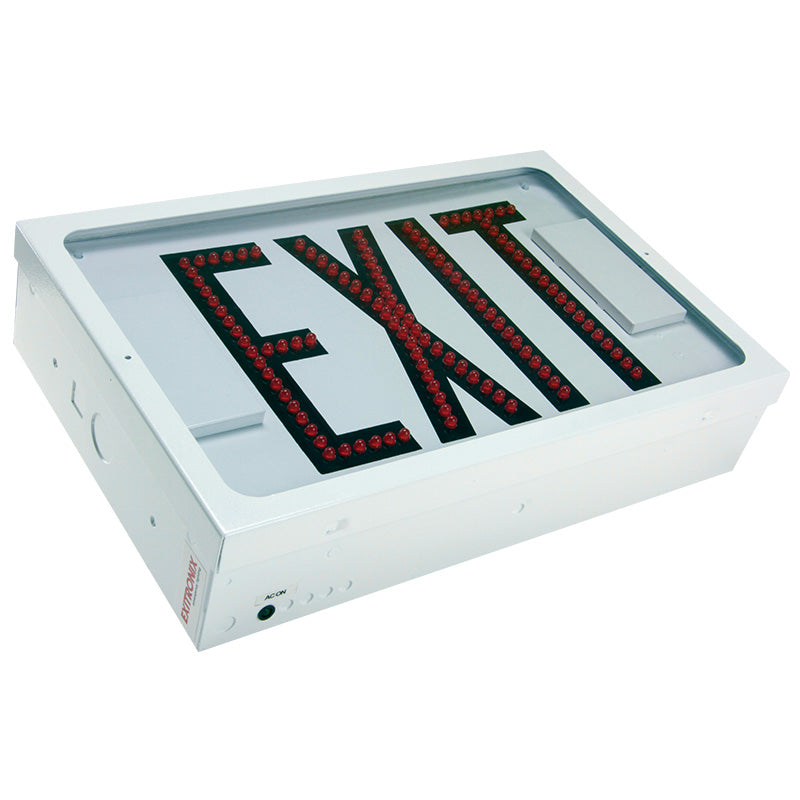

The 600E Series Steel Direct-View LED Exit Sign uses a dot-matrix array of red or green LEDs to spell “EXIT,” producing the brightest, most visible legend even in smoke-filled conditions. Its rugged 20-gauge steel cabinet and 1⁄8 in vandal-resistant polycarbonate lens surround universal 120/277 VAC electronics and an optional Ni-MH battery (≥ 90 min runtime) for a durable, code-compliant solution that mounts ceiling, end or wall.

Features & Benefits

• Rugged 20 ga steel enclosure with decorative face frame
• Solid 1⁄8 in vandal-resistant polycarbonate lens
• Field-selectable chevron knock-outs
• Combo option (REN3) adds two 2.6 W PAR16 LED heads
• G1 Guardian self-diagnostics available
• Assembled in the USA

Illumination

• Direct-view, high-intensity red or green LEDs
• 6 in characters, ¾ in stroke; meets UL 924 100-ft viewing distance

Electrical

• Universal 120/277 VAC, 50/60 Hz dual-primary input
• Maintenance-free Ni-MH battery (WB) — ≥ 90 min emergency, 24 h recharge
• Low-voltage disconnect, brown-out, short-circuit & surge protection
• Solid-state transfer switch with push-to-test button

Mounting

• Ceiling, end or wall mount; die-cast canopy included
• Universal knockout pattern on back-plate

Housing / Finish

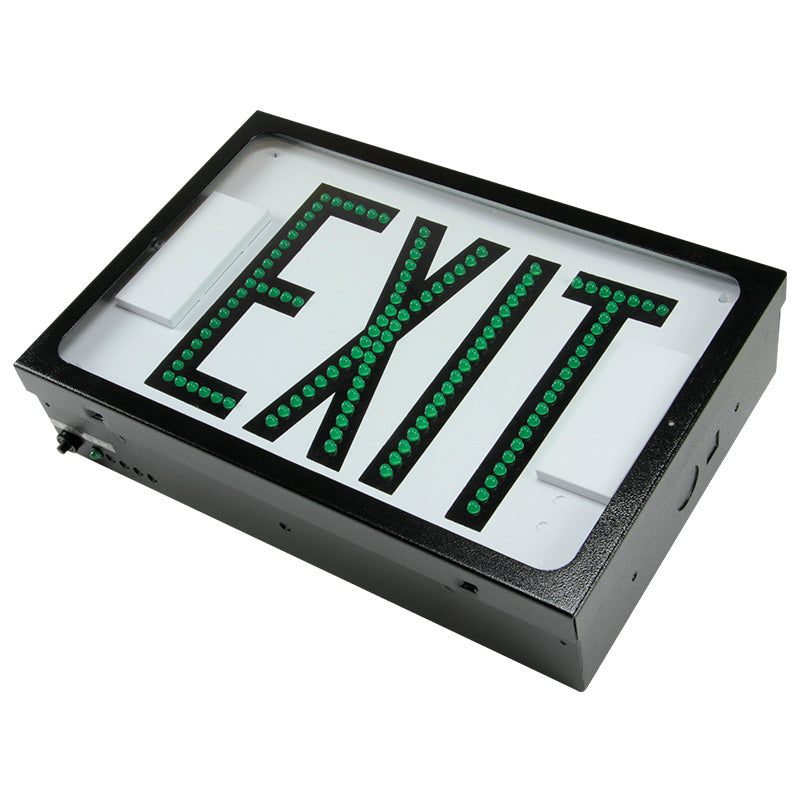

• Powder-coated steel cabinet — white or black
• Overall size: 12.4 in W × 8 in H × 2.75 in D

Options

• G1 — Guardian self-diagnostics
• DL — integral down-light
• DR — damp-location label
• REN3 — twin 2.6 W PAR16 LED heads (combo)

Warranty / Listings

• 25-year warranty on electronics & housing; battery prorated five years
• UL 924 listed; NFPA 101 & NEC compliant; damp-location rated (0 °C – 40 °C)

Product Features

• Assembled in the USA
• Brand: Exitronix
• Damp Location
• Face: Double
• LED
• Letter Color: Red
• Product: 600E
• Self Testing
• Steel
• Exit Signs
• Vandal Resistant
