NYC Approved 8-Inch Die-Cast Aluminum LED Exit Sign
Regular price
$205.86
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
NYC Approved 8-Inch Die-Cast Aluminum LED Exit Sign

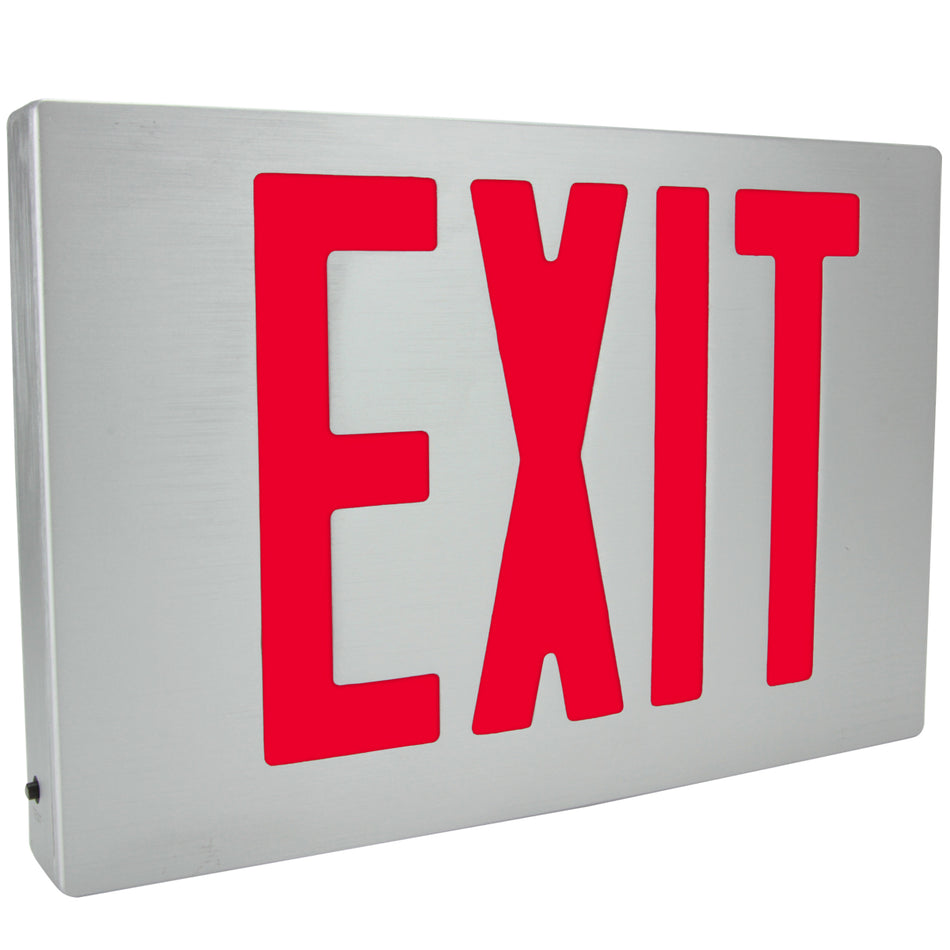

The 400U-8 Universal Die-Cast Aluminum LED Exit Sign is compliant with City of New York code requirements, featuring 8-inch red LED characters and a rugged die-cast aluminum exit sign housing . This NYC-approved LED exit sign ships with two faceplates, a backplate, and a universal mounting canopy for easy configuration as a single or double-face exit sign in wall, end, or ceiling-mount applications.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- NYC Approved
- UL 924
- 8" Red Letters
- Universal Mount
- Die-Cast Aluminum
- Damp Location
- Battery Backup (opt.)
- Self-Testing (opt.)
- 120/277 VAC
- NFPA 101
Key features
- NYC-approved 8" red LED legend with 1" stroke and 100 ft viewing distance.
- Universal canopy supports ceiling, wall, or end mounting.
- Ships with dual faceplates + backplate for single- or double-face setups.
- Heavy-duty die-cast aluminum housing; finishes: BA (Brushed Aluminum), BB (Black), BL (Black/Aluminum), WW (White).
- Dual-voltage 120/277 VAC operation; low power (starting at ~ 2 W ).
- Optional WB Ni-Cd battery provides 90 minutes ; 24-hour recharge.
- Optional G2 Guardian self-diagnostics (battery models).
- Backplate with universal J-box pattern; supports conduit entry and pendant mounting.
- Concealed chevron knockouts for field-selectable arrows.
- UL 924 listed; damp-location rated ( 0 °C–40 °C ); meets NEC and NFPA 101 .
- Accessories: wire guard ( WG-S ) or polycarbonate guard ( XG-6 ).
- 5-year warranty on electronics & housing (battery prorated 5 years).
Documents
Related NYC Exit Sign Guides
NYC Exit Signs – Product Guide Self-Testing Exit Signs in NYC
Spec Sheet
Download Exit Sign Spec Sheet (PDF)
Illumination
- Uniform lighting from long-life, high-intensity red LED characters.
- 8-inch legend with 1" stroke —compliant with NYC exit sign code .
- Meets UL 924 photometric standards for exit signs.
Electrical
- Dual-voltage input: 120/277 VAC ( 60 Hz ).
- WB model includes Ni-Cd battery for 90-minute emergency runtime with 24-hour recharge.
- Low-voltage disconnect, brownout protection, solid-state transfer, and test button.
- G2 Guardian self-diagnostic system available on battery models.
Mounting
- Universal die-cast canopy supports ceiling, end, or wall mounting.
- Backplate with universal J-box pattern; conduit entry supported; pendant mounting capable.
- Field-selectable, concealed chevron knockouts for directional arrows.
Housing
- Heavy-duty die-cast aluminum construction with soft-corner design.
- Anti-fingerprint clear finish on Brushed Aluminum (BA); also available in Black (BB), Black/Aluminum (BL), and White (WW).
Dimensions
- 15.5" W × 10.5" H × 2.0" D
Options
- G2 — Guardian self-diagnostic system (battery models).
- Accessories : WG-S (wire guard) / XG-6 (polycarbonate guard).
Warranty / Listings
- 5-year warranty on electronics and housing; battery prorated for 5 years .
- UL 924 damp-location exit sign ( 0 °C – 40 °C ).
- Approved for use in the City of New York; meets NEC and NFPA 101 .
Compliance notes
- Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
