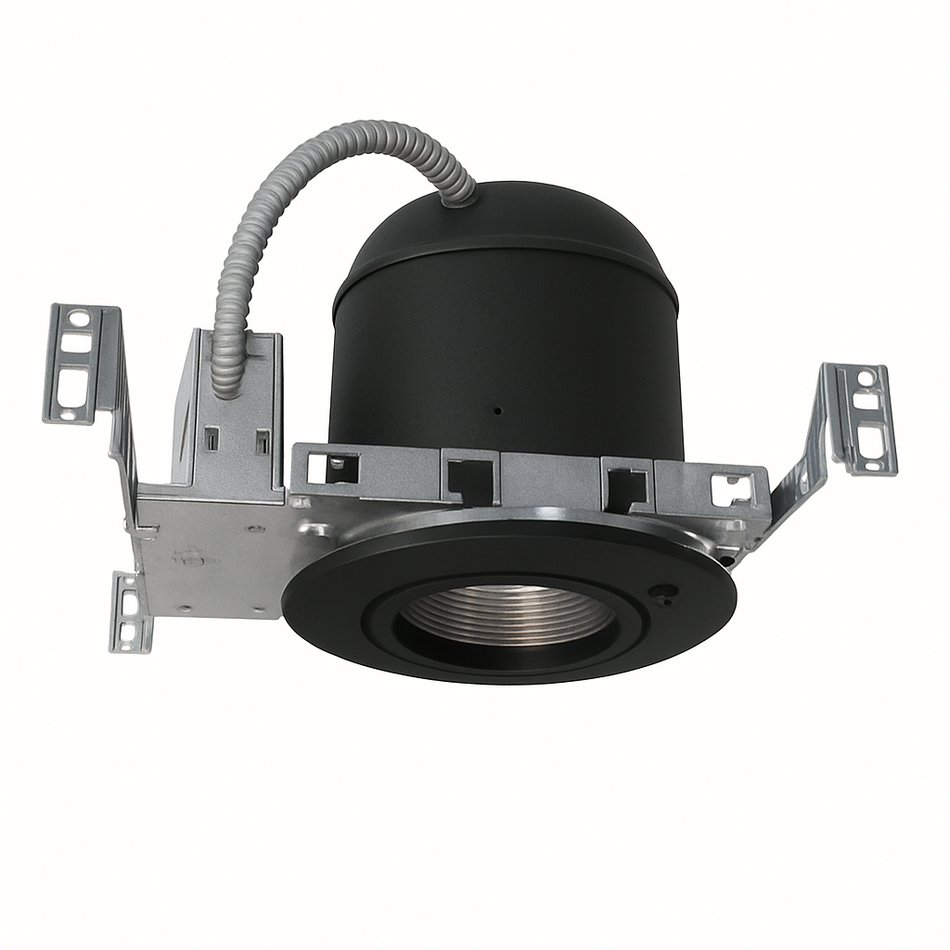

Adjustable Recessed Emergency Down-light Unit

Recessed emergency luminaires offer a streamlined look, especially in corridors, lobbies, or hospitality spaces where exposed heads may clash with the design intent. By placing the battery and electronics above the ceiling and using a minimal trim below, EMRL‑1 maintains the visual rhythm of adjacent architectural downlights. The gimbal trim is more than an aesthetic detail—it allows you to tilt and aim light where it matters: along the path of egress, toward exit doors, or across stair landings. This flexibility helps reduce the number of fixtures required to achieve minimum code light levels, and it simplifies late‑stage layout adjustments if interior walls shift during construction.

• 1.5 W LED PAR36: Best for energy efficiency and longevity. LED sources maintain output better over time, run cool, and typically require less maintenance. Choose LED to minimize relamping and heat load in the plenum.
• 8 W Halogen PAR36: Useful for 1‑for‑1 legacy replacement where halogen beam characteristics are already documented, or when matching an existing photometric layout built around halogen. Expect more frequent relamping and higher heat.

• Mounting height & aiming: EMRL‑1 typically installs at finished ceiling heights between 8–12 ft. After power‑up, aim the gimbal to “graze” the egress path—this increases uniformity and minimizes hot spots.
• Spacing: Exact spacing depends on ceiling height, reflectances, target illuminance (often 1 fc average / 0.1 fc minimum per local adoption of UL/NFPA guidelines), and whether you choose LED or halogen. Treat any catalog spacing claim as a design aid and confirm final placement via a point‑by‑point calculation.
• Doorways & turns: Place one unit within line‑of‑sight of exit doors and at corridor turns; use the gimbal to “throw” light into the next segment so you can reduce fixture count.
• Ceiling grid vs. drywall: The included bar hangers simplify T‑bar placement; for drywall, secure into framing and ensure a snug trim fit to avoid light leaks.

Emergency Lighting—Sizing, Code & 90‑Minute Runtime Remote Heads for Recessed Systems—Wiring & Spacing (Calculator) Recessed Exit Sign Guide

Download EMRL‑1 Emergency Downlight Spec Sheet (PDF)

• Field‑selectable PAR36 lamp: 1.5 W LED or 8 W halogen .
• Polished chrome reflector and clear lens for smooth, glare‑controlled distribution.
• Tilt‑adjustable gimbal trim to target floors, doors, or turns in the egress route.

• 120/277 VAC dual‑voltage input with test switch and bi‑color status LED.
• 6 V SLA battery with low‑voltage disconnect (LVD) to extend battery life.
• 90‑minute emergency operation via solid‑state transfer; two‑rate charger ( full recharge ≈ 24 h ).
• Input load: 8 W | Input current: 0.05 A @ 120/277 V (typ.).

• Installs in 6 in recessed ceiling openings (drywall or T‑bar).
• Adjustable bar hangers accommodate common joist spacing in lay‑in ceilings.
• Spring‑clip trim retention provides a tight, rattle‑free fit and quick relamp access.

• Heavy‑duty steel can with integral junction box; impact‑resistant thermoplastic trim.
• Standard trim finish: white . Optional: black .

• 5‑year warranty on housing & electronics; battery 2‑year prorated.
• UL 924 listed for dry locations .
• Meets NFPA 101 Life Safety Code, NEC , and OSHA requirements.

• Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
