Architectural LED Wall Pack – 100W Max, Selectable CCT, Zero Uplight (DLC Premium)
Regular price
$91.25
Couldn't load pickup availability
Got questions?
Give us a call 1-888-959-1965!

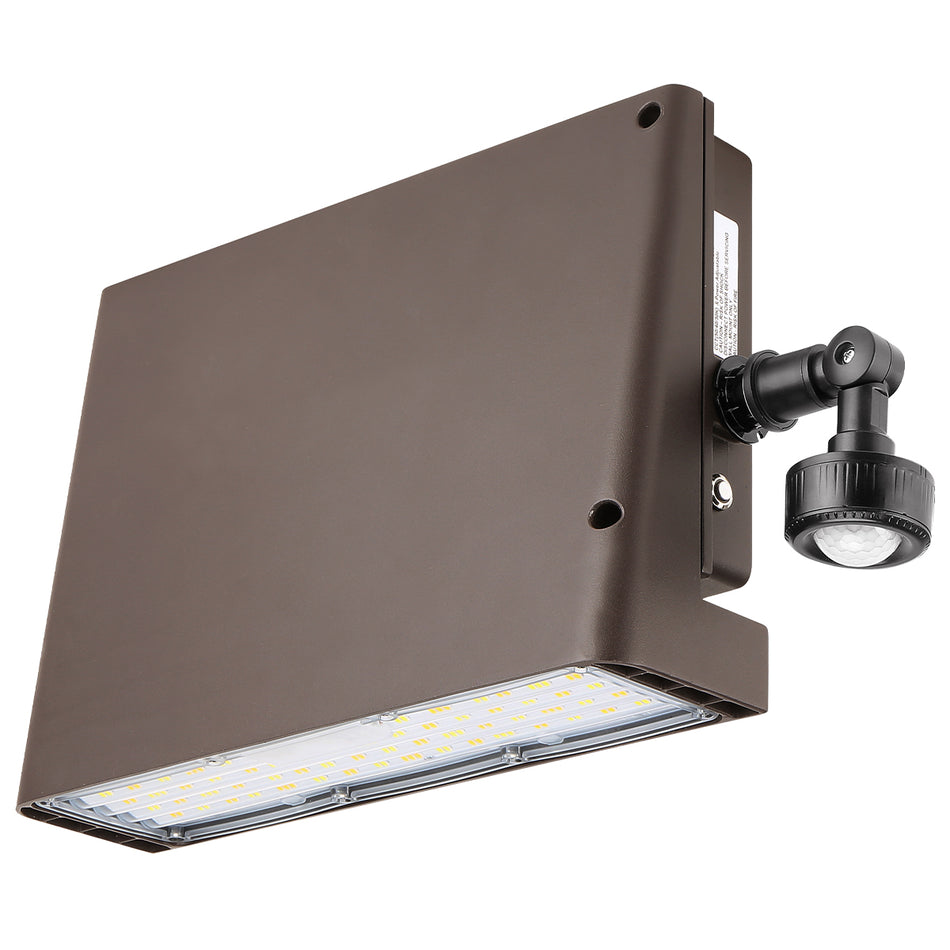

Architectural LED Trapezoid Wall Pack with Power & CCT Switching
The E110S Series Architectural LED Wallpack pairs a modern trapezoid profile with field-selectable wattage and CCT. Offered in 26W, 65W, or 100W models, each unit provides four output levels and switchable 3000K / 4000K / 5000K color temperatures. With a zero-uplight cutoff and die-cast aluminum body, this wall pack light is ideal for retrofit or new construction. UL Listed for Wet Locations and DLC PREMIUM qualified.
Selectable wattage to 100W
3000K / 4000K / 5000K
Up to 14,500 lm
Up to 176 lm/W
Zero uplight (full cutoff)
DLC PREMIUM
UL Wet Listed
Key Features
- Three wattage families (26W / 65W / 100W) with four field-selectable output levels each.
- Tunable CCT: 3000K / 4000K / 5000K to match site requirements.
- High performance: up to 14,500 lm and 176 lm/W (model dependent).
- Zero uplight full cut-off to reduce skyglow and light trespass.
- Rugged die-cast aluminum housing for demanding outdoor environments.
- DLC PREMIUM (qualified models) and UL Wet Listed.
- Sensor-ready housing for controls compatibility (model dependent).
Related Wall Pack Guides
Spec Sheet
Download E110S LED Wallpack Spec Sheet (PDF)
Performance Snapshot
- Wattage: selectable, up to 100W
- Lumens: up to 14,500
- Efficacy: up to 176 lm/W
- CCT: 3000K / 4000K / 5000K
Illumination
- High-output LED emergency lights system with CRI = 80
- Type III Very Short distribution (ideal for wide perimeter areas)
- L70 rated life >54,000 hours; L90 >50,000 hours
Electrical
- 120–277 VAC input, 50/60 Hz
- 0–10V dimming driver; PF >0.90; THD <20%
- Internal switches control CCT and output level
Mounting
- Die-cast hinged housing for fast access and installation
- Mounts to standard 3.5” or 4” J-box
- Includes 3 conduit entry points with side sensor receptacle
Housing / Finish
- Die-cast aluminum with bronze powder coat finish
- UV-stabilized polycarbonate lens
- 26W/65W Dimensions: 13.1” W × 9.6” H × 3.8” D
- 100W Dimensions: 13.1” W × 9.6” H × 5.0” D
Options
-
BB– 90-minute battery backup (up to 900 lm; not available on 100W) -
PC– Button photocontrol (120/277V) - Compatible with LiteLogic PIR occupancy sensors (Bluetooth or wired)
Warranty / Listings
- 5-year limited warranty
- UL Listed for Wet Locations; IP65 rated
- DLC PREMIUM Qualified for maximum rebates
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- Wet Location
- battery backup
- LED
- emergency
- Outdoor Lighting
Key features
- Three wattage families (26W / 65W / 100W) with four field-selectable output levels each.
- Tunable CCT: 3000K / 4000K / 5000K to match site requirements.
- High performance: up to 14,500 lm and 176 lm/W (model dependent).
- Zero uplight full cut-off to reduce skyglow and light trespass.
- Rugged die-cast aluminum housing for demanding outdoor environments.
- DLC PREMIUM (qualified models) and UL Wet Listed .
- Sensor-ready housing for controls compatibility (model dependent).
Documents
Architectural LED Trapezoid Wall Pack with Power & CCT Switching
The E110S Series Architectural LED Wallpack pairs a modern trapezoid profile with field-selectable wattage and CCT. Offered in 26W, 65W, or 100W models, each unit provides four output levels and switchable 3000K / 4000K / 5000K color temperatures. With a zero-uplight cutoff and die-cast aluminum body, this wall pack light is ideal for retrofit or new construction. UL Listed for Wet Locations and DLC PREMIUM qualified. Selectable wattage to 100W 3000K / 4000K / 5000K Up to 14,500 lm Up to 176 lm/W Zero uplight (full cutoff) DLC PREMIUM UL Wet Listed
Related Wall Pack Guides
Full-Cutoff Dark-Sky Guide Photometric Layout & Spacing
Spec Sheet
Download E110S LED Wallpack Spec Sheet (PDF)
Performance Snapshot
- Wattage: selectable, up to 100W
- Lumens: up to 14,500
- Efficacy: up to 176 lm/W
- CCT: 3000K / 4000K / 5000K
Illumination
- High-output LED emergency lights system with CRI = 80
- Type III Very Short distribution (ideal for wide perimeter areas)
- L70 rated life >54,000 hours; L90 >50,000 hours
Electrical
- 120–277 VAC input, 50/60 Hz
- 0–10V dimming driver; PF >0.90; THD <20%
- Internal switches control CCT and output level
Mounting
- Die-cast hinged housing for fast access and installation
- Mounts to standard 3.5” or 4” J-box
- Includes 3 conduit entry points with side sensor receptacle
Housing / Finish
- Die-cast aluminum with bronze powder coat finish
- UV-stabilized polycarbonate lens
- 26W/65W Dimensions: 13.1” W × 9.6” H × 3.8” D
- 100W Dimensions: 13.1” W × 9.6” H × 5.0” D
Options
- BB – 90-minute battery backup (up to 900 lm; not available on 100W)
- PC – Button photocontrol (120/277V)
- Compatible with LiteLogic PIR occupancy sensors (Bluetooth or wired)
Warranty / Listings
- 5-year limited warranty
- UL Listed for Wet Locations; IP65 rated
- DLC PREMIUM Qualified for maximum rebates
Compliance notes
- Verify the selected model is rated for the final environment before ordering.
