LED Cylinder Wall Pack – Architectural Up Down Outdoor Light | 30W Bronze

LED Cylinder Wall Pack – Architectural Up/Down Outdoor Fixture with 30W Output

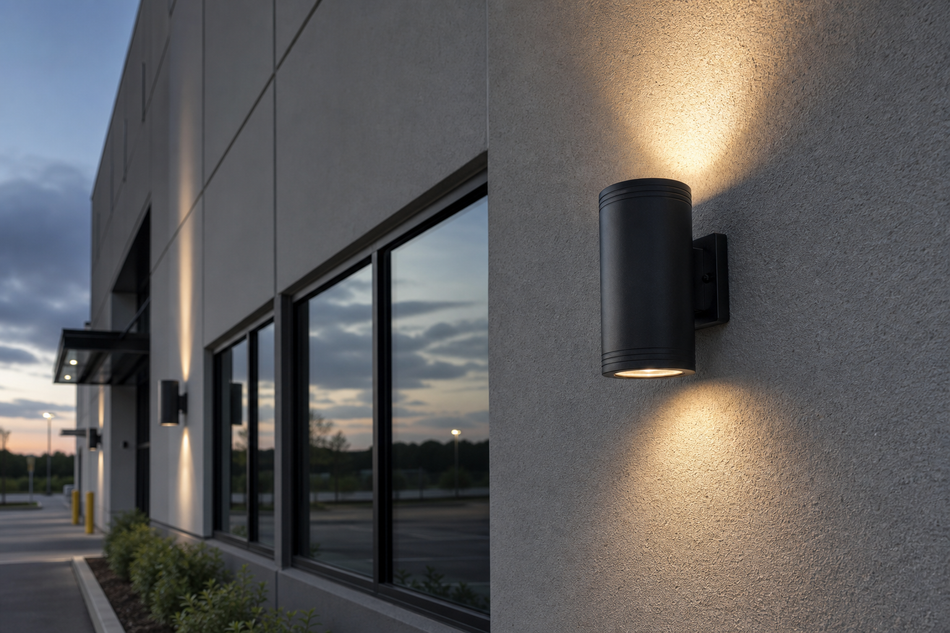

The LED Cylinder Wall Pack offers a sleek 4" cylindrical housing with selectable light distribution—up light, down light, or up/down combined. Designed for both residential and commercial settings, this fixture outputs up to 2,509 lumens and comes in 3000K, 4000K, or 5000K color temperatures. A compact aluminum housing with bronze finish and sealed glass lenses ensures reliable performance in wet locations. Ideal for schools, hospitals, retail buildings, and residential exteriors.

Download LED Cylinder Wall Pack Spec Sheet (PDF)

Features & Benefits

• Compact 4" round wall-mounted cylinder design
• Selectable output: up light, down light, or both
• Bronze powder-coated aluminum housing with glass lenses
• Available in 3000K, 4000K, and 5000K CCT
• Up to 2,509 lumens total (1,200 lumens per direction when split)

Illumination

• 30W system delivering up to 2,509 lumens
• 45° beam angle (up/down); CRI =80
• L70 life >100,000 hours

Electrical

• 120 VAC input, 50/60 Hz
• Internal switch for light distribution mode (up, down, or both)

Mounting

• Mounts to standard 3.5" or 4" square J-box
• Backplate-mounted for quick installation
• Control switch is accessible behind the backplate

Housing / Finish

• Die-cast aluminum cylinder with bronze finish

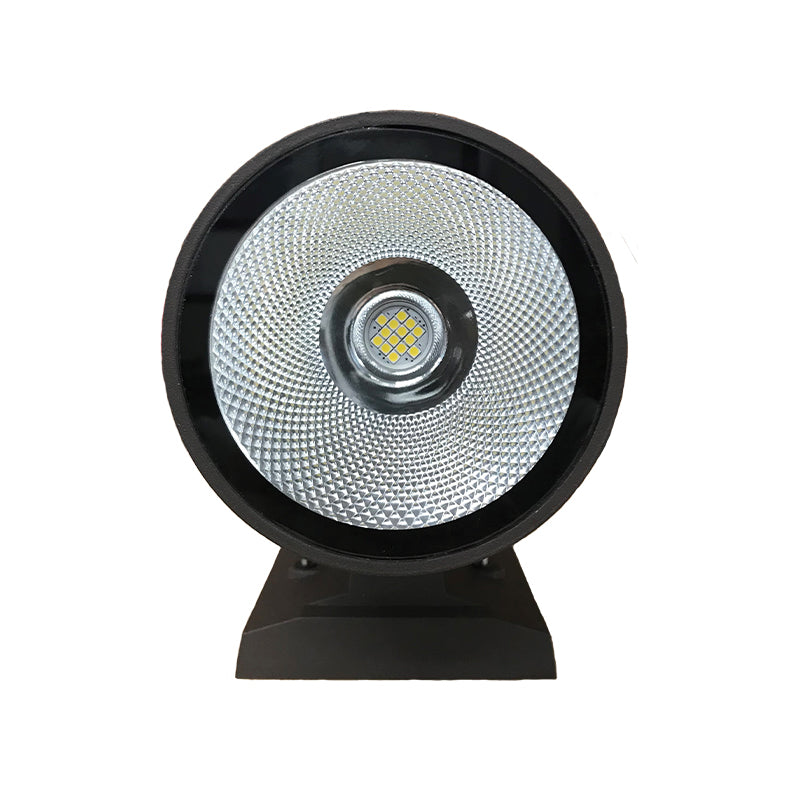

• Tempered glass lenses and aluminum reflectors
• Dimensions: 11.81" H × 4.25" W × 6.79" D
• Weight: 2.7 lbs

Warranty / Listings

• 5-year limited warranty
• cETLus Listed for Wet Locations
• Operating temp: -20°C to 40°C (-4°F to 104°F)

Frequently Asked Questions

Can this fixture be used indoors and outdoors?

Yes, it is cETLus Listed for Wet Locations and suitable for both indoor and outdoor wall applications.

How do I change the light direction?

A built-in switch behind the backplate lets you select up light, down light, or both during installation.

What kind of mounting does it support?

It mounts to standard 3.5" or 4" square J-boxes with a backplate for quick and secure installation.

Does this include dimming or photocontrol options?

No. This fixture does not have integrated dimming or photocell, but can be paired with external controls.

What is the beam angle and lumen output?

Each direction provides a 45° beam angle. Total output is up to 2,509 lumens depending on CCT.

Product Features

• Architectural
• Brand: TraceLite
• Die-Cast Aluminum
• LED
• Photocell
• Product: BCY
• Wall Packs
• Wall Mount
• Wet Location
