Chicago‑Approved Steel LED Emergency Light — Dual 3.3 W Heads, 6 V SLA 90‑min, 120/277 V, Remote‑Capable 5.4 W — Features & Specs

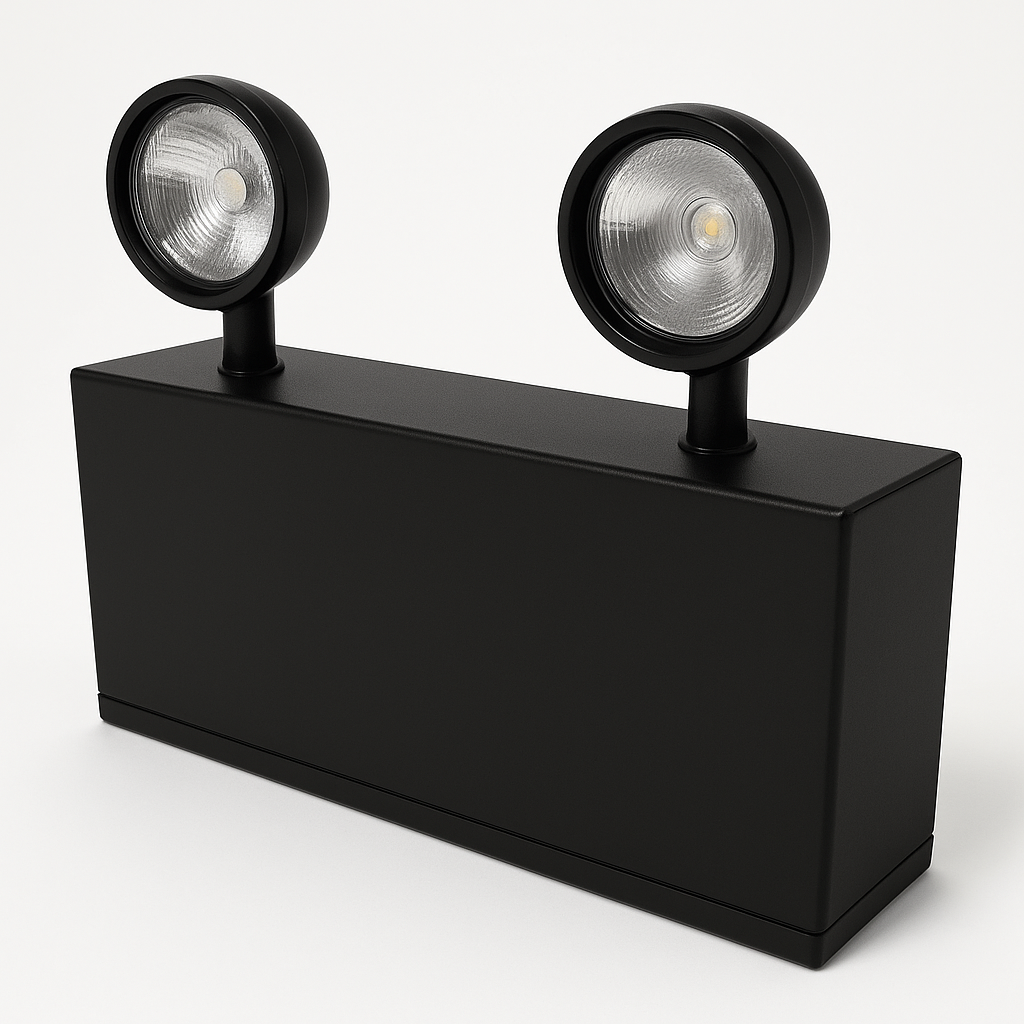

The CAEM Chicago‑approved steel LED emergency unit is built for City of Chicago emergency lighting compliance. Dual 3.3 W LED heads, a high‑capacity 6 V sealed lead‑acid battery, and a rugged 20‑gauge steel cabinet deliver dependable, code‑ready egress illumination for corridors, stairs, and large rooms.
Key Features
- City of Chicago Approved; UL 924 listed emergency lighting.
- Dual adjustable 3.3 W LED heads with wide‑beam distribution.
- 6 V sealed lead‑acid battery; minimum 90‑minute emergency runtime.
- 120/277 V dual‑voltage input with status LED & push‑to‑test.
- 5.4 W remote‑capacity output for compatible emergency remote heads.
- Rugged 20‑gauge steel cabinet (white or black) with powder‑coat finish.
- Damp‑location rated (20 °C to 50 °C / 68–122 °F).
- Low‑voltage disconnect; solid‑state transfer; two‑rate charger (˜24 h full recharge).
- Surface wall mount; top/side 1/2" conduit knockouts.
- 5‑year electronics/housing warranty; 2‑year prorated battery coverage.
Related Chicago Guides
Spec Sheet
Download CAEM Steel LED Emergency Light Spec Sheet (PDF)
Specifications (Overview)
- Listings: UL 924 emergency lighting; damp‑location.
- Light Heads: Dual 3.3 W LED, impact‑resistant lenses; adjustable aiming.
- Operation: 90‑minute emergency egress minimum; automatic transfer on power loss.
- Applications: corridors, stair enclosures, lobbies, and open areas requiring Chicago approval.
Illumination
- Two 3.3 W white LED heads with wide beam patterns for uniform floor coverage.
- Adjustable tilt/pan for precise center‑to‑center spacing on typical egress paths.
Electrical
- 120/277 V, 60 Hz input with bi‑color status LED and push‑to‑test switch.
- Battery: 6 V SLA, maintenance‑free; 90 minutes minimum emergency operation.
- Remote output: 5.4 W total for powering listed 6 V remote heads.
- Solid‑state transfer; low‑voltage disconnect; two‑rate charger (~24 h full recharge).
Mounting
- Surface wall mount via universal backplate knockouts.
- 1/2" conduit knockouts on top and sides for flexible feed.
Housing / Finish
- Rugged 20‑gauge powder‑coated steel cabinet.
- Standard finishes: white or black.
Options
- RC — Remote‑capable configuration (5.4 W @ 6 V) for compatible remote heads.
Warranty / Listings
- 5‑year warranty on housing & electronics; 2‑year prorated battery warranty.
- UL 924 listed for damp locations (recommended ambient 20–50 °C).
- Meets NFPA 101, NEC, OSHA, and City of Chicago code expectations.
Dimensions
- 12 5/16" W × 9" H × 2 1/2" D; head projection approx. 5".
Frequently Asked Questions
Is this unit approved for use in Chicago?Yes. It is UL 924 listed and configured for City of Chicago life‑safety requirements.
Does the CAEM support remote heads?Yes. The remote‑capable configuration provides 5.4 W at 6 V to power compatible remote heads—verify total load and wire run length.
What’s the emergency runtime?The integrated 6 V SLA battery supplies a minimum of 90 minutes of illumination during an outage.
Is it suitable for damp locations?Yes. The enclosure and electronics are damp‑location rated for 20–50 °C environments.
Compare Steel Emergency Lights (H1 from Parent)
| Model (H1) | Light Heads | Battery / Runtime | Remote Capacity | Listings | Best For |
|---|---|---|---|---|---|
| This model — Chicago Approved Steel LED Emergency Unit (CAEM) | Dual 3.3 W LED | 6 V SLA · 90 min | 5.4 W @ 6 V | Chicago · UL 924 · Damp | Stairs & corridors needing Chicago approval |
| Chicago Steel LED Emergency Unit – Dual Heads, 3 LED Per Head | 2× 2.85 W LED (396 lm ea) | LiFePO4 · 90 min | Optional | Chicago · UL 924 · Damp | High‑output heads with compact steel cabinet |
| Steel Housing Dual Head LED Emergency Unit With Remote Capacity | Dual 1.5 W LED | 6 V SLA · 90 min | Up to 20 W (series) | UL 924 · Damp | Large areas needing higher remote load |
