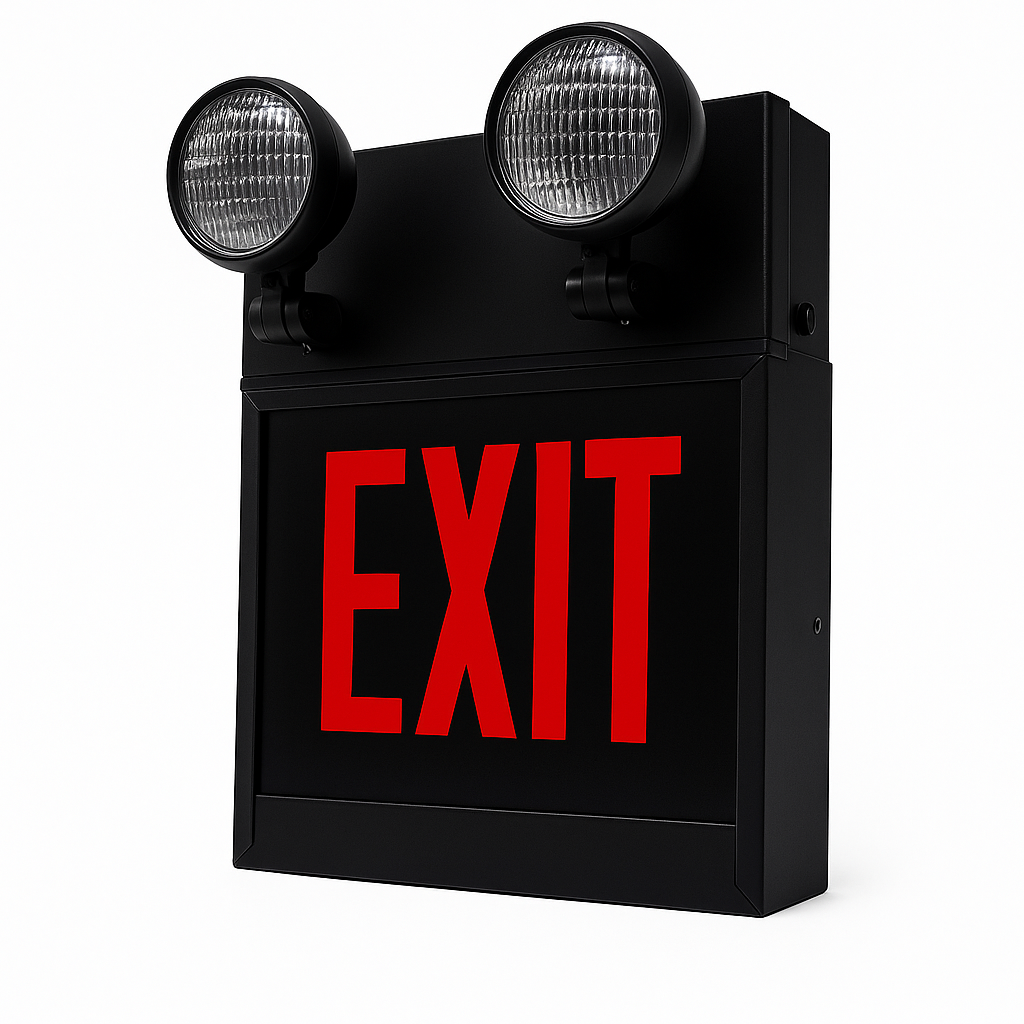

Chicago-Approved Steel Exit / Emergency Combo – 8" Red Legend, Dual 5.3 W Heads, 6 V SLA 120 min — Features & Specs
The CALEDCXTEU Chicago-Approved Steel LED Exit / Emergency Combo merges high-visibility signage with dependable egress lighting in a rugged, vandal-resistant 20-gauge steel cabinet. It’s engineered for City of Chicago compliance and UL 924 performance at primary exits. Explore more steel exit & emergency combos, compare Chicago-approved life-safety models, or browse all exit sign & emergency light combos.
Key Features
- City of Chicago Approved; UL 924 listed.
- Bold 8" red EXIT legend; field-selectable single or double face with removable steel chevrons.
- Two adjustable 6 V 5.3 W LED heads for targeted, glare-controlled egress illumination.
- 6 V sealed lead-acid battery; 120-minute emergency runtime; ~24 h recharge.
- 120/277 V dual-voltage input; status LED & push-to-test; brownout protection & LVD.
- RC option: 10 W remote-capable output at 6 V for approved remote heads.
- Rugged 20-gauge powder-coated steel cabinet (white or black); damp-location rated (20–50 °C).
- Universal mounting: surface wall (backplate) or top/end with included steel canopy.
- Warranty: 5-year electronics/housing; 2-year prorated battery.
Applications & Design Notes
Choose this steel exit & emergency combo at doorways where equipment takes abuse (loading docks, public corridors, school stair runs). Set chevrons to match your approved egress route and aim the lamp heads to wash the landing and first corridor segment. If you need extended runs or remote heads over ramps and alcoves, specify the RC (10 W) configuration and keep total load & voltage drop within the 6 V budget. For broader selection by material and output, see our heavy-duty steel combo signs (distinct anchor).
Related Chicago Guides
Spec Sheet
Download CALEDCXTEU Steel LED Exit Combo Spec Sheet (PDF)
Specifications (Overview)
- Listings: Chicago approved; UL 924 emergency lighting; damp-location rated.
- Legend: 8" red EXIT, field-selectable single/double face; steel chevrons (left/right/double) included.
- Operation: 120-minute emergency egress (typ.); automatic transfer on power loss.
- Housing: 20-ga steel cabinet; powder-coat finish in white or black.
Illumination
- Two adjustable 6 V 5.3 W LED heads with high-efficiency optics for uniform coverage.
- Backlit legend with long-life LEDs for crisp contrast in ambient light.
Electrical
- Universal 120/277 V, 60 Hz input; bi-color status LED; push-to-test.
- Battery: maintenance-free 6 V SLA; 120 min emergency; ~24 h recharge.
- Protection: low-voltage disconnect, brownout sensing, solid-state transfer.
- Input load (typ.): 6.0 W / 0.05 A @ 120 V • 6.0 W / 0.021 A @ 277 V.
- Remote capacity (RC option): 10 W @ 6 V; see remote-capable exit combos.
Mounting
- Surface wall via universal steel backplate.
- Snap-fit steel canopy top or end mount included.
Housing / Finish
- Heavy-duty 20-gauge steel cabinet; powder-coated in white or black.
- Removable steel chevron arrows for directional marking.
Options
- RC — adds 10 W @ 6 V of remote-capable output to power approved remote heads.
Warranty / Listings
- 5-year warranty on housing & electronics; 2-year prorated battery.
- Compliant with NFPA 101, NEC, and OSHA requirements.

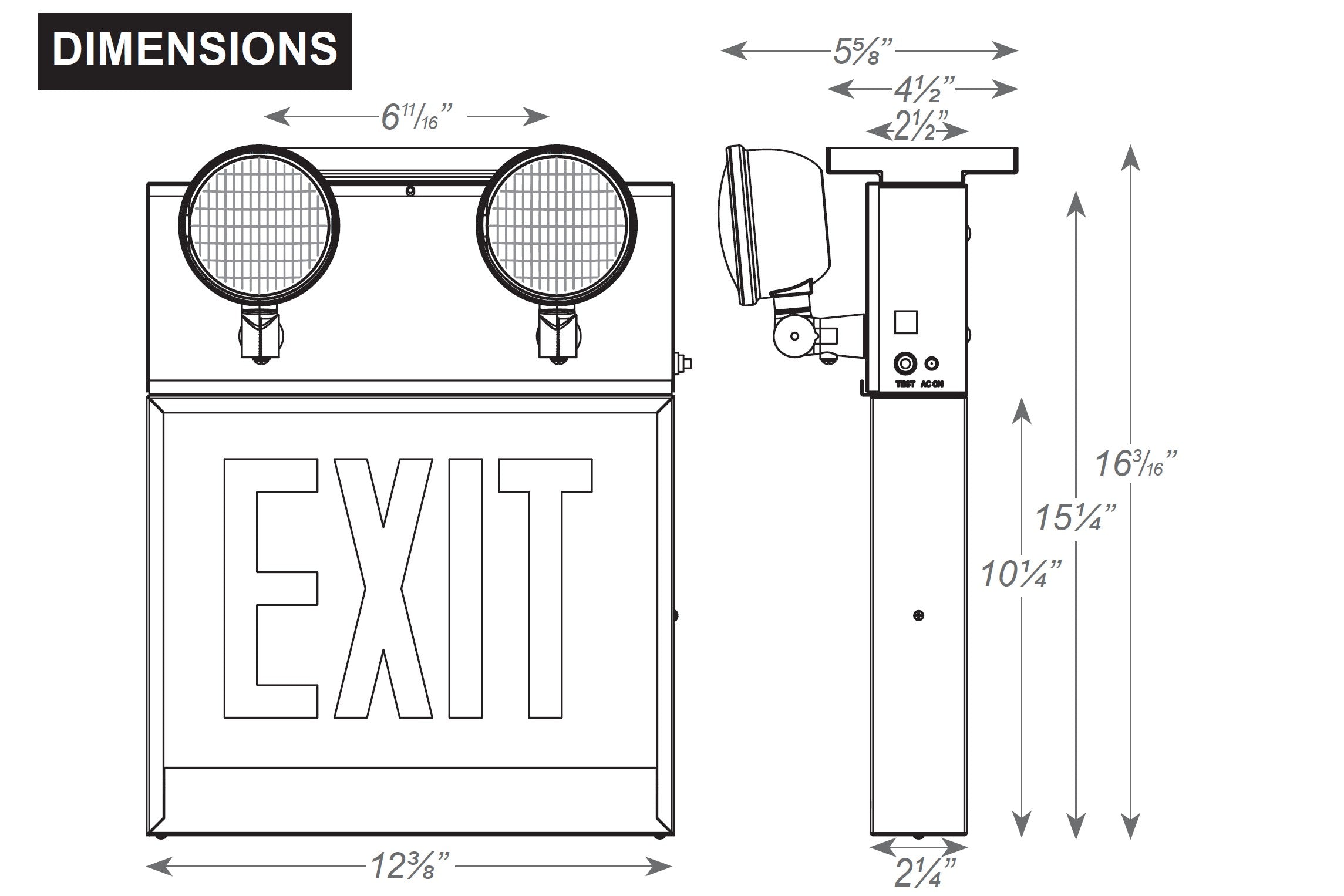

Dimensions
- Cabinet: 12 in W × 10¼ in H × 2¼ in D; overall depth to lamp face: ~4½ in.
Installation & Wiring Tips
- Mount at door height, center the legend over the door leaf, then cross-aim heads to overlap beams on the landing and first corridor segment.
- When using RC, budget remote head load within 10 W @ 6 V and verify voltage-drop on longer runs.
- Seal canopy penetrations and torque hardware evenly; record a 120-minute discharge at commissioning for close-out.
Compare With Other Steel Exit / Emergency Combos
| Model (H1) | Legend / Letters | Lamp Heads | Battery / Runtime | Remote-Capable | Listings | Best For |
|---|---|---|---|---|---|---|
| This model — Chicago-Approved Steel Exit / Emergency Combo – 8" Red Legend, Dual 5.3 W Heads, 6 V SLA 120 min | EXIT · 8" red (single/double) | 2 × 5.3 W LED (adj.) | 6 V SLA · 120 min | 10 W @ 6 V (opt.) | Chicago · UL 924 · Damp | Primary exits in high-abuse interiors |
| Chicago-Approved Steel LED Exit Emergency Combo — CHIC Series | EXIT · 8" red | 2 × 2.85 W LED (˜396 lm ea) | LiFePO4 · 90 min | Optional | Chicago · UL 924 · Damp | Compact cabinet with high-output heads |
| New York City Approved LED Exit Emergency Combo | EXIT · 8" red | 2 × 12 W LED (third head field-addable) | 6 V SLA · 90 min | 12 W @ 6 V | NYC · UL 924 · Steel | NYC compliance with higher head wattage |
| Red Wet-Location Hazardous LED Combo Exit Sign | EXIT · red (field-selectable) | Dual MR16 LED | Ni-Cd/SLA · 90 min | Up to 20.8 W (model-dep.) | NEMA 4X · IP66 · UL 924 | Harsh/wash-down or outdoor areas |
FAQs
Is the CALEDCXTEU approved for use in Chicago?Yes. It’s UL 924 listed and configured to meet City of Chicago requirements for 8" red EXIT legends and steel construction.
How long does the battery last during an outage?The integrated 6 V SLA battery provides a minimum of 120 minutes of emergency illumination.
Can I power remote heads from this combo?Yes—order the RC configuration for 10 W @ 6 V remote-capable output and verify total load and wire runs.
What mounting options are included?A universal backplate for surface wall mounting and a steel canopy for top or end mounting are included.
