Chicago-Approved Steel LED Exit & Emergency Combo – Battery Backup
The CHIC Series City-of-Chicago Steel LED Exit / Emergency Combo pairs a rugged 20-gauge steel cabinet with two high-output 2.85 W LED heads delivering 396 lumens each . A tempered-glass face with a red EXIT legend and a long-life LiFePO 4 battery provide dependable egress lighting and 90-minute code compliance. For related configurations, see Chicago-Approved models , Exit Signs , and Exit/Emergency Combos .
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- Chicago Approved
- UL 924
- Damp Location
- Steel Housing
- Tempered Glass
- Universal Mount
- 2× 2.85 W Heads
- Adjustable Heads
- LiFePO 4 Backup
- 120/277 VAC
Key features
- Chicago-approved red 6" EXIT legend (3/4" stroke) behind 1/8" tempered glass.
- Two high-output 2.85 W LED heads delivering 396 lm each; aim adjusts 0–90° (vertical) and 0–350° (horizontal).
- Head modules can mount on the top or side of the sign for layout flexibility.
- Universal mounting: rear J-box wall pattern, steel canopy for ceiling/end, pendant-ready knockouts.
- Maintenance-free LiFePO 4 battery: 90-minute emergency operation; typical 24-hour recharge.
- 120/277 VAC input with solid-state charger, LVD, brownout, short-circuit & overload protection.
- Push-to-test and status LED (steady = normal, blinking = check battery).
- Operating temp: 41–113 °F ( 5–45 °C ).
- Standard single-face EXIT glass (no arrows); alternate tempered glass panels with arrows or “STAIRS” available.
- Low-profile cabinet: 12.1" W × 9.1" H × 2.4" D (approx. 13.1" H with heads).
Documents
Related Chicago Guides
When to Use Exit/Emergency Combos (Chicago) Chicago Exit Sign Code Details
Spec Sheet
Download CHIC Steel LED Exit/Emergency Combo Spec Sheet (PDF)
Illumination
- White LEDs illuminate the red EXIT legend behind tempered glass.
- Two 2.85 W LED heads ( 396 lm each) with fully adjustable aim.
- Ships with EXIT glass (no arrows); arrow and “STAIRS” tempered-glass panels available.
Electrical
- Universal 120/277 VAC input (50/60 Hz) with solid-state charger.
- WB battery: maintenance-free LiFePO 4 ; 90-minute runtime; typical 24-hour recharge.
- Low-voltage disconnect; brownout, short-circuit, and overload protection.
- Status LED and push-to-test switch.
Mounting
- Steel canopy included for ceiling or end mount.
- Rear universal J-box pattern for wall mount; top knockouts for pendant.
Housing / Finish
- Rugged 20-gauge steel cabinet with white powder-coat finish.
- 1/8" heat-tempered, impact- and scratch-resistant glass; red 6" letters, 3/4" stroke.
Options & Accessories
- Alternate silk-screened tempered-glass panels — directional arrows, “STAIRS”, and double-face kits (see spec sheet).
Warranty / Listings
- UL 924 listed for Damp Locations; compliant with City of Chicago, NFPA 101 , and NEC .
- 5-year warranty on electronics & housing; LiFePO 4 battery prorated 5 years .

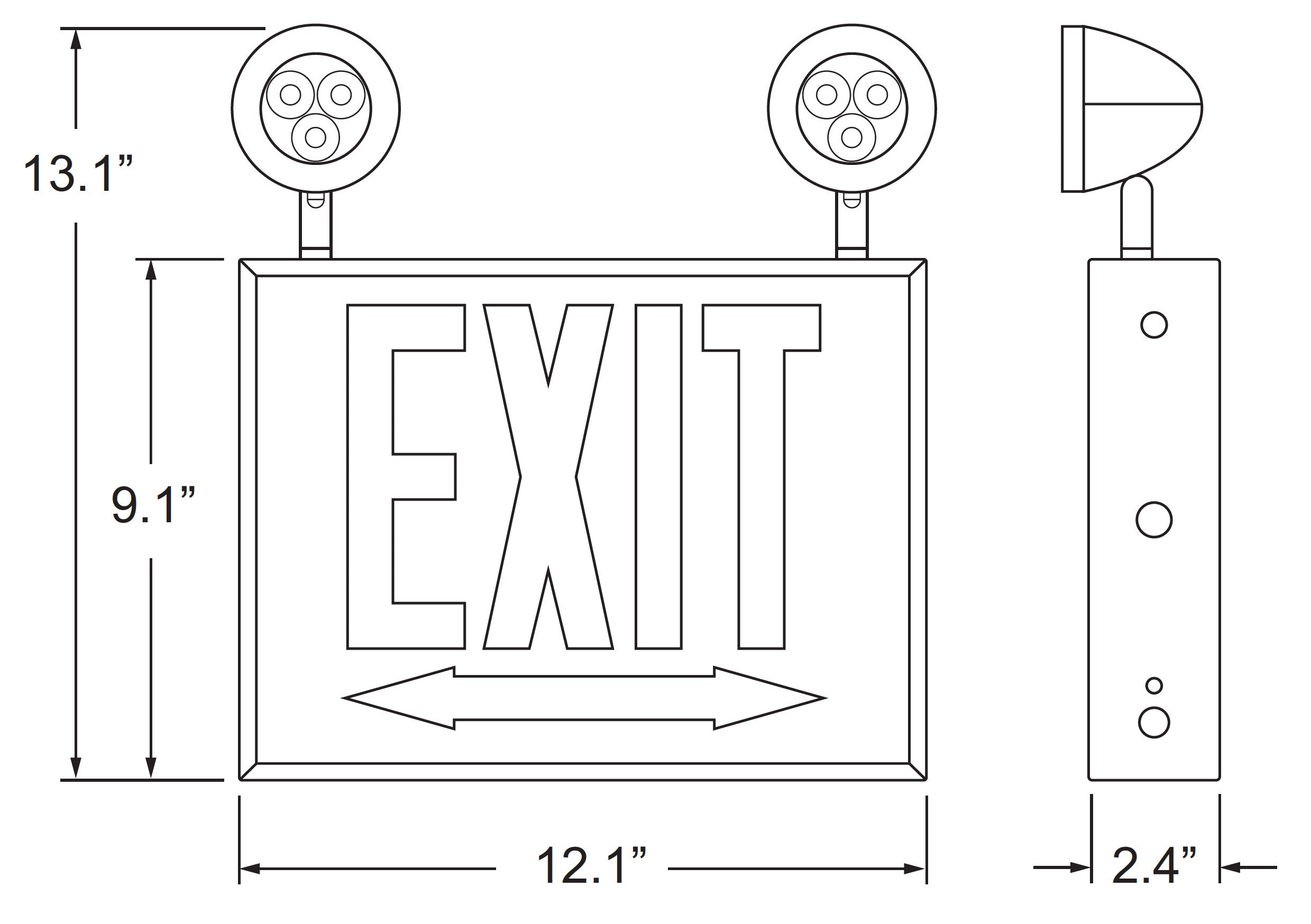

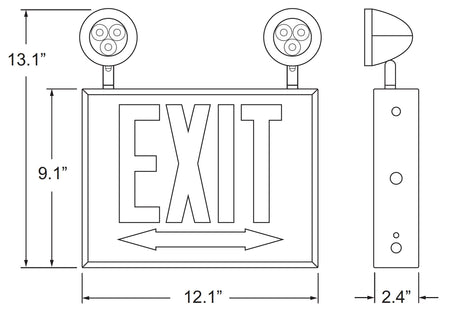

Dimensions
- Cabinet: 12.1" W × 9.1" H × 2.4" D
- Overall height with heads: ~13.1"
Compliance notes
- Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
