CH900X Surface/Recessed Edge-Lit Exit Sign Overview

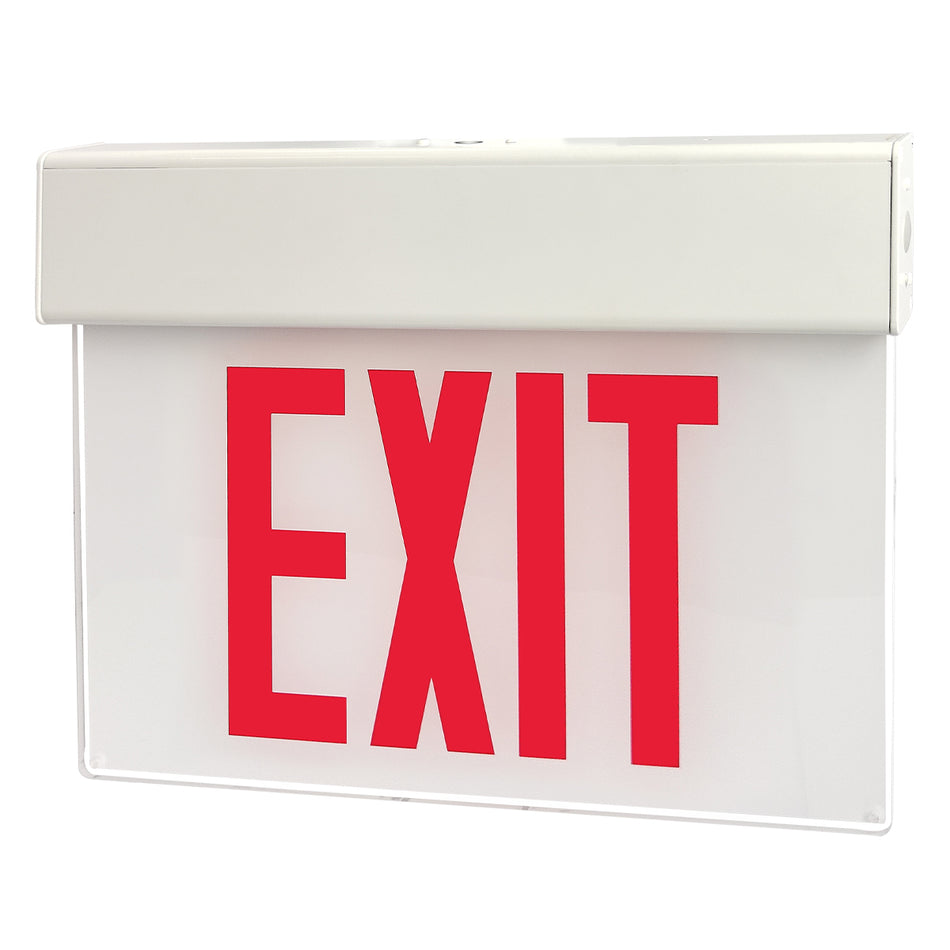

The CH900X Chicago-approved edge-lit LED exit sign is built for projects that need a clean acrylic EXIT panel with either surface or recessed mounting. It uses a clear edge-lit panel, 6 in red EXIT letters with 3/4 in stroke, long-life LEDs, and a white architectural housing package for code-driven commercial interiors.
Choose surface models for wall, ceiling, end, or pendant-ready installs, or recessed models when the sign needs to sit flush with the finished ceiling or wall plane. LB models are AC-only; WB models add LiFePO4 battery backup for 90-minute emergency operation. Compare the full Edge-Lit Exit Signs lineup, review Chicago-approved exit signs, or use Recessed Exit Signs when the mounting condition is the main driver.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- Chicago Approved
- UL 924
- Edge-Lit Acrylic
- Surface / Recessed
- 6 in Red Letters
- Single / Double Face
- 120/277 V
- AC Only Option
- LiFePO4 Backup
- 90-min Runtime
- Push-to-Test
- Universal Canopy
- Recessed Trim
- Hanger Bars
- NFPA 101
- NEC
Key features
- Chicago-approved edge-lit LED exit sign with clear acrylic panel and uniform floating EXIT legend.
- UL 924 listed for code-required egress signage and designed for City of Chicago red-letter requirements.
- 6 in red EXIT letters with 3/4 in stroke support Chicago-style visibility expectations.
- Surface CH900X-S models use a white extruded aluminum housing with universal canopy for wall, ceiling, end, or pendant-ready mounting.
- Recessed CH900X-R models use a 20-gauge steel housing, white trim plate, and included hanger bars for flush installations.
- LB configurations are AC-only; WB configurations include LiFePO4 battery backup for 90-minute emergency operation and about 24-hour recharge.
- Dual-voltage 120/277 V, 50/60 Hz input supports common commercial branch circuits.
- Low-voltage disconnect, brownout, overload, and short-circuit protection support reliable operation.
- LED status indicator and push-to-test switch support routine inspection checks.
- Ships standard as single-face EXIT with no arrows; optional double-face, arrow, and STAIRS panels are available for project needs.
- Surface dimensions: 14.04 in W x 11.69 in H x 1.63 in D.
- Recessed trim dimensions: 19.19 in W x 11.69 in H; housing depth 4.31 in.
Documents
Best Applications
Choose CH900X for commercial interiors that require a Chicago-approved edge-lit LED exit sign with a clean acrylic panel and red EXIT legend. It fits corridors, lobbies, tenant suites, schools, hotels, public buildings, and finished architectural spaces where a direct-view thermoplastic sign would look too utilitarian.
Surface vs Recessed Selection
- Choose CH900X-S surface models when the sign will mount to a wall, ceiling, end box, or pendant-ready location using the universal canopy.
- Choose CH900X-R recessed models when the sign needs a flush trim appearance in a finished ceiling or wall condition.
- Use recessed hanger bars and the white trim plate for clean alignment with the finished plane.
- Confirm rough-in depth, ceiling conditions, and final viewing direction before selecting surface or recessed mounting.
AC-Only vs Battery Backup
- Choose LB AC-only variants where emergency power is handled by a central inverter, generator, or other approved system.
- Choose WB variants when the fixture needs an integral LiFePO4 battery for 90 minutes of emergency operation.
- Allow the battery to complete its charge period before performing a full-duration emergency test after installation.
- Match the power option to project documents and local AHJ expectations.
Chicago Legend and Panel Checks
- Standard CH900X ships with a red EXIT legend, no arrows, and 6 in letters with 3/4 in stroke.
- Confirm whether the project needs single-face, double-face, arrow, or STAIRS panel options before ordering.
- Use arrow panels when directional egress routing is required by the final layout.
- Keep the acrylic panel clean and unobstructed so the edge-lit legend remains visible from the path of travel.
Mounting and Rough-In Checks
- Surface models support wall, ceiling, end, and pendant-ready mounting with the universal canopy.
- Recessed models include a 20-gauge steel housing, hanger bars, and white trim for flush mounting.
- Confirm junction-box location, conduit entry, above-ceiling space, and sightline clearance before closeout.
- Pendant adapter requirements should be confirmed before rough-in if the sign will hang below the mounting surface.
Electrical and Inspection Checks
- Dual-voltage 120/277 V input supports common commercial electrical systems.
- Protection features include low-voltage disconnect, brownout, overload, and short-circuit protection.
- Push-to-test and the LED status indicator support routine inspection and maintenance checks.
- WB battery models provide 90-minute emergency operation after a full charge.
Options and Accessories
- Current configured SKUs include CH900X-S-LB-WH, CH900X-S-WB-WH, CH900X-R-LB-WH, and CH900X-R-WB-WH.
- Panel options may include EXIT with arrows, double-face panels, and STAIRS panels depending on project requirements.
- S900-PENDANT-ADAPTER can support pendant applications when specified and field installed.
Closeout and Warranty Checks
- Confirm City of Chicago approval, UL 924 listing, legend direction, mounting method, and emergency runtime with the project documents.
- Final fixture placement and acceptance should be confirmed with the local AHJ.
- Warranty coverage is 5 years on electronics and housing, with LiFePO4 battery coverage prorated for 5 years.
Compliance notes
- Confirm City of Chicago approval, UL 924 listing, mounting method, panel direction, emergency runtime, and local AHJ acceptance for the project.
Frequently asked questions
Is CH900X a Chicago-approved edge-lit LED exit sign?
Yes. CH900X is a City of Chicago approved edge-lit LED exit sign and is UL 924 listed for code-required egress signage.
Can this edge-lit exit sign be surface or recessed mounted?
Yes. CH900X-S models are for surface mounting with a universal canopy, while CH900X-R models are recessed units with a steel housing, white trim plate, and hanger bars.
What is the difference between LB and WB CH900X models?
LB models are AC-only. WB models include LiFePO4 battery backup for 90 minutes of emergency operation after a full charge.
Does the CH900X use red or green EXIT letters?
This Chicago-approved family uses red EXIT letters. The standard legend is 6 in high with a 3/4 in stroke.
Is this sign single-face or double-face?
The standard configuration is single-face EXIT with no arrows. Double-face, directional arrow, and STAIRS panel options may be available for project-specific requirements.
What voltage does the CH900X use?
The fixture uses dual-voltage 120/277 V, 50/60 Hz input and includes protection features such as low-voltage disconnect, brownout, overload, and short-circuit protection.
What inspection features are included?
CH900X includes an LED status indicator and push-to-test switch. WB battery models should be fully charged before a full 90-minute emergency runtime test.
When should I choose recessed instead of surface mount?
Choose recessed when the project needs a flush finished look and has the required rough-in depth. Choose surface mount when the sign will attach to a wall, ceiling, end box, or pendant-ready location.
