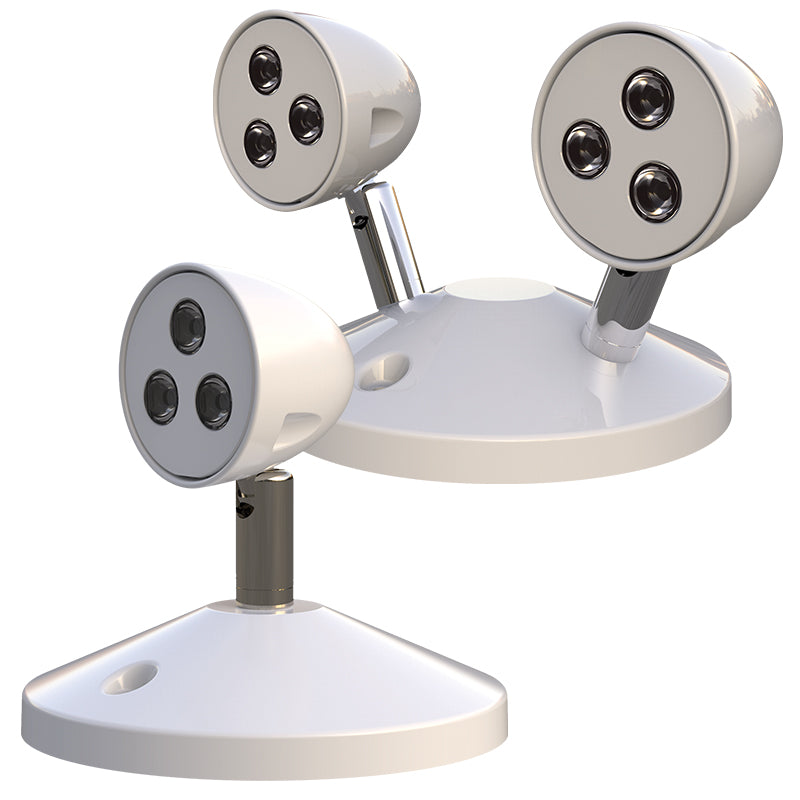

Dual-head steel LED remote emergency light – adjustable for wide egress coverage

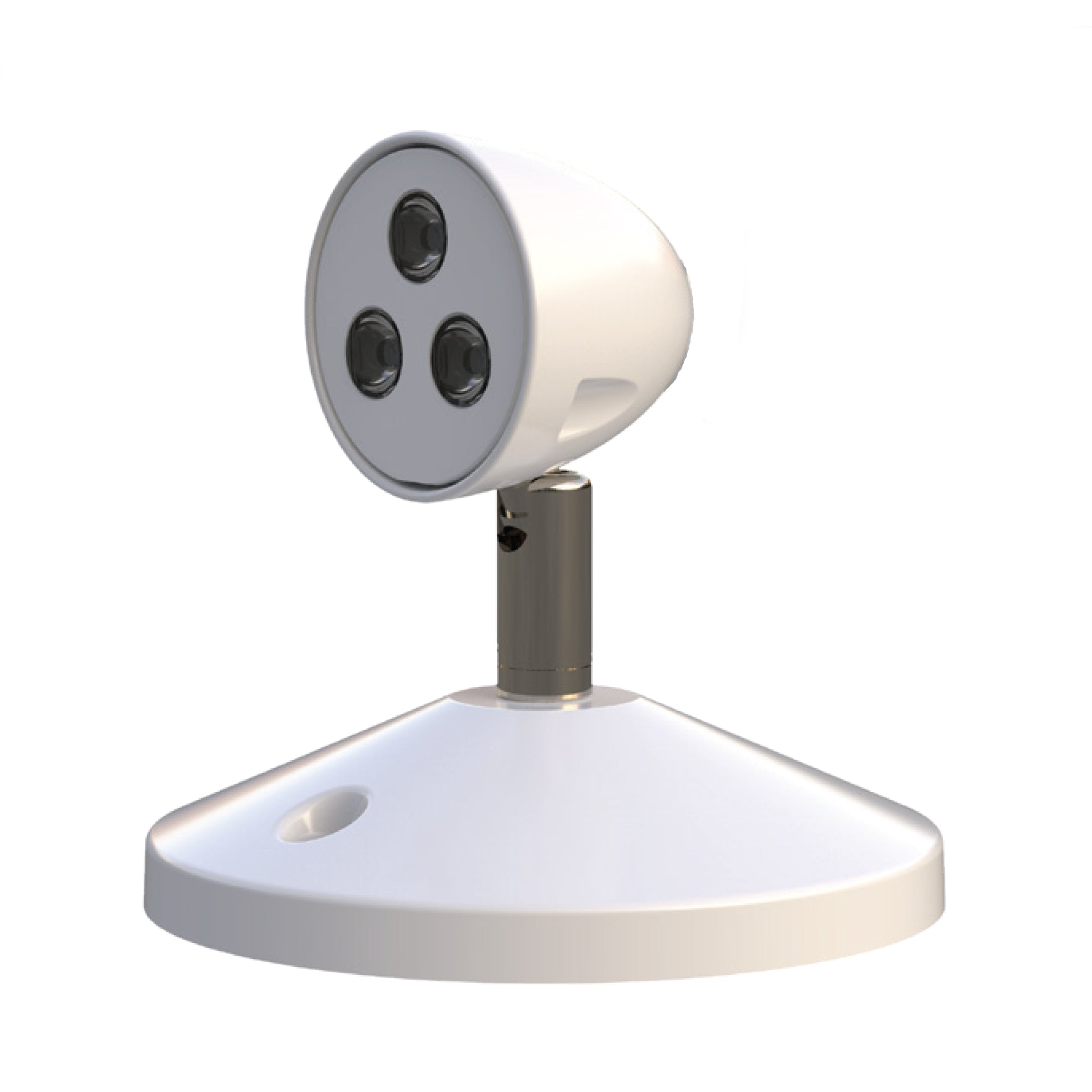

CHIR Chicago Approved Steel LED Remote Lamps Single Head

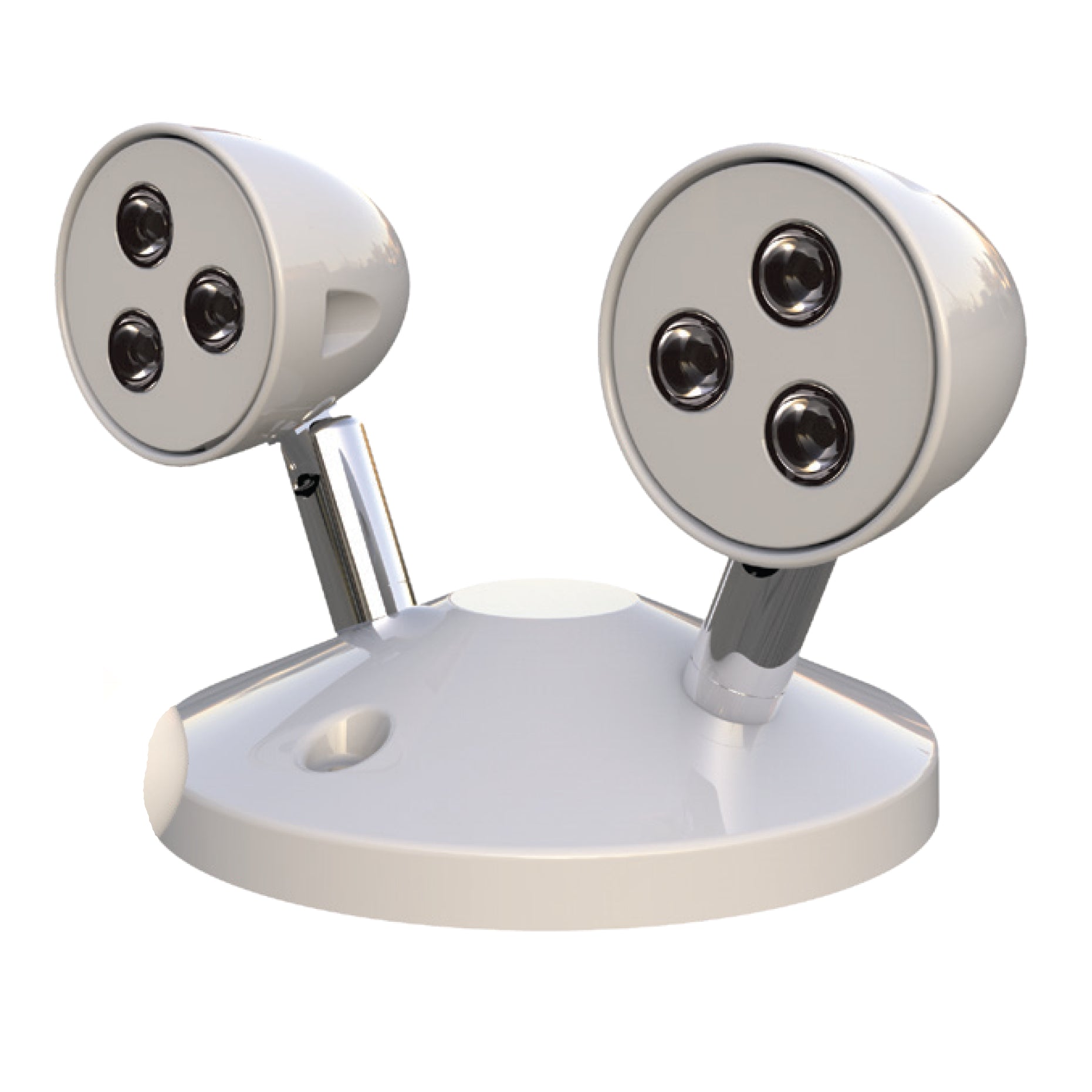

CHIR Chicago Approved Steel LED Remote Lamps Double Head
Dual-head steel LED remote emergency light – adjustable for wide egress coverage
CHIR Chicago Approved Steel LED Remote Lamps Single Head
CHIR Chicago Approved Steel LED Remote Lamps Double Head

Steel LED Remote Head for Emergency Lighting – Chicago Approved

SKU: CHIR-S-WH
$18.98

Got questions?

Give us a call 800-847-1955!

Steel LED Remote Head — Chicago Approved, 200 lm per Head, Single/Double, 6 VDC Remote Powered — Features & Specs

The Chicago‑Approved Steel LED Remote Head adds bright, adjustable emergency illumination to CHIX‑WB‑RC and CHIM‑RC remote‑capable units. Available in single‑head (S) or double‑head (D) configurations, each head delivers 200 lumens from a 1.5 W LED array. This UL 924 remote head for emergency lighting features a rugged 20‑gauge steel housing, white powder‑coated finish, and a compact, low‑clearance profile for commercial interiors.

Chicago Approved UL 924 Damp Location Steel Housing Single or Double 200 lm/Head 6 VDC Remote 5000 K CCT Adjustable Heads Wall/Ceiling Mount

Key Features

  • Chicago‑approved, UL 924 damp‑location listed remote head.
  • 200 lumens per head from a 1.5 W LED (double: 400 lm total).
  • Neutral‑white 5000 K output with a 22° beam; precise aiming via fully adjustable flex arm.
  • Powered by host unit at 6 VDC; designed for CHIX‑WB‑RC and CHIM‑RC.
  • Mounts to wall or ceiling junction box; compact, low‑clearance profile for corridors/stairs.
  • Typical spacing up to 42′ (3′ path) or 40′ (6′ path) at 7.5′ mounting height.
  • Operating range 0–50 °C (32–122 °F); single or double‑head models.

Related Chicago Guides

Remote Heads & Host Units—Chicago Guide Chicago Egress Lighting Playbook
Compatibility Matrix Code Requirements

Spec Sheet

Download Steel LED Remote Head Spec Sheet (PDF)

Illumination

  • Each head delivers 200 lumens via 1.5 W LED (double head: 3 W total).
  • 5000 K CCT with a 22° beam spread for crisp egress coverage.
  • Fully adjustable flex arm for precise aiming around turns and landings.

Electrical

  • Input: 6 VDC supplied by a remote‑capable host unit.

Mounting

  • Wall or ceiling J‑box mounting; compact form for low‑clearance areas.

Housing / Finish

  • 20‑gauge steel housing with white powder‑coat finish.

Ordering Guide

  • CHIR‑S‑WH — Single head, white finish.
  • CHIR‑D‑WH — Double head, white finish.

Compatibility

  • Designed for CHIX‑WB‑RC and CHIM‑RC series (consult factory for other hosts).

Warranty / Listings

  • 3‑year warranty on housing and electronics.
  • UL 924, damp‑location listed; meets City of Chicago, NFPA 101, and NEC.
  • Operating temperature: 0–50 °C (32–122 °F).

Dimensions

  • Double head: 6.9″ W × 4.2″ H × 4.9″ D
