NYC-Compliant LED Exit Sign with 3-Head Emergency Lighting

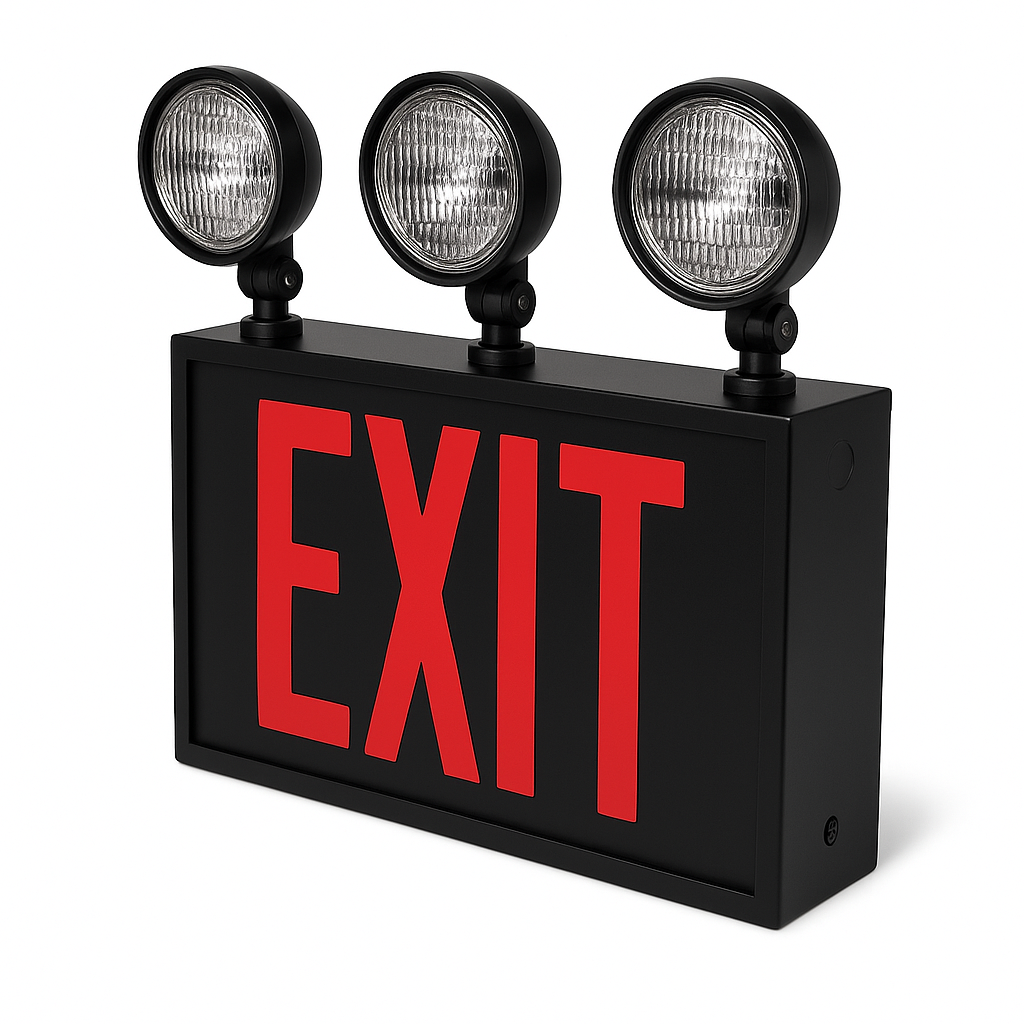

NYC-Compliant LED Exit Sign with 3-Head Emergency Lighting - black housing
NYC-Compliant LED Exit Sign with 3-Head Emergency Lighting
NYC-Compliant LED Exit Sign with 3-Head Emergency Lighting - black housing

New York City Approved LED Exit Emergency Combo

SKU: CNYXTE1RW3
$176.81

Got questions?

Give us a call 800-847-1955!

NYC‑Approved Steel LED Exit & Emergency Combo — 8" Red Letters, 2 × 12 W Heads (+3rd Head Included), 12 W Remote, 120/277 V — Features & Specs

The CNYXTE New York City–approved LED exit & emergency combo pairs an 8" red EXIT legend with two glare‑controlled 12 W emergency lamp heads (and a third head supplied for field installation). A rugged 20‑gauge steel cabinet, 6 V SLA pack for 90‑minute egress, and 12 W remote‑head capacity make this unit a go‑to for NYC corridors, lobbies, and stair landings. Explore NYC‑approved exit & emergency combos and compare construction across our steel exit sign + light combos.

NYC Approved 8" Red Letters 2 × 12 W Heads 12 W Remote 20‑Ga Steel UL 924

Key Features

  • NYC Approved; UL 924 listed for damp locations (20–50 °C / 68–122 °F).
  • 8" red LED EXIT legend to meet NYC letter‑size requirements.
  • Two adjustable 12 W emergency heads for long throws; a third head is included for field install (side knockouts).
  • Remote‑capable: 12 W @ 6 V budget to power compatible remote heads.
  • Dual‑voltage 120/277 V input; status LED and push‑to‑test for quick checks.
  • 6 V SLA battery with 90‑minute code‑minimum emergency runtime.
  • Low‑voltage disconnect, solid‑state transfer, and a two‑rate charger (~24 h recharge).
  • Rugged 20‑gauge steel cabinet (white or black) with impact‑resistant heads.
  • Snap‑out steel chevrons for directional egress marking.
  • Back‑surface wall mount; top/side conduit knockouts for surface raceway.
  • 5‑year electronics/housing warranty; battery 2‑year prorated.

Applications & NYC Design Notes

Use CNYXTE where the Authority Having Jurisdiction (AHJ) requires NYC‑format signage and robust, high‑wattage egress lighting: high‑occupancy corridors, lobby approaches to stair towers, and doorways that open onto deep or angled landings. The 8" red legend provides long‑range recognition in smoke‑dimmed conditions, while the 12 W heads support longer center‑to‑center spacing and higher mounting heights typical in commercial entrances and atriums. The third head ships loose for side mounting—use it to eliminate a dark pocket at a corridor turn without adding a separate fixture housing.

When bid documents call for remote heads in vestibules or cross‑corridors, the onboard 12 W @ 6 V remote budget can feed one larger remote or multiple compact remotes within the watt budget. Keep conductor runs short and verify gauge to limit voltage drop. Coordinate steel chevrons during rough‑in and lock the arrowing to the signed egress path before inspection.

Related NYC Combo Guides

NYC Combo Selection Guide — Letters, Heads & AHJ Tips New York Emergency Lighting Code Essentials

Spec Sheet

Download CNYXTE NYC Exit Combo Spec Sheet (PDF)

Specifications (Overview)

  • Legend: 8" red EXIT (NYC compliant); steel face with removable chevrons.
  • Heads: Two adjustable 12 W emergency heads; third head included for field install (side knockouts).
  • Remote Output: 12 W @ 6 V total capacity for compatible remote heads.
  • Listings: NYC Approved; UL 924 for damp locations (20–50 °C).
  • Cabinet: 20‑gauge powder‑coated steel (white or black).

Illumination

  • Two 12 W heads with metal reflectors and glass lenses provide wide lateral spread and controlled verticals for doors and landings.
  • Third head supplied for side installation—ideal for jogs in the corridor or alcoves adjacent to the primary egress path.
  • 8" red LED legend provides long‑range recognition consistent with NYC standards.

Electrical

  • Dual‑voltage 120/277 V input; status LED (normal/fault) and push‑to‑test control.
  • 6 V sealed lead‑acid (SLA) battery; 90‑minute code‑minimum egress illumination.
  • Solid‑state transfer and low‑voltage disconnect (LVD) to protect the battery.
  • Two‑rate automatic charger, roughly 24 hours to full recharge.
  • Input load (typical): 12.7 W / 0.115 A @ 120 V · 14.3 W / 0.056 A @ 277 V.

Mounting

  • Back‑surface wall mount using the universal steel backplate.
  • Top and side knockouts support surface conduit feeds common in NYC renovations.

Housing

  • Powder‑coated 20‑gauge steel cabinet (white or black) resists impact and heat.
  • Impact‑resistant emergency heads; steel face with snap‑out chevrons for directional marking.

Remote Capacity

Warranty / Listings

  • 5‑year warranty on electronics and housing; battery 2‑year prorated.
  • UL 924 listed for damp locations (20–50 °C).
  • Meets NYC code, NFPA 101, NEC, and OSHA.

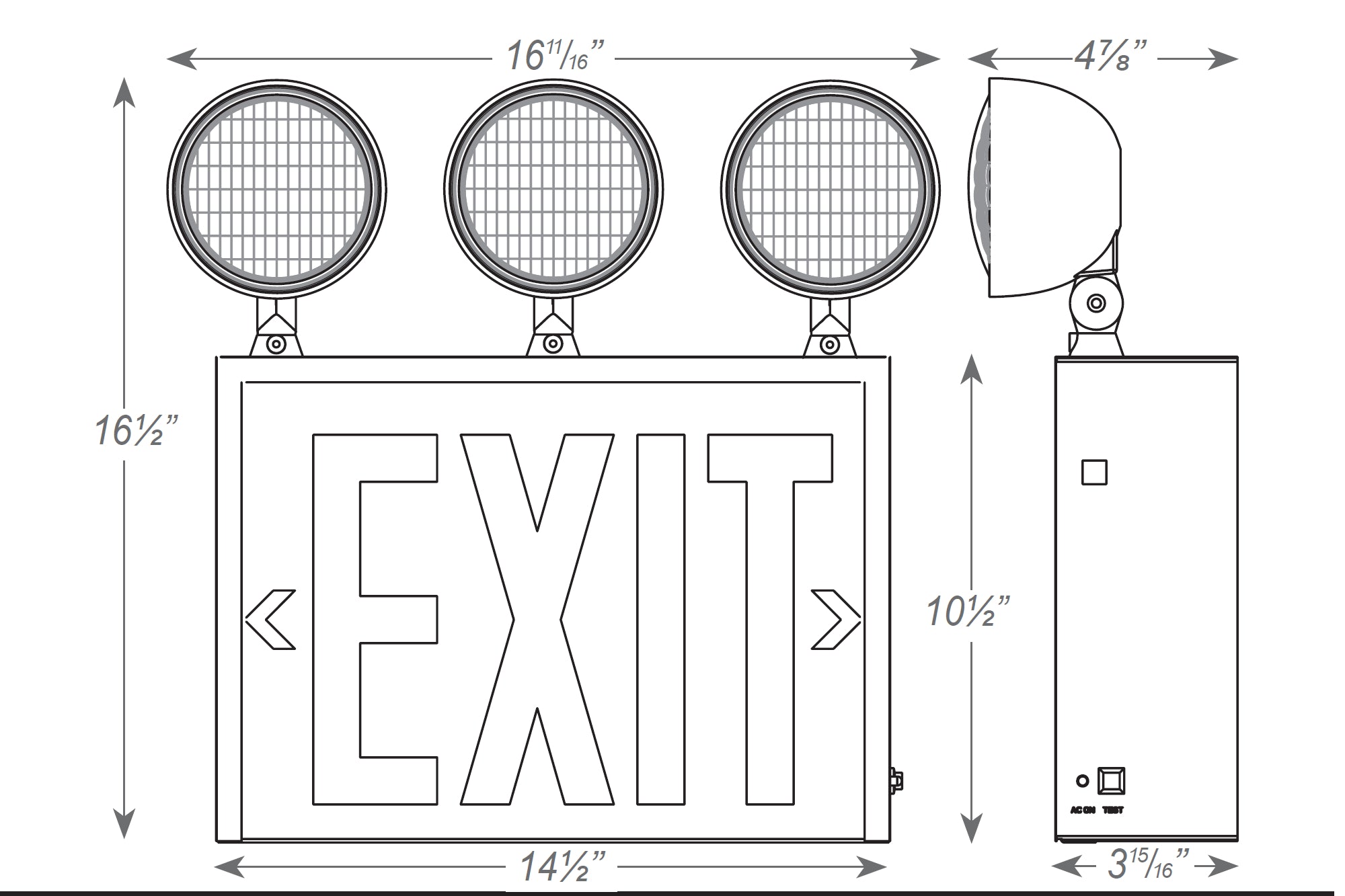

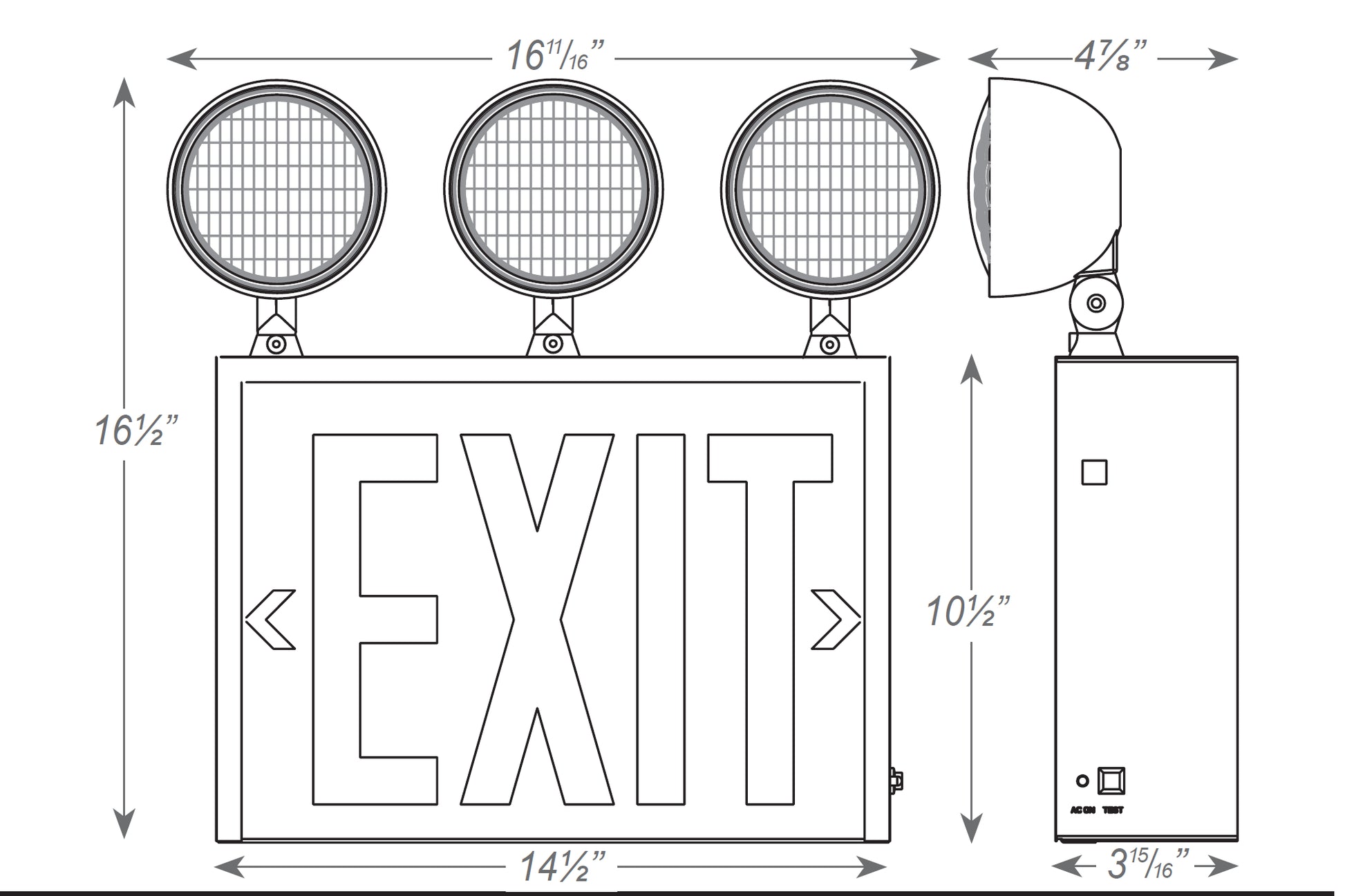

Dimensions

  • Cabinet: 14 ½" W × 10 ½" H × see spec sheet depth.
  • Overall envelope: consult the spec sheet drawings for total height/width with two vs. three heads.

Selection & Layout Tips (NYC Projects)

  • Lettering & arrowing: Keep 8" red legends consistent per floor. Set steel chevrons at rough‑in and document directions on plan submittals.
  • Two vs. three heads: Use the supplied third head where a vestibule or corridor dog‑leg creates a shadow pocket; match aiming to overlap at the door leaf.
  • Remote budgeting: Sum head watts and keep ≤ 12 W @ 6 V. Short runs and correct gauge mitigate voltage drop.
  • Mounting height: Typical 8–12 ft; verify against photometric layout and AHJ preferences for uniformity.
  • Testing cadence: After energizing, allow a full charge before the first 90‑minute test; log monthly functional and annual duration tests.

Compare Jurisdiction & Output — NYC vs. Steel/Thermoplastic Combos

Focus on letter format, head wattage, remote budget, and cabinet material to choose the right spec path (no pricing).

Model (H1) Jurisdiction / Letters Head Output Remote Budget Cabinet Material Best Fit
This model — CNYXTE NYC steel combo NYC / 8" red 2 × 12 W (+ third head supplied) 12 W @ 6 V 20‑ga steel NYC corridors, lobbies, stair landings
Chicago steel combo — 5.3 W heads (CALEDCXTEU) Chicago / 8" red (jurisdictional) 2 × 5.3 W RC 10 W 20‑ga steel AHJ‑specific, heavy‑duty interiors
Die‑cast architectural combo — 3 W heads (CKXTEU) General / red or green 2 × 3 W RC 3 W Die‑cast aluminum Design‑forward interiors
Thermoplastic low‑profile combo (CEM) General / red or green 2 × 0.5 W (HL 2.0 W opt.) RC 1.0 W Thermoplastic Budget corridors; slim projection

Frequently Asked Questions

Is the CNYXTE approved for use in New York City?

Yes. It is NYC Approved and UL 924 listed for damp locations. The 8" red legend format aligns with NYC requirements.

Why is a third head included, and do I have to install it?

The third head is provided to address shadow areas common at vestibules or corridor turns. It is field‑installed via side knockouts when your layout requires added coverage; it’s not mandatory if two heads meet the photometric design.

How do I size remote heads to the 12 W budget?

Sum the rated watts of all remote heads and keep the total ≤ 12 W @ 6 V. Use short runs and appropriate wire gauge to reduce voltage drop; verify polarity and voltage at the last head.

Can I surface‑run conduit to this unit?

Yes. Top and side knockouts facilitate surface conduit feeds, a common method on NYC retrofit projects.

What maintenance is required to stay code‑compliant?

Perform a functional test monthly and a full 90‑minute discharge annually; document results for inspection. Replace the battery when capacity falls below code‑minimum runtime.

  • NYC 8‑inch red exit combo
  • steel exit sign with 12 W heads
  • remote‑capable 12 W @ 6 V
  • third emergency head field‑install
  • NYC exit sign code UL 924
