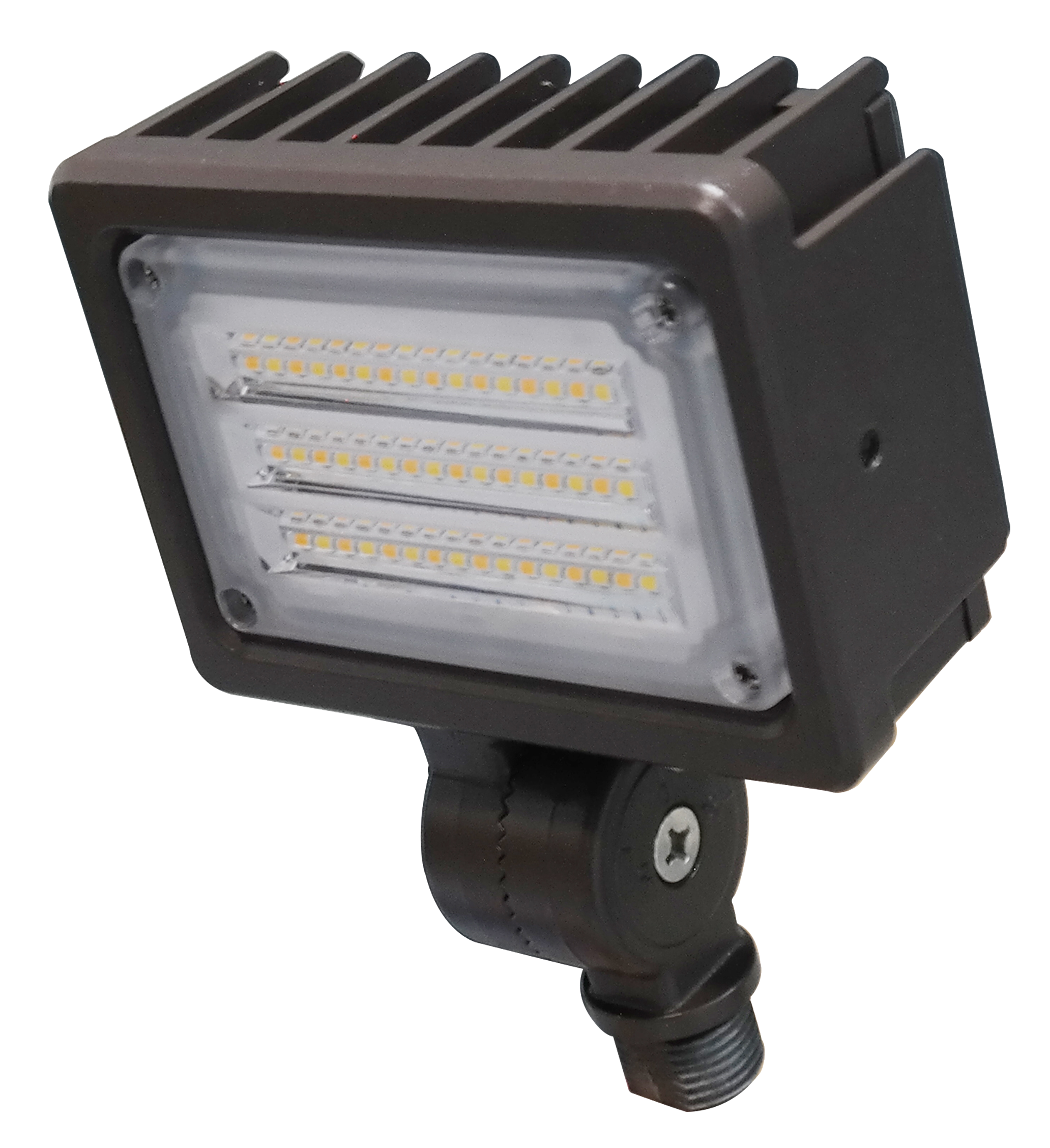

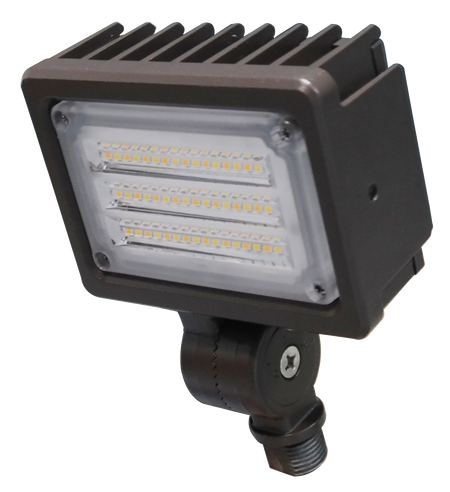

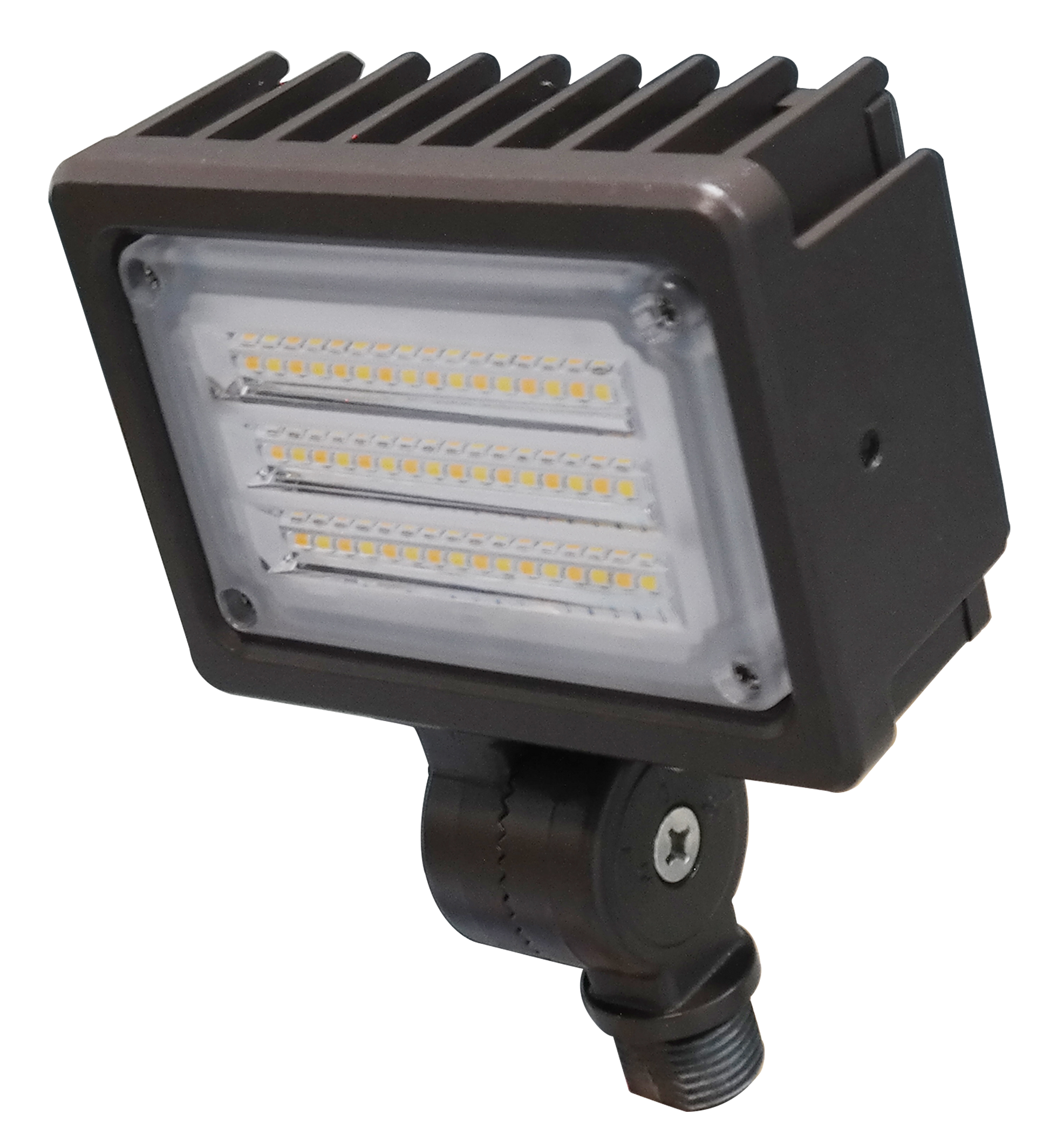

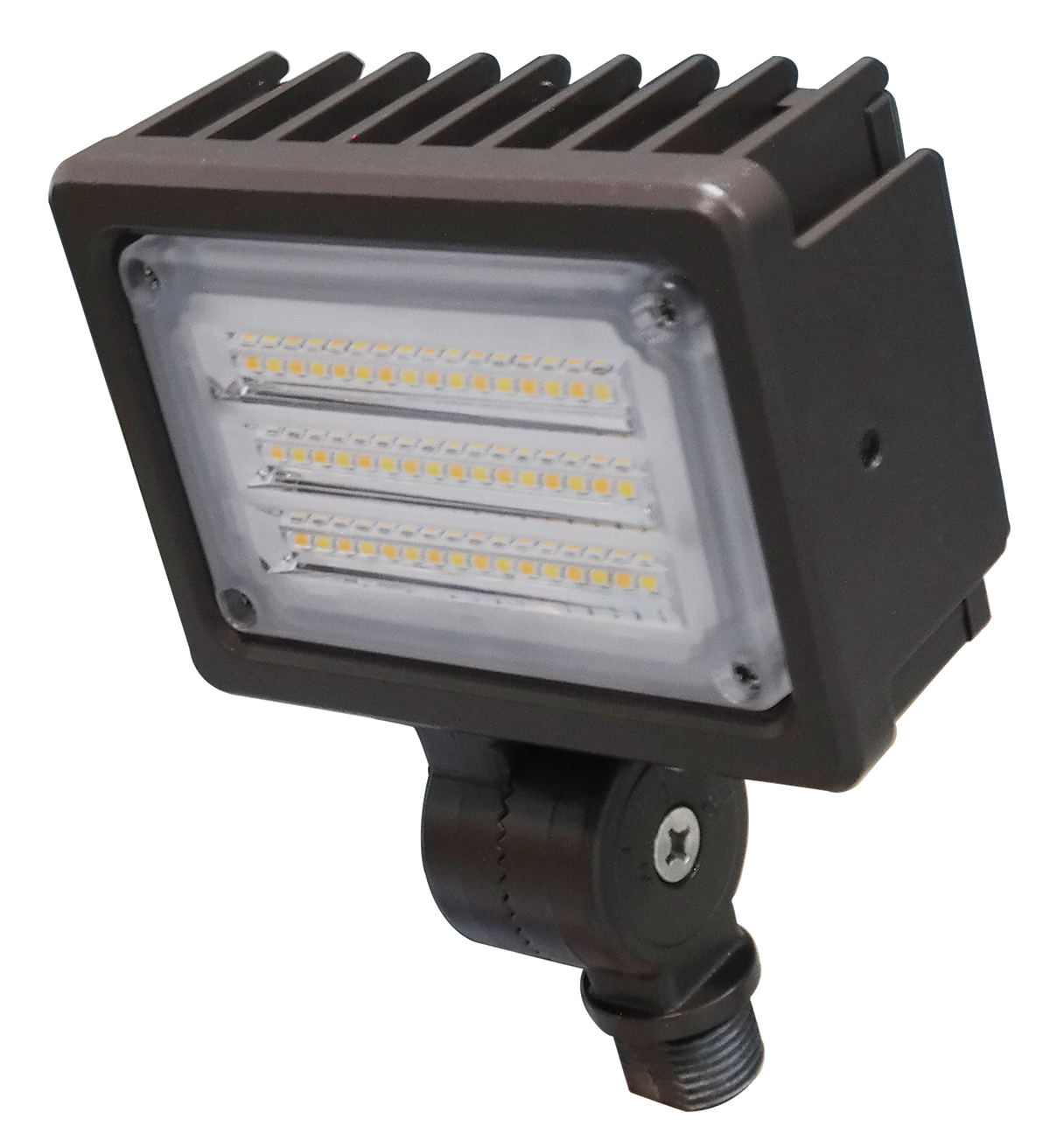

Commercial LED Area Light – Kelvin Adjustable Outdoor Luminaire

LED Area Light - 3 CCT Select (3500K/4000K/5000K), Up to 7,200 lm, IP65, 0–10V Dimming - Features & Specs

This LED area light is built for commercial-grade exterior lighting applications. Featuring a Kelvin adjustable design (3500K / 4000K / 5000K), it delivers up to 7,200 lumens with 0–10V dimming for precise control. Ideal as an outdoor area light for signage, walkways, building perimeters, and landscape zones, it’s constructed with a rugged die-cast aluminum housing and rated as a wet location area light for dependable performance in harsh conditions.

Key Features

• Kelvin selectable: 3500K / 4000K / 5000K
• Output up to 7,200 lm; efficacy up to 156 lm/W
• 0–10V dimmable driver; universal 120–277V input
• IP65 wet-location rated; polycarbonate lens
• Distribution: NEMA 7x7 / IES Type V; BUG up to B2-U0-G1
• Rugged die-cast aluminum housing (dark bronze), IK10 lens, salt-fog tested 1,000 hrs
• Electrical: 4kV surge protection; PF > 0.90; THD < 20%
• Mounting: knuckle (std); optional yoke (4L/7L), canopy plate, and ground stake
• Listings: UL Listed; DLC Premium; FCC Part 15 Class A
• Warranty: 5-year housing & electronics

Download LED Area Light Spec Sheet (PDF)

Performance

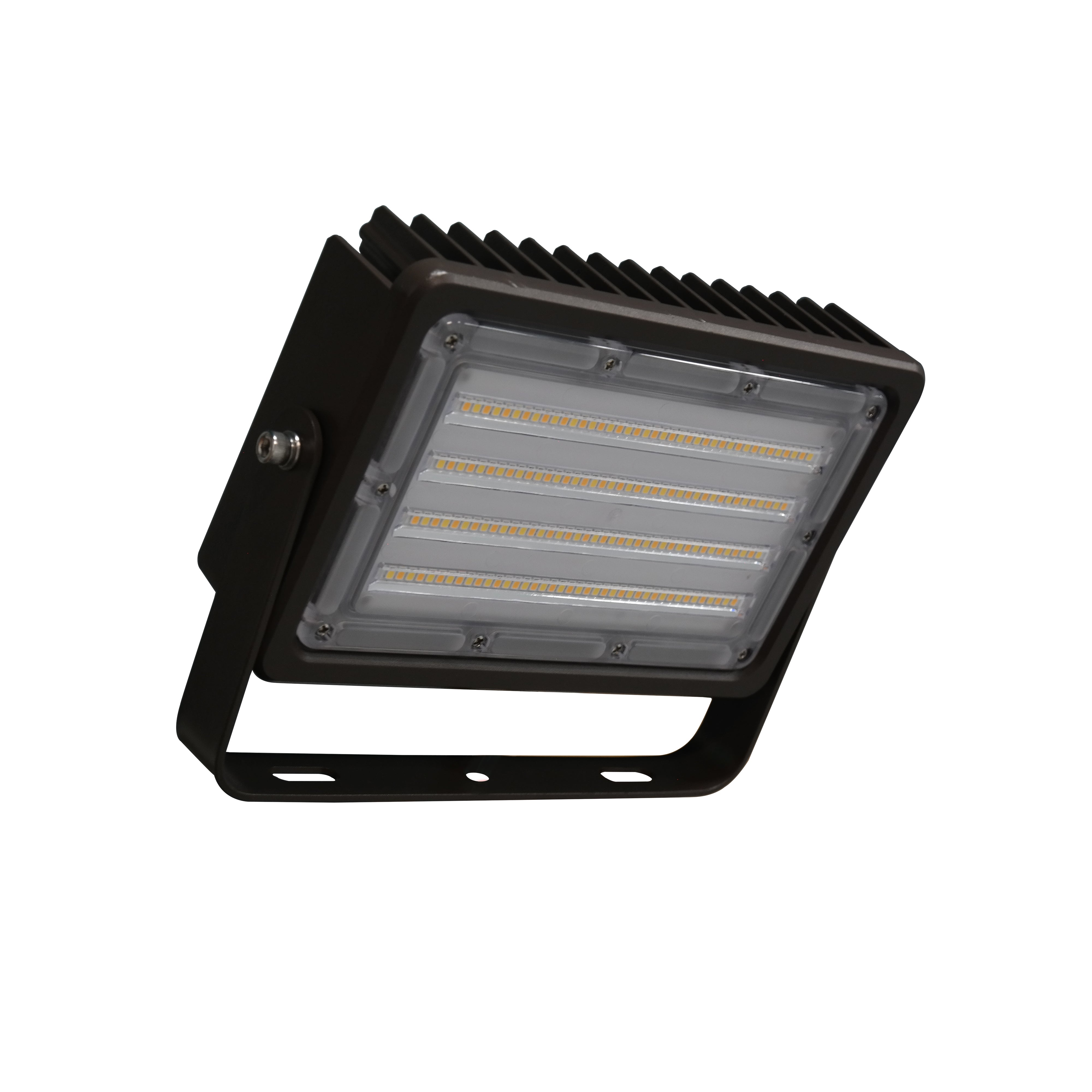

• Available in 2L (2,000 lm), 4L (4,400–4,700 lm), and 7L (6,600–7,200 lm) models
• Efficacy up to 156 lm/W depending on CCT and model
• Polycarbonate lens and NEMA 7x7 distribution for wide light coverage
• BUG rating: Up to B2-U0-G1 (low uplight, low glare)
• LED L70 lifetime of 149,000 hours

Electrical

• 120–277V universal input, 50/60Hz
• 0–10VDC dimming driver standard
• Surge protection: 4kV
• Power factor > 0.90, THD < 20%
• Amperage range (typical): 0.13A (2L @120V) to 0.43A (7L @120V)

Mounting Options

• Standard knuckle mount included
• Optional yoke mount for 4L and 7L models (MPAL-KFS-YKL)
• Optional line voltage ground stake (MPOT17)
• Optional CM-R round canopy plate for ½” swivel arms

Construction

• Premium powder-coated die-cast aluminum housing in dark bronze
• IP65 rated for wet environments
• IK10 impact-rated lens
• Salt fog tested for 1,000 hours (ASTM B117)

Compliance & Listings

• UL Listed for wet locations
• DLC Premium listed
• FCC Part 15, Class A compliant
• IES Roadway Type V or NEMA 7x7 distribution

Warranty

• 5-year warranty on housing and electronics

Dimensions

• MPAL-2L: 4.3” L × 1.7” W × 5.8” H, 1 lb
• MPAL-4L: 8.7” L × 1.9” W × 9” H, 4 lbs
• MPAL-7L: 8.7” L × 1.9” W × 9” H, 4 lbs

Frequently Asked Questions

What does “Kelvin Field Selectable” mean?

It means you can choose between 3500K, 4000K, or 5000K color temperatures at the time of installation to suit your lighting preference—warm white, neutral white, or cool white.

What applications is the MPAL-KFS best suited for?

These fixtures are ideal for building perimeters, parking areas, commercial signage, wall washing, landscape lighting, and general site illumination.

Is this fixture dimmable?

Yes. It includes 0–10V dimming support for integration with dimming systems.

Does it come with mounting hardware?

The standard knuckle mount is included. Yoke mounts, canopy plates, and ground stakes are sold separately.

Is this fixture dark sky compliant?

The U0 uplight rating and available beam control make it low-glare and neighbor-friendly, but full dark sky compliance depends on installation height and orientation.
