Explosion-Proof Edge-Lit LED Exit Sign – Class I Div 1 & Hazardous Locations

CP-EXP “Champion Edge-Lit” Explosion-Proof Edge-Lit LED Exit Sign – Class I Div 1 & Hazardous Locations

Download CP-EXP Explosion-Proof LED Exit Sign Spec Sheet (PDF)

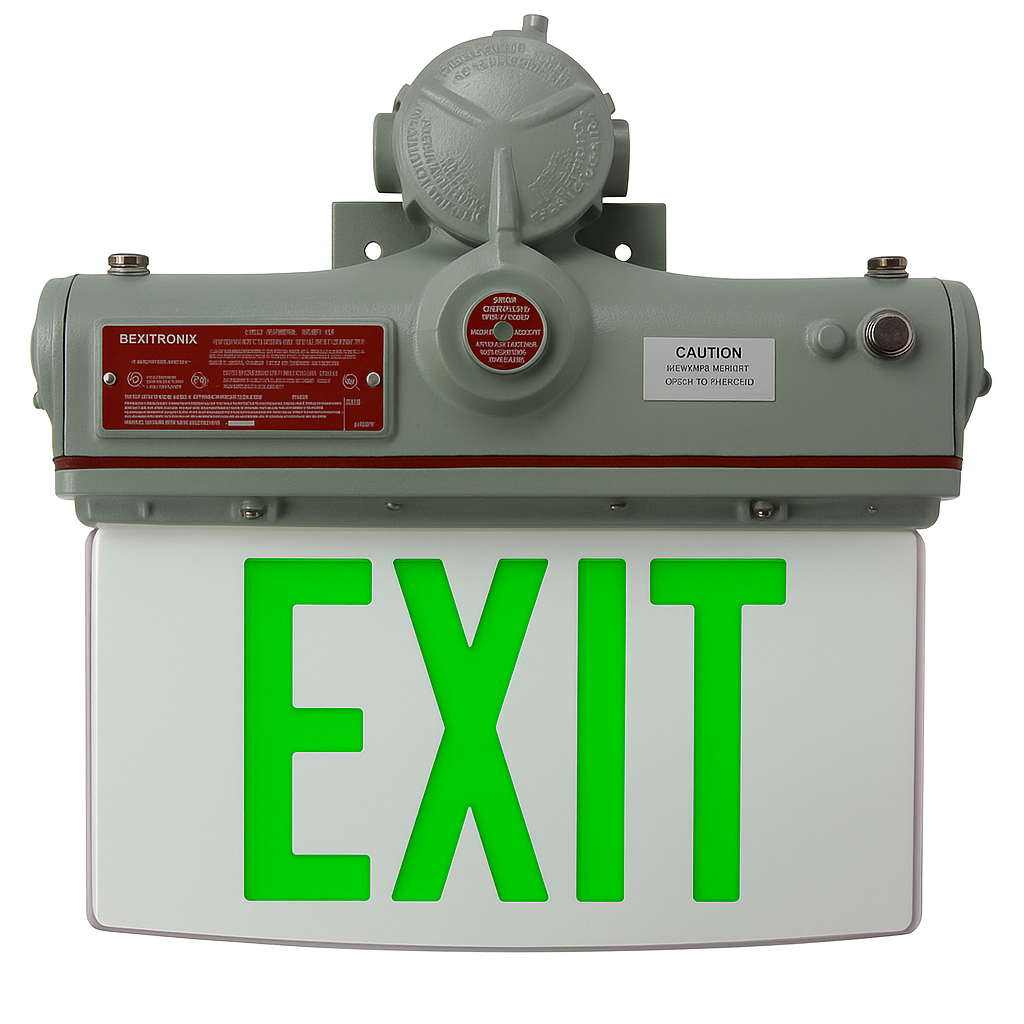

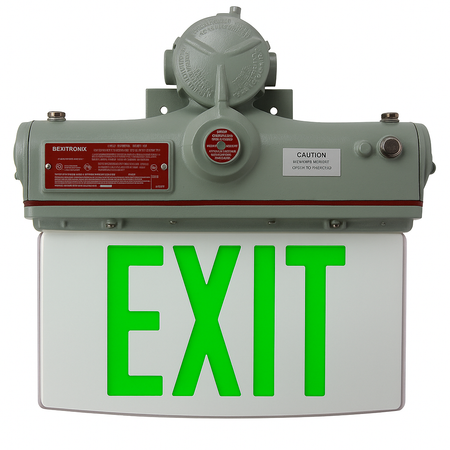

The CP-EXP “Champion Edge-Lit” Explosion-Proof LED Exit encloses a crystal-clear acrylic panel inside a copper-free, cast-aluminum housing that is factory-sealed and certified for Class I Div 1 C & D, Class II Div 1 E, F & G, Class III, Class I Zone 1 IIA/IIB, Zone 2 IIA/IIB + H₂/IIC, T6, IP65. High-efficiency red or green LEDs, a maintenance-free Ni-Cd battery for 180-minute emergency run-time, and ½ in NPT conduit hubs deliver dependable egress marking in refineries, grain elevators, chemical plants and other hazardous environments environments.

Features & Benefits

• Explosion-proof rating: Class I Div 1 C&D, Class II Div 1 E, F, G, and more
• 180-minute emergency operation using Ni-Cd battery
• Factory-sealed — no external taping or sealing needed
• Field-selectable chevrons; mirror insert for double-face models
• Salt-spray tested; suitable for marine, coastal, and wet locations

Illumination

• Energy-efficient red or green LED edge-lighting
• 6 in EXIT legend with ¾ in stroke width; glare-free acrylic panel

Electrical

• 120/277 VAC input (standard); 220–240 VAC optional
• Ni-Cd battery provides 180 minutes of backup power
• Low-voltage disconnect and brownout protection

Construction

• Die-cast, copper-free aluminum housing with gray powder coat
• ½ in NPT conduit hubs (top and sides)
• High-clarity acrylic panel; mirror insert for double-face

Mounting

• Wall/pendant (WP) or end-bracket (EB) mount options
• Top and side hubs support flexible conduit entry

Dimensions

• 14.88 in W × 16.00 in H × 3.69 in D

Options

• 240T — 220–240 VAC 50/60 Hz input
• EU — Green running-man legend panel
• G1 — Guardian self-test/diagnostics

Ordering Guide (examples)

• CP-EXP-1-LB-WP — red, single-face, AC-only, wall/pendant mount
• GCP-EXP-2-WB-EB-G1 — green, double-face, battery, end-bracket, Guardian diagnostics

Warranty / Listings

• 5-year warranty on housing and electronics
• Ni-Cd battery 5-year prorated warranty
• UL 924, NFPA 101, NEC, and OSHA compliant

Frequently Asked Questions

Is this fixture explosion-proof?

Yes. The CP-EXP is certified for Class I Division 1 C&D, Class II Div 1 E, F, G, and other hazardous zones. It is also IP65-rated for outdoor and marine use.

How long will the battery last in an emergency?

The standard Ni-Cd battery provides 180 minutes (3 hours) of illumination during power loss — double the code minimum.

Can I order this with a green legend or running man?

Yes. The EU option allows you to select a green EXIT or Running Man legend at the time of order.

What are the mounting options?

You can choose wall/pendant (WP) or end-bracket (EB) mounting. All units include top and side conduit hubs for wiring flexibility.

Does this unit require external sealants?

No. The factory-sealed design means no external sealing or taping is required, saving installation time and ensuring compliance.
