LED Up/Down Cylinder Wall Light – Selectable Lumen & Color Temp | IP65 Rated
The CYL-UPDN Up/Down Cylinder Luminaire is a versatile architectural wall light with field-selectable lumen output, color temperature, and direction mode. Choose up-only , down-only , or up & down emission, and dial in one of three output levels per model. A sealed, powder-coated aluminum body, toughened glass lens, and IP65 rating make it a reliable choice for entryways, columns, accent façades, and perimeter paths. For larger-area wall illumination, compare with wall pack lights , and see broader categories under architectural outdoor wall lights .
Use CYL-UPDN to create vertical emphasis (up-light on columns and soffits), pedestrian-scale downlight near entries, or symmetrical up/down accents along modern façades. The three-step lumen selector makes it easy to right-size output at commissioning—start mid-range, then fine-tune to reduce glare or meet target illuminance. With CRI > 90 , this cylinder renders natural materials (stone, wood, brick) and signage with excellent fidelity, while the 35° optic contains spill light for clean edges and minimal sky glow. For broad, uniform perimeter lighting, a dedicated wall-pack solution may be preferred; use cylinders to layer architectu
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- IP65
- cULus Wet
- 120/277 V
- 0–10V Dimming
- 3 CCT Select
- 3 Output Steps
- Up / Down / Both
- Photocell (On/Off)
- CRI > 90
- wet location
Key features
- IP65 rated; cULus Listed for wet locations.
- Field-selectable CCT: 3000K / 4000K / 5000K (switch inside housing).
- Three output steps per model: 6–9?W , 12–20?W , or 23–35?W (model-dependent).
- Direction selectable: Up , Down , or Up & Down distribution.
- Universal 120–277?V input; 0–10?V dimmable driver.
- Integrated photocell (enable/disable via internal switch) for dusk-to-dawn.
- High CRI > 90 with a controlled 35° beam angle for crisp architectural highlights.
- Powder-coated aluminum housing; toughened glass lens; 4?kV surge protection.
- Electrical quality: PF > 0.90, THD < 20%; operating range –40?°F to 113?°F (–40?°C to 45?°C).
- 5-year warranty on housing and electronics.
Documents
Applications & Design Notes
Use CYL-UPDN to create vertical emphasis (up-light on columns and soffits), pedestrian-scale downlight near entries, or symmetrical up/down accents along modern façades. The three-step lumen selector makes it easy to right-size output at commissioning—start mid-range, then fine-tune to reduce glare or meet target illuminance. With CRI > 90 , this cylinder renders natural materials (stone, wood, brick) and signage with excellent fidelity, while the 35° optic contains spill light for clean edges and minimal sky glow. For broad, uniform perimeter lighting, a dedicated wall-pack solution may be preferred; use cylinders to layer architectural accents alongside area coverage.
Related Outdoor Lighting Guides
Wall Pack Lighting Buyer’s Guide Wall Pack Layout & Photometric Guide
Spec Sheet
Download Cylinder Spec Sheet (PDF)
Performance Options
- CYL-UPDN-976L-3CCT: 600–900 lm | 6–9?W | 3 CCT | Up / Down / Up&Down
- CYL-UPDN-201712L-3CCT: 1,200–2,000 lm | 12–20?W | 3 CCT | Up / Down / Up&Down
- CYL-UPDN-302722L-3CCT: 2,200–3,000 lm | 23–35?W | 3 CCT | Up / Down / Up&Down
- Lifetime (L70): > 140,000 hours (typical).
Electrical & Controls
- Universal 120–277?V input (50/60?Hz); 0–10?V dimming.
- Integrated photocell (internal switch enables/disables dusk-to-dawn).
- 4?kV surge protection; PF > 0.90 ; THD < 20% .
Mounting & Aiming
- Wall mount with included bracket and hardware.
- Set beam direction via internal switch: Up , Down , or Up&Down .
- For grazing effects, mount close to the surface (8–12" setback) and choose warmer 3000K on natural materials.
- For pedestrian entries, select down-only with mid output; keep fixtures level to avoid hot spots on paving.

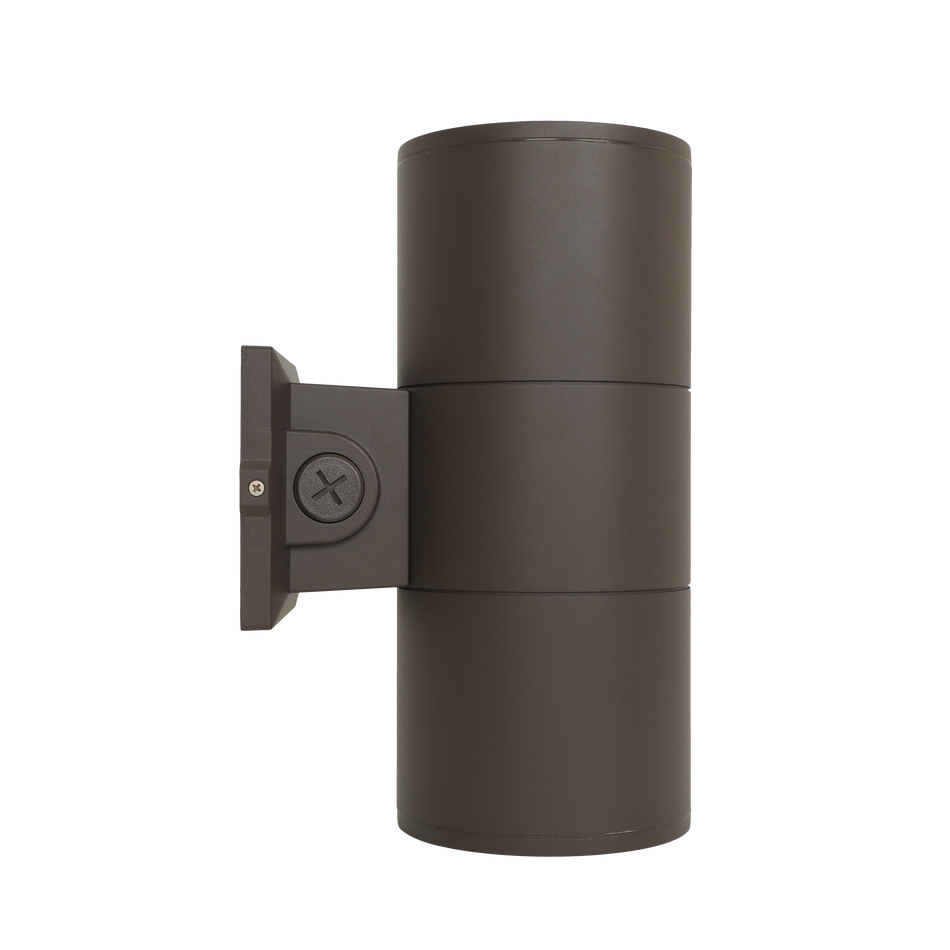

Housing / Finish
- Powder-coated aluminum cylinder (standard: dark bronze).
- Toughened glass lens for weather and impact resistance.
- Seals and fasteners designed for IP65 performance in exposed sites.
Dimensions
- 976L: 8.98" H × 3.07" Ø
- 201712L: 11.02" H × 4.17" Ø
- 302722L: 13.00" H × 5.71" Ø
Compliance & Warranty
- IP65 rated for outdoor use; cULus Listed for wet locations.
- FCC Part 15 Class B compliant.
- 5-year warranty on housing and electronics.
Compare CYL-UPDN Packages (Direction / CCT / Output / Beam)
Family comparison only (no pricing). Each model includes 3 CCT steps, 3 output steps, and direction select. Package Direction Modes Output Steps Max Lumens Beam Best Use 976L (6–9?W) Up / Down / Up&Down 3 steps ~900 lm 35° Entry niches; column grazes 201712L (12–20?W) Up / Down / Up&Down 3 steps ~2,000 lm 35° Medium façades; signage 302722L (23–35?W) Up / Down / Up&Down 3 steps ~3,000 lm 35° Tall columns; long-throw accents
Compliance notes
- Verify the selected model is rated for the final environment before ordering.
