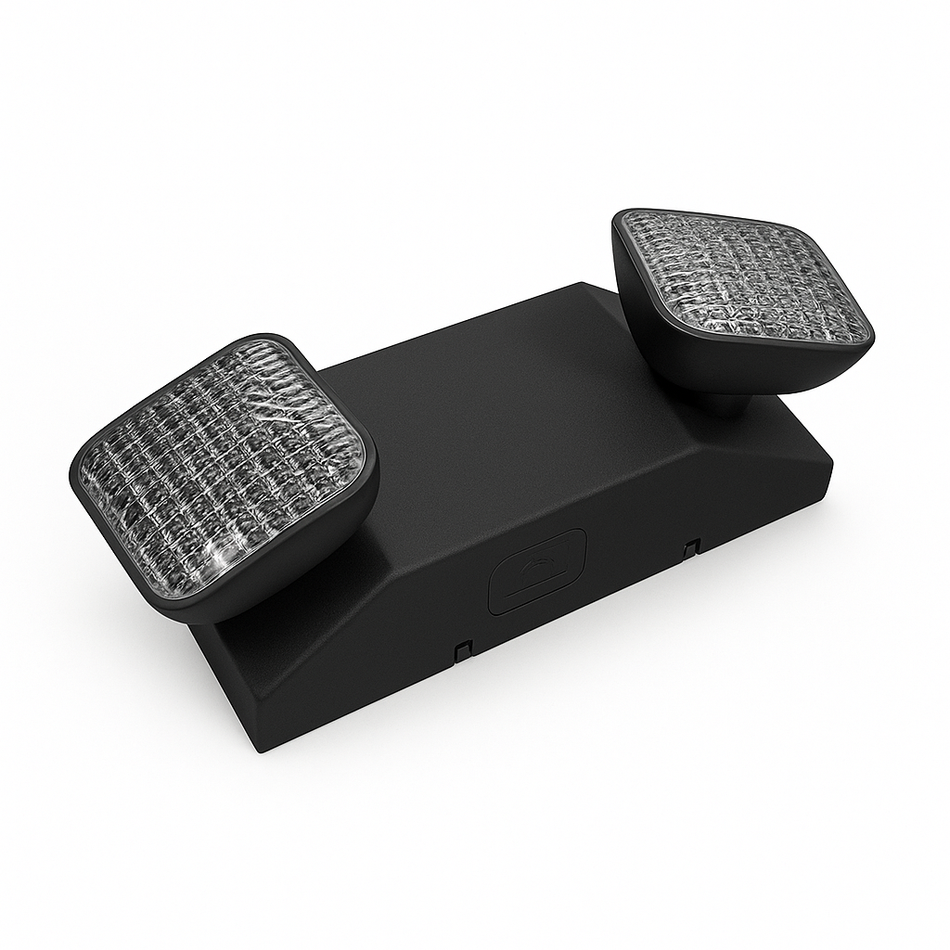

Dual-head LED Emergency Lighting with Remote Capacity
The LEDR5HO is a dual-head LED emergency light for damp indoor egress paths that need compact thermoplastic construction, adjustable heads, battery backup, and optional remote capacity. It is a protected-interior emergency lighting unit, not an exit sign. Use it for corridors, stair approaches, tenant spaces, back-of-house areas, and other locations where emergency illumination is required without an EXIT legend.
Standard configurations support universal 120/277 V input, wall or ceiling mounting, and 90-minute emergency operation. Available options include self-diagnostics, high-lumen heads, special-voltage service, CSA 120/347 V configurations, CEC Title 20 compliance, USA assembly, and white or black housing. Verify the selected SKU for the final option stack before ordering.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- LED Emergency Light
- Dual Heads
- 90-min Backup
- Remote Capable
- Self Testing (Opt.)
- High Lumen (Opt.)
- 120/277 V
- 120/347 V (Opt.)
- Damp Location
Key features
- Dual adjustable LED heads for emergency egress illumination.
- Compact thermoplastic housing available in white or black.
- Wall or ceiling mounting for protected indoor/damp-location applications.
- 90-minute battery backup for code-required emergency operation.
- Standard 120/277 V input; CSA 120/347 V and special-voltage configurations available by SKU.
- Optional self-diagnostics and high-lumen head configurations.
- Remote-capable configurations support compatible remote heads when the selected SKU and load budget allow.
- UL 924 emergency lighting family with CEC Title 20 and USA-assembled options available.
Applications & Design Notes
Use LEDR5HO where a compact dual-head emergency light is needed for damp, protected interior egress paths. Good fits include commercial corridors, stair approaches, small utility spaces, tenant improvements, and back-of-house paths where the project needs emergency illumination without exit signage.
- Best fit: wall- or ceiling-mounted emergency lighting for protected indoor/damp locations.
- Do not use as an exit sign or combo fixture; LEDR5HO does not provide an EXIT legend.
- Confirm selected options for self-diagnostics, high-lumen heads, CSA/special voltage, and remote capacity before submittal.
Electrical
- Standard dual-voltage 120/277 V input; select CSA configurations where 120/347 V service is required.
- Battery backup provides 90-minute emergency operation for code-required egress lighting.
- Remote-capable configurations can extend coverage to compatible remote heads; size loads and voltage drop to the selected SKU.
Mounting
- Wall or ceiling mounting for standard protected-interior installations.
- Aim both heads during commissioning to cover the approved egress path and dark spots.
- Use conduit entry and mounting hardware appropriate to the final junction box and local code requirements.
Housing / Options
- Thermoplastic housing available in white or black.
- High-lumen, self-diagnostic, CEC, CSA, special-voltage, and USA-assembled variants are available by SKU.
- Use a different product family when the project requires wet-location, vandal-resistant, or exit-sign/combo construction.
Compliance notes
- Confirm final fixture placement, runtime, voltage, remote load, and local AHJ acceptance for the project.
- Confirm selected SKU options before ordering because voltage, self-diagnostics, high-lumen output, and remote-capable configurations vary by model.
