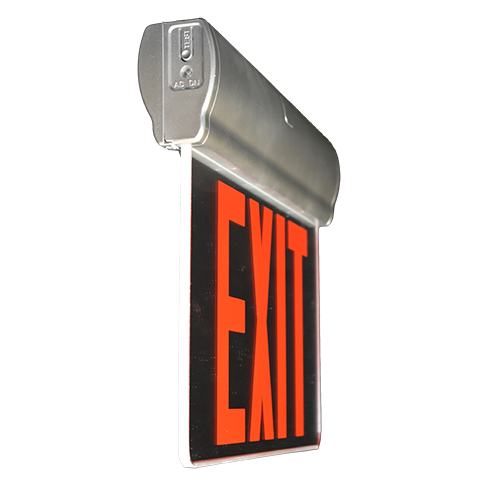

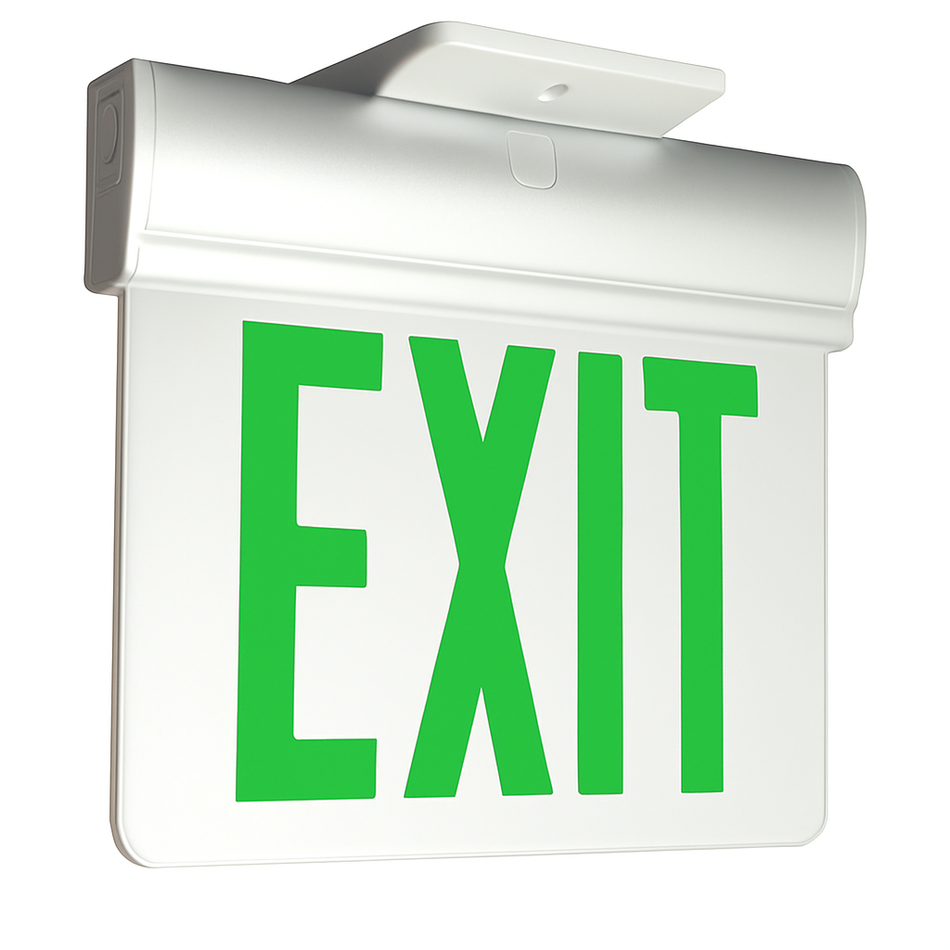

Edge-Lit LED Exit Sign – Red or Green (Economy)

Choose the PELX when a project needs an economy edge-lit LED exit sign with a clear acrylic panel, flexible legend color, and thermoplastic construction. It is a good fit for budget-sensitive commercial interiors where the floating EXIT legend matters but a die-cast aluminum or fully recessed architectural model is more than the space requires.

• Use red or green dedicated variants when the building plans already define the building legend color.
• Use universal red/green configurations when stocking flexibility or late-stage color selection matters.
• Use single-face visibility above doors or at wall-backed routes; use double-face visibility where occupants approach from both directions.
• Set chevrons after confirming the approved egress route so the arrow direction matches the final path of travel.

• Surface models use an EZ-snap canopy for top, end, or back mounting.
• PREL-KIT converts the sign for recessed ceiling installation in T-bar or drywall layouts.
• Factory recessed versions include bar hangers and a trim ring for cleaner finished-ceiling presentation.
• Confirm viewing angle, mounting height, ceiling depth, and access for service before final ordering.

• Standard input is dual 120/277 V for typical commercial branch circuits.
• EM models include a 3.6 V Ni-Cd battery that provides 90 minutes of emergency illumination.
• Status LED and push-to-test controls support routine inspection; SDT versions automate testing where selected.
• SPV versions support 208/220/240 V input for special-voltage applications.

• White housing blends into typical ceiling and wall conditions.
• Black housing is useful for darker trim packages or higher-contrast interiors.
• Silver housing gives the economy thermoplastic sign a more architectural visual cue without stepping up to a metal housing.
• The clear acrylic panel keeps the EXIT legend visually lighter than a standard stencil-face sign.

• PREL-KIT supports field conversion to recessed ceiling mount.
• SDT adds automatic self-testing for managed facilities and multi-site maintenance programs.
• SPV supports special-voltage input where the electrical schedule requires it.
• Custom wording or special legends may be quoted for projects that cannot use a standard EXIT panel.

• UL 924 listing and damp-location rating support normal indoor commercial egress applications.
• Confirm face count, legend color, arrow direction, runtime, and final fixture placement against building plans.
• Coordinate acceptance with the local code official before substituting from a recessed, metal, wet-location, or self-luminous exit sign specification.

• Choose edge-lit exit signs when the acrylic floating-panel appearance is a project priority.
• Choose thermoplastic exit signs when lowest installed cost matters more than the edge-lit look.
• Choose recessed exit signs when the fixture needs to sit tighter to a finished ceiling or wall plane.
• Choose exit sign/emergency light combos when the same location also needs adjustable emergency lamp heads.

Base PELX options are split by legend color, housing finish, and battery-backup selection.

• Red legend: PELXRMW, PELXRMWEM, PELXRMB, PELXRMBEM, PELXRMS, PELXRMSEM.
• Green legend: PELXGMW, PELXGMWEM, PELXGMB, PELXGMBEM, PELXGMS, PELXGMSEM.
• Universal red/green legend: PELXRGMW, PELXRGMWEM, PELXRGMB, PELXRGMBEM, PELXRGMS, PELXRGMSEM.

• Surface model: 12.06 in W x 9.50 in H x 2.63 in D.
• Recessed model: 15.79 in W x 11.18 in H x 4.13 in D.

• Confirm final fixture placement, face count, arrow direction, runtime, voltage, recessed ceiling suitability, and local code approval for the project.
