Economy 50-Ft Photoluminescent Exit Sign (Non-Electrical)

Photoluminescent Exit Sign - 50 ft Viewing, Non-Electrical, Red or Green - Features & Specs

Our economy 50-ft photoluminescent exit sign is a budget-friendly, non-electrical solution for standard indoor corridors and retrofit projects. It’s UL 924 listed and designed for facilities that want code-compliant glow performance without premium finishes or outdoor/100-ft requirements.

Key Features

• Non-electrical, non-radioactive design
• 50-ft viewing distance; UL 924 and NFPA 101 compliant
• Includes two self-adhesive directional chevrons with alignment dots
• Indoor use; supports ceiling, surface, flag, T-bar, and window-mount installs
• 7" letter height with 1" stroke for high legibility

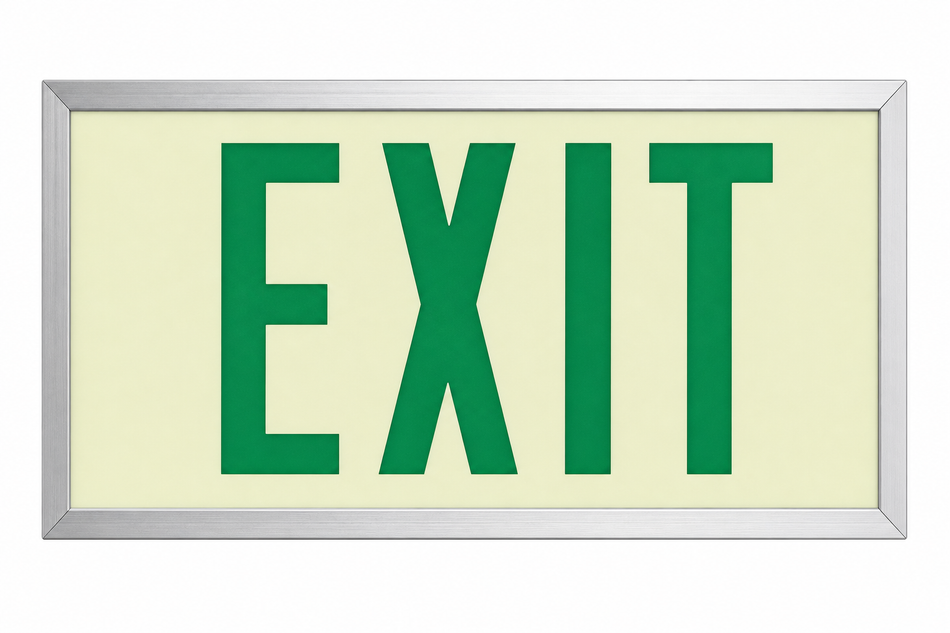

• Aluminum frame; photoluminescent self-extinguishing PVC substrate

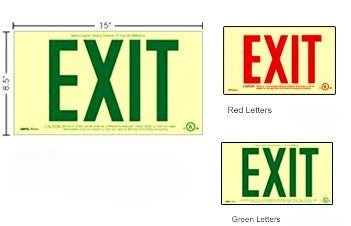

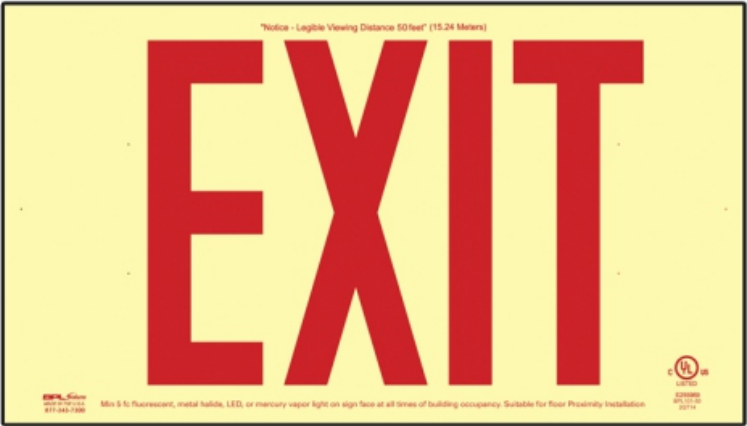

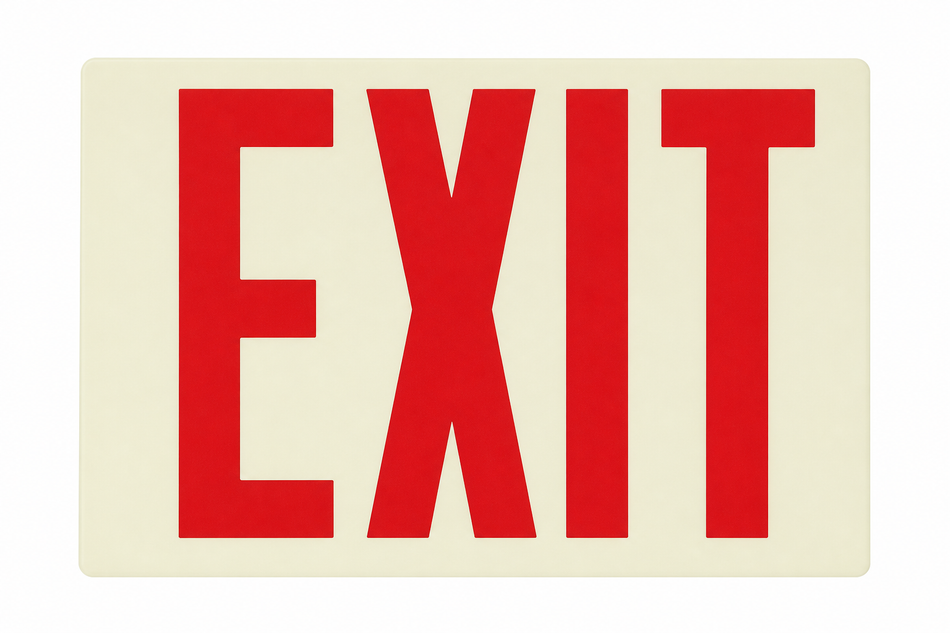

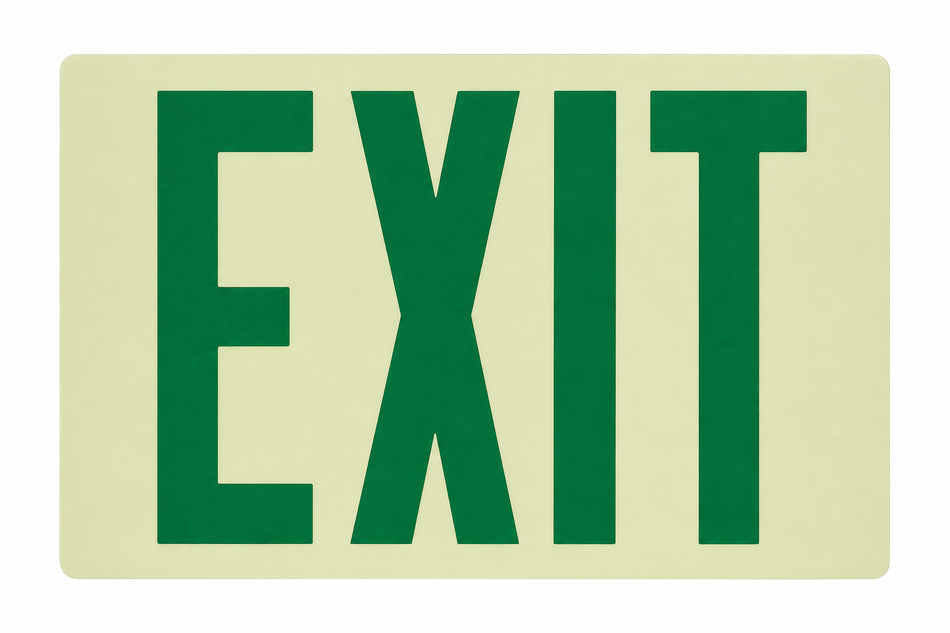

• Single or double-face options; red or green letters
• 15-year limited warranty; LEED points qualified

This photoluminescent exit sign is a reliable, energy-free egress solution for indoor installations. The glow-in-the-dark legend is legible from up to 50 feet, and the unit is UL 924 listed and meets NFPA 101 requirements. A UV-stable, non-radioactive construction includes two field-applied directional chevrons for easy alignment. No wiring, batteries, or ongoing maintenance required.

These are compatible t-bar ceiling mounting brackets.

Mounting Brackets

T-Bar Ceiling Mount Photoluminescent Exit Signs

Select Options

Features & Benefits

• Glow-in-the-dark EXIT legend with 50’ viewing distance
• UV-stable materials with no expiration date and 25+ year life
• Minimal installation and zero maintenance expense

Illumination

• Charges from fluorescent, metal halide, LED, or mercury vapor lighting
• Requires 5 foot-candles (54 lux) minimum at the sign face during occupancy
• Suitable for high or low level indoor use

Electrical

• Zero electricity required – no power consumption
• No bulbs, batteries, or maintenance costs

Directional Arrows

• Includes two self-adhesive chevrons for left, right, or dual direction
• Alignment dots simplify precise placement

Construction / Dimensions

• Sign substrate: Photoluminescent self-extinguishing PVC
• Frame: Aluminum (anodized finishes available)
• Letter size: 7" height with 1" stroke
• Faces: Single or Double; Letter colors: Red or Green

Warranty / Listings

• UL 924 Listed; meets NFPA 101 Life Safety Code
• Complies with ICC/IBC, UBC, BOCA, SBCCI, 1/UFC, CA Building Code, ASTM 2072
• California State Fire Marshal listed; LEED points qualified
• 15-year limited warranty

Frequently Asked Questions

Is this the economy model that’s rated for a 50-ft viewing distance?

Yes. This SKU is our economy photoluminescent exit sign listed for a maximum 50-ft viewing distance under UL 924. Use it where corridor sightlines do not exceed 50 ft.

What conditions must be met for this economy 50-ft rating to apply?

The sign face must receive at least 5 foot-candles (54 lux) of continuous illumination during occupancy with a clear line of sight. Insufficient charging light, tinted glazing, or partial obstructions can reduce legibility below 50 ft.

Does mounting method affect the 50-ft performance on this model?

The 50-ft classification is independent of mounting method, but visibility depends on line-of-sight and contrast. Typical placements are over doors or along egress paths; avoid installs where the legend is angled away or partially blocked.

How do I maintain the 50-ft rating if I order the double-face option?

Ensure each face receives ≥ 5 fc during occupancy. For flag/window mounts, confirm both sides are illuminated; an unlit face may not achieve 50-ft legibility.

Do the included chevrons (arrows) change the 50-ft classification on this economy unit?

No—when applied in the margin areas as intended, chevrons do not reduce the 50-ft rating. Do not overlap the EXIT letters; covering the legend can degrade visibility and invalidate the rating.

What legend size and stroke does this 50-ft economy sign use?

7" letter height with a 1" stroke on a photoluminescent PVC substrate, optimized for 50-ft viewing under compliant lighting.

Is this model approved for outdoor or wet locations?

No. This economy model is for indoor, dry/damp locations only. It is not wet-location or hose-down rated.

Which interior environments are appropriate for this economy 50-ft sign?

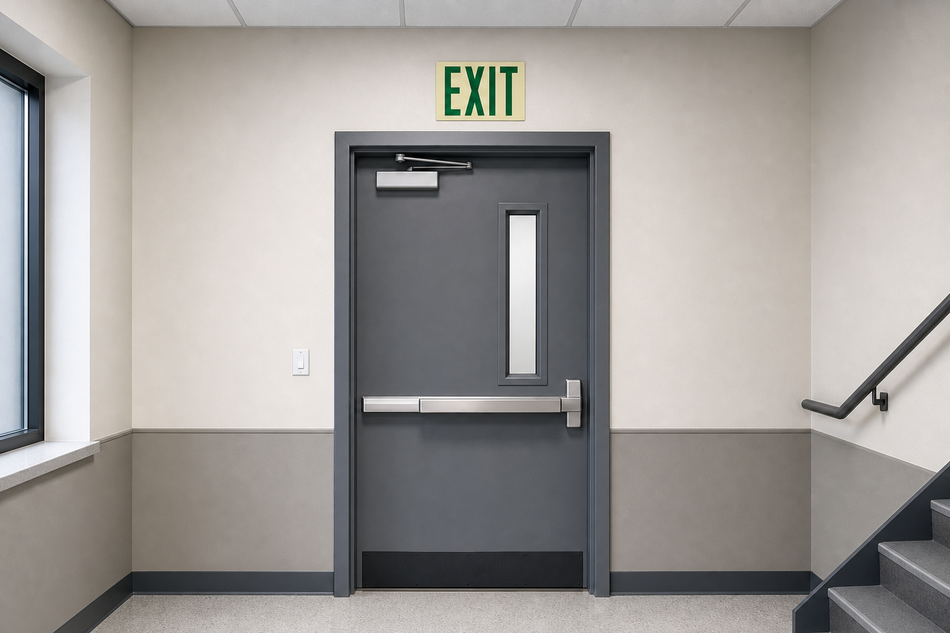

Standard corridors, stair doors, offices, classrooms, and retail aisles with compliant ambient lighting where approach distances are ≤ 50 ft.

Is this model UL listed and what’s the warranty?

Yes—UL 924 listed and compliant with NFPA 101. 15-year limited warranty.

Any special commissioning steps for this economy model?

After installation, verify ≥ 5 fc at the face during occupied hours and confirm legibility from the intended farthest approach (up to 50 ft). Record these checks for your AHJ/maintenance log.
