Field-Selectable LED Exit & Emergency Combo – Remote-Capable Option

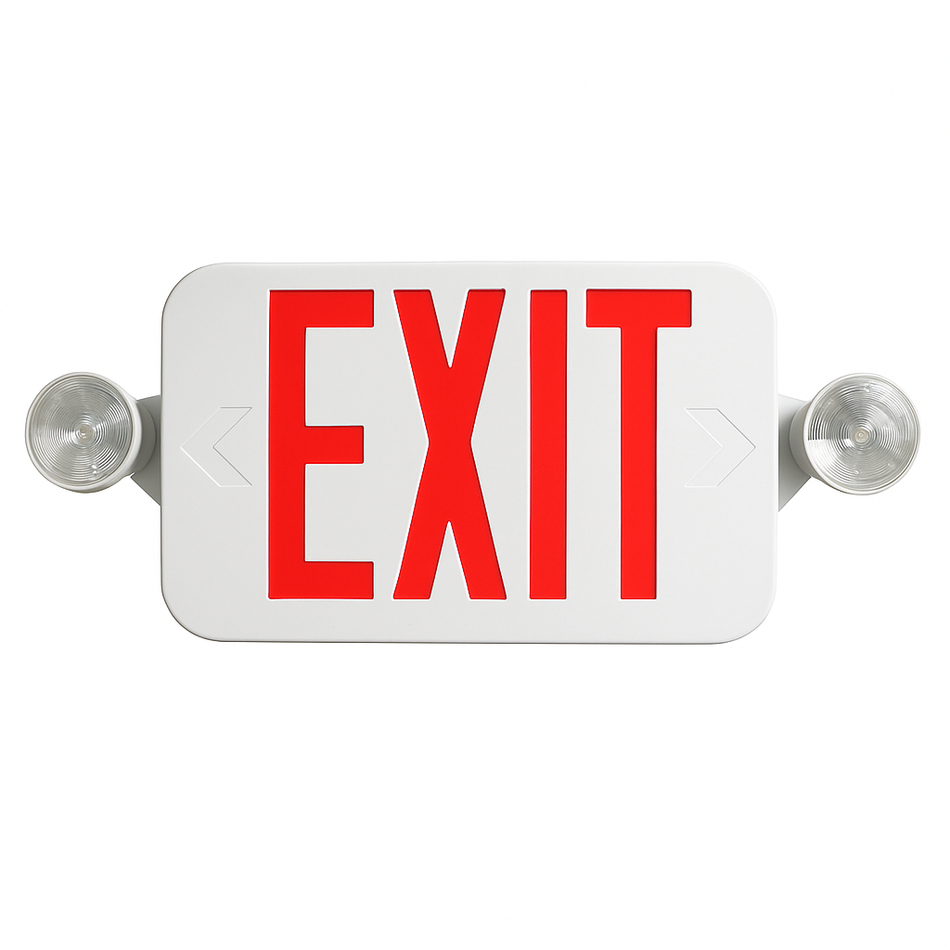

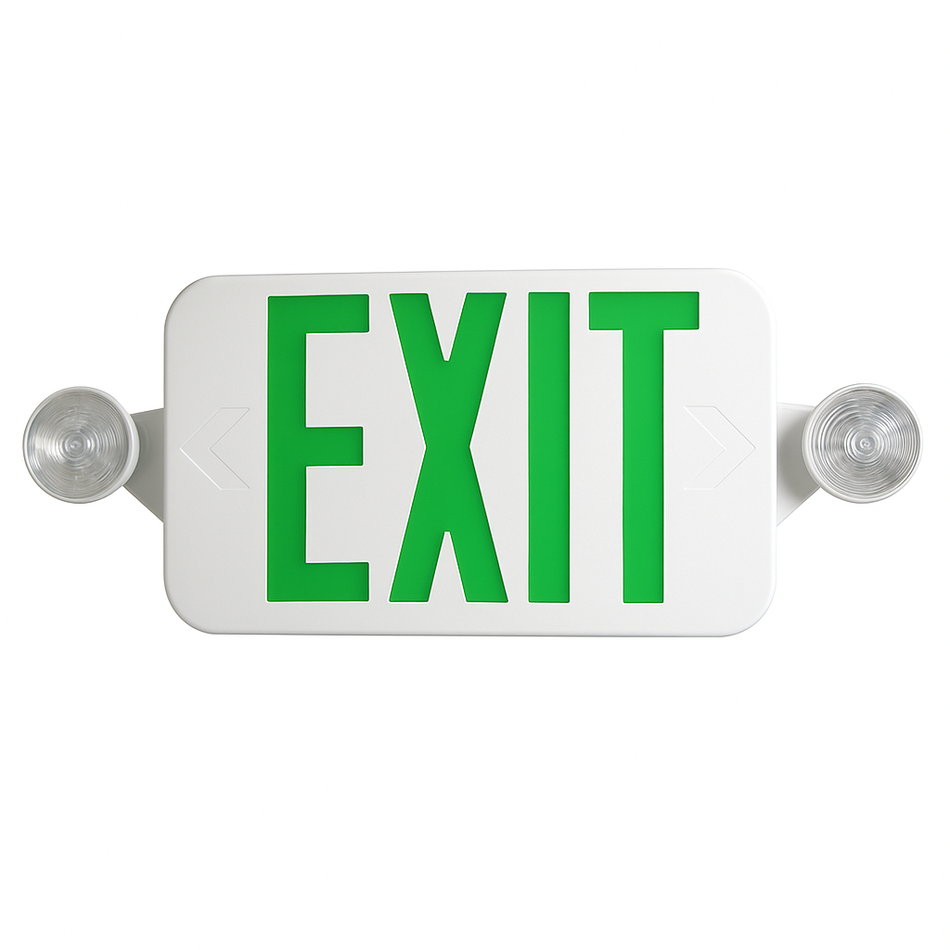

The ILXC‑RG thermoplastic LED exit / emergency combo combines a selectable red or green EXIT legend with two fully adjustable 0.5 W LED heads in a compact thermoplastic LED exit sign with emergency lights cabinet. Each unit ships with dual faceplates, a snap‑fit canopy, and both red and green diffusers—so you can configure single‑ or double‑face and mount to the wall , ceiling , or end . An optional remote‑capable output ( R ) powers one compatible 1 W remote emergency light head to extend egress‑path coverage. For more choices, browse exit sign & emergency light combos .
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- Damp Location
- 120/277 VAC
- ≥90‑Min Runtime
- 2 × 0.5 W Heads
- Universal Mount
- Field‑Selectable Red/Green
- UL 94 5VA
- CEC Title 20
- NFPA 101
Key features
- Field‑switchable red/green legend via internal selector; red & green diffusers included
- Universal single/double‑face kit with snap‑fit canopy for wall, ceiling, or end mount (standard J‑box pattern)
- Two fully adjustable 0.5 W round LED heads with contemporary optics
- Design‑aid spacing @ 7.5' MH: up to 15' CTC (3' path) or 10' (6' path)
- Dual‑primary 120/277 VAC , 60 Hz; typical AC power draw ~ 1.2 W
- Maintenance‑free 3.6 V Ni‑Cd battery; ≥ 90‑minute emergency runtime; ~ 24‑hour recharge; LVD, solid‑state transfer, status LED & push‑to‑test
- Optional R : 1 W @ 3.6 V remote capacity (MLED1‑LO, JLED‑LO, RL52‑LO)
- Injection‑molded UL 94 5VA thermoplastic resists denting, peeling, and corrosion
- Operating temp: 0–40 °C (32–104 °F); UL 924 damp‑location listed; CEC Title 20 compliant
- Dimensions: 11.63" W × 7.88" H × 1.94" D
Documents
Related Edge‑Lit Combo Guides
Edge‑Lit Combos: Spec, Code & Layout Edge‑Lit Mounting & Wiring — Canopy/End/Wall
Spec Sheet
Download ILXC‑RG LED Exit & Emergency Combo Spec Sheet (PDF)
Illumination
- 6" EXIT letters with 3/4" stroke; snap‑out chevrons included (all configurations)
- Two 0.5 W LED heads provide effective egress lighting — see design‑aid spacing above
Electrical
- Universal 120/277 VAC , 60 Hz input (~ 1.2 W )
- 3.6 V Ni‑Cd battery; ≥ 90‑minute emergency runtime; ~ 24‑hour recharge
- Low‑voltage disconnect, solid‑state transfer, and push‑to‑test status check
- R option : 1 W remote output for one JLED‑LO, RL52‑LO, or MLED1‑LO head
Construction & Finish
- Injection‑molded UL 94 5VA thermoplastic housing

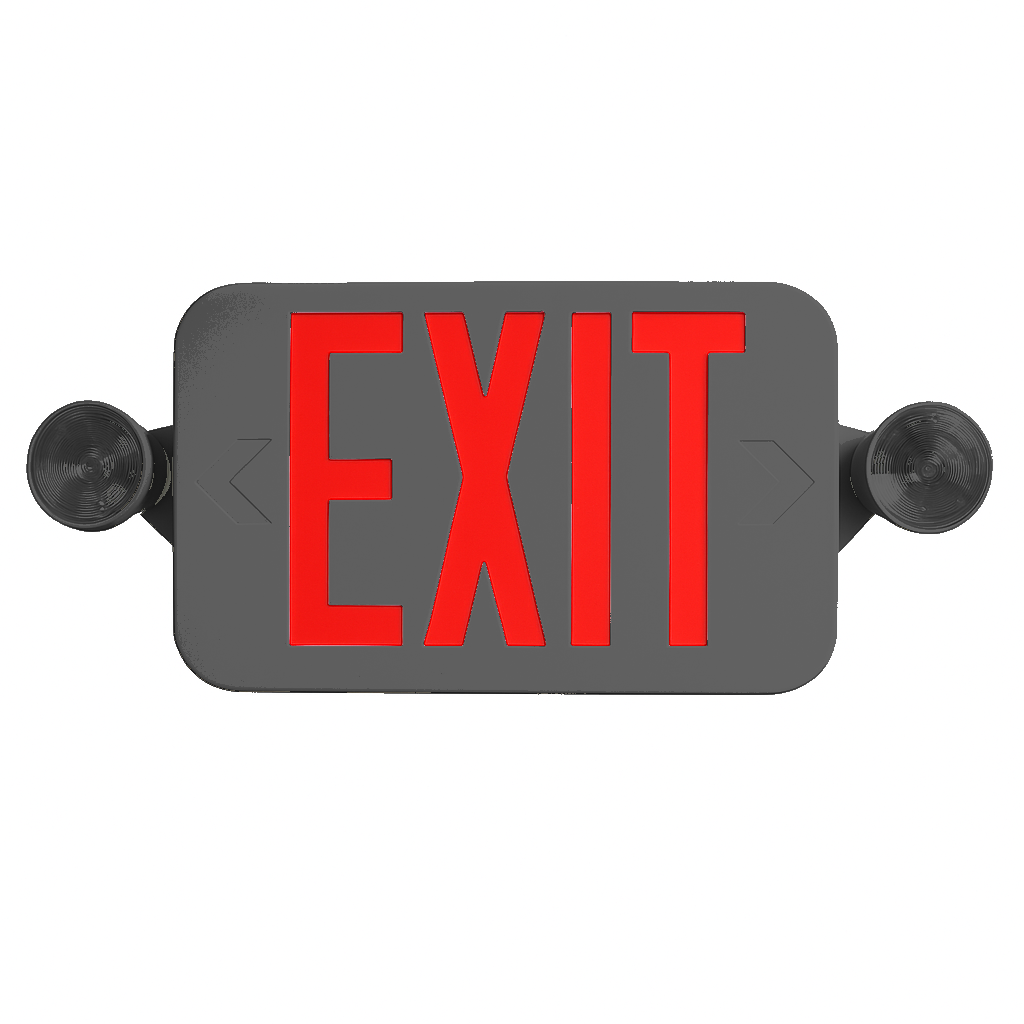

- White or black finish; toolless access for service
- Slim profile: 11.63" W × 7.88" H × 1.94" D
Mounting
- Wall (backplate) or ceiling/end mount via snap‑fit canopy
- Universal kit includes both faceplates, backplate, canopy, and red/green diffusers
- Snap‑together design enables fast single/double‑face conversion; compatible with standard J‑box patterns
Options / Accessories
- R — Remote‑capable output ( 1 W @ 3.6 V ) for compatible remote heads
- ER1‑KIT‑WH/BL — 1 ft pendant kit (white/black) • ER2‑KIT‑WH/BL — 2 ft pendant kit
- WG‑S — Wire guard • XG‑1 — Polycarbonate guard
- WPV‑1 — Weatherproof / vandal‑resistant enclosure
Warranty / Listings
- 5‑year warranty on electronics & housing; Ni‑Cd battery 5‑year prorated
- UL 924 listed for damp locations (0–40 °C); compliant with CEC Title 20 , NFPA 101 , and NEC
Compliance notes
- Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
