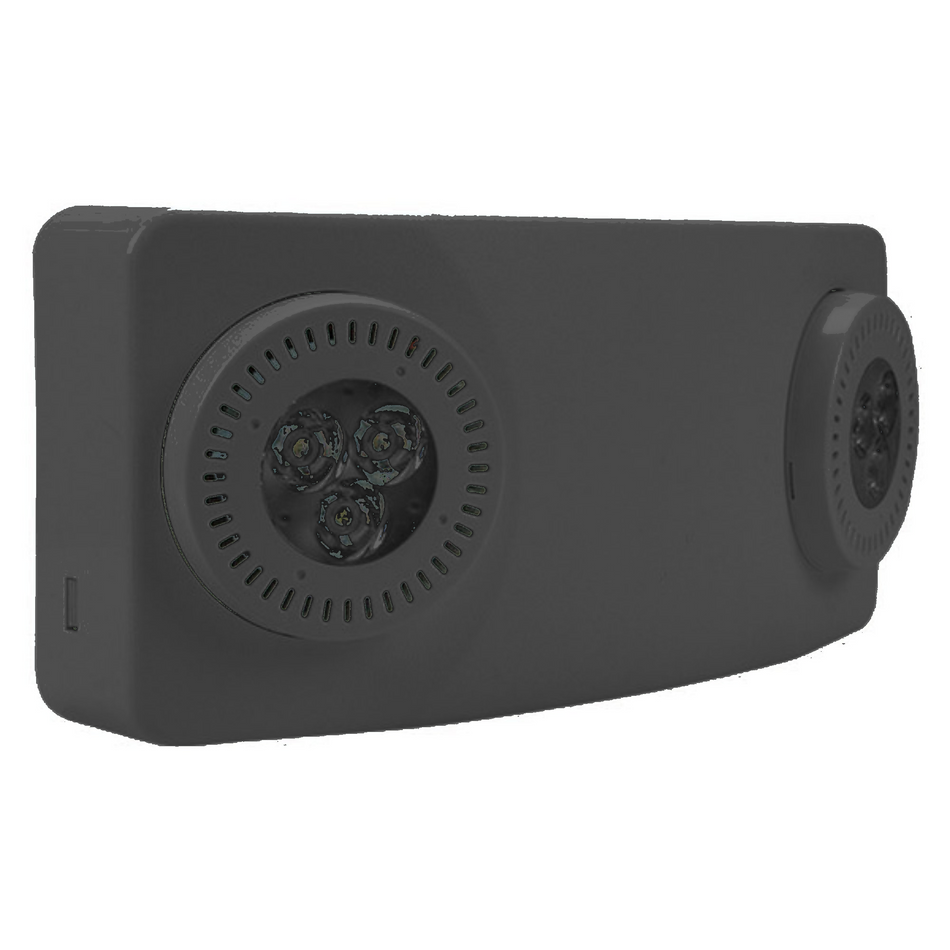

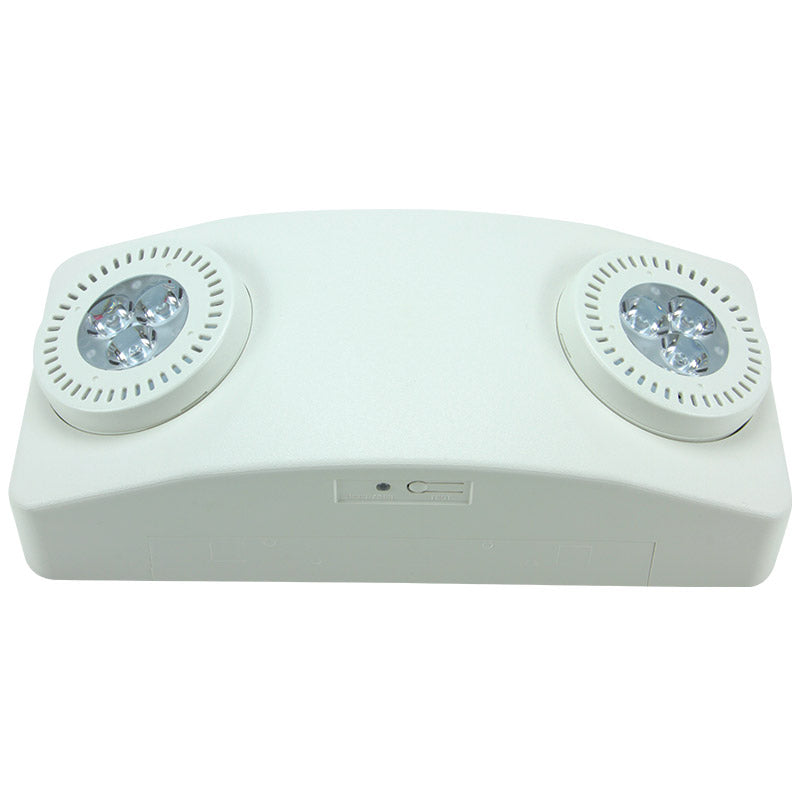

NFT Series High Output LED Emergency Lighting Unit
The NFT Series high-power LED emergency lighting unit provides industry leading 125' path of egress spacing. Suited for larger areas and egress paths such as warehouses, factories, lengthy corridors, large department store retailers and schools. This series eliminates the need for multiple emergency lighting units.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- NFPA 101
- Damp Location
- LED
- Emergency
- Emergency Lights
Key features
- Superlative optical performance up to 125’ spacing (NFT-HO)
- Eco-friendly, long-life, high-density LiFePO4 battery pack
- Remote capability up to 5.4W (Not available with NFT-HO units)
- UL 924 , cUL Listed
- Suitable for Damp Locations
- California Energy Commission (CEC) compliant
- Standard NFT includes two 2.7W LED lamp heads High-output NFT-HO includes two 5.4W LED lamp heads
- cULus Listed 90 minute emergency run time, 24 hour recharge time
Documents
High Output LED Emergency Lighting Unit - NFT Series
The NFT Series high-power LED emergency lighting unit provides industry leading 125' path of egress spacing. Suited for larger areas and egress paths such as warehouses, factories, lengthy corridors, large department store retailers and schools. This series eliminates the need for multiple emergency lighting units. cULus 924 Damp Location 120/277 VAC 90-Min Runtime 2× 2.7 W or 5.4 W (Opt.) Remote-Capable 5.4 W 5-Year Warranty CEC Compliant High Output
Related Emergency Lighting Guides
3.6V Wiring Guide Voltage Drop & Wire Size
Spec Sheet
Download LED-51/52 Emergency Unit Spec Sheet (PDF)
Electrical
- Input: 120/277 VAC , 50/60Hz
- Battery: Maintenance-free LiFePO4 battery
- Diagnostics: G2 self-test (Optional)
Mounting
- Wall or pendant
- Optional IHB bracket for I-beam, or pole mounting
Warranty / Listings
- 5-year warranty on electronics & housing; battery 5-year prorated
- cULus 924 Listed ; meets NFPA 101 & NEC ; Damp Location rated
Compliance notes
- Confirm final fixture placement, runtime, and local code approval for the project.
