Outdoor LED Flood Light – High Output 70W to 350W Fixture

High Output LED Flood Light – Outdoor Fixture, 70W to 350W

The FXA Series High Output LED Flood Light delivers up to 50,000 lumens in a rugged, weatherproof square-back housing. Designed for large outdoor spaces like loading docks, building facades, parking lots, and industrial yards, this outdoor LED flood light high output fixture replaces up to 1000W HID while providing over 70% energy savings. Available in wattages from 70W to 350W and with multiple distribution options, the FXA is ideal for high-mount pole or wall installations where visibility, reliability, and energy efficiency are essential.

• 70W to 350W Configurations
• Up to 50,000 Lumens Output
• IP65 Rated for Outdoor Use
• DLC Listed – 5 Year Warranty

Download FXA High Output Flood Light Spec Sheet (PDF)

Performance

• 70W–350W LED wattage options
• Lumen output: 8,900 – 50,000 lumens
• Efficacy up to 137 LPW
• CCT: 4000K or 5000K
• Distribution: Wide (7Hx6V) or Medium Narrow (4Hx4V)

Construction

• Die-cast aluminum housing with bronze powder coat
• UV-stabilized polycarbonate lens
• Vented thermal design separates LED and driver compartments
• IP65 sealed with continuous silicone gasket

Electrical

• 120–277VAC input standard
• 347–480VAC optional (not available for 100W)
• 1–10V dimming driver standard
• Power factor = 0.90, THD < 20%

Mounting Options

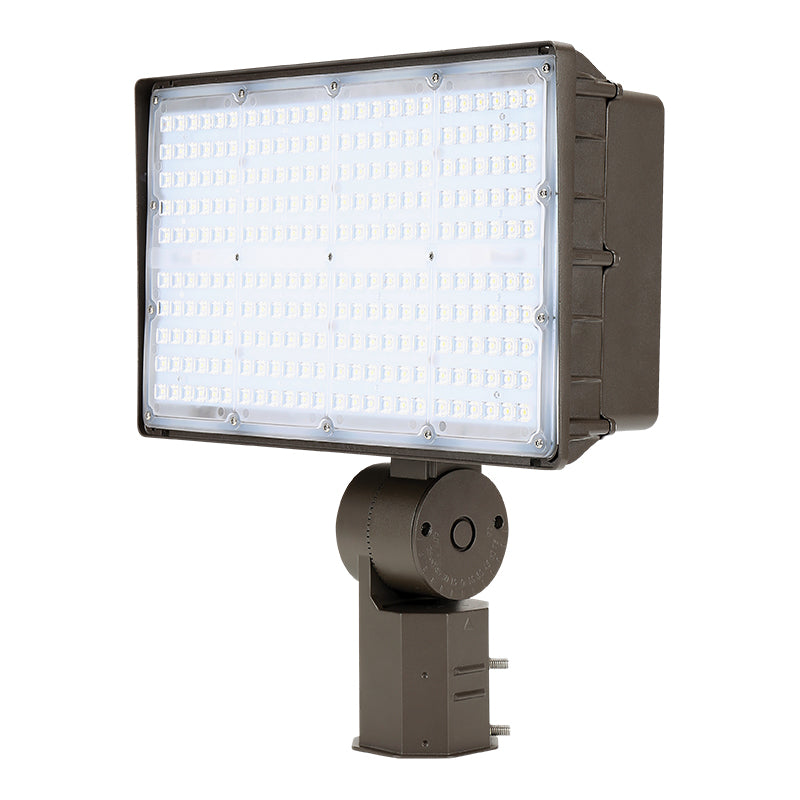

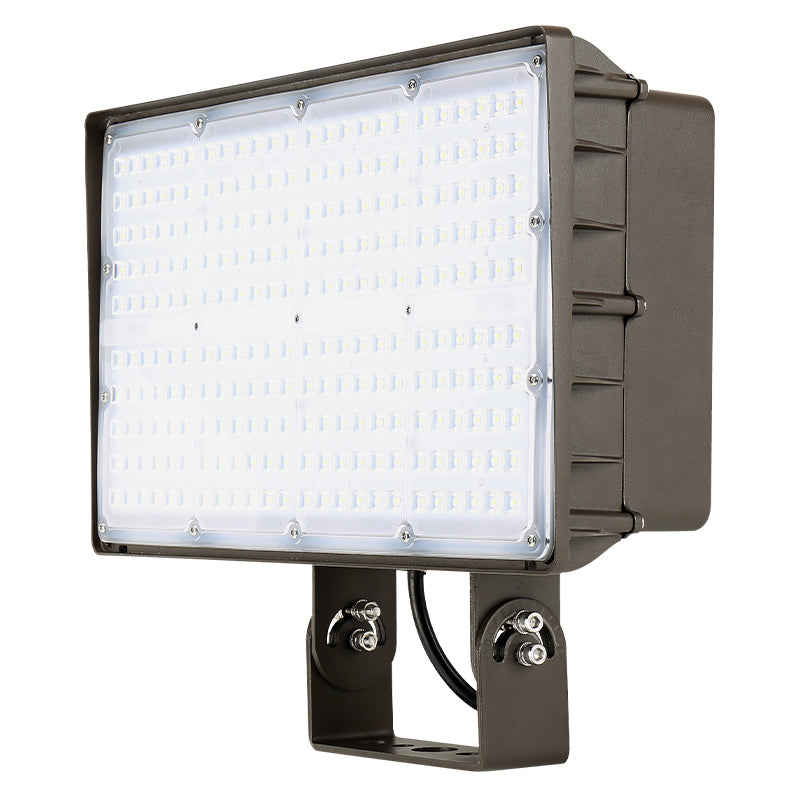

• Trunnion or slipfitter mount (70W–200W)

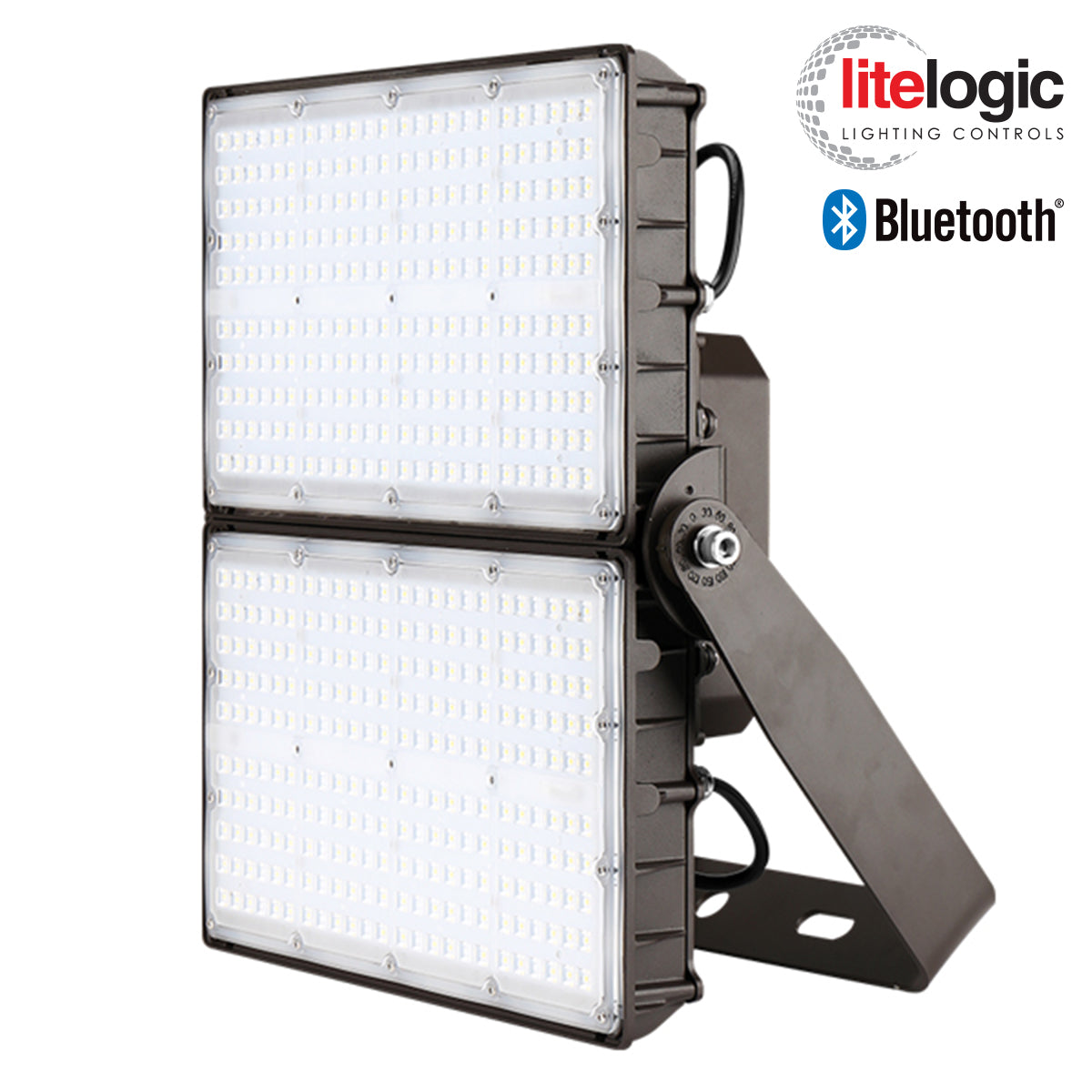

• Yoke mount (350W)
• Optional wall brackets and bullhorn mounts available

Controls & Accessories

• Optional button photocell (factory or field-installed)
• Bluetooth-enabled LiteLogic PIR motion sensor kits
• Slipfitter, wall bracket, 180° bullhorn available

Listings & Warranty

• cULus Listed for Wet Locations
• Tested to meet IP65 requirements
• Rated for operation: -40°C to 40°C (-40°F to 104°F)
• 5-Year Limited Warranty

Frequently Asked Questions

What is the best application for this high output LED flood light?

FXA 70–350W models are ideal for exterior areas requiring intense brightness, such as building facades, industrial yards, wall wash zones, and pole-mounted parking areas.

What makes this a high output LED flood light?

With output as high as 50,000 lumens and HID equivalency up to 1000W, the FXA Series provides powerful illumination with exceptional energy efficiency.

What CCT and beam options are available?

Choose between 4000K or 5000K and wide or medium-narrow distributions depending on your application and layout needs.

Is it dimmable and controls-ready?

Yes. These fixtures feature a 1–10V dimming driver and support motion sensors, photocells, and Bluetooth occupancy control accessories.

Is this fixture suitable for wall or pole mounting?

Absolutely. Trunnion, slipfitter, yoke, and wall brackets make this series flexible for both new construction and retrofit projects.
