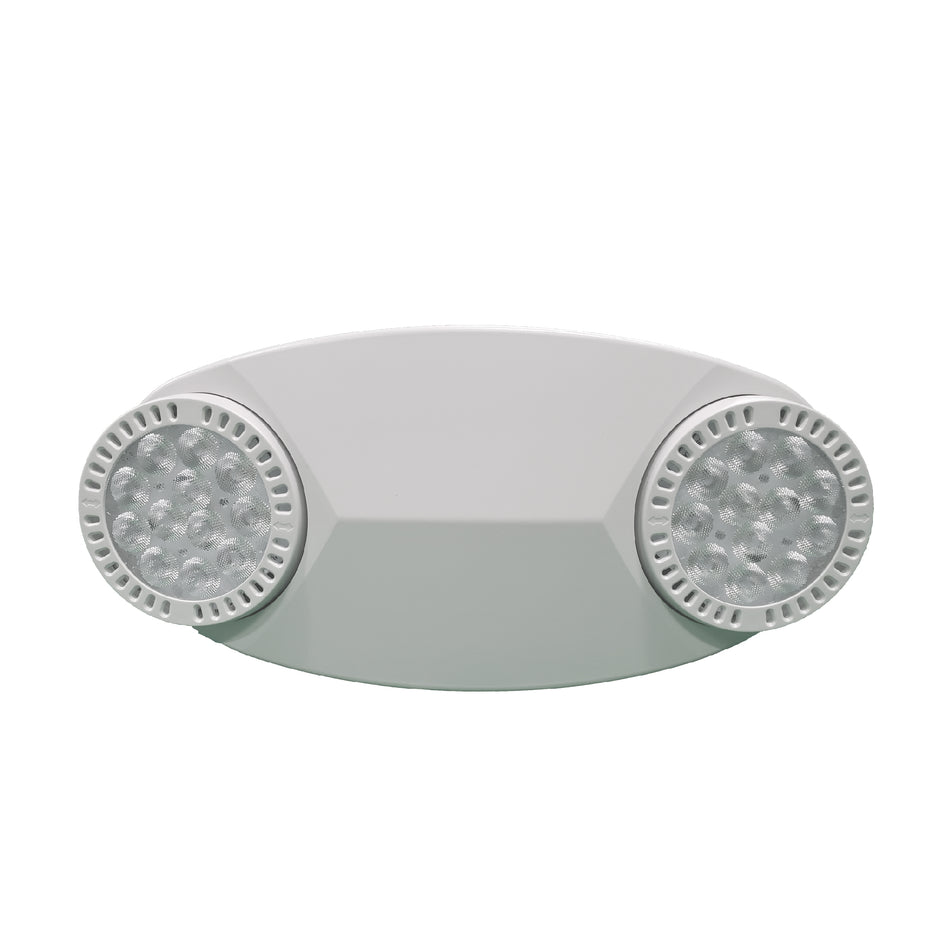

High-Performance LED Emergency Light – Long Spacing, Remote-Capable
The HPEM high-performance LED emergency light is designed for long-throw applications where wide, code-compliant coverage is required. With two 5 W LED heads capable of up to 100 ft center-to-center spacing, a long-life LiFePO 4 battery for 90-minute backup, and built-in remote-capable output , HPEM is a dependable choice for open areas, long corridors, and high-ceiling interiors. It is damp-location listed for 0–50 °C environments. Explore more options in our high-lumen emergency lights collection, or browse all LED emergency lights .
Side‑by‑side of popular long‑throw units so you can pick the right output, environment, and remote capacity.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- Up to 100 ft
- LiFePO 4 / 90 min
- 3 W Remote
- Damp Location
- 120-277 V
- NFPA 101
- OSHA
- damp-location
Key features
- UL 924 listed; damp-location rated (0–50 °C).
- Up to 100 ft center-to-center spacing on a 3 ft path at 7.5 ft mounting height (typical design conditions).
- Dual 5 W LED heads (12 LEDs × 0.42 W) with long-throw optics for wide-area coverage.
- 9.6 V LiFePO 4 battery; 90-minute emergency runtime; ~ 24-hour recharge.
- Universal 120–277 V input; status LED & push-to-test; solid-state transfer and two-rate smart charger.
- Built-in 3 W remote capacity for compatible remote heads (model dependent).
- Surface mount: universal knockout back-plate (wall/ceiling); side/top 1/2″ conduit knockouts.

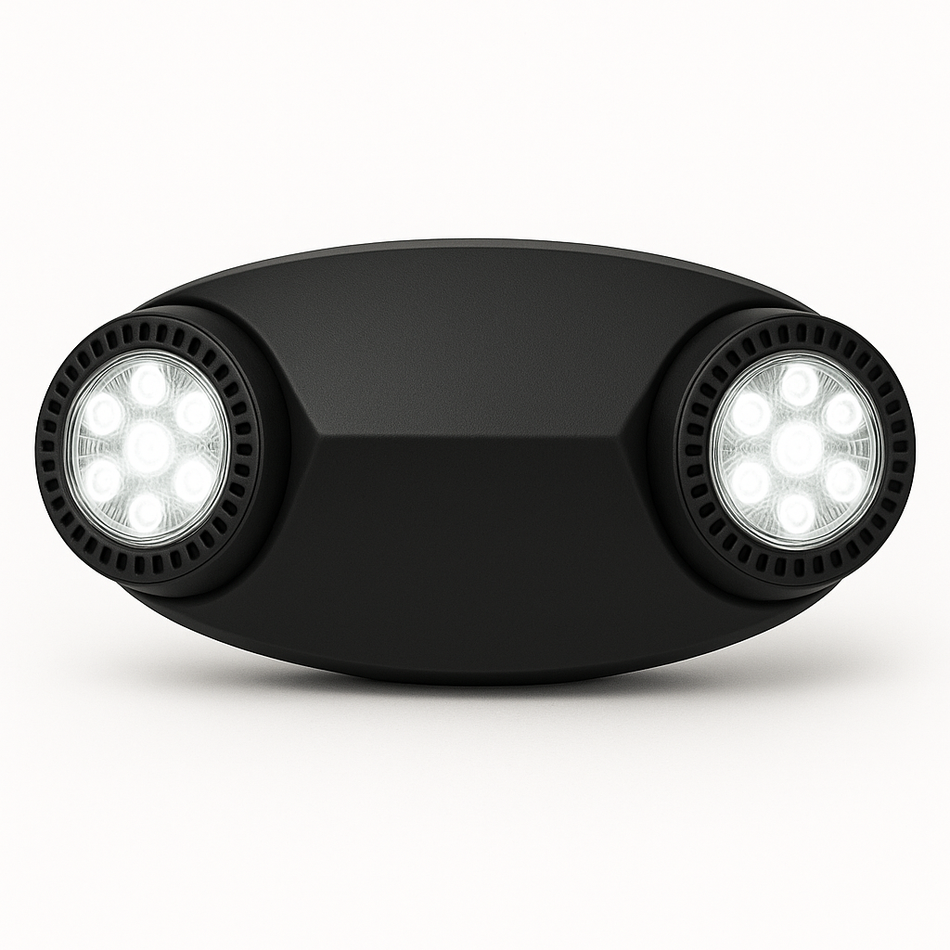

- 5VA flame-retardant thermoplastic housing (white or black).
- Option: SDT self-diagnostics (monthly, semiannual, annual).
- Compliance: NFPA 101 , NEC , OSHA ; CEC Title 20 .
- Warranty: 5-year on electronics/housing; battery 5-year prorated .
Documents
Spec Sheet
Download Emergency Light Spec Sheet (PDF) HPEM — product overview highlights.
Illumination
- Two 5 W LED lamp heads (12 LEDs × 0.42 W) with long-throw reflectors.
- Spacing up to 100 ft on a 3 ft path at 7.5 ft mounting height (typical conditions).
Electrical
- 120–277 V input with push-to-test and bi-color status LED.
- 9.6 V LiFePO 4 battery; 90-minute emergency runtime; ~ 24-hour recharge.
- 3 W remote capacity supports compatible remote heads .
- Solid-state transfer with two-rate smart charger for battery health.
- Input power (typical): ~ 4.5 W ; input current ~ 0.06 A across 120–277 V.
Mounting
- Universal knockout back-plate for wall or ceiling surface-mount .
- Side and top 1/2″ conduit knockouts for alternate wiring routes.
Housing
- Injection-molded, 5VA flame-retardant thermoplastic (white or black finish).
Options
- SDT — self-diagnostic testing (monthly, semiannual, annual).
Warranty / Listings
- 5-year warranty on housing & electronics; battery prorated 5 years .
- UL 924 listed for damp locations (0–50 °C).
- Meets NFPA 101 , NEC , OSHA , and CEC Title 20 intents.
Dimensions
- 12 ¼″ W × 5 ¾″ H × 3 3/16″ D .
Compare High‑Lumen Emergency Lights (Products)
- high‑lumen emergency light 100‑ft spacing
- dual‑head 5 w led emergency unit
- lifepo4 battery backup 90 minutes
- remote‑capable emergency lighting 3 w
- damp‑location egress luminaire 120–277 v
- long‑throw egress lighting optics
Compliance notes
- Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
