High-Power LED Indoor Polycarbonate Remote Head
Regular price
$20.21
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
High-Power LED Indoor Remote Head Overview
The HPRL high-power LED indoor remote head adds long-throw emergency egress illumination to a compatible low-voltage emergency unit. This UL 924 indoor remote head is powered from a 5-15 VDC remote head circuit using installer-supplied low-voltage wiring, with single-head indoor remote head and double-head indoor remote head configurations in white or black remote head housing.
Use this wall or ceiling mount remote head for indoor commercial corridors, stair approaches, door paths, and open egress routes where the emergency unit is remote from the illumination point. Adjustable white LED lamp heads can support up to 100 ft spacing remote head layouts, based on center-to-center spacing on a 6 ft path at 15 ft mounting height. The damp-location indoor LED remote head housing is listed for 0 C to 50 C use and pairs with remote-head emergency lighting systems where voltage, wire gauge, wattage, and AHJ layout checks have been confirmed. Compare Remote Head Emergency Lights, browse Emergency Lights, or review UL 924 compliance guidance.
Specs, documents, buying checks, compatible paths, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible product paths, and FAQs before ordering.
- UL 924
- Indoor Remote Head
- High-Power LED
- 5-15 VDC
- Single / Double Head
- White / Black
- Polycarbonate Housing
- Wall / Ceiling Mount
- Up to 100 ft Spacing
- Damp Location
- 0-50 C
- NFPA 101 / NEC
- 5-Year Warranty
Key features
- High-power LED indoor remote head for compatible emergency lighting units with remote-head output.
- Powered from a 5-15 VDC low-voltage source; low-voltage wiring is supplied by the installer.
- Single-head and double-head configurations support different egress lighting layouts.
- White or black polycarbonate thermoplastic housing options coordinate with common interior finishes.
- Ultra-bright adjustable white LED lamp heads include integrated lamp, reflector, and lens assembly.
- Design spacing can reach up to 100 ft center-to-center on a 6 ft path at 15 ft mounting height when layout conditions support it.
- Universal adapter plate supports wall or ceiling mounting to a single-gang switch box.
- Maximum remote run depends on system voltage, wire gauge, and total wattage on the circuit.
- UL 924 listed for damp locations from 0 C to 50 C.
- Supports NFPA 101, NEC, OSHA, and local/state code context when properly specified and installed.
- HPRL1 and HPRL1B are single-head variants; HPRL2 and HPRL2B are double-head variants.
- 5-year warranty coverage.
Documents
Best Applications
Choose HPRL when an emergency lighting unit has remote-head capacity but the egress path needs illumination at a separate location. Typical applications include indoor corridors, stair approaches, door paths, utility areas, open egress routes, and locations where a wall or ceiling remote head is easier to aim than an integral lamp head.
Head Count and Finish Selection
- Use single-head HPRL1 or HPRL1B where one adjustable lamp head covers the needed path.

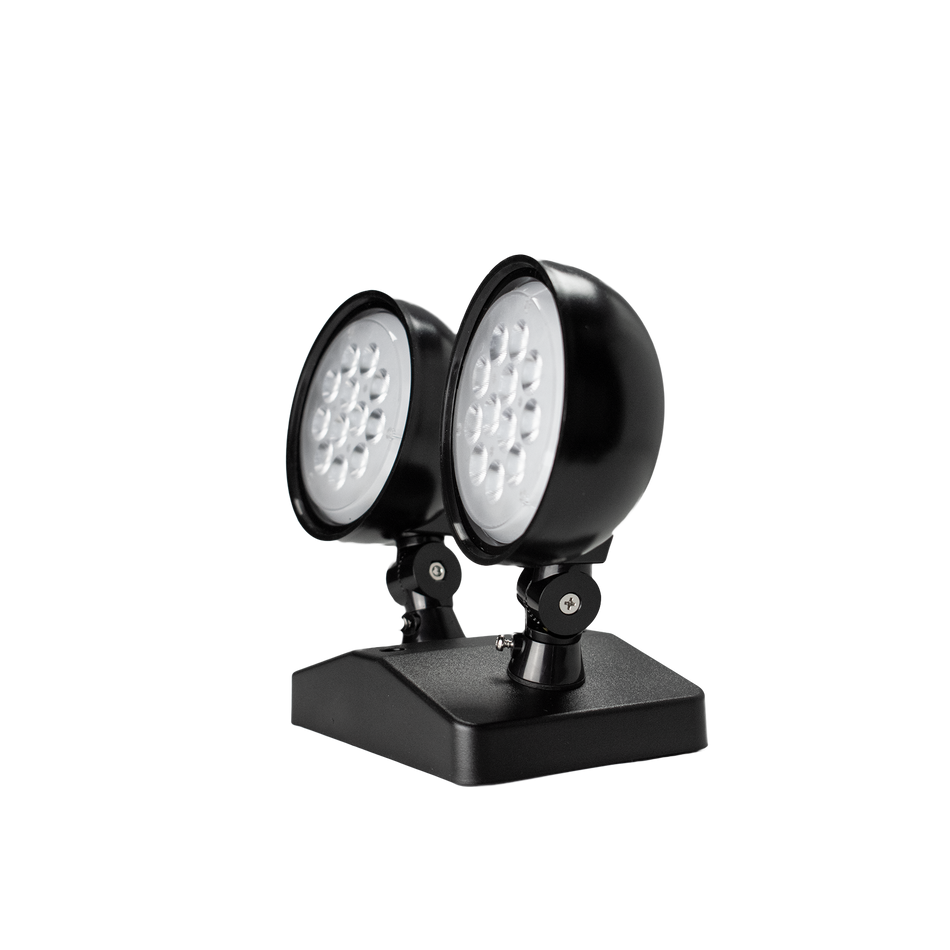

- Use double-head HPRL2 or HPRL2B where two adjustable lamp heads are needed from the same mounting point.
- Choose white housing for most ceiling and wall surfaces, or black housing where project documents or surrounding finishes call for it.
Voltage and Wiring Checks
- Confirm the emergency unit provides compatible 5-15 VDC remote-head output.
- Confirm available remote capacity before adding this head to the circuit.
- Size low-voltage wiring for voltage drop, distance, and total wattage on the run.
- Verify final circuit length against the emergency unit, wire gauge, and project documents.
Mounting and Aiming Checks
- Use the universal adapter plate for wall or ceiling mounting to a single-gang switch box.
- Aim lamp heads after installation so light reaches the required egress path without glare or obstruction.
- Use the 100 ft spacing reference only as a planning point; confirm final layout against mounting height, path width, and AHJ requirements.
Compare Similar Remote Paths
- Choose indoor remote heads for protected interior applications.
- Choose wet-location remote heads for exterior, spray, or washdown environments.
- Choose Chicago-approved remotes where the project requires Chicago-specific remote-head construction.
- Choose a complete emergency light unit when there is no compatible remote-head power source available.
Submittal and Closeout Checks
Before ordering, confirm head count, housing color, emergency-unit compatibility, available remote capacity, voltage drop, wire gauge, mounting location, aiming direction, damp-location suitability, and AHJ acceptance.
Compliance notes
- Confirm emergency-unit compatibility, available remote capacity, voltage drop, wire gauge, mounting location, aiming, and local AHJ acceptance.
- Use this indoor damp-location remote head only in protected locations from 0 C to 50 C.
- Use a wet-location remote head for exterior, spray, washdown, or exposed applications.
Frequently asked questions
What is the HPRL high-power LED indoor remote head used for?
HPRL is used to add remote emergency egress illumination from a compatible emergency lighting unit that provides 5-15 VDC remote-head output.
Can I order HPRL as a single-head or double-head remote?
Yes. HPRL1 and HPRL1B are single-head variants, while HPRL2 and HPRL2B are double-head variants.
Is this remote head available in white or black?
Yes. HPRL is available with white housing or black housing so it can better match project finishes.
What voltage does this indoor remote head use?
The HPRL indoor remote head is powered by a compatible 5-15 VDC low-voltage remote-head circuit. Confirm output voltage and capacity before wiring.
Can HPRL be wall or ceiling mounted?
Yes. The universal adapter plate supports wall or ceiling mounting to a single-gang switch box.
Can this remote head really space up to 100 ft?
The product is documented for up to 100 ft center-to-center spacing on a 6 ft path at 15 ft mounting height. Final spacing depends on mounting height, path width, aiming, voltage, and AHJ requirements.
Is HPRL suitable for wet or outdoor locations?
No. This HPRL model is an indoor damp-location remote head. Use a wet-location remote head for exterior, spray, or washdown environments.
