High-Power LED Indoor Polycarbonate Remote Head

High-Power Indoor LED Remote Head – Features & Specs

The HPRL high-power indoor LED remote head delivers focused egress illumination when paired with any 5–15 V DC remote-capable emergency unit. Available in single- or twin-head configurations, each 6 W LED head uses an integral reflector and clear lens for long-throw performance—supporting spacing up to 100 ft at a 15 ft mounting height. Browse compatible emergency lighting remote heads.

Key Features

• UL 924 listed; damp-location rated (0–50 °C)
• 6 W per head (12 × 0.5 W LEDs); long-throw optics & adjustable aim
• Spacing up to 100 ft on a 6 ft path at 15 ft height (twin-head)
• Operates from 5–15 V DC remote-capable unit (no internal battery)
• Low-voltage wiring; run length depends on voltage, gauge, and load
• Universal adapter plate fits a standard single-gang box
• Surface-mount to wall or ceiling
• 5VA polycarbonate thermoplastic housing (white or black)
• 5-year warranty; compliant with NFPA 101, NEC, OSHA

Spec Sheet

Download Remote Head Spec Sheet (PDF)

Illumination

• 6 W per head (12 × 0.5 W LEDs) in a compact PAR-style form factor
• Adjustable optics for targeted coverage and uniform distribution
• Up to 100 ft spacing on a 6 ft path at 15 ft height (twin-head model)

Electrical

• Powered by a 5–15 V DC emergency source (remote-capable unit, ordered separately)
• Installer-supplied low-voltage wiring; allowable run depends on voltage, wire gauge, and total load

Mounting

• Universal adapter plate fits a standard single-gang box
• Suitable for wall or ceiling surface mounting

Housing

• Injection-molded polycarbonate thermoplastic — white (standard) or optional black
• Damp-location rated (0 °C – 50 °C)

Dimensions

• Approx. 9 ½" W × 7" H × 4 ¼" D (twin-head)

Ordering Information

• HPRL1 — single head, white
• HPRL2 — twin head, white

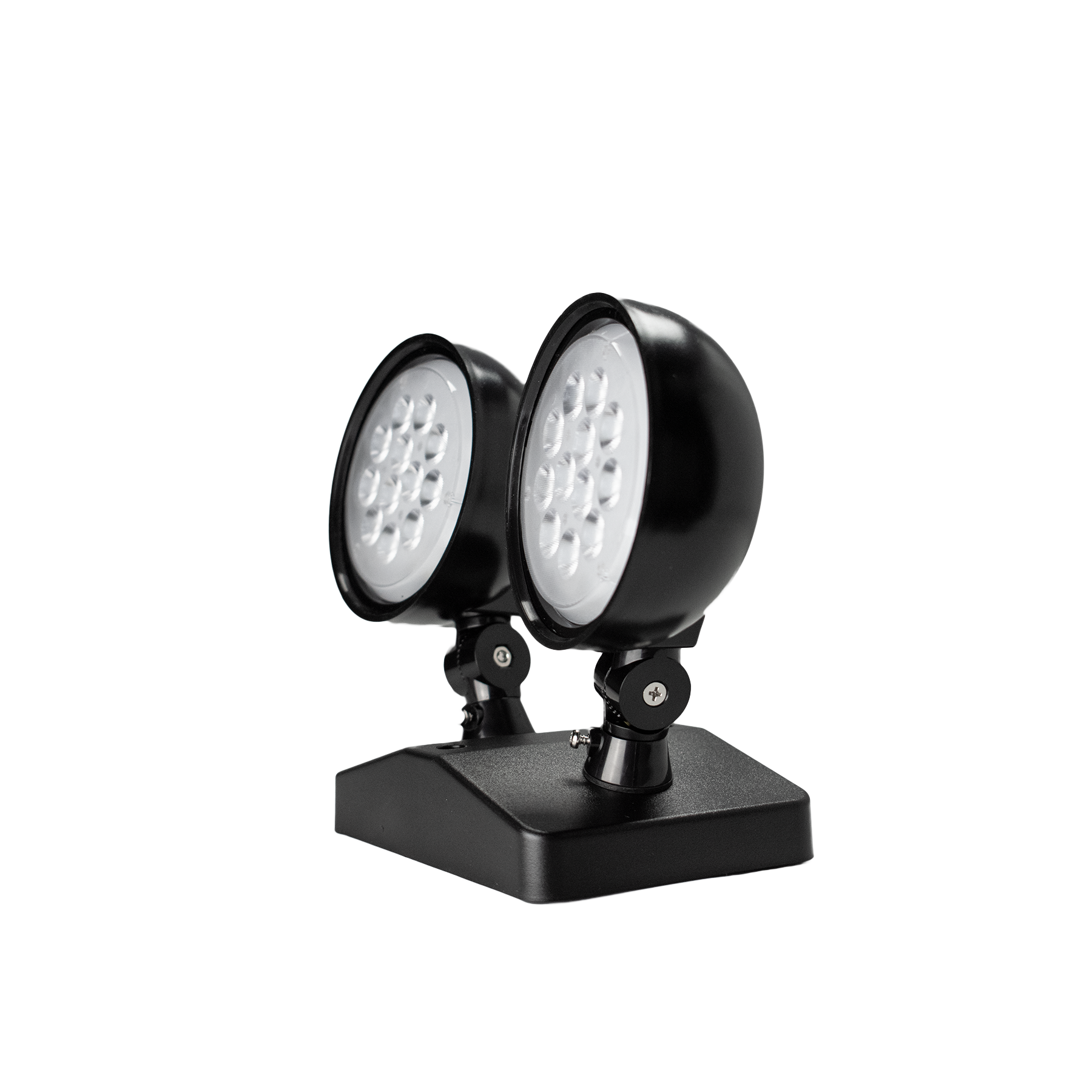

• HPRL2B — twin head, black housing

Warranty / Listings

• 5-year warranty on housing and components
• UL 924 listed; compliant with NFPA 101, NEC, OSHA

Frequently Asked Questions

What powers the HPRL remote head?

The HPRL operates on 5–15 V DC supplied by a compatible remote-capable emergency unit; no internal battery is included.

How many lamp heads are available?

Order as a single-head (HPRL1) or twin-head (HPRL2/HPRL2B) assembly to match coverage needs and finish.

What illumination spacing can I expect?

The twin-head version supports up to 100 ft center-to-center spacing on a 6 ft egress path at 15 ft mounting height (typical conditions).

Can it be ceiling mounted?

Yes. Use the included universal adapter plate for ceiling or wall surface mounting on a single-gang box.

Is it suitable for wet locations?

No. It is rated for damp locations (0 °C – 50 °C). For exterior or wash-down environments, choose a NEMA 4X-rated remote head.
