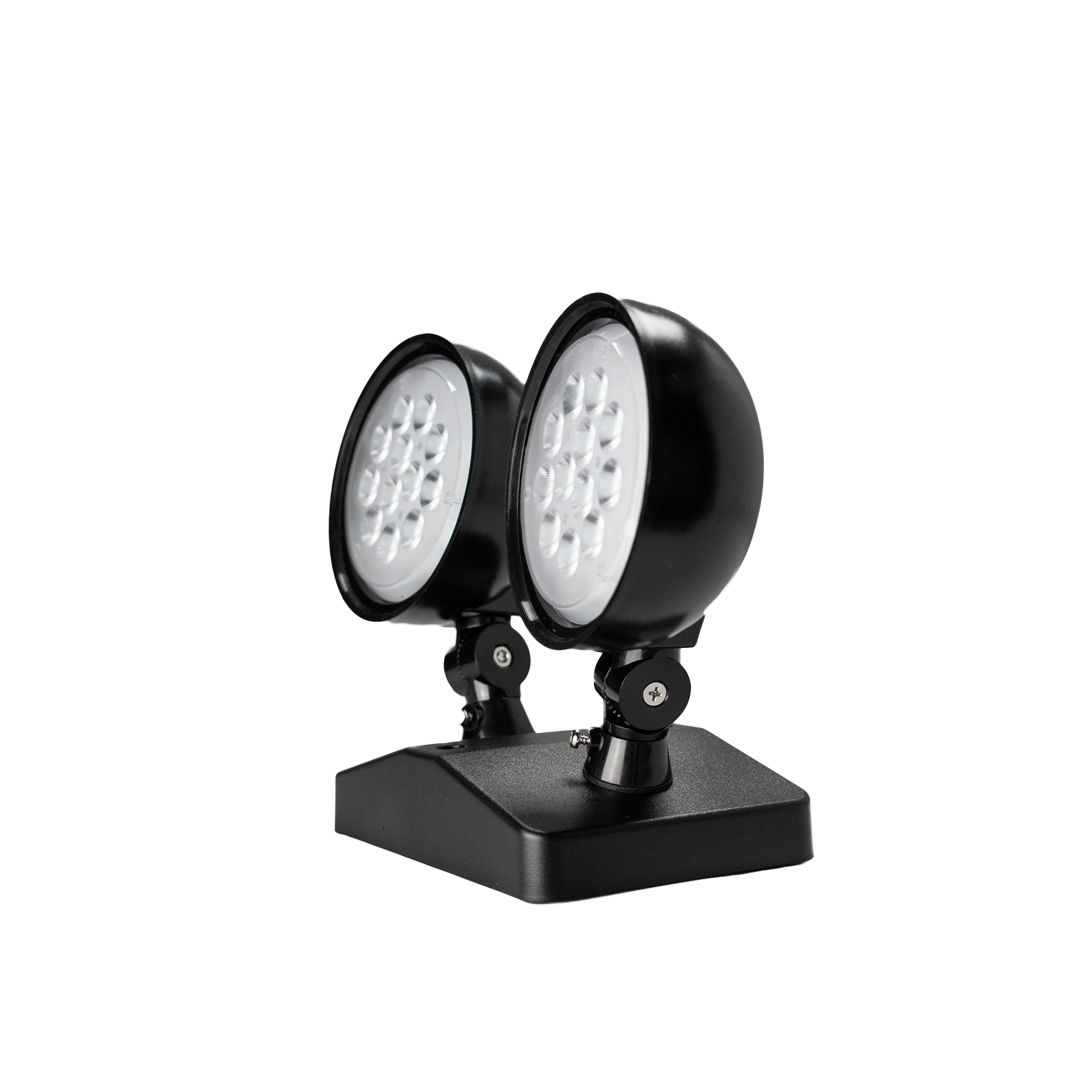

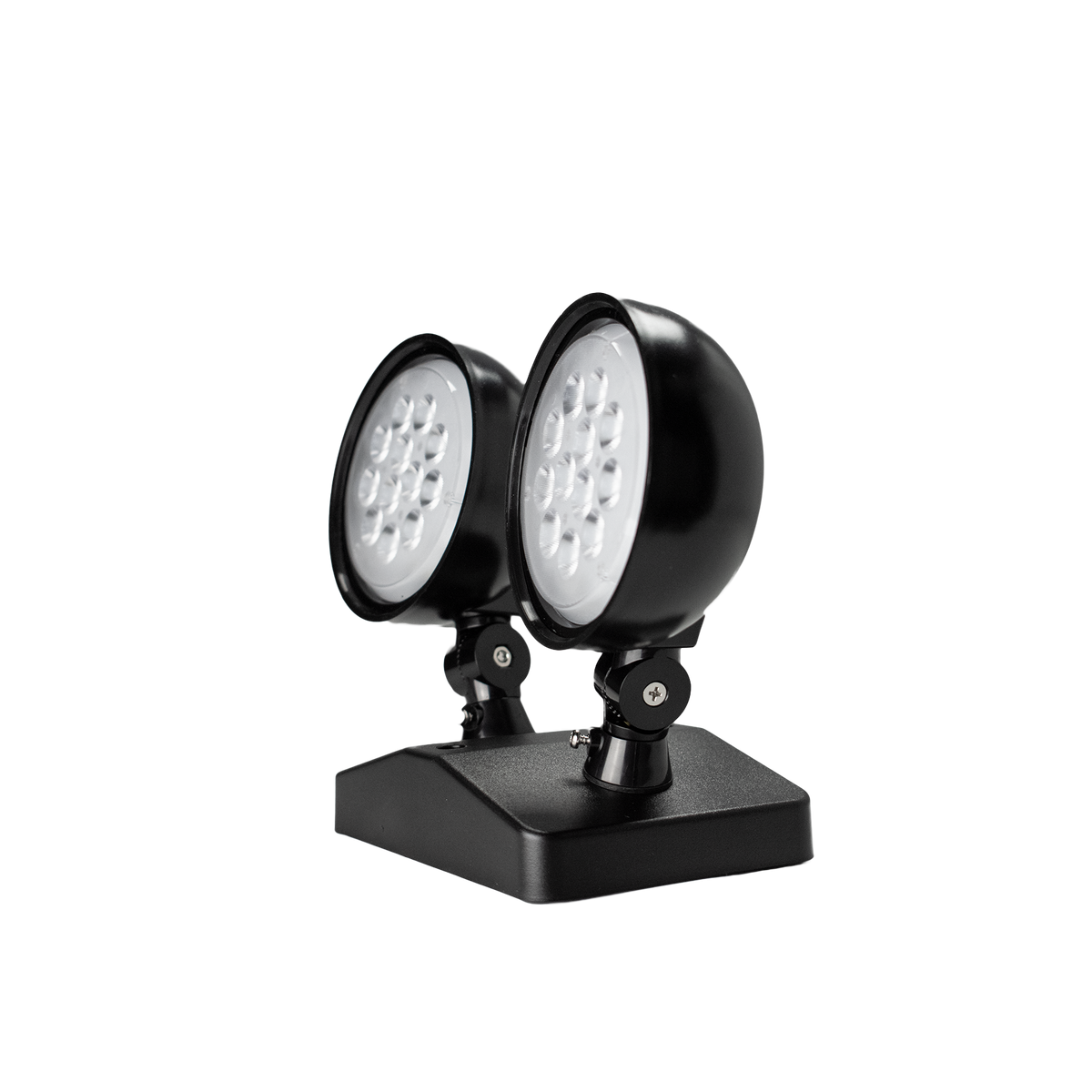

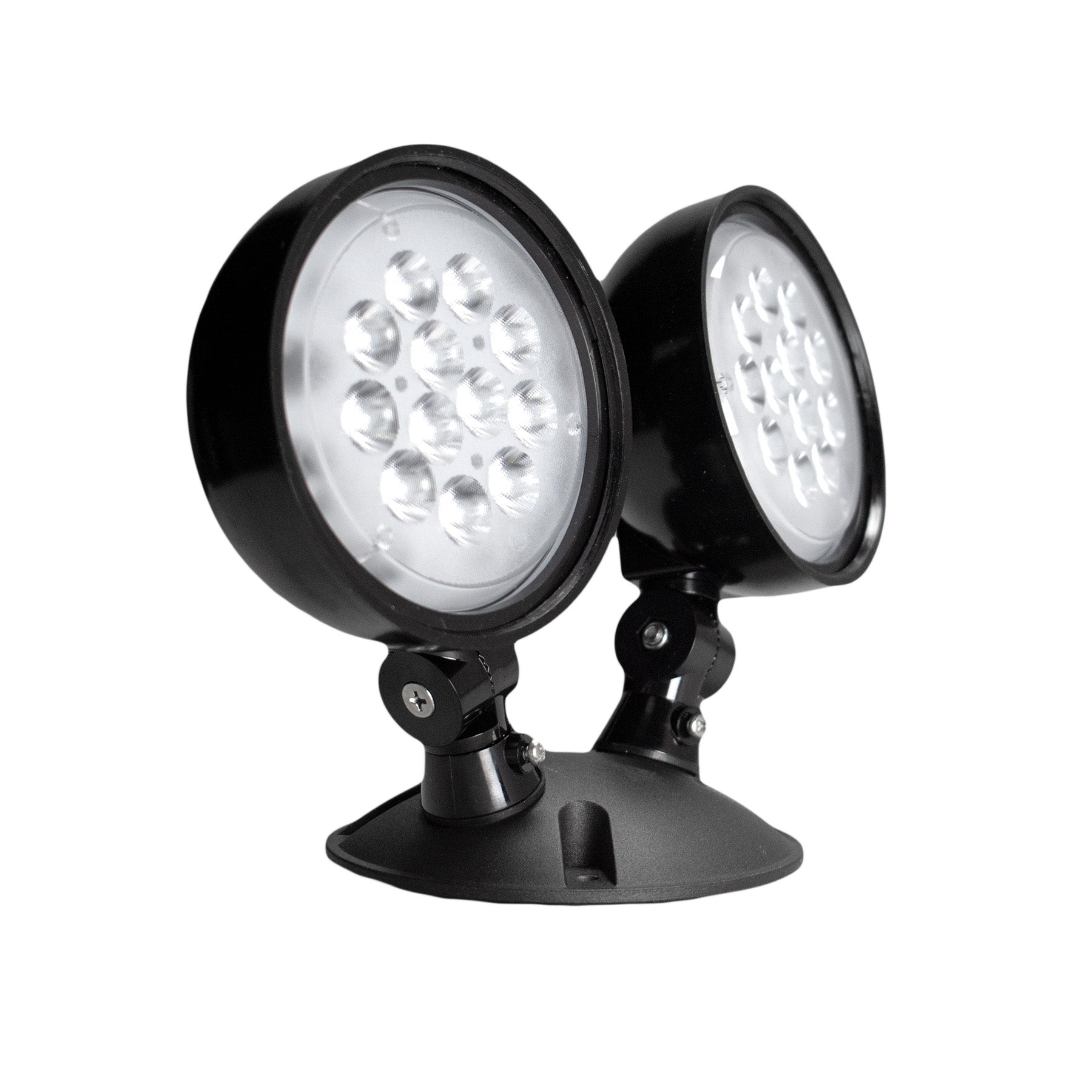

HPRL High Powered LED Polycarbonate Remote Head Double Black

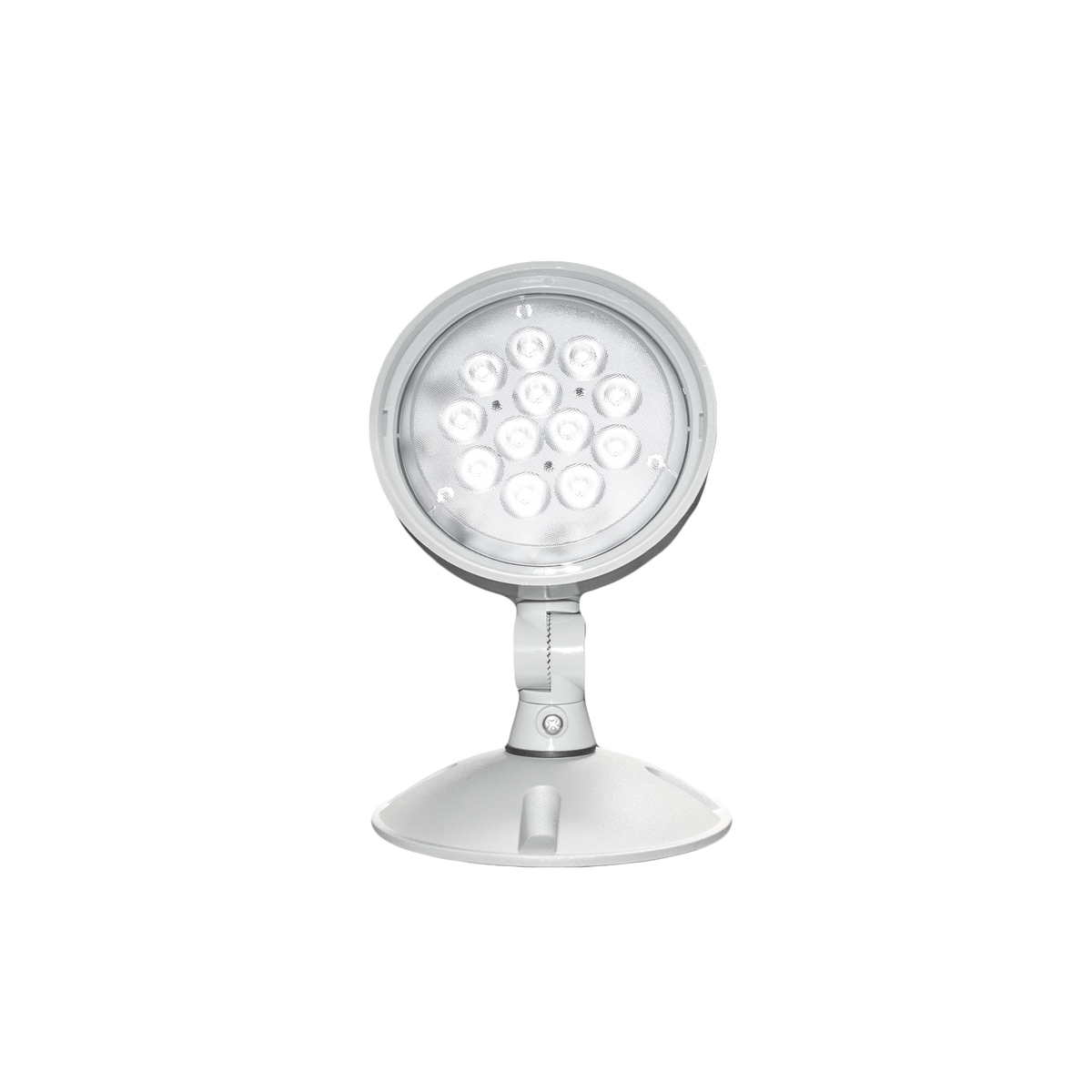

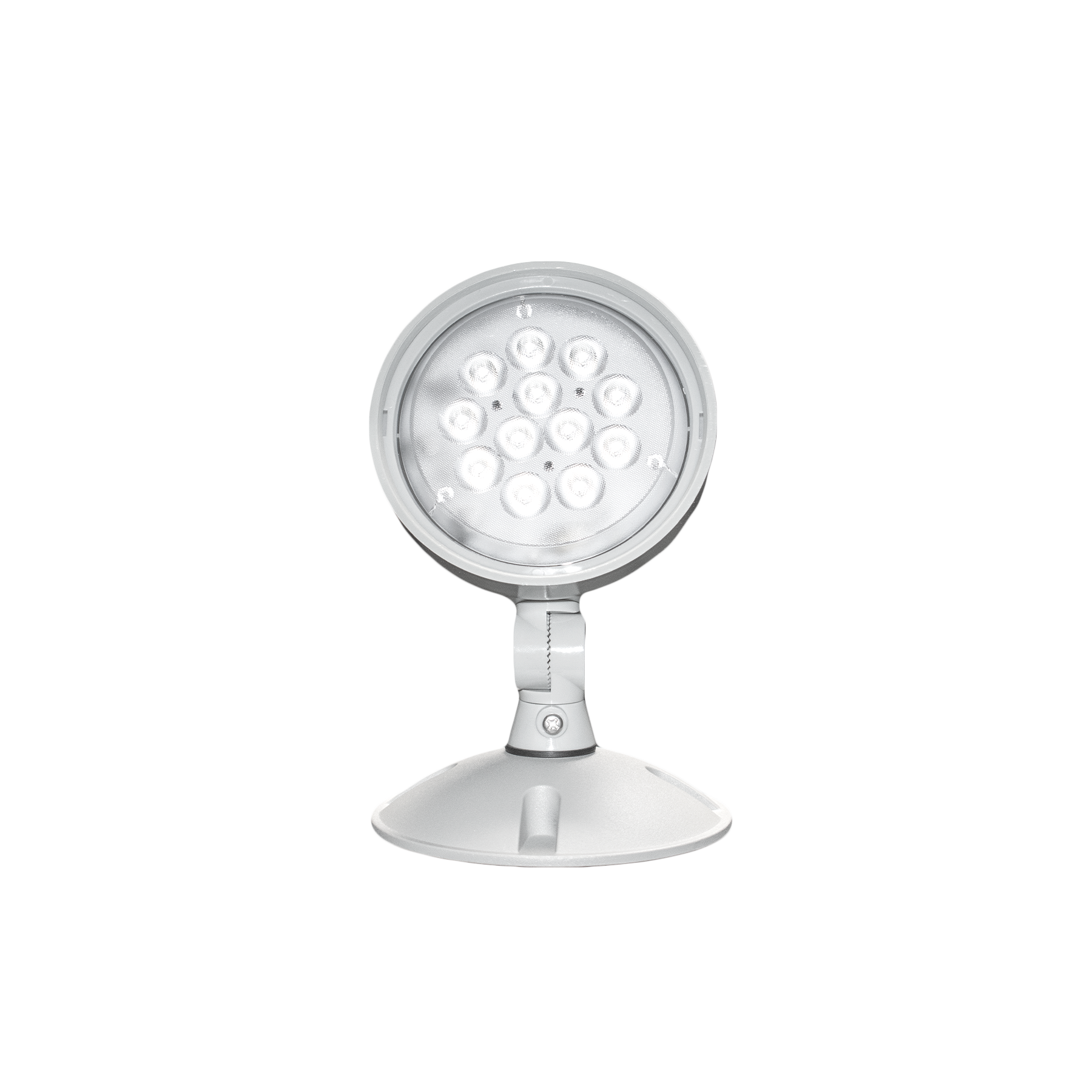

HPRL High Powered LED Polycarbonate Remote Head Gray Single Front

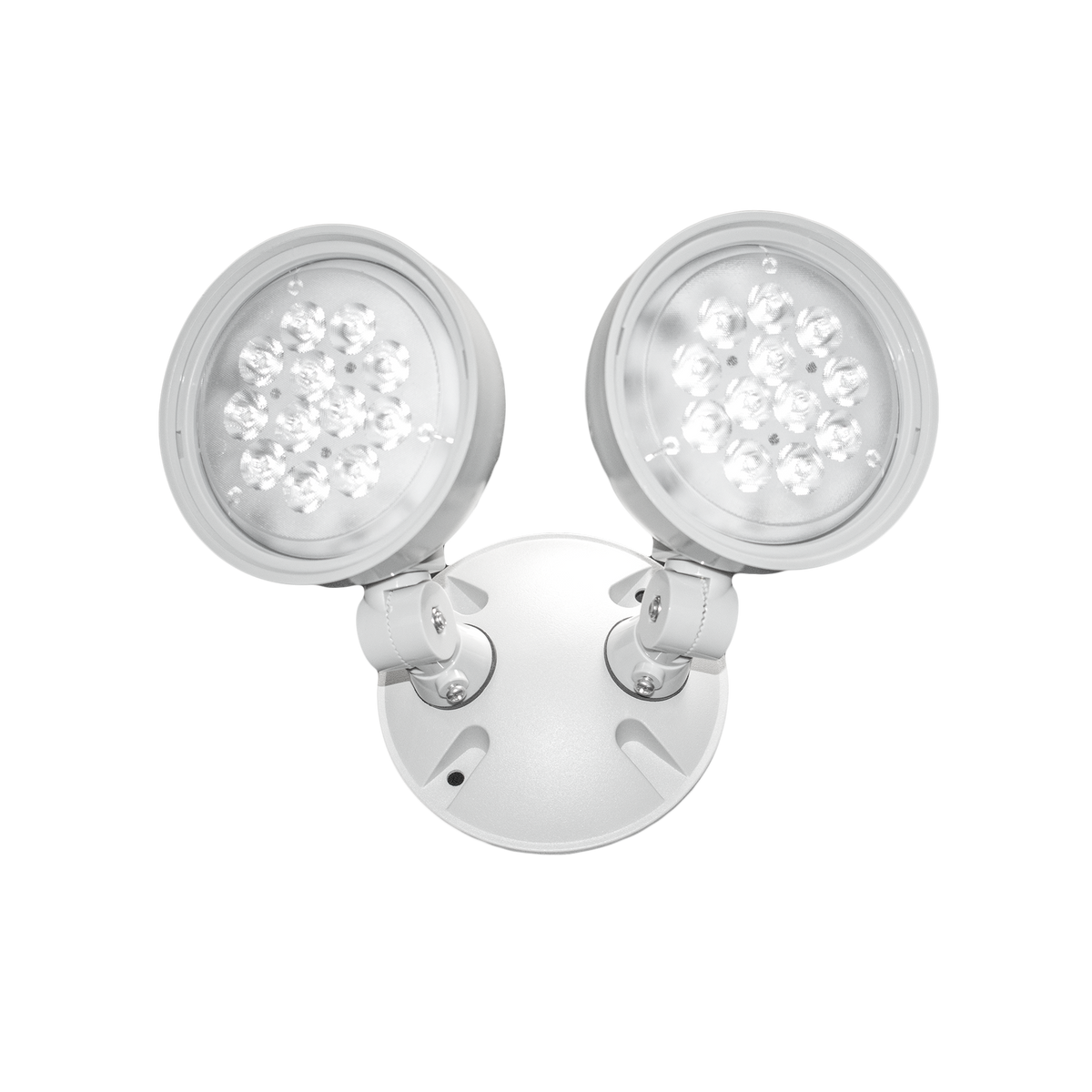

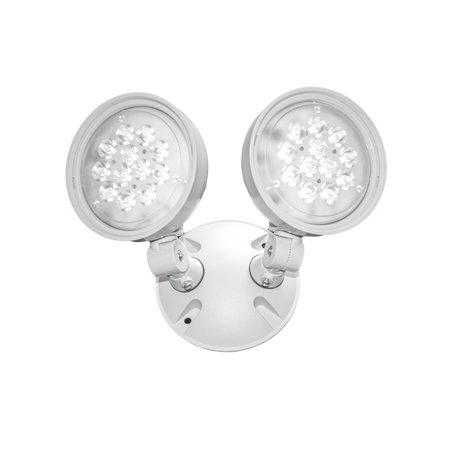

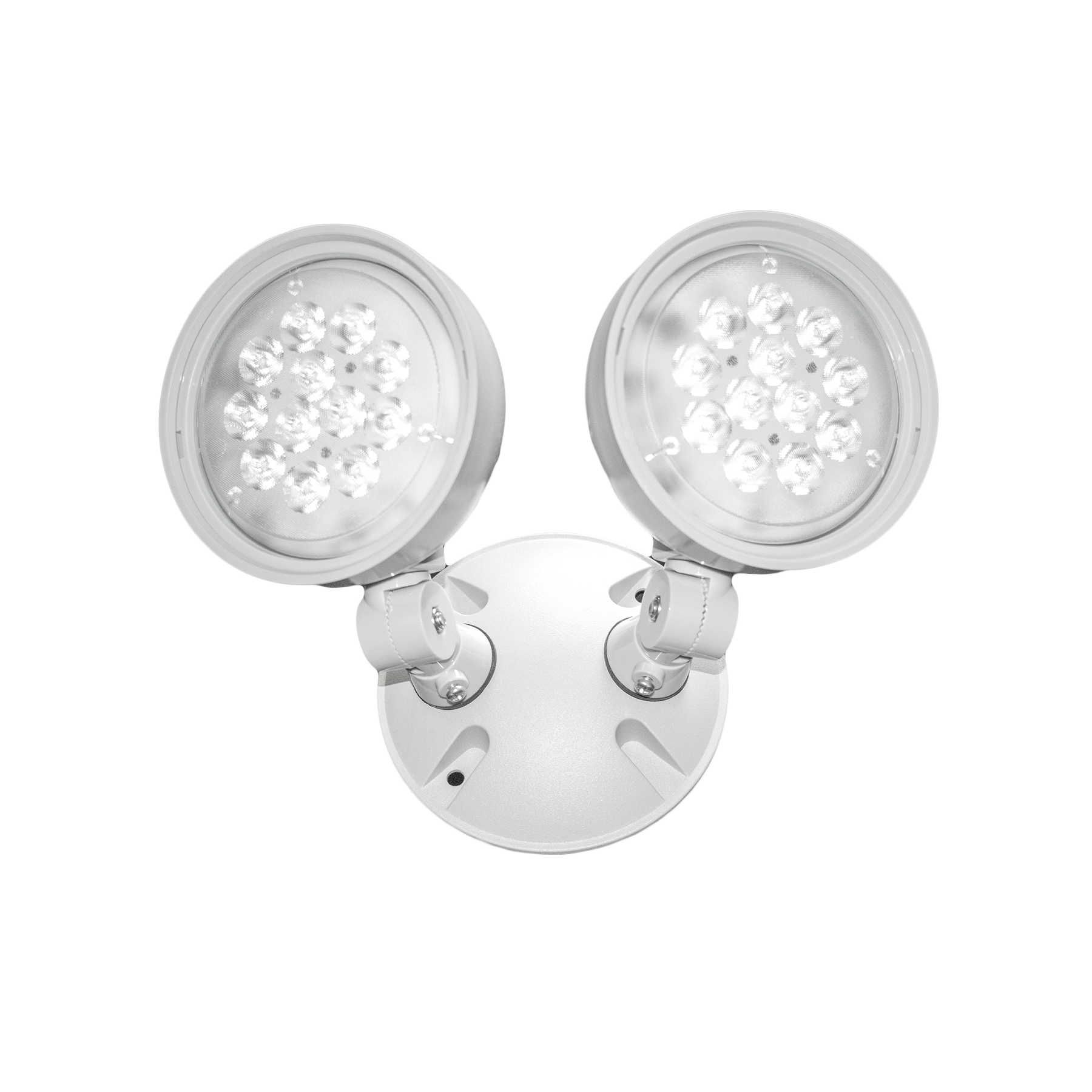

HPRL High Powered LED Polycarbonate Remote Head Gray Double Front
HPRL High Powered LED Polycarbonate Remote Head Double Black
HPRL High Powered LED Polycarbonate Remote Head Gray Single Front
HPRL High Powered LED Polycarbonate Remote Head Gray Double Front

High-Power LED Outdoor Polycarbonate Remote Head

SKU: HPRL1-WP
$23.80

Got questions?

Give us a call 800-847-1955!

Outdoor LED Remote Head - 6 W per Head, Single/Twin, 5–15 VDC, UL 924 Wet Listed, Cold-Ready - Features & Specs

The HPRL Outdoor LED remote head extends egress coverage in harsh weather as part of our remote head emergency lights lineup. It pairs with 5–15 V DC remote-capable emergency units to drive a long-throw 6 W LED per head. A sealed, gasketed polycarbonate housing resists impact and moisture for reliable, code-compliant outdoor egress illumination.

UL 924 Wet Listed 6 W per Head Single / Twin 5–15 V DC Polycarbonate Cold-Ready

Key Features

  • Outdoor-rated UL 924 wet-location remote head for harsh conditions.
  • High-output 6 W LED per head for long-throw egress illumination.
  • Configurable as single or twin heads to match coverage and aiming needs.
  • Accepts 5–15 V DC from a compatible remote-capable host (no internal battery).
  • Sealed, gasketed polycarbonate enclosure with impact-resistant lens.
  • Cold-weather capable (approx. -30 °C to +50 °C).
  • Universal adapter plate fits a standard single-gang electrical box.
  • Surface-mount to wall or ceiling for fast installs.
  • 5-year warranty; complies with NFPA 101, NEC, and OSHA.

Related Emergency Lighting Guides

Outdoor IP65: Spacing & Aiming Voltage Drop & Wire Size

Spec Sheet

Download Outdoor Remote Head Spec Sheet (PDF)

Illumination

  • 6 W high-output LED module per head (12 × 0.5 W array) for efficient egress illumination.
  • Single or twin heads allow wider coverage and precise aiming on façades, doors, and canopies.

Electrical

  • Input: 5–15 V DC supplied from the host emergency unit or inverter.
  • No internal battery (remote head); designed for cold-weather operation when powered by a suitable host.

Mounting

  • Universal adapter plate fits a standard single-gang box.
  • Suitable for wall or ceiling surface mounting.

Housing / Finish

  • Sealed, gasketed polycarbonate enclosure; outdoor-rated and impact-resistant.

Dimensions

  • Twin-head: approx. 8 ½" W × 6 ¾" H × 5" D (see spec sheet for detailed drawing).

Ordering Guide

  • HPRL1-WP — Single head, gray
  • HPRL2-WP — Twin head, gray
  • HPRL2-WP-B — Twin head, black

Warranty / Listings

  • 5-year warranty on housing and components.
  • UL 924 wet-location listing; compliant with NFPA 101, NEC, and OSHA.

Compare Remote-Head Options by Output, Voltage & Rating

Models below come from our remote-head lampheads catalog . Choose by input voltage, per-head output, and environment rating to match your host unit and site.

Model / Link Input Output / Head Environment / Rating Housing Heads Best Use
This model — Outdoor LED remote head — 6 W per head, wet-location 5–15 V DC 6 W LED UL 924 Wet; cold-ready Gasketed polycarbonate Single / Twin Exterior doors, canopies, perimeters
Indoor 3.6 V mini remote head — 0.5 W LED 3.6 V DC 0.5 W LED UL 924 Damp Thermoplastic Single / Twin Discreet corridors & small rooms
3.6 V adjustable remote LED head — 0.75–1.5 W 3.6 V DC 0.75–1.5 W LED UL 924 Damp UL 94 5VA ABS Single / Double Flexible spacing at 7.5' MH
NEMA 4X / IP66 MR16 remote head — 6/12 V DC 6 / 12 V DC 3.3 W MR16 NEMA 4X, IP66; UL 924 Wet Reinforced polycarbonate Single / Twin Hose-down & wash-down areas
Class I, Division 2 MR16 remote head — IP66 hazardous location 6 / 12 V DC 3.3 W MR16 Class I Div 2; IP66; UL 924 Fiberglass / polycarbonate Single / Twin Hazardous industrial zones
Chicago-approved steel LED remote head — 6 V DC 6 V DC 1.5 W LED (200 lm) UL 924 Damp; Chicago 20-ga steel Single / Double Low-clearance interiors, corridors
Ultra-compact 3.6 V mini remote LED lamp — 1–2 W 3.6 V DC 1–2 W LED UL 924 Damp Thermoplastic (ultra-compact) Single / Dual Tight spaces; narrow/wide optics

Always confirm your host unit’s remote capacity (watts & voltage) meets the total remote-head load.
