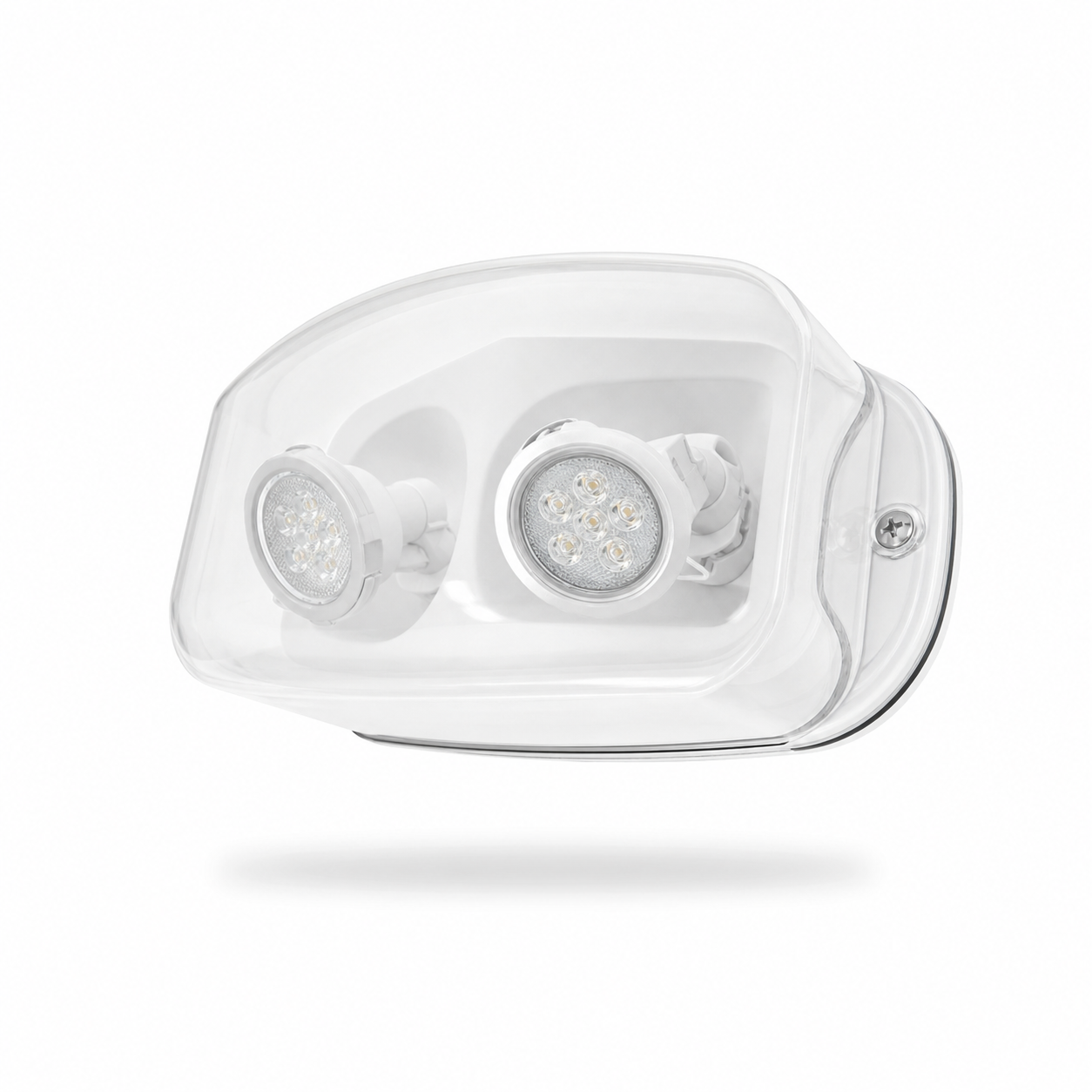

Wet Location Remote Head Emergency Light – MR16 – NEMA 4X

NEMA 4X MR16 Wet-Location LED Remote Head – Features & Specs

The NEMA 4X MR16 LED remote head delivers dependable outdoor/wash-down egress lighting when paired with a compatible remote-capable emergency light. Each head uses a 3.3 W MR16 LED in a corrosion-resistant polycarbonate enclosure rated IP66 for hose-down use. For related options, see wet location emergency lights and NEMA 4X emergency lights.

Key Features

• NEMA 4X / IP66 sealed, wet-location remote head
• 3.3 W MR16 LED per head for bright, efficient egress lighting
• Configurations: single or twin heads
• Operates on 6 V / 12 V DC from a remote-capable unit (no internal battery)
• Adjustable optics for wide, glare-controlled coverage
• Gasketed back-plate; conduit knockouts; wall or ceiling surface mount
• Reinforced polycarbonate housing; UV-stabilized clear lens; stainless fasteners
• Listings: UL 924 (remote head); NSF splash-zone compliant
• Option: TP tamper-resistant hardware kit
• 5-year warranty on housing and components

Spec Sheet

Download Wet Location Remote Head Emergency Light Spec Sheet (PDF)

Specifications (Overview)

• Head type: MR16 LED — 3.3 W per head
• Configurations: single or twin heads
• Enclosure: NEMA 4X  ·  Ingress: IP66
• Listings: UL 924 (remote head)
• Input: 6V or 12V DC from a compatible host unit
• Applications: wash-down, outdoor, industrial, and food-service egress

Illumination

• 3.3 W MR16 LED per head (single or twin)
• Adjustable optics for wide, glare-controlled coverage

Electrical

• Connects to a 6V / 12V DC remote-capable emergency unit (not included)
• Run distance depends on system voltage, total remote load, and wire gauge

Mounting

• Gasketed back-plate with knockouts for watertight wall or ceiling surface mount
• Conduit entries included

Housing / Lens

• Reinforced polycarbonate body with UV-stabilized clear lens
• IP66 sealed; NEMA 4X corrosion resistant; stainless fasteners
• Finishes: white or black

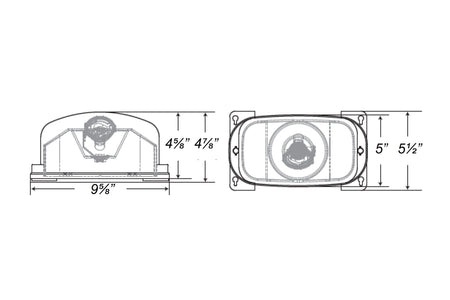

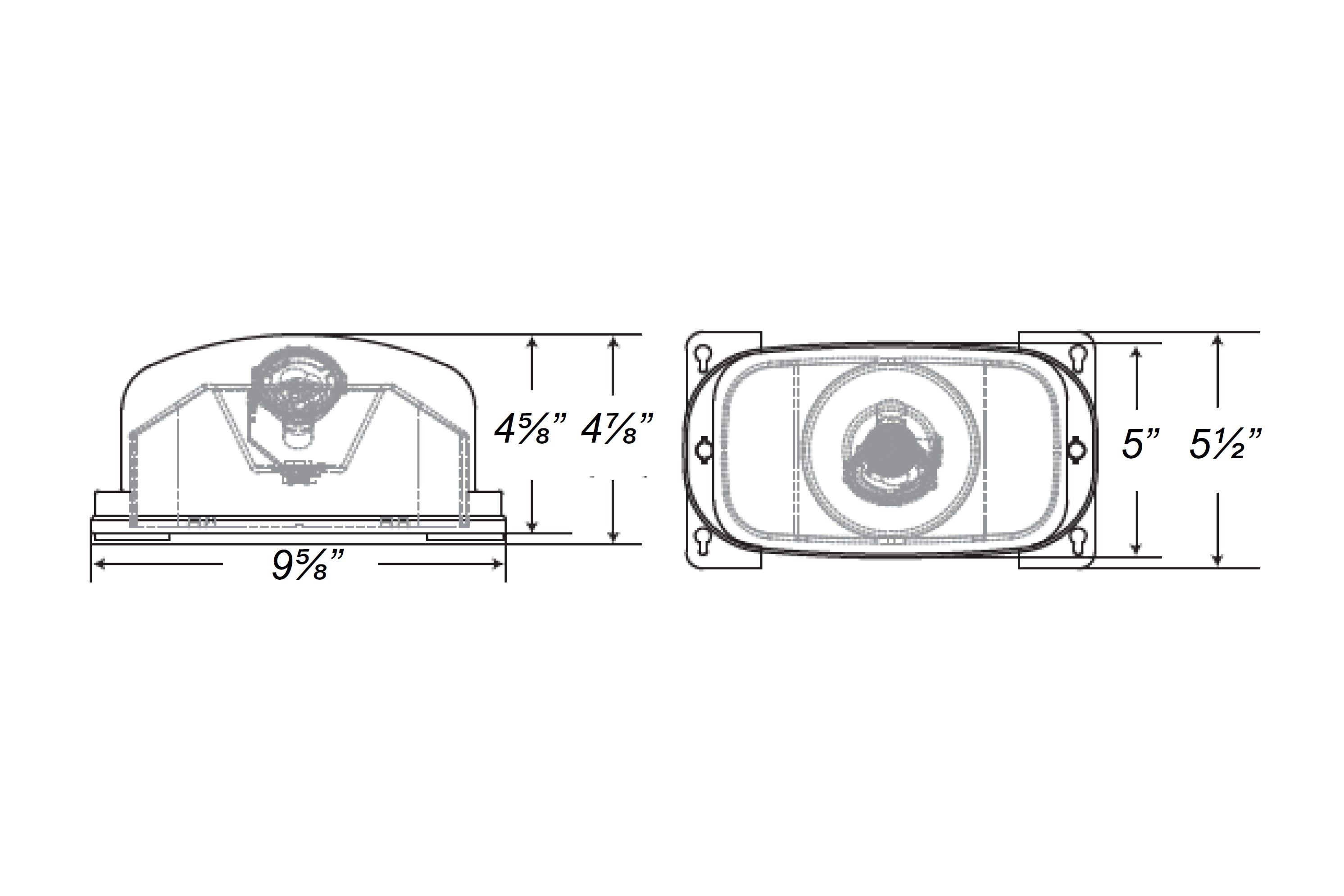

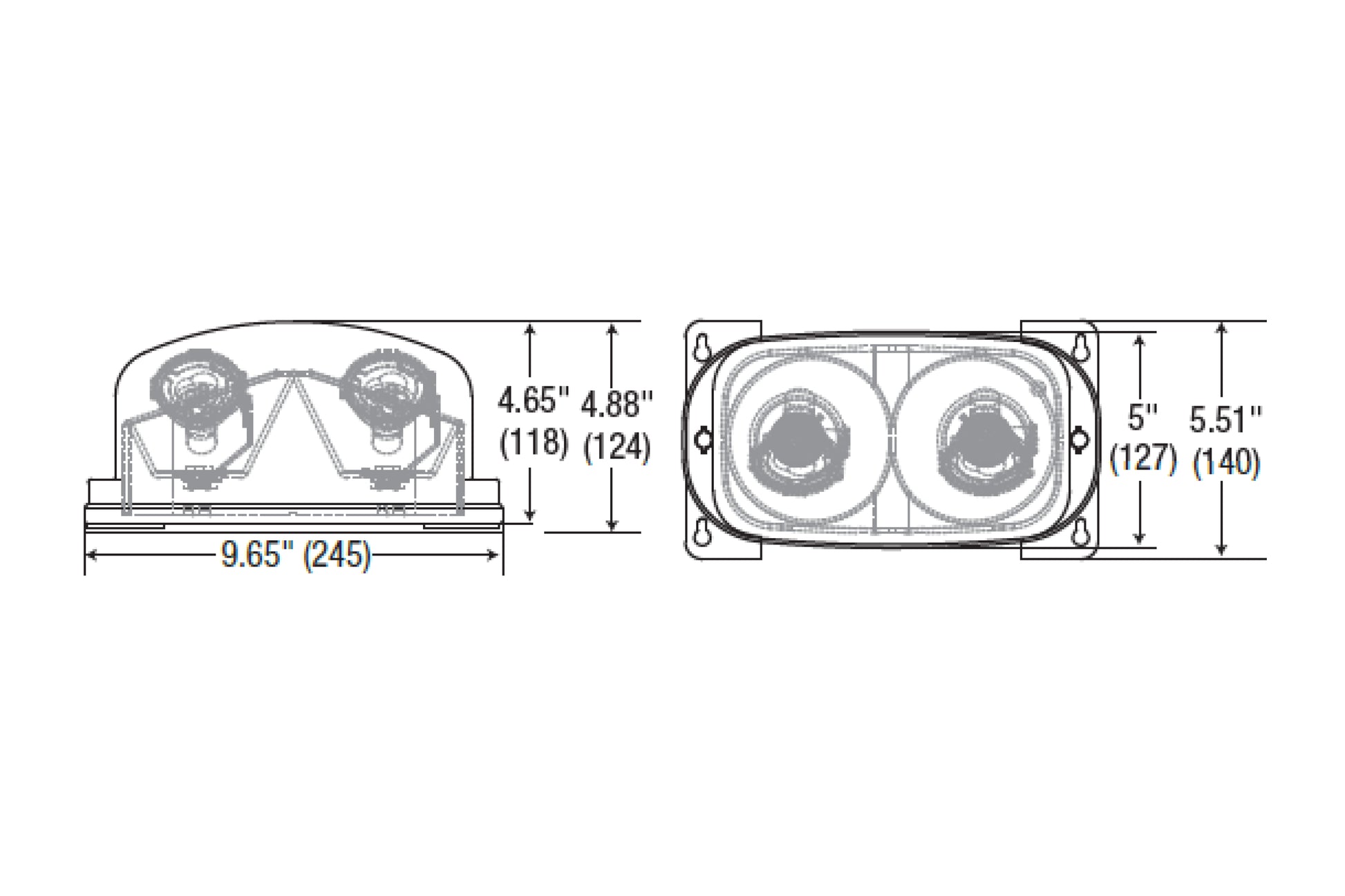

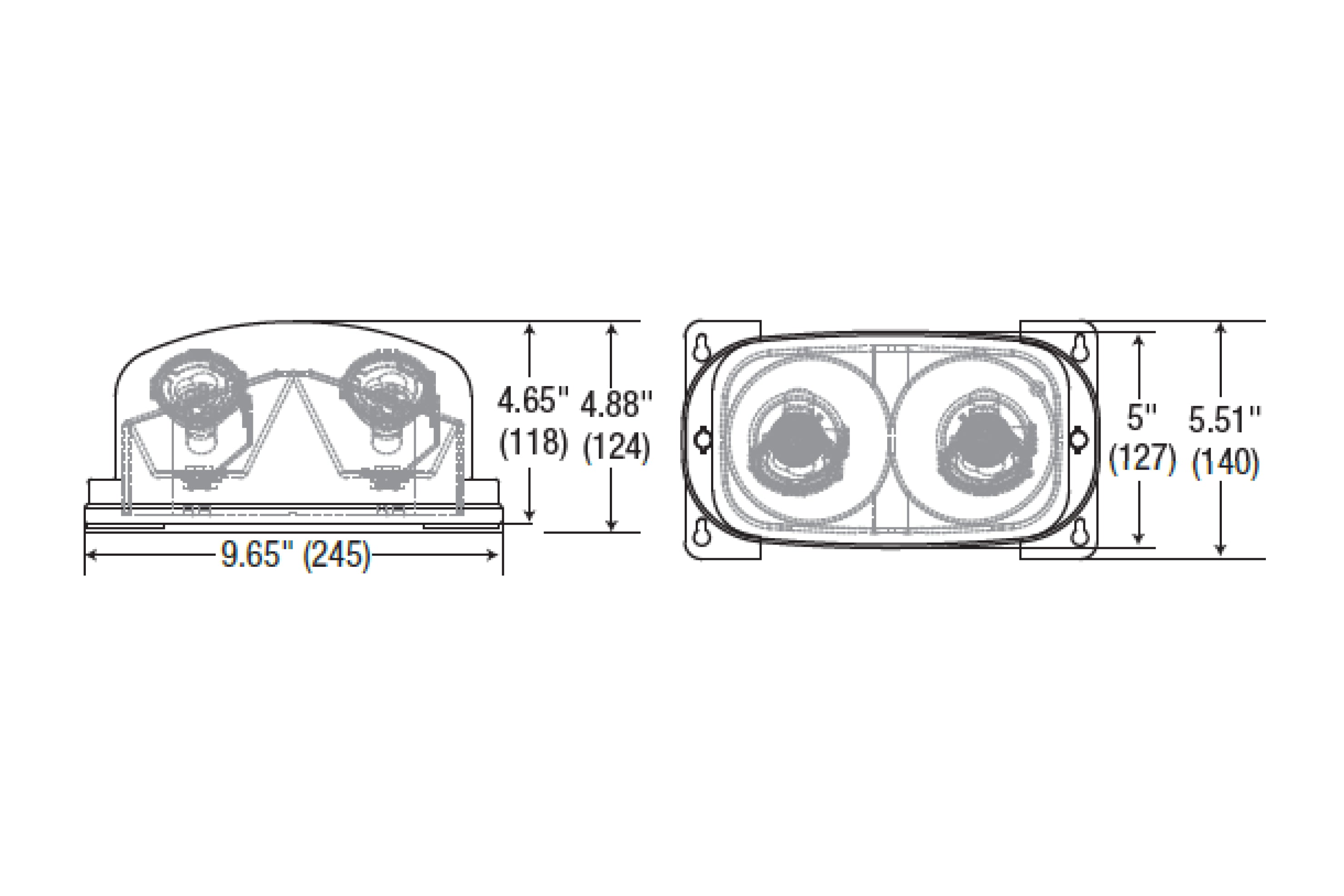

Dimensions

• Approx. 9 ½" W × 4 ¾" H × 5 ½" D

Options

• TP — tamper-resistant hardware kit

Typical Compatible Fixtures

• Works with CADXR, CALEDCXTE, CWLEZXTE-RC, DXR / NYDXR, RMR-16, LEDXR, and other remote-capable emergency lights

Warranty / Listings

• 5-year warranty on housing and components
• UL 924 listed with compatible host units; compliant with NFPA 101, NEC, OSHA

Frequently Asked Questions

What powers this remote head?

It operates on 6V or 12V DC from a compatible remote-capable emergency light; no internal battery is included.

Is it suitable for wet or corrosive areas?

Yes. It is NEMA 4X and IP66 sealed for hose-down and outdoor environments; NSF splash-zone compliant.

How do I mount it?

Use the gasketed back-plate on a wall or ceiling; conduit knockouts are provided for watertight wiring.

Single vs. twin heads?

Twin improves aiming and coverage; single is best for tight spaces or supplemental illumination.

Which host units are compatible?

Many 6V/12V remote-capable fixtures (e.g., CADXR, CALEDCXTE, CWLEZXTE-RC, DXR/NYDXR, RMR-16, LEDXR). Check host remote-load capacity.
