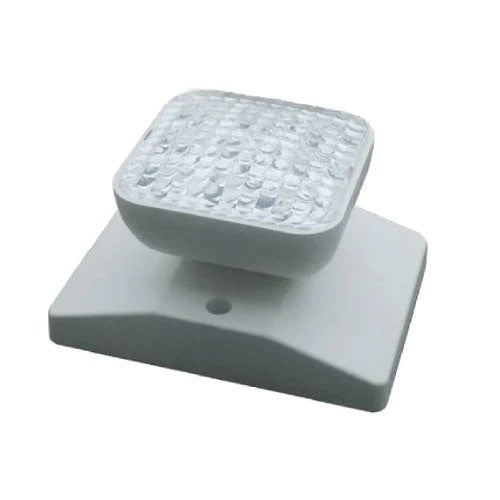

Single-head LED remote emergency light, adjustable square prismatic lens on white base

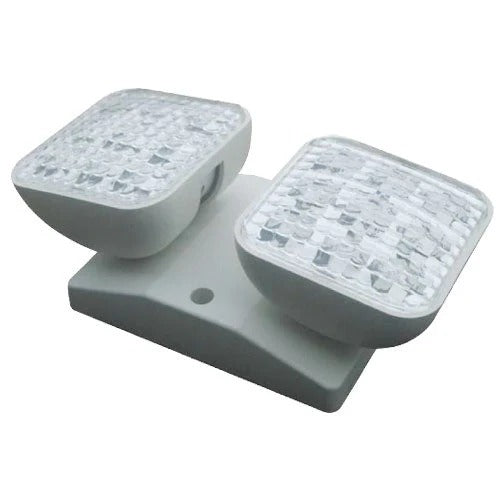

Dual-head LED remote emergency light, adjustable square prismatic lenses on white base
JLED Series remote LED head – single-head 1W version mounted on white junction box
Single-head LED remote emergency light, adjustable square prismatic lens on white base
Dual-head LED remote emergency light, adjustable square prismatic lenses on white base

Remote LED Lamp Heads – JLED Single or Double, 0.75W–1.5W Output

SKU: JLED1-BL
$33.58

Got questions?

Give us a call 800-847-1955!

Remote LED Lamp Heads - 3.6 VDC, 0.75/1/1.5 W, Single or Double, UL 94 5VA, Damp Location - Features & Specs

Start with remote head emergency lights. The JLED Series Remote LED Lamp Heads provide efficient emergency egress lighting using 3.6 V DC input from remote-capable exit or combo units. Available in single-head (JLED1) or double-head (JLED2) models, each version supports multiple outputs: 0.75 W (LO), 1 W (standard), or 1.5 W (HO). JLED mounts to a standard 4" junction box and features field-adjustable heads for precise aim.

3.6 VDC 0.75 / 1 / 1.5 W Single or Double 4" J-Box Mount UL 94 5VA Damp Location 3-Year Warranty

Key Features

  • 3.6 V DC input for use with remote-capable emergency fixtures or central inverters
  • Output choices: 0.75 W (LO), 1 W, or 1.5 W (HO)
  • JLED1 single-head or JLED2 double-head configurations
  • Aimable heads with full adjustability for optimal distribution
  • Rugged injection-molded ABS thermoplastic (UL 94 5VA) in white or black
  • cULus Listed for Damp Locations; mounts to a standard 4" J-box

Related Emergency Lighting Guides

3.6V Wiring Guide Spacing: Corridors, Stairs & Open Areas 12V vs 24V for Remote Heads

Spec Sheet

Download JLED Remote Lamp Heads Spec Sheet (PDF)

Illumination

  • High-efficiency LED lamp heads with adjustable aiming
  • Available output tiers: 0.75 W (LO), 1 W (std), 1.5 W (HO)

Electrical

  • Input: 3.6 V DC supplied by a compatible remote-capable host unit
  • Use with remote-capable emergency lights or central inverter systems sized for load

Mounting

  • Attaches to a standard 4" junction box
  • Single-head (JLED1) or double-head (JLED2) configurations

Housing / Finish

  • Injection-molded ABS thermoplastic, UL 94 5VA flame-rated
  • White or black finish options

Performance (spacing at 7.5' mounting height)

Model Heads 0.75 W 1 W 1.5 W
JLED2 2 25' OC 23' OC 29' OC
JLED1 1 — See spec-sheet chart —

OC = on-center spacing based on a 3' path / 6' corridor.

Ordering Guide

  • JLED1-WH — Single head, 1 W, white
  • JLED2-BL-HO — Double head, 1.5 W high-output, black
  • JLED2-WH-LO — Double head, 0.75 W low-output, white

Warranty / Listings

  • 3-year warranty on housing and electronics
  • cULus Listed for Damp Locations; NFPA 101 and NEC compliant
