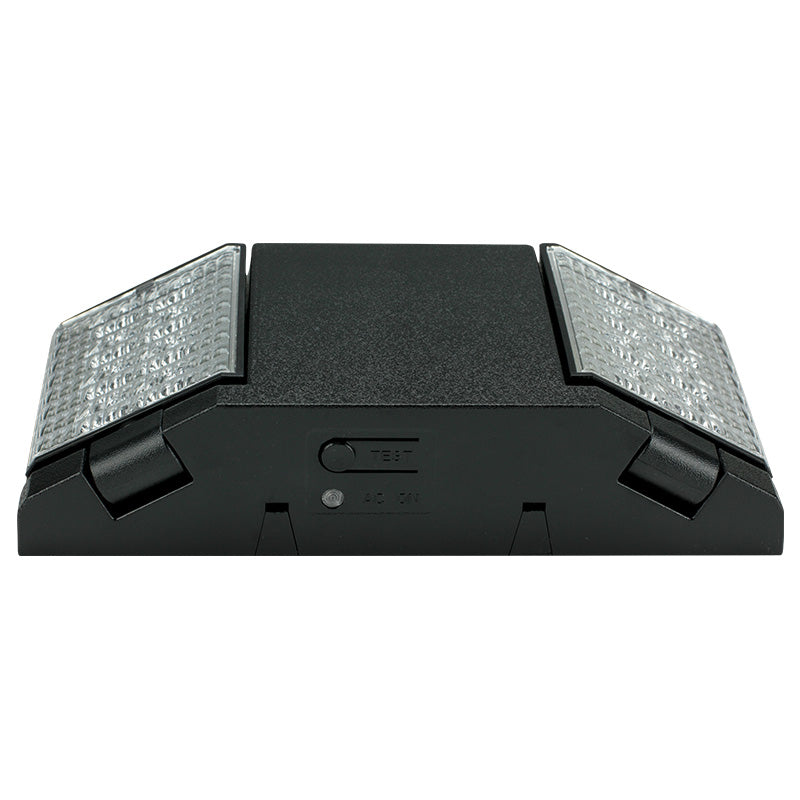

Compact LED emergency unit – Bottom view with ceiling/wall mount pattern

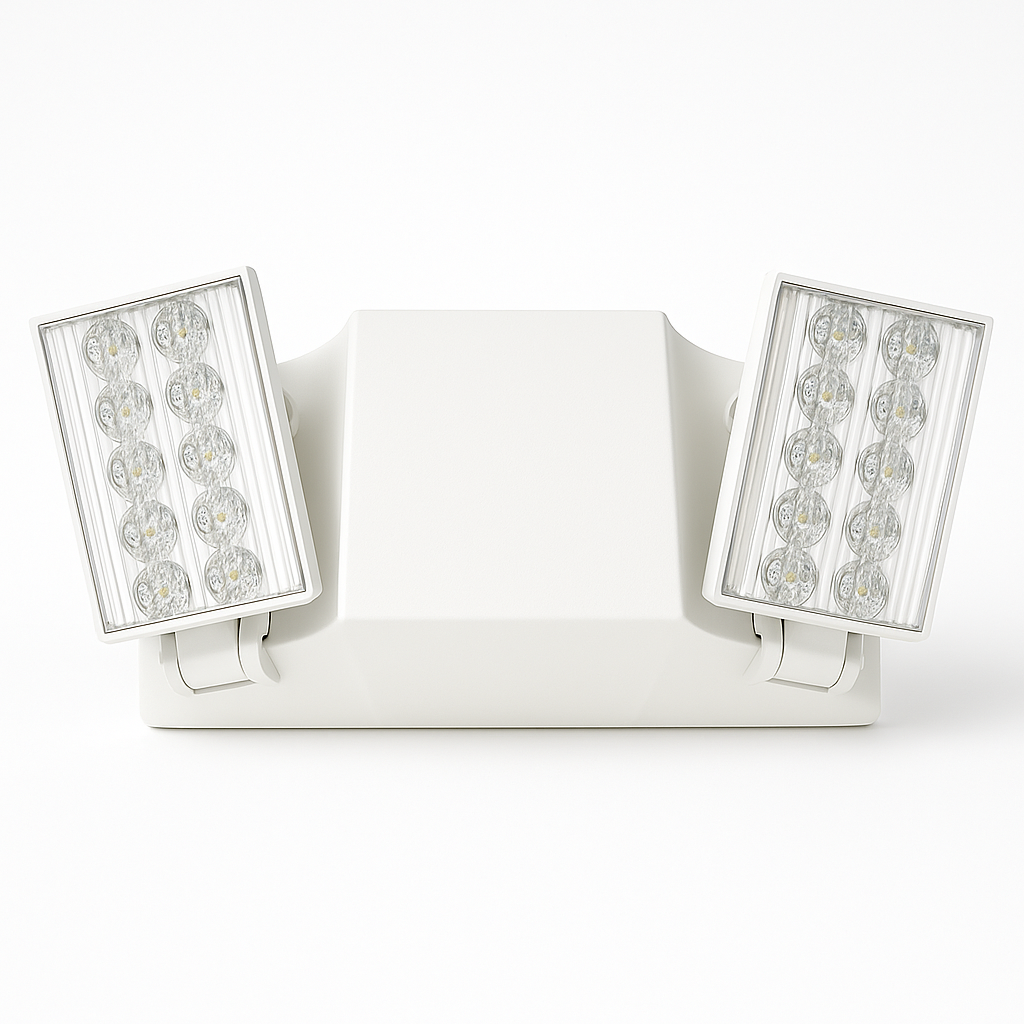

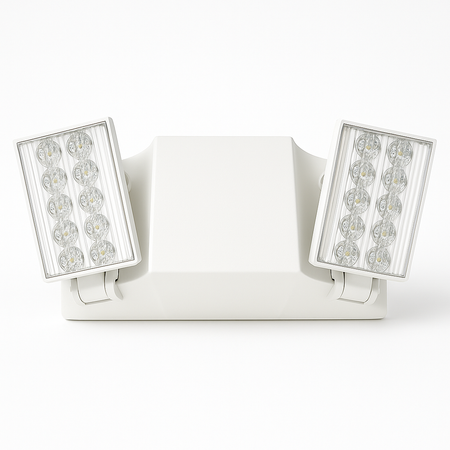

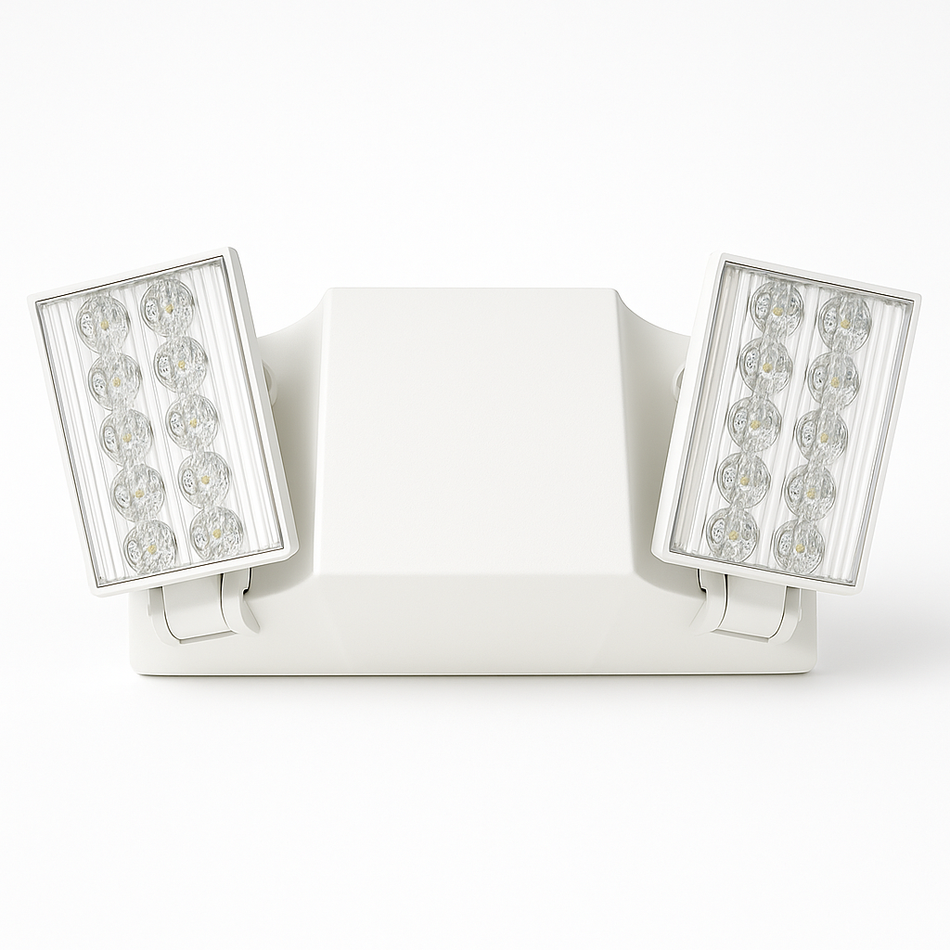

White dual-head LED emergency light with adjustable rectangular lamp heads and ribbed polycarbonate lenses, front view

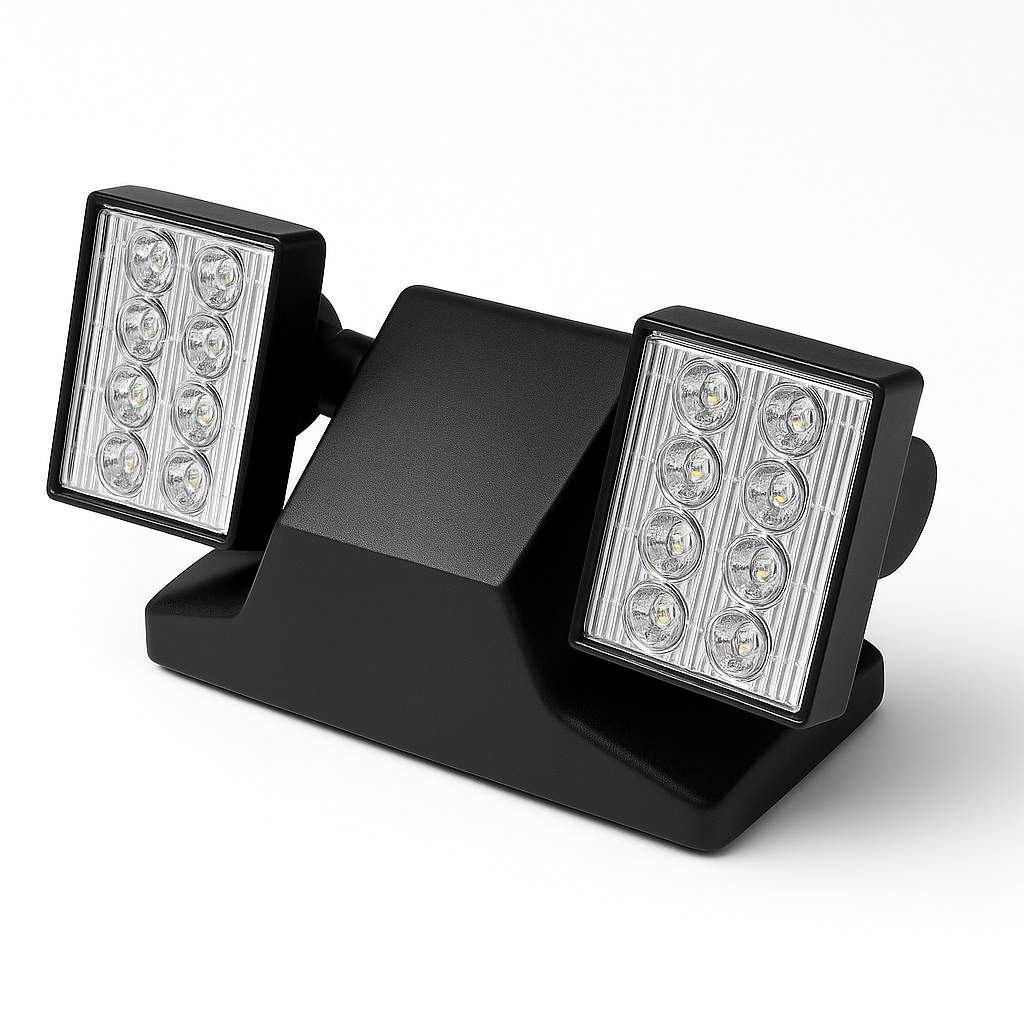

Black dual-head LED emergency light with adjustable rectangular lamp heads and prismatic lenses, wall-mount housing
LED-60 emergency light – front view with dual 1W heads and white thermoplastic housing
Compact LED emergency unit – angled view with ceiling/wall mount pattern
Compact LED emergency unit – Bottom view with ceiling/wall mount pattern
White dual-head LED emergency light with adjustable rectangular lamp heads and ribbed polycarbonate lenses, front view
Black dual-head LED emergency light with adjustable rectangular lamp heads and prismatic lenses, wall-mount housing

Compact LED Emergency Light – Dual 1W Heads, 90-Min Battery Backup

SKU: LED-60
$36.79
Sale $40.88 $36.79

Got questions?

Give us a call 800-847-1955!

Thermoplastic LED Emergency Light — Dual 1 W Heads, 90‑min Ni‑Cd, UL 924 Damp Location — Features & Specs

The LED‑60 thermoplastic LED emergency lighting unit delivers dependable egress illumination with dual 1 W fully adjustable heads and a long‑life Ni‑Cd battery that provides 90 minutes of runtime. Its compact, flame‑rated housing mounts to a universal J‑box on walls or ceilings for fast installs in corridors, offices, and light‑industrial spaces. UL 924 listed and damp‑location rated for indoor use.

UL 924 90‑min Battery Damp Location Dual 1 W LED Heads Wall / Ceiling Mount Thermoplastic 120/277 VAC Ni‑Cd

Key Features

  • Dual 1 W fully adjustable LED heads (eight LEDs per head) for uniform egress lighting.
  • 90‑minute emergency runtime; typical 24‑hour recharge.
  • Universal 120/277 VAC input with solid‑state transfer and push‑to‑test.
  • Damp‑location rated for indoor environments: 0–40 °C (32–104 °F).
  • UV‑stable, UL 94 5VA flame‑retardant thermoplastic; tool‑less access.
  • Universal J‑box pattern with rear keyholes; mount on wall or ceiling in any orientation.
  • Spacing guideline (design‑aid): 13' on a 3' path at 7.5' MH (approx. 10' on a 6' path). Verify with photometrics.
  • Finishes: White or Black; indoor use (not for direct outdoor exposure).

Related Emergency Light Guides

Remote Heads—Load Budget, Wire Gauge & Voltage Drop Emergency Lighting—Code Basics & 90‑Minute Requirement

Spec Sheet

LED-60 Spec Sheet PDF Icon Download LED‑60 Emergency Unit Spec Sheet (PDF)

Illumination

  • Two 1 W fully adjustable LED heads with eight LEDs each.
  • Design‑aid spacing: 13' O.C. on a 3' path at 7.5' MH; approx. 10' O.C. on a 6' path.
  • Long‑life LEDs (up to ~100,000 hours).

Electrical

  • Universal 120/277 VAC, 60 Hz input.
  • Maintenance‑free Ni‑Cd battery provides 90 minutes of emergency runtime (typ. 24‑hour recharge).
  • Solid‑state transfer/charger with low‑voltage disconnect and push‑to‑test; brownout protection.

Mounting

  • Universal J‑box pattern with rear keyholes for wall or ceiling mounting.
  • Tool‑free housing access; installs in any orientation.

Housing

  • Injection‑molded thermoplastic rated UL 94 5VA for flame resistance.
  • Resists denting, peeling, scratching, and corrosion; indoor use (not recommended for outdoor exposure).
  • Available finishes: White (standard) or Black (BL).
  • Damp‑location rating: 0–40 °C (32–104 °F).

Options

  • Wire Guard (back mount): WG‑S
  • Wet‑Location/Vandal Guard (back mount): WPV‑2
  • Poly Guard (back mount): XG‑90

Dimensions

  • 9.5" W × 4.6" H × 2.3" D

Warranty / Listings

  • 5‑year warranty on components; separate 5‑year prorated warranty on the Ni‑Cd battery.
  • UL 924 listed; meets NEC requirements and NFPA 101 for egress safety.

Frequently Asked Questions

What’s the spacing coverage of the LED heads?

The LED‑60 provides 13' spacing on a 3' path at a mounting height of 7.5'—ideal for corridors and open spaces (verify with photometrics).

How long does the battery last during an outage?

The Ni‑Cd battery delivers 90 minutes of emergency lighting and typically recharges in 24 hours.

Can this be mounted on ceilings or walls?

Yes. The universal J‑box pattern and rear keyholes allow for tool‑free mounting in any orientation.

Is this fixture suitable for damp locations?

Yes. It is UL 924 listed and damp‑location rated for use between 0–40 °C (32–104 °F).

What kind of maintenance is required?

Minimal. The fixture uses long‑life LEDs and a sealed battery. Perform monthly push‑button tests and annual inspections per UL 924.
