LED Area Light – 100W Max, Outdoor Selectable Wattage

LED Outdoor Area Light – 100W Max, Field-Adjustable Wattage

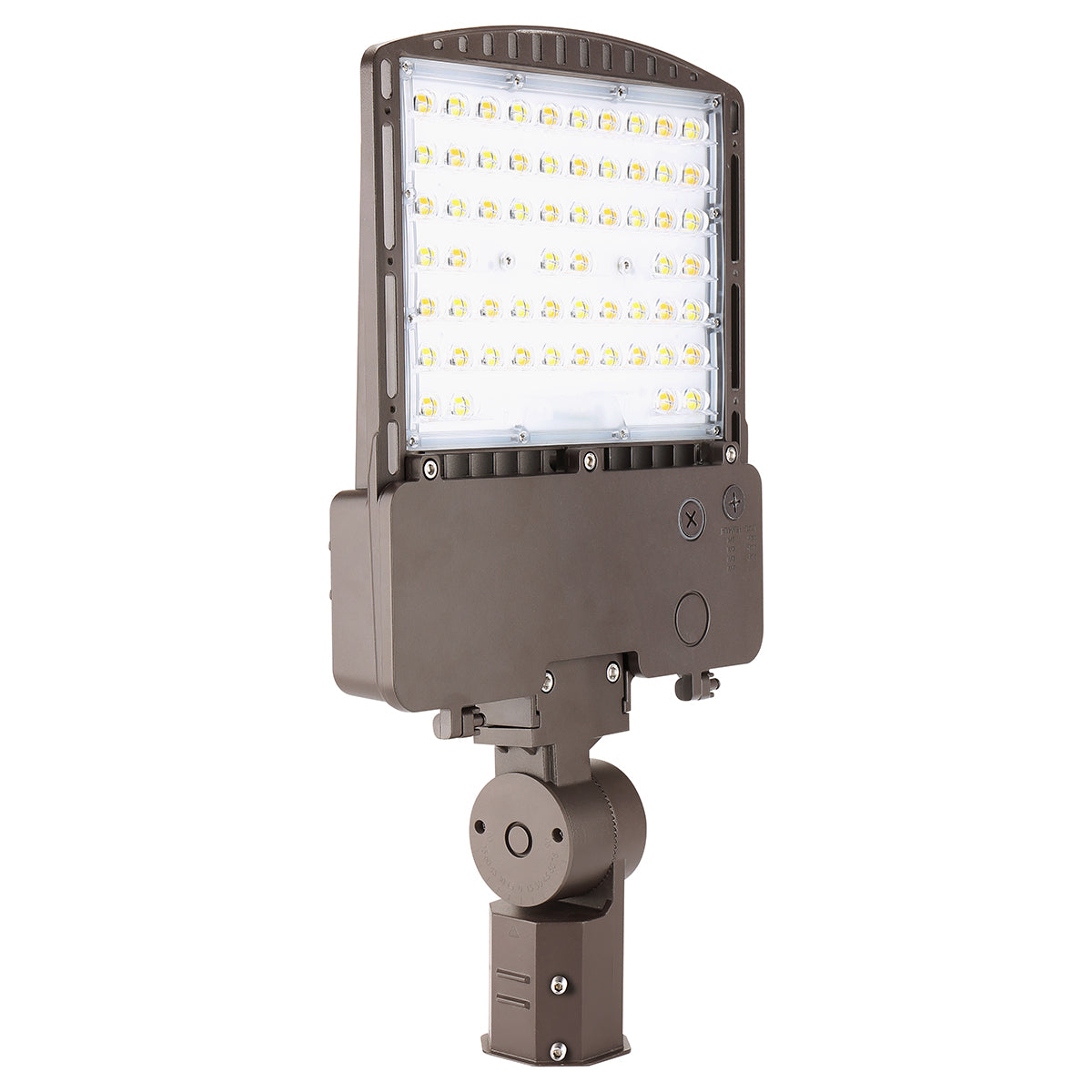

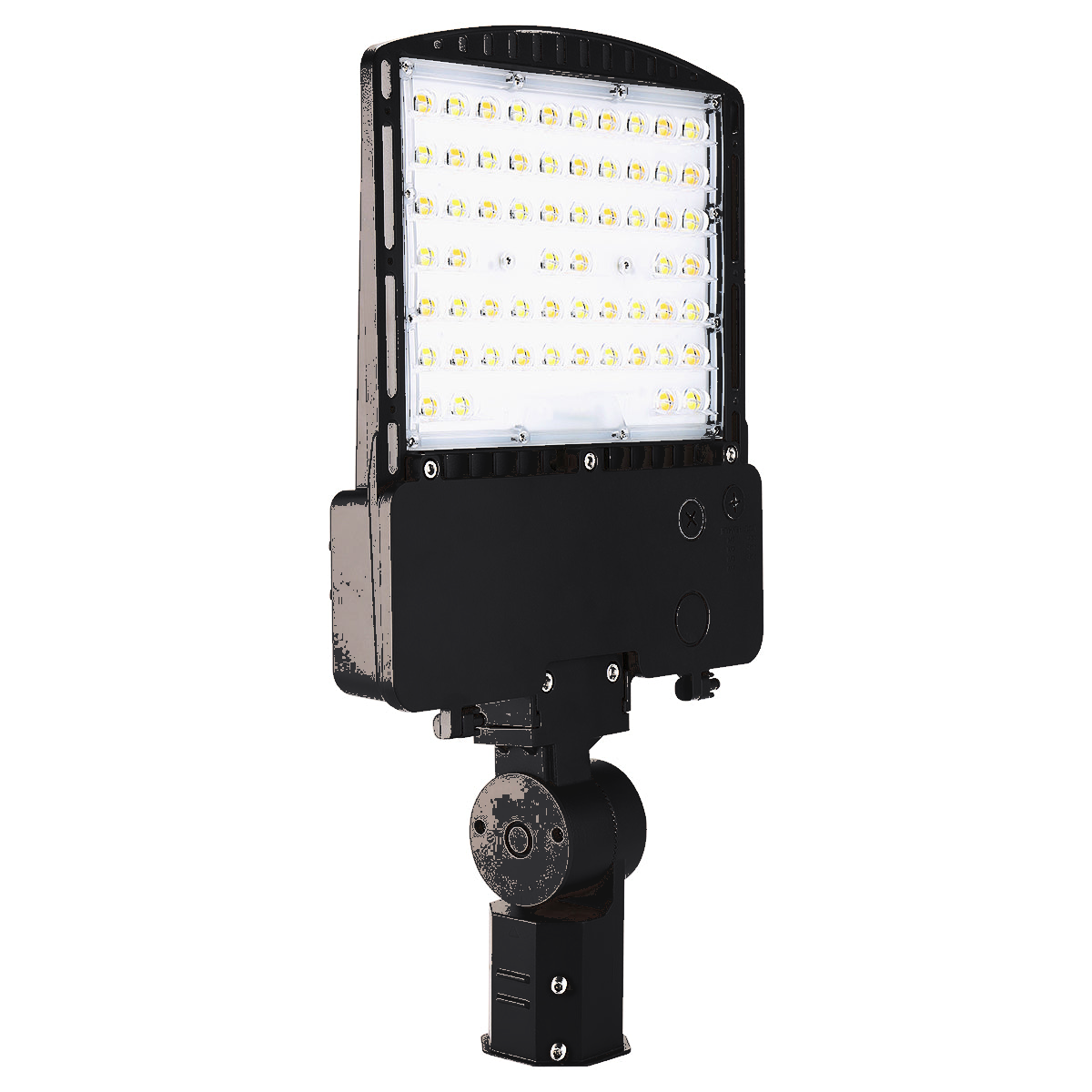

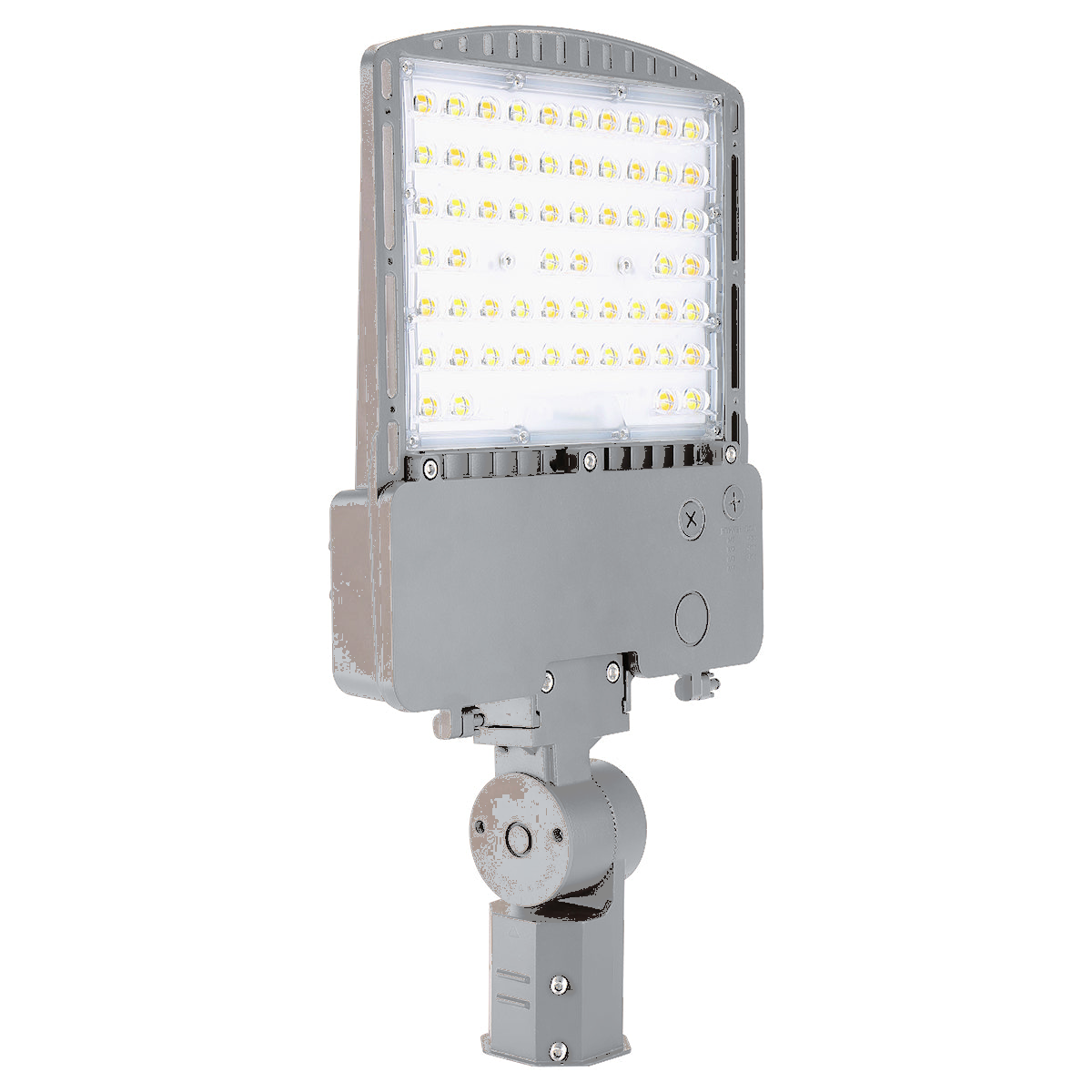

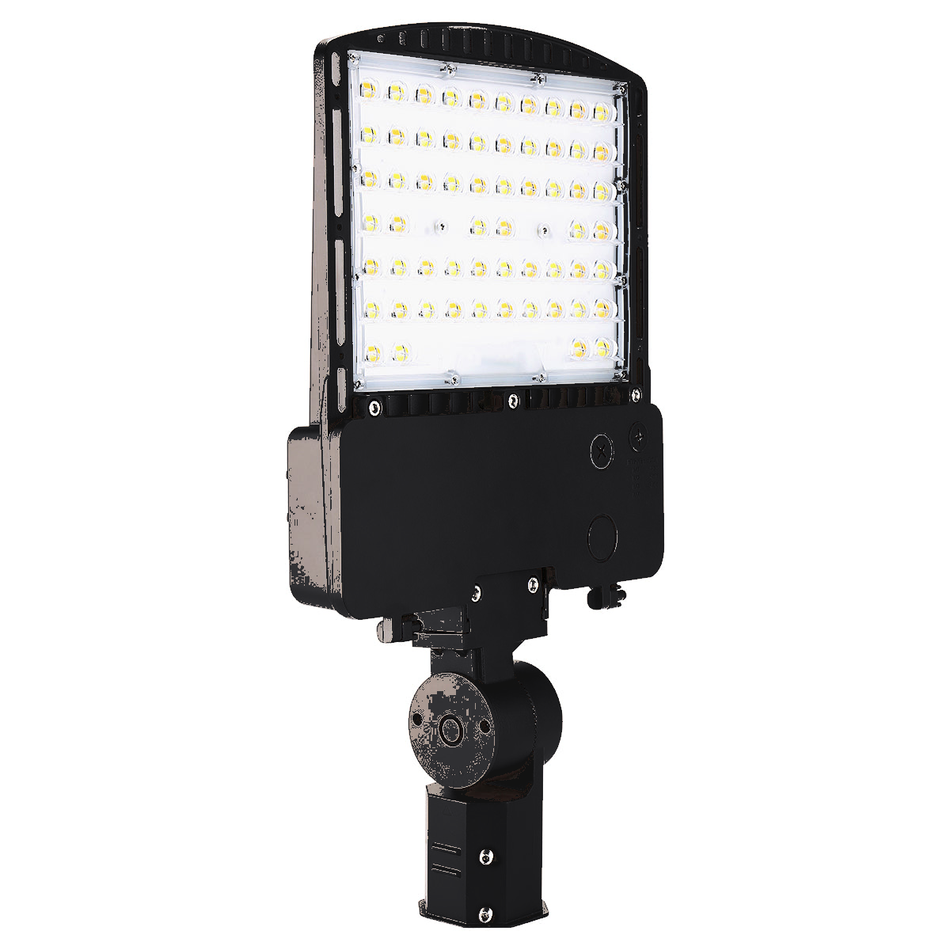

The RXAR-100 LED Area Light is a compact, high-efficiency solution for outdoor commercial applications. Featuring a field-selectable wattage range of 40W, 60W, 80W, or 100W, this versatile LED outdoor area light provides up to 16,000 lumens and supports multiple optical distributions. Ideal for parking lots, roadways, and perimeter zones, the RXAR-100 is DLC Premium listed, dark sky compliant, and built to perform in demanding environments.

• Selectable: 40W / 60W / 80W / 100W
• Up to 16,000 Lumens
• IP65 Rated for Outdoor Use
• DLC Premium & IDA Compliant

Download RXAR-100 LED Area Light Spec Sheet (PDF)

Performance

• Wattage: Field-selectable 40W, 60W, 80W, 100W
• Lumen range: 6,400 to 16,000 lm depending on setting
• Efficacy: Up to 170 lumens per watt
• Color Temp: Selectable 3000K, 4000K, 5000K
• Distributions: Type II, III, IV, V

Construction

• Rugged die-cast aluminum housing with powder-coated finish
• Stainless steel hardware and heat-dissipating fins
• Hinged driver door with whip included
• Standard pole arm fits 4" or 5" square/round poles

Electrical

• 120–277VAC standard input (277–480V optional)
• 0–10V dimming driver
• Surge protection: 10kA standard
• Power factor = 0.90, THD < 20%

Mounting Options

• Includes pole arm for 4" or 5" poles
• Optional: slipfitter, trunnion, swivel, wall bracket, and tenon adaptors

Listings & Certifications

• UL Listed for wet locations (IP65)
• DLC Premium Qualified
• IDA dark-sky approved with 3000K lock module

Warranty

• 5-year standard warranty
• Optional 10-year extended warranty available

Frequently Asked Questions

What makes the RXAR-100 a high output area light?

This LED high output area light delivers up to 16,000 lumens at just 100W, making it ideal for commercial and municipal applications requiring strong, wide coverage.

How do the wattage and CCT switches work?

Internal dip switches let you adjust output and color temperature in the field—no tools or rewiring required. Choose 40W to 100W and 3000K to 5000K on-site.

Is this fixture suitable for LED outdoor area lighting?

Yes. The RXAR-100 is IP65 rated and designed for harsh weather, making it perfect for outdoor lighting in parking lots, walkways, campuses, and site perimeters.

Is the RXAR-100 dark-sky compliant?

Yes. When paired with the RXAR-DSFA accessory and mounted in a fixed downlight orientation, this model meets International Dark Sky Association (IDA) guidelines.

What input voltages are supported?

The RXAR-100 supports 120–277VAC standard, with optional drivers available for 277–480VAC input applications.
