LED Area Light – 250W Max, Outdoor Selectable Wattage
Regular price
$376.68
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
LED Area Light – 250W Max, Outdoor Selectable Wattage
This LED outdoor area light delivers powerful, high-lumen performance with selectable output between 100W, 150W, 200W, and 250W. With up to 38,000 lumens and multiple distribution types, it’s ideal for large-scale exterior lighting applications like parking lots, campuses, and roadways. Built for durability, this LED high output area light features dark-sky optics, DLC Premium certification, and rugged IP65 construction.
Depending on the selected wattage, it delivers between 14,500 and 38,000 lumens—ideal for large-scale outdoor lighting applications.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- Wet Location
- LED
- Outdoor Lighting
Documents
LED Outdoor Area Light – 250W Max, Field-Adjustable Wattage
- Selectable: 100W / 150W / 200W / 250W
- Up to 38,000 Lumens
- IP65 Rated for Outdoor Use
- DLC Premium & IDA Compliant
Performance
- Selectable wattages: 100W, 150W, 200W, 250W
- Lumen range: 14,500 – 38,000 lumens
- Efficacy: Up to 161 lumens per watt
- Color Temperature: 3000K / 4000K / 5000K switchable
- Optics: Type II, III, IV, and V light distribution
Construction
- Die-cast aluminum housing with stainless steel hardware
- Powder-coated finish and integral heat sink fins
- Hinged driver access door with included 12” whip
- Standard pole arm fits 4" or 5" round or square poles
Electrical
- 120–277VAC input standard (277–480VAC available)
- 0–10V dimming driver included
- Surge protection: 10kA (standard), 20kA (optional)
- Power factor = 0.90; THD < 20%
Mounting Options
- Standard pole arm included

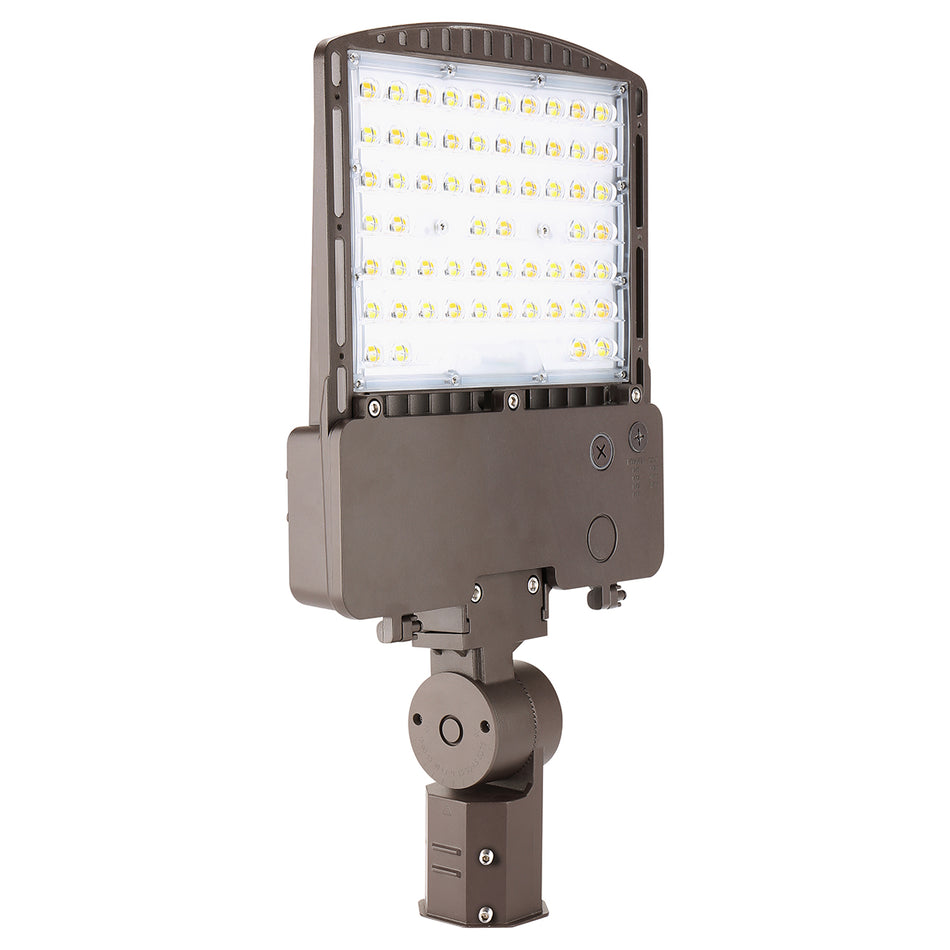

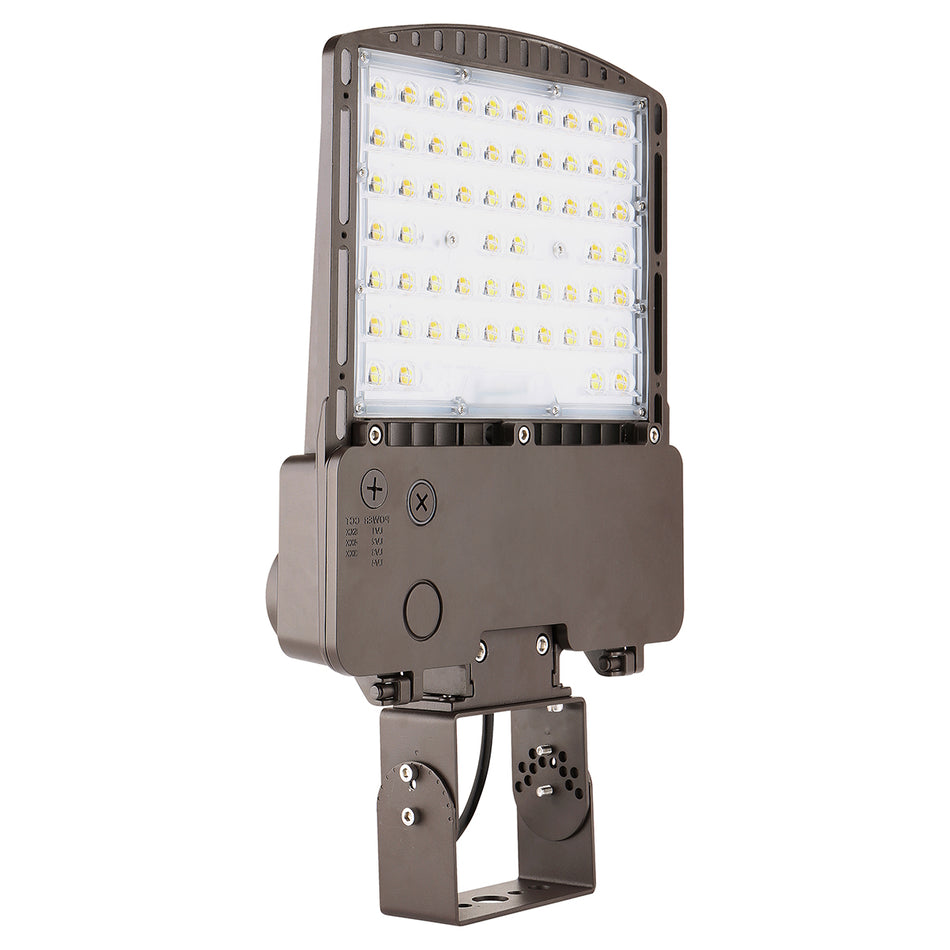

- Optional mounts: slipfitter, trunnion, swivel, wall bracket, tenon adaptors
Listings & Certifications
- UL Listed for Wet Locations (IP65)
- DLC Premium Qualified
- IDA Dark Sky Compliant (with 3000K lock module)
Warranty
- 5-year standard warranty
- Optional 10-year extended warranty available
How many lumens does this LED area light produce?
Depending on the selected wattage, it delivers between 14,500 and 38,000 lumens—ideal for large-scale outdoor lighting applications.
Can I change wattage and color temperature in the field?
Yes. This model includes internal dip switches for easy in-field selection between 100W–250W and 3000K–5000K without rewiring.
Is it compliant with dark-sky regulations?
Yes. It offers zero uplight and can be configured for 3000K color to meet IDA guidelines using the RXAR-DSFA accessory.
Frequently asked questions
How many lumens does this LED area light produce?
Depending on the selected wattage, it delivers between 14,500 and 38,000 lumens—ideal for large-scale outdoor lighting applications.
Can I change wattage and color temperature in the field?
Yes. This model includes internal dip switches for easy in-field selection between 100W–250W and 3000K–5000K without rewiring.
Is it compliant with dark-sky regulations?
Yes. It offers zero uplight and can be configured for 3000K color to meet IDA guidelines using the RXAR-DSFA accessory.
Is this fixture suitable for high-mount applications?
Absolutely. With up to 38,000 lumens and multiple beam distributions, it’s excellent for parking lots, pole-mounted roadway lights, and security lighting.
What are the input voltage options?
120–277VAC input is standard, and 277–480VAC options are available for industrial and municipal applications.
