Remote LED Lamp Heads – JLED Single or Double, 0.75W–1.5W Output

Remote LED Lamp Heads - 3.6 VDC, 0.75/1/1.5 W, Single or Double, UL 94 5VA, Damp Location - Features & Specs

Start with remote head emergency lights. The JLED Series Remote LED Lamp Heads provide efficient emergency egress lighting using 3.6 V DC input from remote-capable exit or combo units. Available in single-head (JLED1) or double-head (JLED2) models, each version supports multiple outputs: 0.75 W (LO), 1 W (standard), or 1.5 W (HO). JLED mounts to a standard 4" junction box and features field-adjustable heads for precise aim.

Key Features

• 3.6 V DC input for use with remote-capable emergency fixtures or central inverters
• Output choices: 0.75 W (LO), 1 W, or 1.5 W (HO)

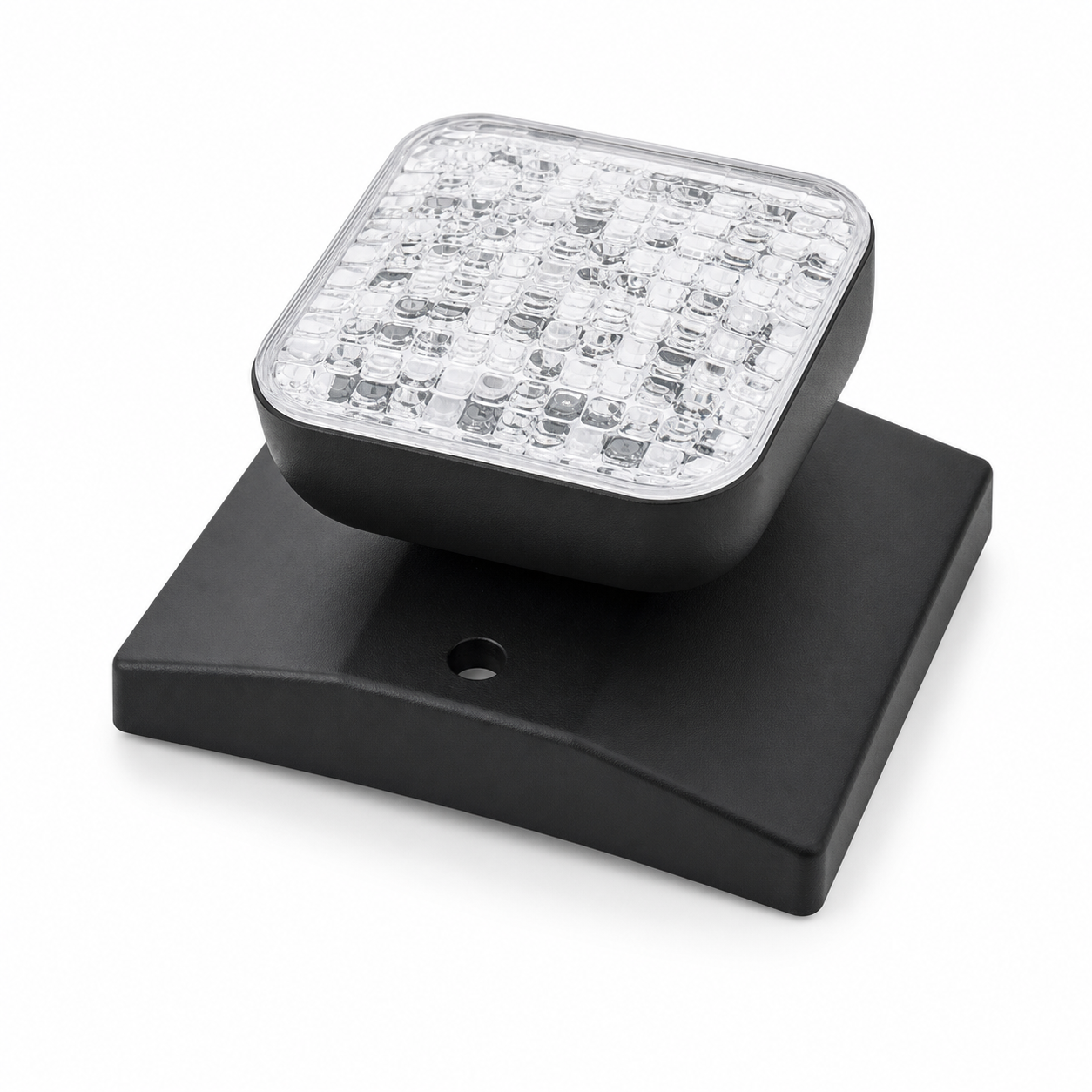

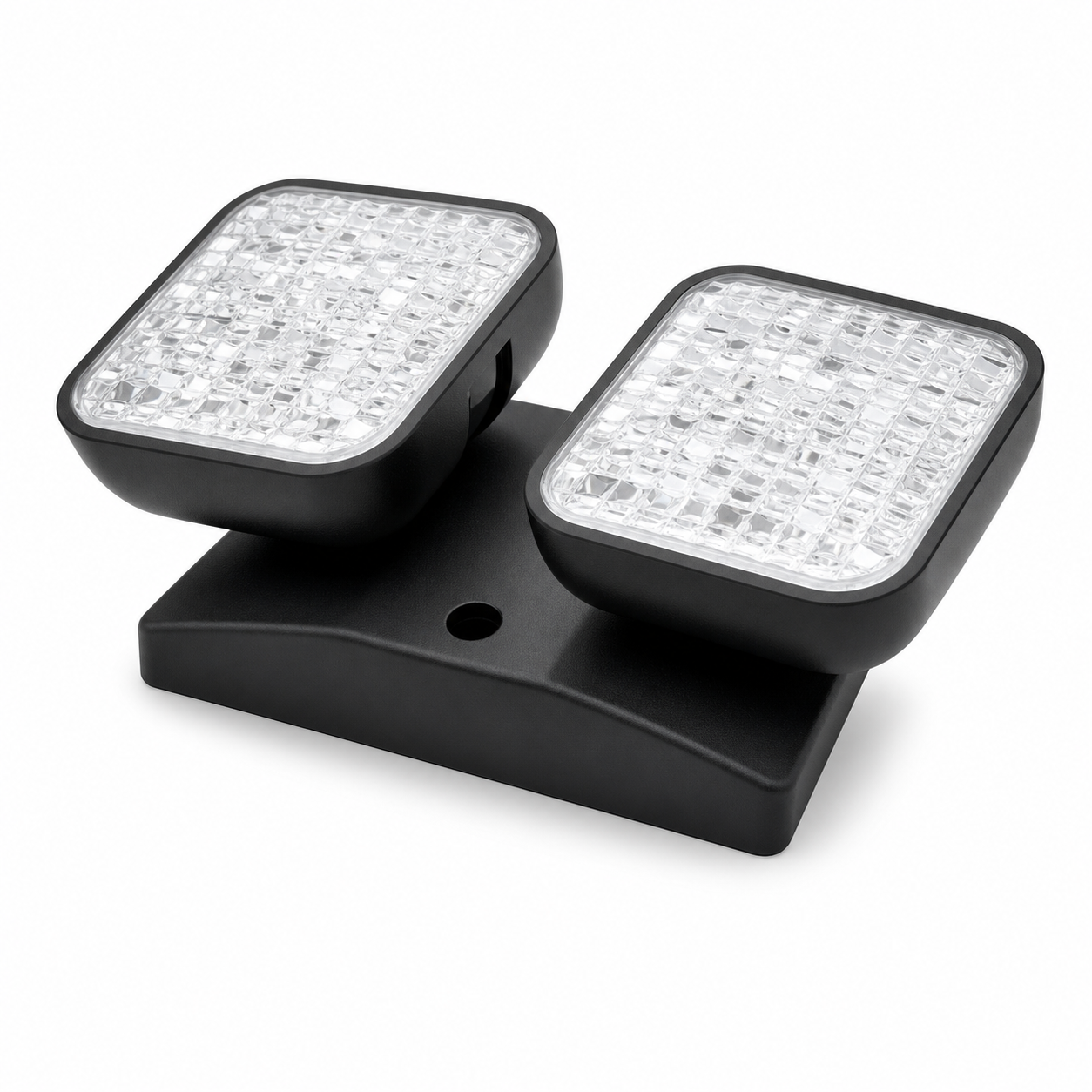

• JLED1 single-head or JLED2 double-head configurations
• Aimable heads with full adjustability for optimal distribution
• Rugged injection-molded ABS thermoplastic (UL 94 5VA) in white or black
• cULus Listed for Damp Locations; mounts to a standard 4" J-box

Related Emergency Lighting Guides

Spec Sheet

Download JLED Remote Lamp Heads Spec Sheet (PDF)

Illumination

• High-efficiency LED lamp heads with adjustable aiming
• Available output tiers: 0.75 W (LO), 1 W (std), 1.5 W (HO)

Electrical

• Input: 3.6 V DC supplied by a compatible remote-capable host unit
• Use with remote-capable emergency lights or central inverter systems sized for load

Mounting

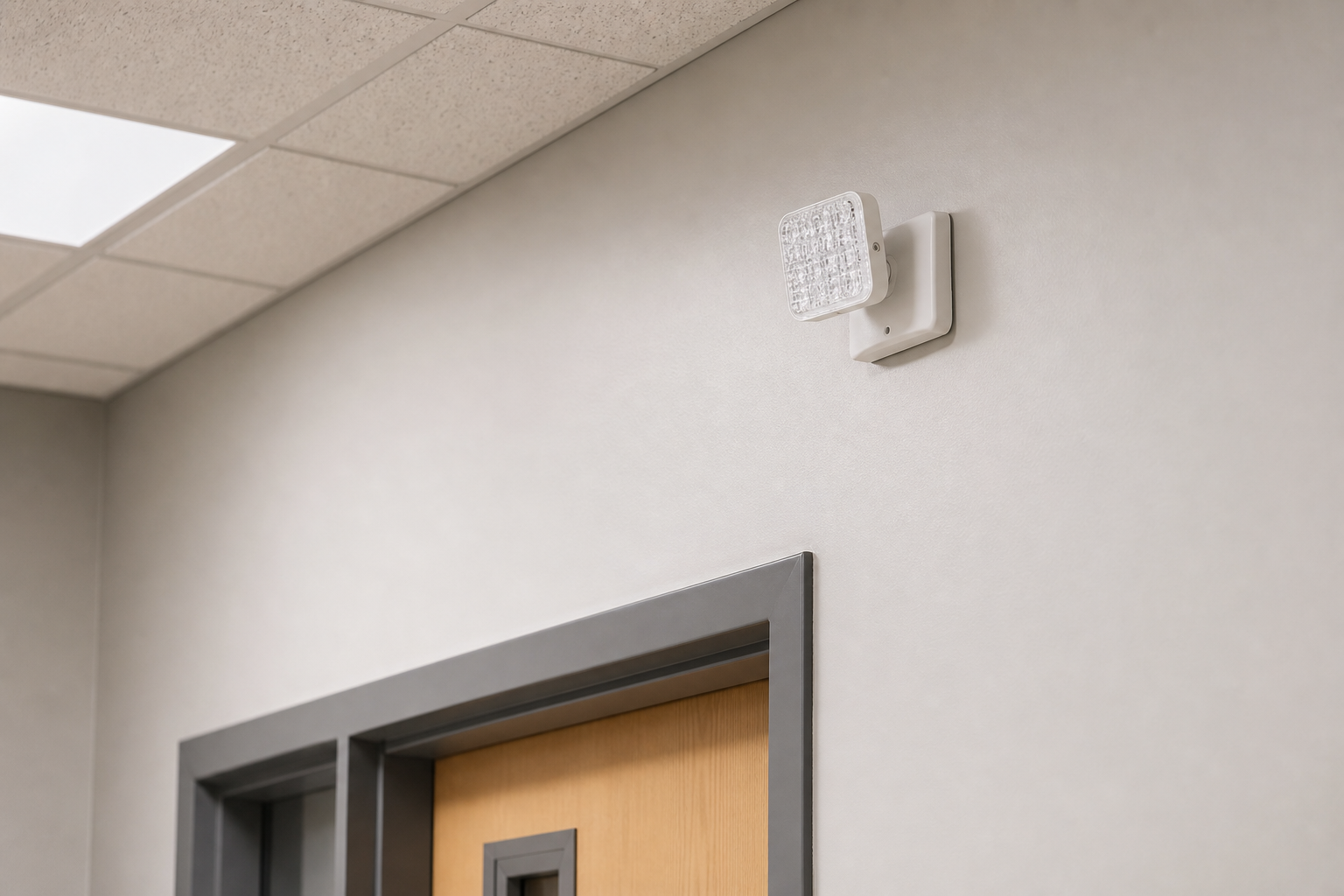

• Attaches to a standard 4" junction box

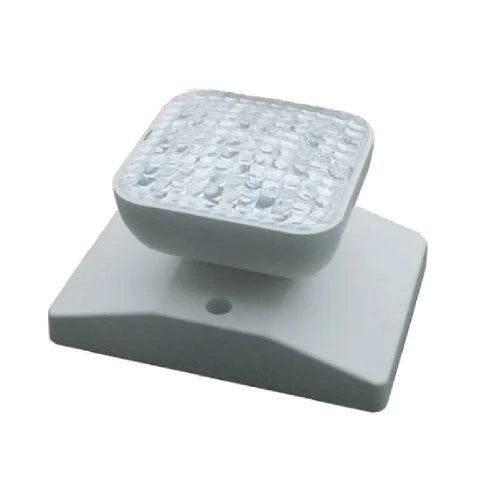

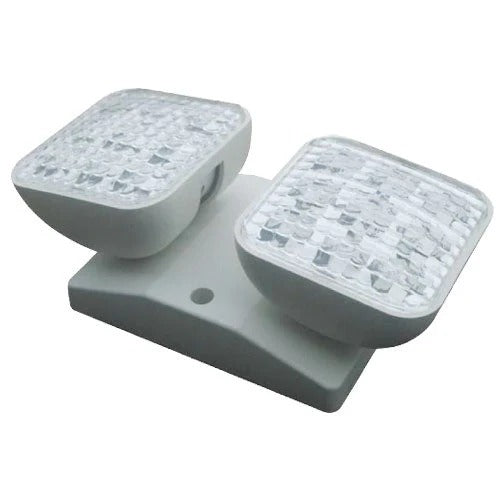

• Single-head (JLED1) or double-head (JLED2) configurations

Housing / Finish

• Injection-molded ABS thermoplastic, UL 94 5VA flame-rated
• White or black finish options

Performance (spacing at 7.5' mounting height)

OC = on-center spacing based on a 3' path / 6' corridor.

Ordering Guide

• JLED1-WH — Single head, 1 W, white
• JLED2-BL-HO — Double head, 1.5 W high-output, black
• JLED2-WH-LO — Double head, 0.75 W low-output, white

Warranty / Listings

• 3-year warranty on housing and electronics
• cULus Listed for Damp Locations; NFPA 101 and NEC compliant
