LED Flood Light – 15W to 45W Outdoor Area Fixture

LED Flood Light – FXA Series, 15W–45W Outdoor Fixture

The FXA Series LED Flood Light offers compact, energy-efficient illumination for outdoor environments requiring precision light coverage. Available in 15W, 27W, and 45W models, it delivers up to 5,650 lumens and replaces up to 150W HID. Designed for landscape, signage, building facades, and perimeter lighting, this LED flood light features a durable square-back housing, wide NEMA 7Hx6V distribution, and long 100,000-hour rated life to minimize maintenance.

• 15W / 27W / 45W Options
• Up to 5,650 Lumens Output
• IP65 Rated for Outdoor Use
• cULus Listed – 5 Year Warranty

Download FXA LED Flood Light Spec Sheet (PDF)

Performance

• Lumen output: 2,000 lm (15W), 3,600 lm (27W), 5,650 lm (45W)
• Efficacy: Up to 133 lumens per watt
• CCT: Available in 3000K, 4000K, and 5000K
• CRI: =70
• Distribution: NEMA 7Hx6V wide beam

Construction

• Die-cast aluminum housing with bronze powder coat
• UV-stabilized polycarbonate lens
• Vented housing separates driver and LED for extended life
• Sealed to IP65 with continuous silicone gasket

Electrical

• 120–277VAC input voltage, 50/60Hz
• Non-dimming Class 2 driver
• Optional factory-installed 120/277V button photocontrol

Mounting Options

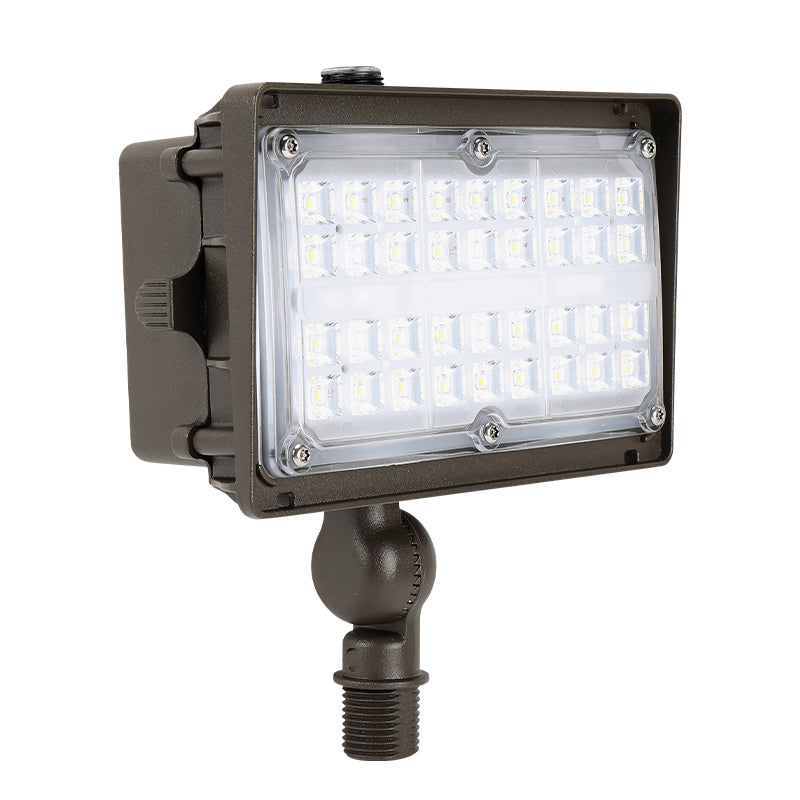

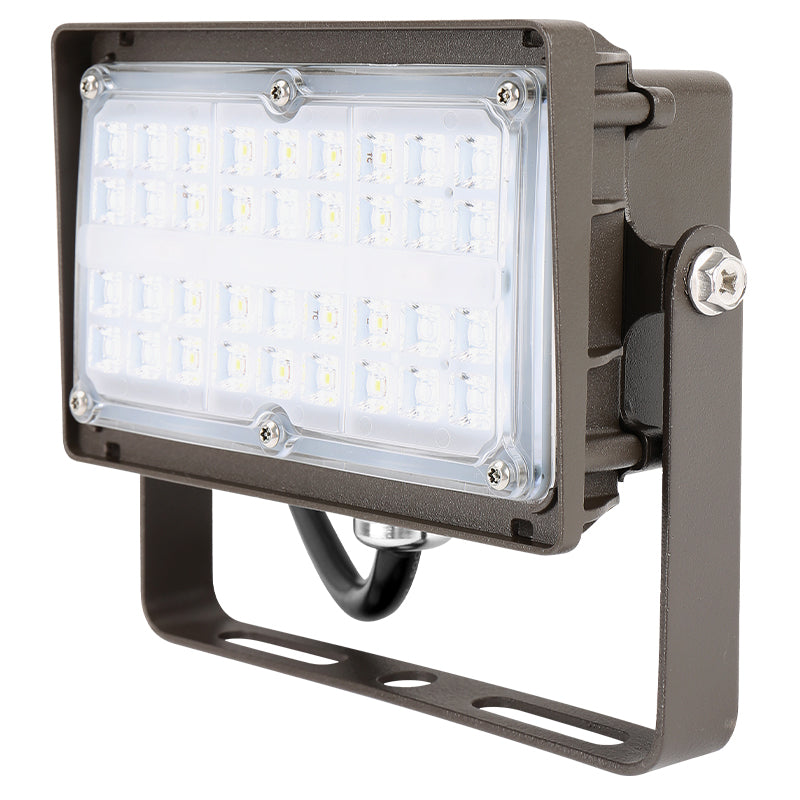

• Knuckle mount (KN) or yoke mount (YK) available
• Field-installed accessories: PCU universal button photocell

Certifications & Warranty

• cULus Listed for Wet Locations
• Tested to meet IP65 performance
• Rated for -40°C to 40°C operation
• Backed by a 5-year manufacturer’s warranty

Frequently Asked Questions

What is the primary use for this LED flood light?

The FXA 15–45W models are ideal for outdoor flood lighting applications such as signage, building facades, landscape highlights, and security lighting.

What mounting options are available?

The fixture is available with either a knuckle mount for directional flexibility or a yoke mount for surface or wall installations.

How does it compare to traditional HID flood lights?

These models replace 50W to 150W HID fixtures and offer up to 70% energy savings with significantly reduced maintenance.

Is the fixture suitable for harsh environments?

Yes. It’s IP65 rated, constructed from die-cast aluminum, and operates down to -40°C—making it highly durable in tough conditions.
