Wet‑Location LED Emergency Light — Dual 1.9 W Heads, 3.7 W Remote Option, −20–50 °C — Features & Specs

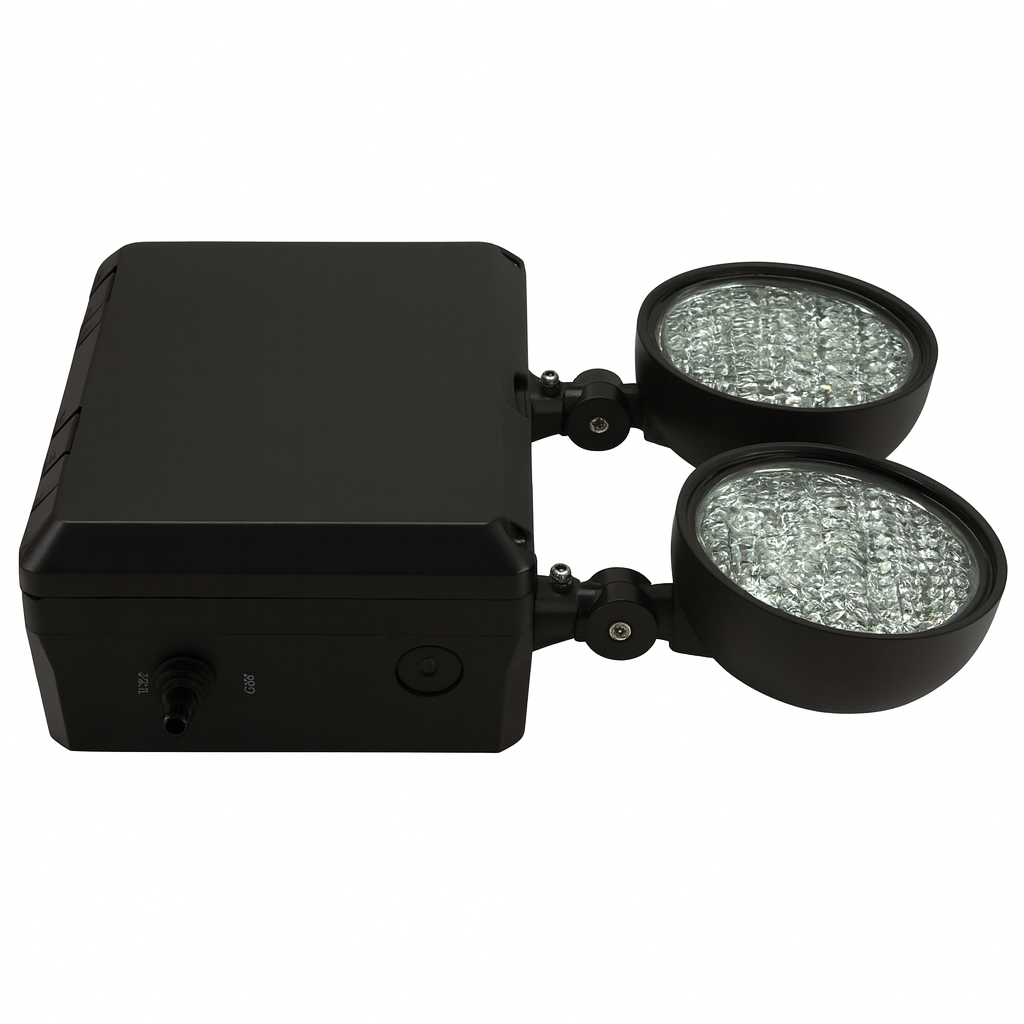

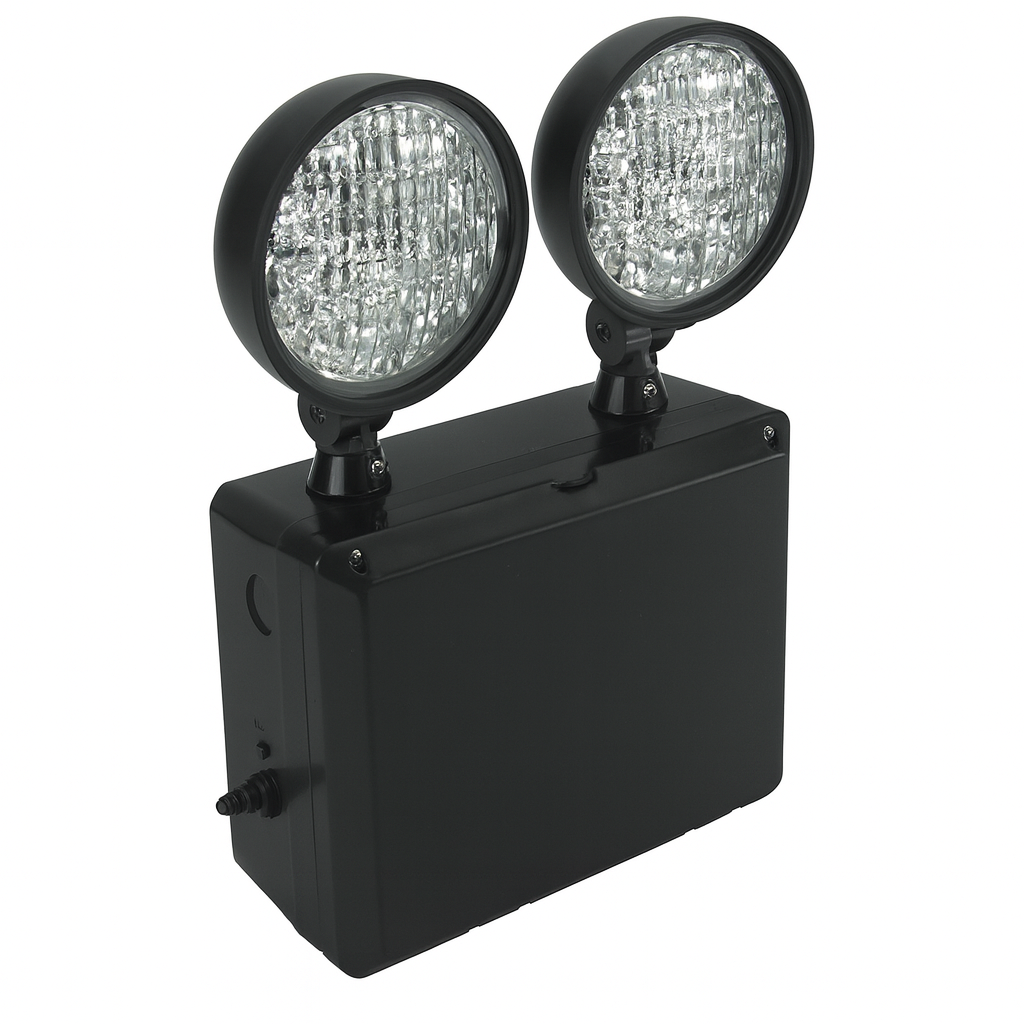

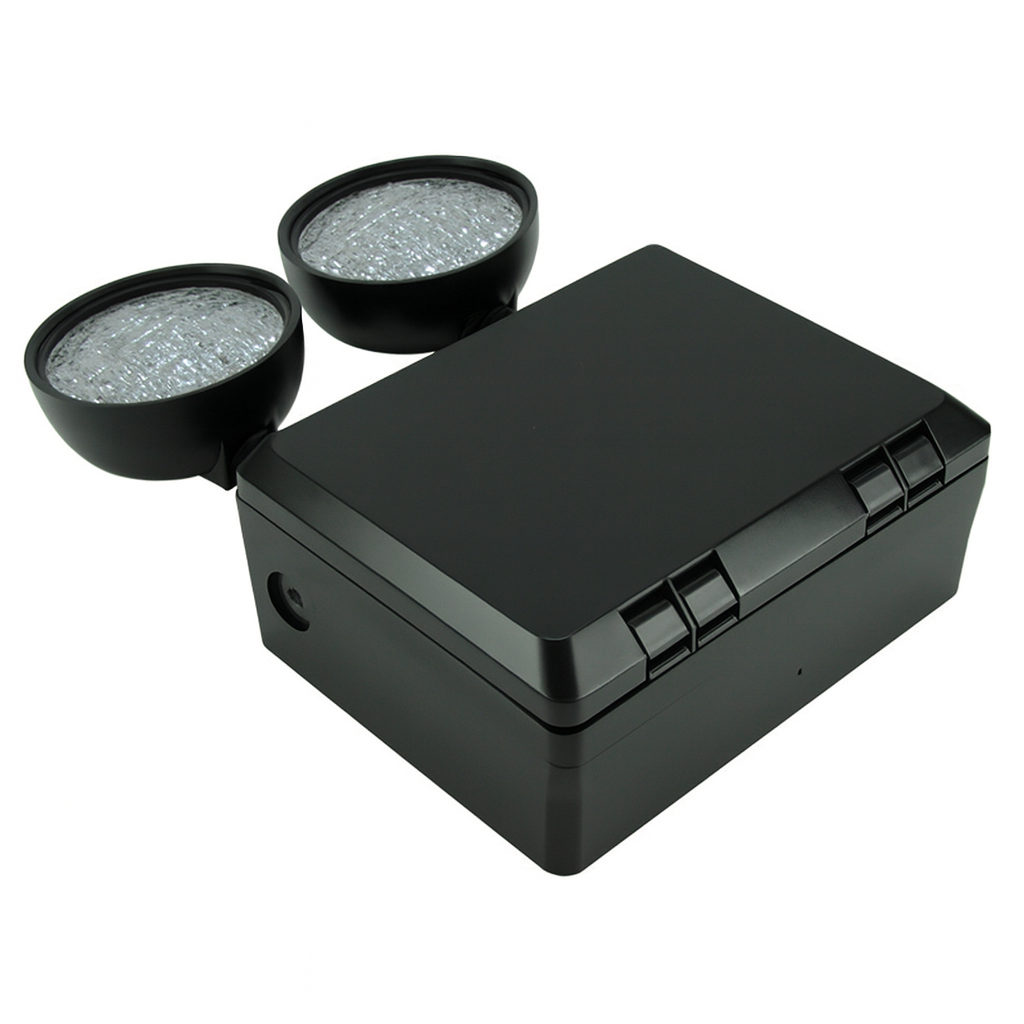

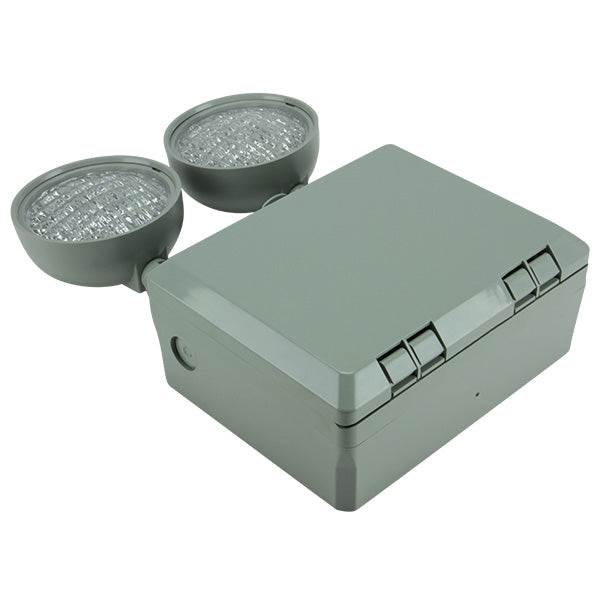

The LED‑RX wet‑location LED emergency light uses a flame‑rated, sealed polycarbonate enclosure with a hinged cover to keep water and debris out while delivering reliable egress illumination. Two fully adjustable 1.9 W LED heads support outdoor paths, decks, and loading areas down to −20 °C. Select the remote‑capable (R) configuration to power up to 3.7 W of remote heads. For more options, see our best‑selling wet‑location emergency lights.
Key Features
- Fully sealed, UL 94 5VA polycarbonate housing with hinged cover and stainless hardware.
- Two adjustable 1.9 W LED heads; sample spacing guides available (see Spec Sheet).
- Remote‑capable (R) models provide 3.7 W to power two MLED remote heads.
- UL 924 listed for wet locations; operates from −20 °C to 50 °C.
- Maintenance‑free Ni‑Cd battery with 90‑minute emergency runtime; ~24 h recharge.
- Dual‑voltage 120/277 VAC, solid‑state charger, push‑to‑test, LVD & brownout protection.
- Surface wall‑mount via external bracket and universal J‑box pattern; weatherproof gasket included.
- Finishes: Gray (std.) or Black (BL); optional CEC configuration.
Applications & Design Notes
Ideal for exterior stair towers, parking structures, breezeways, and wash‑down areas that need a compact, sealed LED egress fixture. Use the 3.7 W remote output to place additional heads at far landings or shadowed corners—great for long runs where a single power source simplifies wiring. For broader configurations (NEMA/IP, MR16 throw, or high remote capacity), browse our weatherproof emergency lights.
Related Wet‑Location Guides
Spec Sheet
Download LED‑RX Emergency Light Spec Sheet (PDF)
Specifications (Overview)
- Listings: UL 924 emergency lighting; wet‑location rated
- Operation: 90 minute emergency runtime; typical 24 h recharge
- Input: dual‑voltage 120/277 VAC, 60 Hz
- Housing: impact/UV‑resistant polycarbonate, UL 94 5VA, sealed & hinged cover
- Temperature: −20 °C to 50 °C (−4 °F to 122 °F)
- Remote (R) option: 3.7 W output for two MLED remote heads
Illumination
- Two adjustable 1.9 W LED heads (long‑life emitters ≈100,000 hours).
- Sample spacing: 22 ft c‑to‑c on a 3 ft path at 7.5 ft MH; ~14.5 ft on a 6 ft path (see photometrics in the spec sheet).
Electrical
- Universal 120/277 VAC input; solid‑state charger with push‑to‑test.
- Maintenance‑free Ni‑Cd battery; 90‑minute egress runtime; brownout sensing; low‑voltage disconnect.
- Remote‑capable (R): 3.7 W remote output for compatible remote heads.
Mounting
- Surface wall‑mount with external bracket; universal J‑box pattern; weatherproof gasket included.
Housing
- Flame‑rated UL 94 5VA polycarbonate; sealed, hinged cover with stainless hardware.
- Finishes: Gray (standard) or Black (BL).
Dimensions
- 8.0" W × 12.2" H × 3.6" D
Warranty / Listings
- 5‑year warranty on electronics/housing; 5‑year prorated Ni‑Cd battery warranty.
- Meets UL 924, NFPA 101, and NEC requirements for emergency egress lighting.
Installation & Wiring Tips
- Mount 7–10 ft high and cross‑aim heads to overlap footprints; verify foot‑candles at the 90‑minute mark.
- For the R option, keep on‑board heads + remotes within 3.7 W; consider voltage drop and wire gauge.
- Use liquid‑tight fittings and keep the hinged cover gasket clean for a reliable seal over time.
Compare With Other Wet‑Location Emergency Lights
Side‑by‑side from the parent collection (H1 anchors; no pricing displayed).
| Model (H1) | Heads / Output | Remote‑Capable | Runtime | Ratings | Operating Temp | Housing | Best For |
|---|---|---|---|---|---|---|---|
| This model — Wet‑Location LED Emergency Light – 3.7W Remote Option, IP Rated | Dual 1.9 W LED heads | 3.7 W (option) | 90 min | UL 924 · Wet Location | −20–50 °C | UL 94 5VA polycarbonate | Parking decks, loading areas, wash‑down zones |
| Wet‑Location LED Emergency Light – 1W Heads, Gasketed IP Housing | Dual 1 W LED heads | — | 90 min | UL 924 · Wet Location | ≈10–40 °C | Polycarbonate | Budget installs; modest spacing |
| Industrial Outdoor Emergency Light – Remote Capacity | Dual 1.875 W sealed LED | 3.7 W | 90 min | UL 924 · Wet Location | −20–50 °C | Gasketed polycarbonate | Docks; long runs with a small remote load |
| Wet Location Emergency Light – NEMA 4X – Dual MR16 Heads | Dual 3.6 W MR16 | Up to 46.8 W | 90 min | NEMA 4X · IP66 · UL 924 · NSF | to −25 °C (opt.) | Sealed polycarbonate | Hose‑down / food‑service; multi‑remote feeds |
| Wet‑Location Semi‑Recessed LED MR16 Emergency Unit | Dual 7 W MR16 | — | 90 min | UL 924 · Wet Location | ≈20–40 °C | Vandal‑resistant | Flush look; long‑throw optics |
| Outdoor Wall‑Pack Emergency Light – Decorative Die‑Cast | Dual 6 W LEDs (AC 1,286 lm) | — | 90 min | UL 924 · Wet Location | 0–50 °C (to −30 °C w/ CW) | Die‑cast aluminum | Entries needing dusk‑to‑dawn AC + egress |
FAQs
How many remote heads can I power?The R option provides 3.7 W total. A common pairing is two low‑watt MLED remotes; keep combined wattage within 3.7 W and account for voltage drop on long runs.
What’s the difference between this unit and a NEMA 4X MR16 model?This unit is compact and integrated with sealed heads. NEMA 4X MR16 platforms add hose‑down construction and higher remote capacity for industrial wash‑down or multi‑remote layouts.
Can I mount it on an exposed exterior wall?Yes. Use the provided bracket and gasket on a weather‑tight J‑box, seal any conduit entries, and follow the spacing guidance in the spec sheet.
