Dual-Head LED Emergency Light with Adjustable Optics

LEDR-2 Series – Dual-Head LED Emergency Light with Adjustable Optics

Download LEDR-2 Emergency Unit Spec Sheet (PDF)

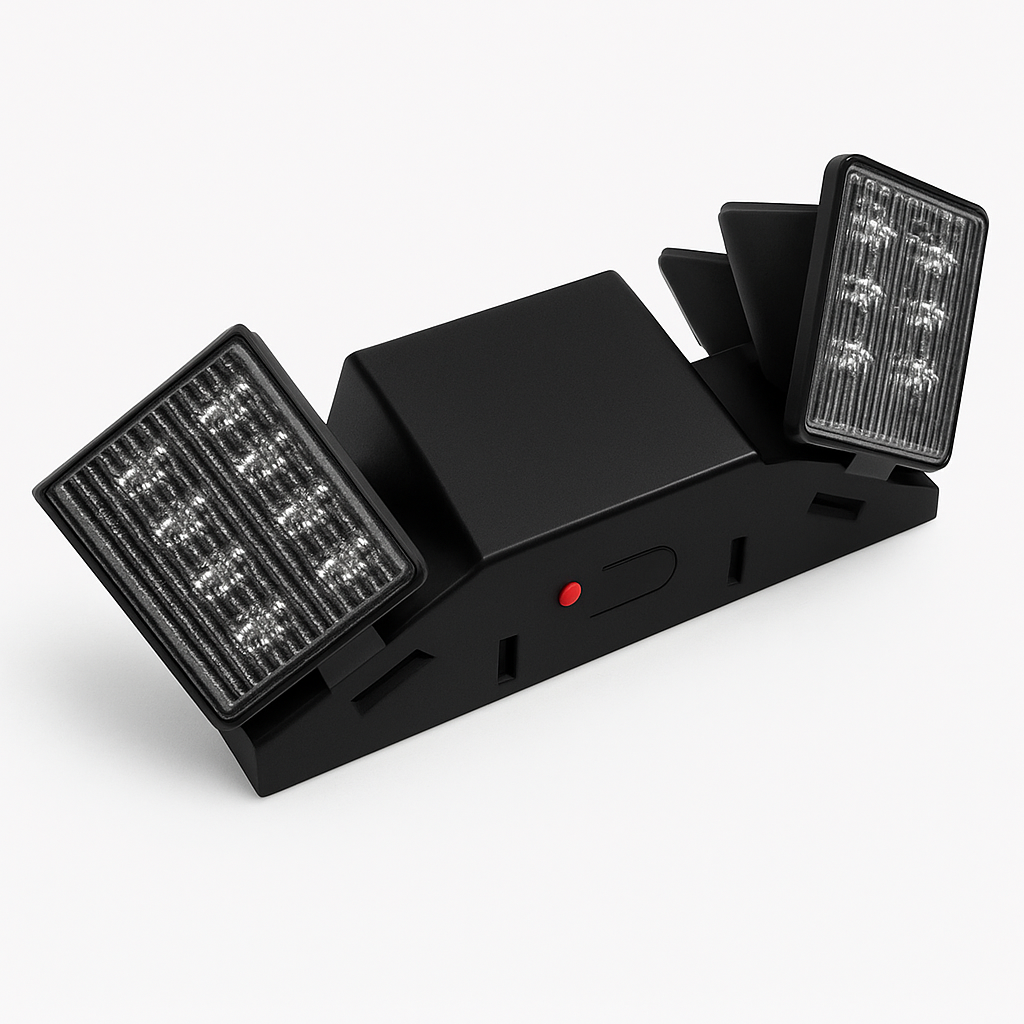

The LEDR-2 Adjustable-Optics LED Emergency Unit provides dependable egress lighting in a compact, damp-location-rated housing. Its two 1 W adjustable LED heads offer 14 ft spacing on a 3 ft path at 7.5 ft mounting height. With universal 120/277 VAC input and a 3.6 V Ni-Cd battery, this low-profile fixture delivers 90 minutes of emergency illumination.

Illumination

• Emergency Light with Two 1 W LED heads (8 × 0.125 W LEDs each) with adjustable chrome-plated reflectors

Electrical

• Universal 120/277 VAC input with status LED and push-to-test switch
• 3.6 V Ni-Cd battery provides = 90 minutes of emergency operation
• Solid-state transfer switch and two-rate charger (24-hour recharge)
• Input: 2.1 W | 0.025 A @ 120 V • 0.010 A @ 277 V

Mounting

• Snap-fit backplate mounts to standard 4 in junction boxes
• Top and side knockouts for ½ in conduit wiring
• Wall or ceiling surface installation

Housing

• Injection-molded, flame-retardant 5 VA thermoplastic (white or black finish)

Options

• SPV — special-voltage input (208/220/240 V, 50/60 Hz)

Warranty / Listings

• 5-year warranty on electronics and housing; battery prorated 5 years
• UL 924 listed for damp locations (0 °C – 50 °C)
• Compliant with NFPA 101, NEC, OSHA, and state/local codes

Dimensions

• 9 ½ in W × 4 ¾ in H × 2 ¼ in D

Frequently Asked Questions

What’s the difference between the LEDR-2 and LEDR-1 models?

The LEDR-2 features fully adjustable optics with spacing up to 14 ft center-to-center at 7.5 ft height, offering more precise beam control.

Can the LEDR-2 be mounted on the ceiling?

Yes. The unit is designed for wall or ceiling surface mounting and includes a snap-fit backplate compatible with standard 4 in junction boxes.

What is the emergency runtime?

The included 3.6 V Ni-Cd battery provides 90 minutes of illumination in compliance with UL 924 and NFPA 101.

Is the LEDR-2 rated for wet locations?

No. It is UL 924 listed for damp locations only (0 °C – 50 °C). For wet-location applications, consider a NEMA 4X–rated alternative.

Is a higher-voltage version available?

Yes. The SPV option allows operation on 208/220/240 V input (50/60 Hz), suitable for international or specialty applications.

Product Features

• Brand: Best Lighting
• Damp Location
• Housing Color: Black
• Housing Color: White
• LED
• Low Profile
• Nema Rated
• Product: LEDR-2
• Self Testing
• Thermoplastic
• Emergency Lights
• Wet Location
