Wet Location Remote Capable LED Emergency Unit

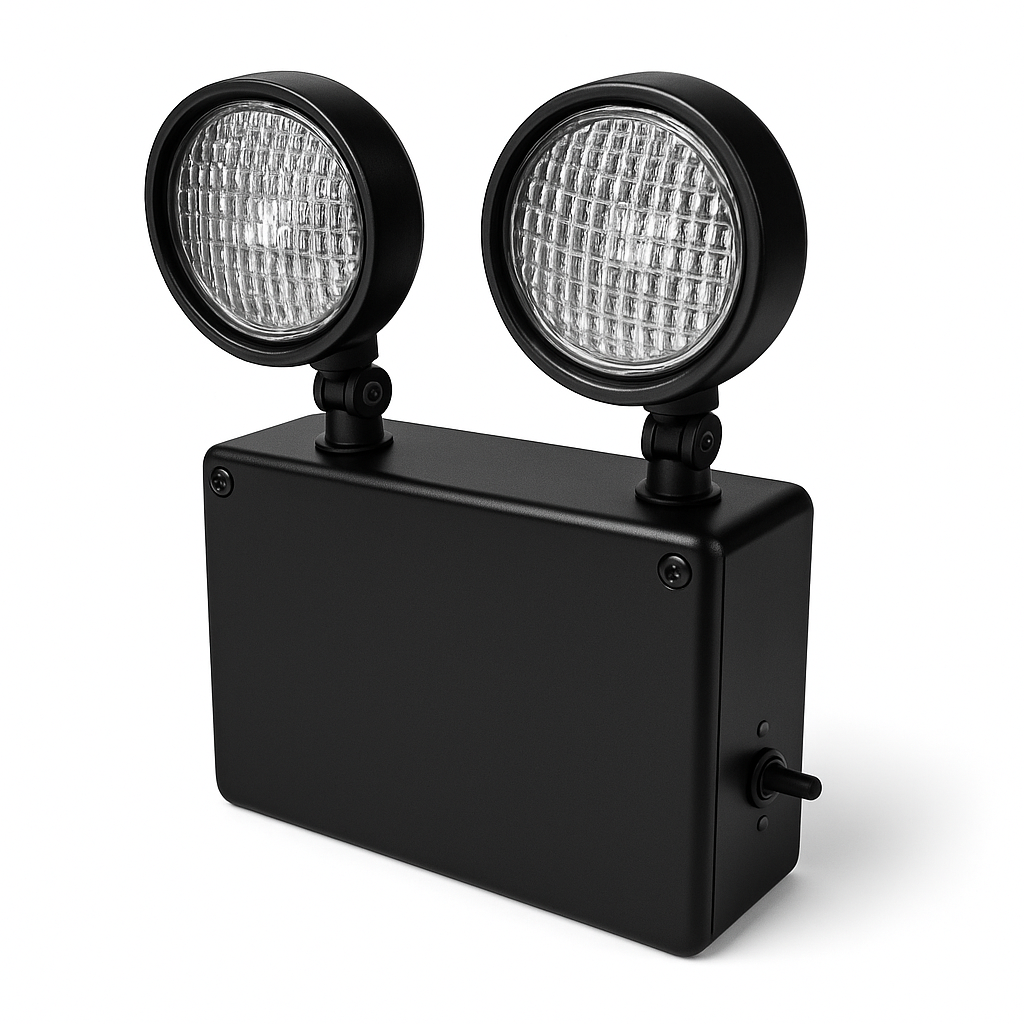

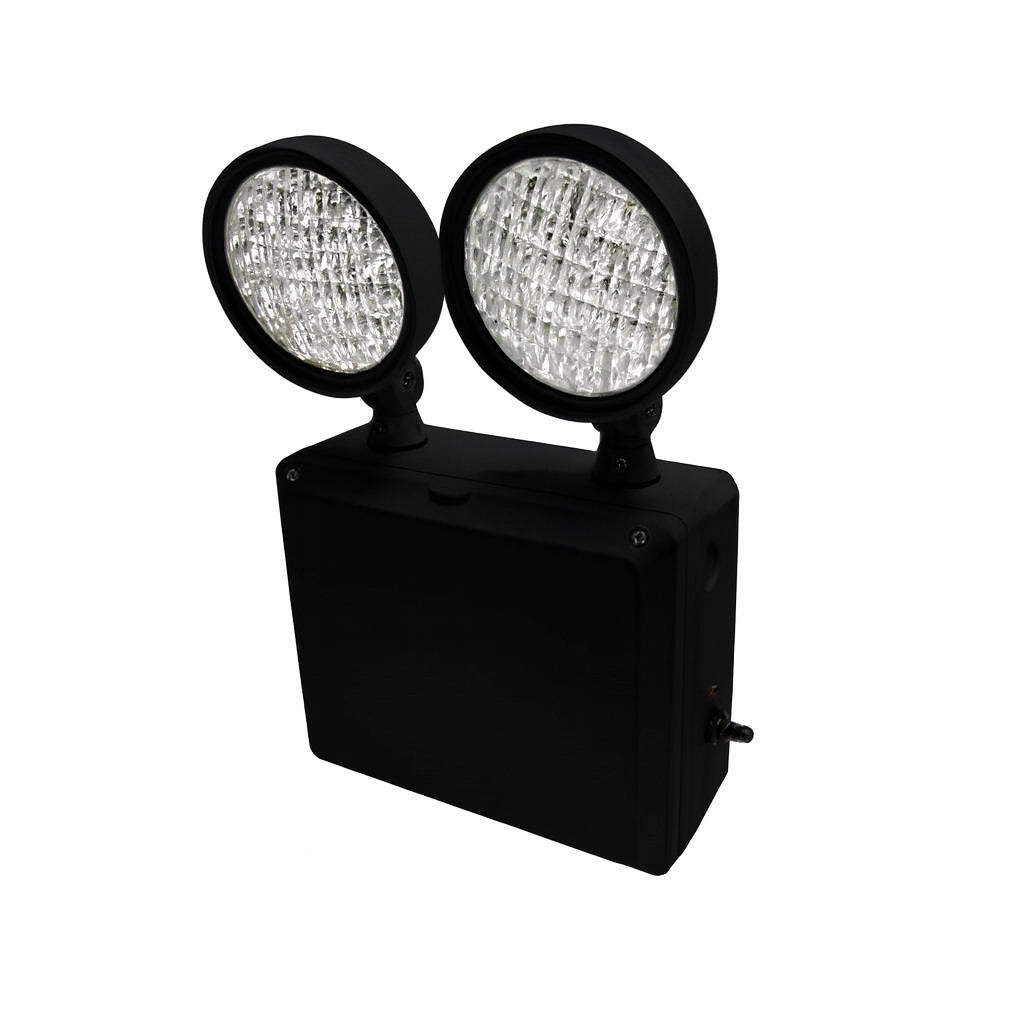

LEDTFX-2 Wet Location Remote Capable LED Emergency Light Black
Wet Location Remote Capable LED Emergency Unit
LEDTFX-2 Wet Location Remote Capable LED Emergency Light Black

Industrial Outdoor Emergency Light – Remote Capacity

SKU: LEDTFX-2
$155.67

Got questions?

Give us a call 800-847-1955!

Industrial Outdoor LED Emergency Light - Dual 1.875 W Heads, 3.7 W Remote, -20–50 °C, Wet Location, UL 924 - Features & Specs

Built for harsh sites and exposed egress paths, this industrial outdoor LED emergency light pairs two sealed 1.875 W heads with a built‑in 3.7 W remote‑capacity driver and long‑life 9.6 V Ni‑Cd battery. It’s UL 924 compliant, wet‑location listed, and operates reliably from −20 °C to 50 °C. For related options, compare our wet location emergency lights and remote‑capable emergency lights.

Dual 1.875 W Heads 3.7 W Remote Ni‑Cd / 90 min Wet Location −20–50 °C UL 924 120/277 VAC

Key Features

  • UL 924 wet‑listed emergency lighting; wide operating range −20 °C to 50 °C.
  • Sealed dual LED heads 1.875 W each for long‑throw, outdoor coverage with tempered lenses.
  • Built‑in remote capacity 3.7 W to power compatible remote heads.
  • 9.6 V Ni‑Cd battery with 90‑minute runtime; ~24 h full recharge.
  • Universal input 120/277 VAC with bi‑color status LED & push‑to‑test button.
  • Gasketed, impact‑resistant polycarbonate enclosure; chrome reflectors for efficient beam control.
  • Stainless mounting brackets included; top/side ½" conduit knockout.
  • Solid‑state transfer with two‑rate charger for code‑compliant operation.
  • Option: CEC Title 20 compliant version.
  • Compliance: NFPA 101, NEC, OSHA; 5‑year electronics/housing warranty (battery prorated 5 years).

Applications & Design Notes

Choose this unit for exterior egress doors, loading docks, breezeways, exposed stair towers, and parking structures where wind‑driven rain and temperature swings demand a sealed, remote‑capable system. Use the 3.7 W remote output to place a remote head at a far landing, corridor turn, or dark recess; keep total load (on‑board heads + remotes) within the driver’s rating. For broader selection and different form factors, explore our weatherproof emergency lights.

Related Outdoor & Remote‑Capable Guides

Wet‑Location Emergency Lights—Ratings, NEMA/IP & Install Remote Heads—Sizing, Wiring & Voltage Drop (Calculator)

Spec Sheet

Download Industrial Outdoor Emergency Light Spec Sheet (PDF)

Specifications (Overview)

  • Listings: UL 924 emergency lighting; wet‑location rated
  • Operating Range: −20 °C to 50 °C
  • Lamp Heads: dual sealed LED, 1.875 W each
  • Driver: integrated 3.7 W remote‑capacity output
  • Input: universal 120/277 VAC
  • Runtime: 90 minutes (typical)
  • Use Cases: docks, exterior corridors, exposed landings, parking decks

Illumination

  • Two 1.875 W sealed LED heads (15 × 0.125 W) with tempered lenses and chrome reflectors.
  • Beam is optimized for long‑throw coverage on outdoor paths and tall‑mount landings.

Electrical

  • 120/277 VAC dual‑voltage input; bi‑color charge LED; push‑to‑test.
  • Battery: 9.6 V Ni‑Cd with 90 minute egress operation; ~24 h recharge.
  • Remote capacity: 3.7 W output powers compatible remote heads (match voltage and wattage).
  • Solid‑state transfer and two‑rate charger maintain readiness and extend battery life.

Mounting

  • External stainless‑steel mounting brackets included.
  • ½" conduit knockout provided for top or side surface feed; use liquid‑tight fittings in wet zones.

Housing

  • Impact‑resistant, flame‑retardant polycarbonate body with gasketed seams.
  • Tempered lens and sealed heads resist moisture and contaminants.
  • Standard finish: gray; optional black available.

Options

  • CEC — California Title 20 compliant version.

Warranty / Listings

  • 5‑year warranty on electronics/housing; battery prorated 5 years.
  • Meets UL 924, and is compliant with NFPA 101, NEC, OSHA.

Dimensions

  • 12 3/16" W × 9 5/16" H × 3 1/2" D

Installation & Wiring Tips

  • Mount 8–12 ft high to wash landings and cross‑aisles; confirm foot‑candles at 90 minutes (end‑of‑discharge).
  • Size remote loads for the 3.7 W output; total wattage (on‑board heads + remotes) must not exceed capacity.
  • Observe voltage‑drop limits when feeding remote heads; use larger gauge for long runs.
  • Use liquid‑tight hubs and orient weeps per enclosure markings to prevent water ingress.

Compare With Other Wet‑Location Emergency Lights

Side‑by‑side from the parent collection (no pricing shown). Link anchors use each product’s H1 for clarity.

Model (H1) Heads / Output Remote Capacity Runtime Ratings Operating Temp Housing Best For
This model — Industrial Outdoor Emergency Light – Remote Capacity Dual 1.875 W sealed LED 3.7 W 90 min UL 924 · Wet Location −20–50 °C Gasketed polycarbonate Docks and long runs with small remote load
Wet‑Location LED Emergency Light – 1W Heads, Gasketed IP Housing Dual 1 W LED heads — 90 min UL 924 · Wet Location ≈10–40 °C Polycarbonate Budget installs; shorter spacing
Wet‑Location LED Emergency Light – 3.7W Remote Option, IP Rated Dual 1.9 W LED heads 3.7 W (option) 90 min UL 924 · IP‑rated −20–50 °C Flame‑rated polycarbonate Parking decks, loading areas
Wet Location Emergency Light – NEMA 4X – Dual MR16 Heads Dual 3.6 W MR16 Up to 46.8 W 90 min NEMA 4X · IP66 · UL 924 · NSF to −25 °C (opt.) Sealed polycarbonate Hose‑down zones; long runs with multiple remotes
Outdoor Wall‑Pack Emergency Light – Decorative Die‑Cast Dual 6 W LEDs (AC 1,286 lm) — 90 min UL 924 · Wet Location 0–50 °C (to −30 °C w/ CW) Die‑cast aluminum Entries needing dusk‑to‑dawn AC light + egress

FAQs

How far can I run remote heads from this unit?

Plan for the 3.7 W remote output and account for voltage drop (wire gauge + distance). Keep the combined load (on‑board heads + remotes) within the driver’s rating.

Why choose 1.875 W sealed heads instead of MR16?

Sealed integrated heads are compact and weather‑tough; MR16 systems can offer higher wattage or narrower beams. Both meet UL 924 when spaced and aimed correctly for your path.

Cold‑weather performance?

This model is rated for −20 °C out of the box. For extreme sub‑zero sites, consider units with cold‑weather packages (e.g., NEMA 4X MR16 with CW option) for additional margin.
