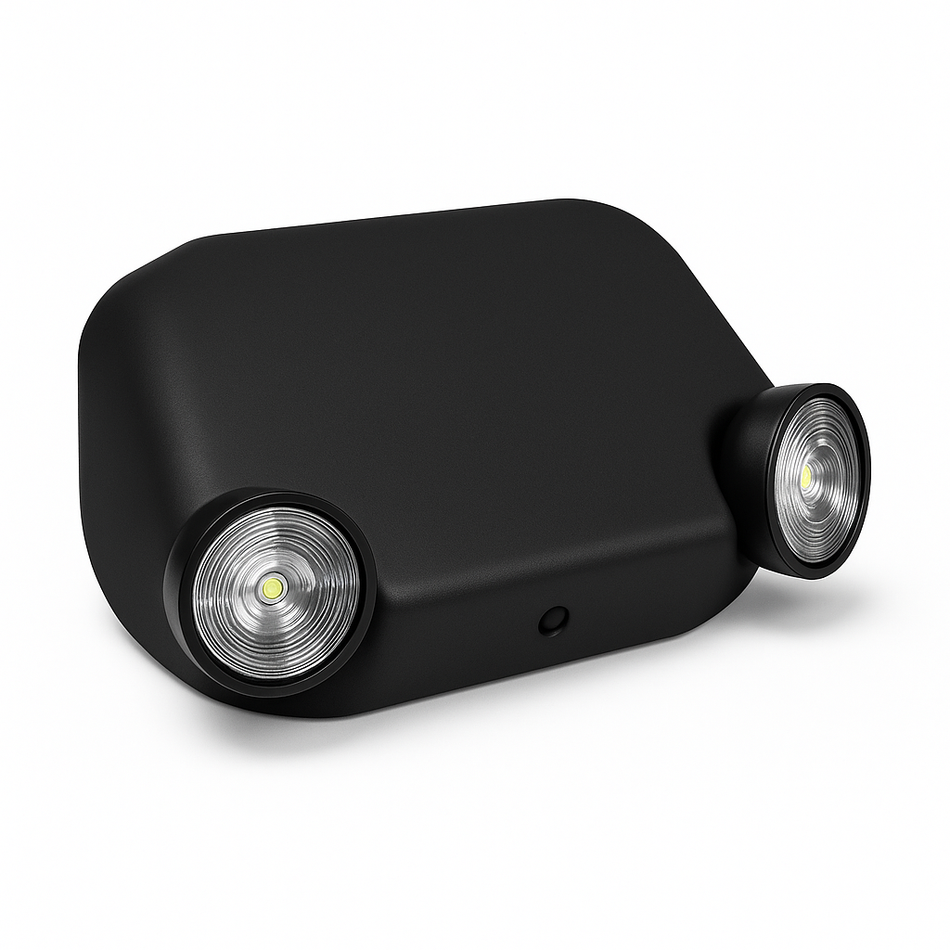

LED Low Profile Thermoplastic Emergency Light - E-1

Choose E-1 when a finished interior needs a compact emergency unit with a shallow thermoplastic body and adjustable heads. It is a strong fit for standard commercial corridors, classrooms, offices, tenant suites, hospitality service areas, small retail spaces, and similar protected routes.

• Use E-1 for compact interior path-of-egress coverage where a steel or wet-location housing is not required.
• Use a remote-capable E-1 path when a nearby compatible remote head needs to be powered from the unit.
• Use a sealed wet-location or vandal-resistant family when the area is exposed to weather, washdown, or impact risk.

The family separates standard 0.5 W heads from HL variants with 2.0 W heads. This keeps low-cost layouts available while still giving the specifier a higher-output path when spacing or aiming is more demanding.

• Use standard E-1-V2 or E-1B-V2 paths for common low-profile interior coverage.
• Use E-1-HL or E-1B-HL paths when the plan needs more light from the integral heads.
• Do not combine HL and RC, because the current option matrix separates high-lumen output from remote-head capacity.

E-1 variants combine finish color, remote capability, alternate service, and high-lumen output in 12 active choices. The SKU suffixes are the cleanest way to confirm what the buyer is selecting before release.

• E-1-V2 and E-1B-V2 are standard white and black body paths.
• E-1RC-V2 and E-1BRC-V2 add remote-head capacity.
• E-1SPV-V2, E-1BSPV-V2, E-1SPV-HL, and E-1BSPV-HL support alternate service paths.
• E-1RCSPV-V2 and E-1BRCSPV-V2 combine remote capability with SPV service.

Most projects use standard 120/277 VAC input, while SPV selections are intended for 208/220/240 V service requirements. Confirm the branch circuit before substituting one path for another.

• Choose non-SPV variants for common 120/277 VAC commercial service.
• Choose SPV variants only when the electrical documents call for 208/220/240 V input.
• Confirm local acceptance and labeling before mixing standard and SPV units on the same project.

RC paths are useful when a nearby compatible remote head should be powered by the E-1 emergency unit instead of adding a second fixture at that location.

• Keep the connected remote load within the 1 W, 6 V capacity shown for RC variants.
• Use compatible low-wattage remote heads and review run length before release.
• Select a separate emergency light when the remote load or distance exceeds the RC path.

Plan the fixture location before ordering so the compact cabinet, head aim, conduit approach, and sightline all work with the finished space.

• Use the shallow body where projection from the wall or ceiling needs to stay minimal.
• Aim each head toward the path of travel after energizing the unit.
• Confirm junction-box location, conduit approach, obstruction clearance, and service access before rough-in.

Keep the final selection tied to the spec sheet and local approval path before purchasing larger quantities.

• Confirm UL 924 listing, protected damp-location suitability, 0-30 C operating range, finish, selected SKU path, and AHJ acceptance.
• Use the PDF for cabinet size, wiring reference, head output, battery details, recharge information, and warranty language.
• Document whether the project requires standard, RC, SPV, HL, white-body, or black-body E-1 variants.

E-1 keeps inspection familiar for facilities that maintain standard emergency light units across multiple interior areas.

• Allow the battery to complete a full charge cycle before a duration test.
• Use the push-to-test switch and status indicator for routine functional checks.
• Record functional and duration tests according to the facility maintenance plan and local inspection requirements.

• Confirm UL 924 listing, protected damp-location suitability, operating range, selected SKU path, input service, head output, remote-load need, final aim, and local AHJ acceptance for the project.
• Use a sealed wet-location or vandal-resistant family instead of E-1 when the area is exposed to weather, washdown, or impact risk.
