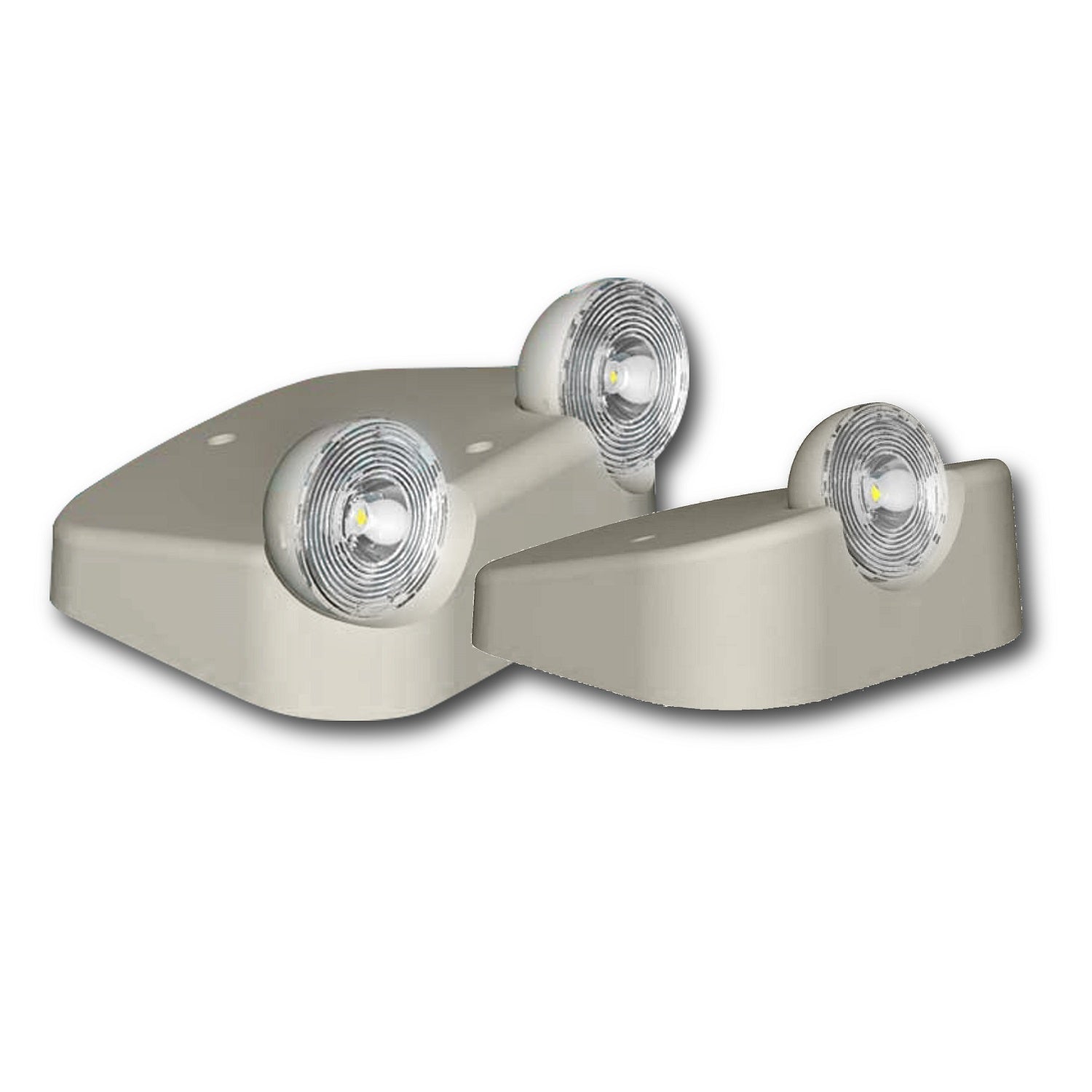

Mini indoor LED remote heads—single and twin models with round lenses in white thermoplastic housings

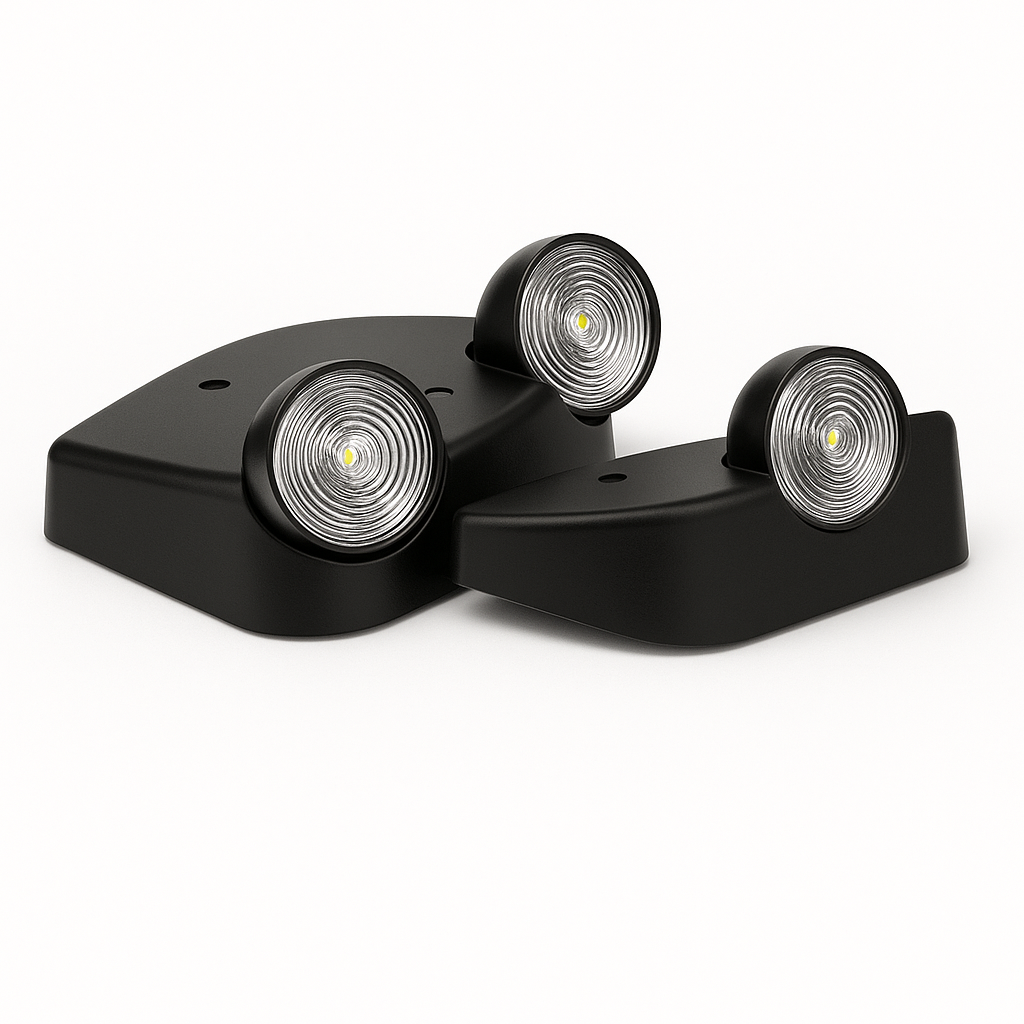

Mini Indoor LED Remote Head - black housing
Mini indoor LED remote heads—single and twin models with round lenses in white thermoplastic housings
Mini Indoor LED Remote Head - black housing

Mini Indoor LED Remote Head

SKU: MRHLED1-3.6V
$15.18

Got questions?

Give us a call 800-847-1955!

Mini Indoor LED Remote Head

The MRHLED mini indoor LED remote head is part of our remote head emergency lights and adds bright, focused egress illumination to any 3.6 V DC remote-capable emergency light . Available in single- or twin-head configurations with white or black thermoplastic housings, each head uses a 0.5 W white LED and integrated optics for consistent output.

Note: Requires a compatible 3.6 V DC remote-capable emergency unit (sold separately).

Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.

Buying support

Product details and buying checks

Review specs, documents, buying checks, compatible products, and FAQs before ordering.

  • UL 924
  • 3.6 V DC
  • 0.5 W per Head
  • Single / Twin
  • Damp Location
  • Compact Profile
  • NFPA 101
  • OSHA
  • LED
  • emergency

Key features

  • Works with 3.6 V DC remote-capable emergency lights
  • Single or twin adjustable heads for targeted coverage
  • 0.5 W per head high-efficiency LEDs with diffused optics
  • Universal wall or ceiling surface mount (adapter plate included)
  • Damp-location rated; UL 94 5VA impact-resistant thermoplastic housing
  • Finishes: white or black ; compact, low-profile footprint
  • UL 924 when used with approved host units
  • 5-year warranty on housing and electronics
Product family Emergency Lights
SKU MRHLED1-3.6V
Listing UL 924
Environment Damp-location rated; UL 94 5VA impact-resistant thermoplastic housing
Power LEDs with diffused optics

Documents

Related Emergency Lighting Guides

3.6V Wiring Guide Spacing: Corridors, Stairs & Open Areas

Spec Sheet

Download Mini Indoor LED Remote Head Spec Sheet (PDF)

Illumination
  • Each head includes a 0.5 W white LED with integrated diffuser/lens
  • Single- or twin-head models with adjustable aiming for targeted coverage
Electrical
  • Powered by a 3.6 V DC remote-capable emergency unit (ordered separately)
  • Installer-supplied low-voltage wiring
Mounting
  • Universal adapter plate for wall or ceiling surface mounting
  • Compact footprint fits standard junction-box patterns
Housing / Finish
  • Injection-molded, high-impact UL 94 5VA thermoplastic
  • Finishes: white or black
Fixture Compatibility
  • Compatible 3.6 V hosts include: CKXTEU-RC , EM-RC , CEM-RC , E-1-RC , CEU-RC
Warranty / Listings
  • 5-year warranty on housing and electronics
  • UL 924 listed for damp locations when used with approved host units; complies with NFPA 101 , NEC , OSHA
Dimensions
  • See spec sheet for detailed dimension diagram (compact, low-profile form)
Compliance notes
  • Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
