Outdoor LED Emergency Light Polycarbonate Remote Head

Outdoor LED Remote Head – Features & Specs

The outdoor polycarbonate LED remote head is a compact, sealed accessory for 3.6 V remote-capable emergency units. Dual- or single-head models use ultra-bright 0.5 W LEDs with integrated optics and full adjustability for targeted egress illumination, and are UL 924 wet-location listed to -30 °C. Explore more wet location emergency lights and emergency lighting remote heads.

Key Features

• Operates from 3.6 V DC remote-capable host (no internal battery)
• Configurations: single or twin heads
• 0.5 W LED per head with integrated optics; fully adjustable aim
• UL 924 wet-location listed; cold-weather operation to -30 °C
• Sealed polycarbonate housing; impact- and corrosion-resistant
• Universal adapter plate fits a standard single-gang box
• Surface-mount to wall or ceiling
• Installer-supplied low-voltage wiring; run length per voltage drop/gauge/load
• Finishes: gray (standard) or black (option)
• 5-year warranty on housing and electronics

Spec Sheet

Download Outdoor LED Remote Head Spec Sheet (PDF)

Specifications (Overview)

• Input: 3.6 V DC from a compatible host unit
• Configurations: single or twin heads
• Light source: 0.5 W white LED per head; adjustable
• Housing: sealed polycarbonate; wet-location rated
• Listings: UL 924 wet location to -30 °C

Illumination

• Each head contains one 0.5 W white LED with integrated optics
• Fully adjustable lamp heads for precise aiming and spacing
• Factory-sealed LED assembly for consistent beam output

Electrical

• Operates from a 3.6 V DC remote-capable emergency unit
• Installer-supplied low-voltage wiring (run length depends on voltage drop, gauge, and load)

Mounting

• Universal mounting plate fits standard single-gang switch boxes
• Wall or ceiling surface installation

Housing

• Durable, gasketed polycarbonate housing; impact- and corrosion-resistant
• Finishes: standard gray or optional black

Options / Ordering

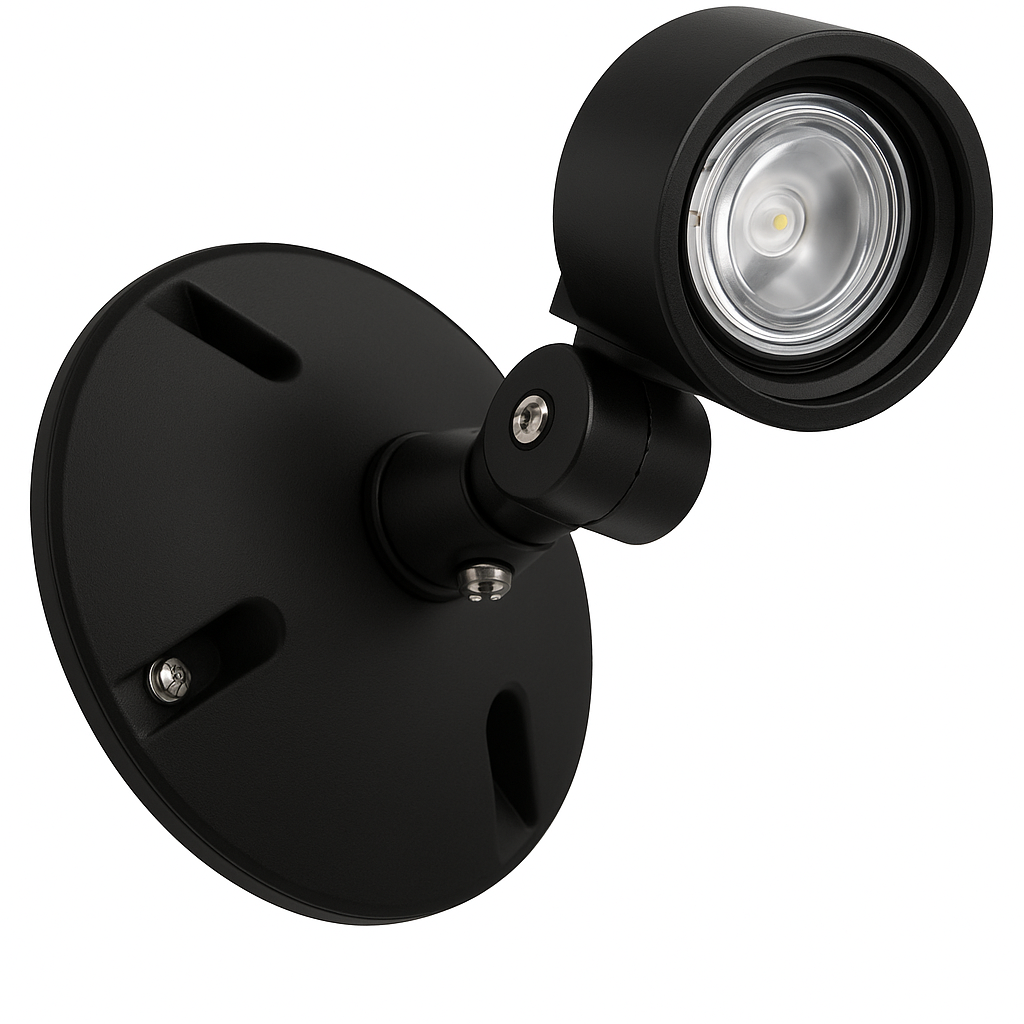

• MRHLED1-PWP-3.6V — single head, gray

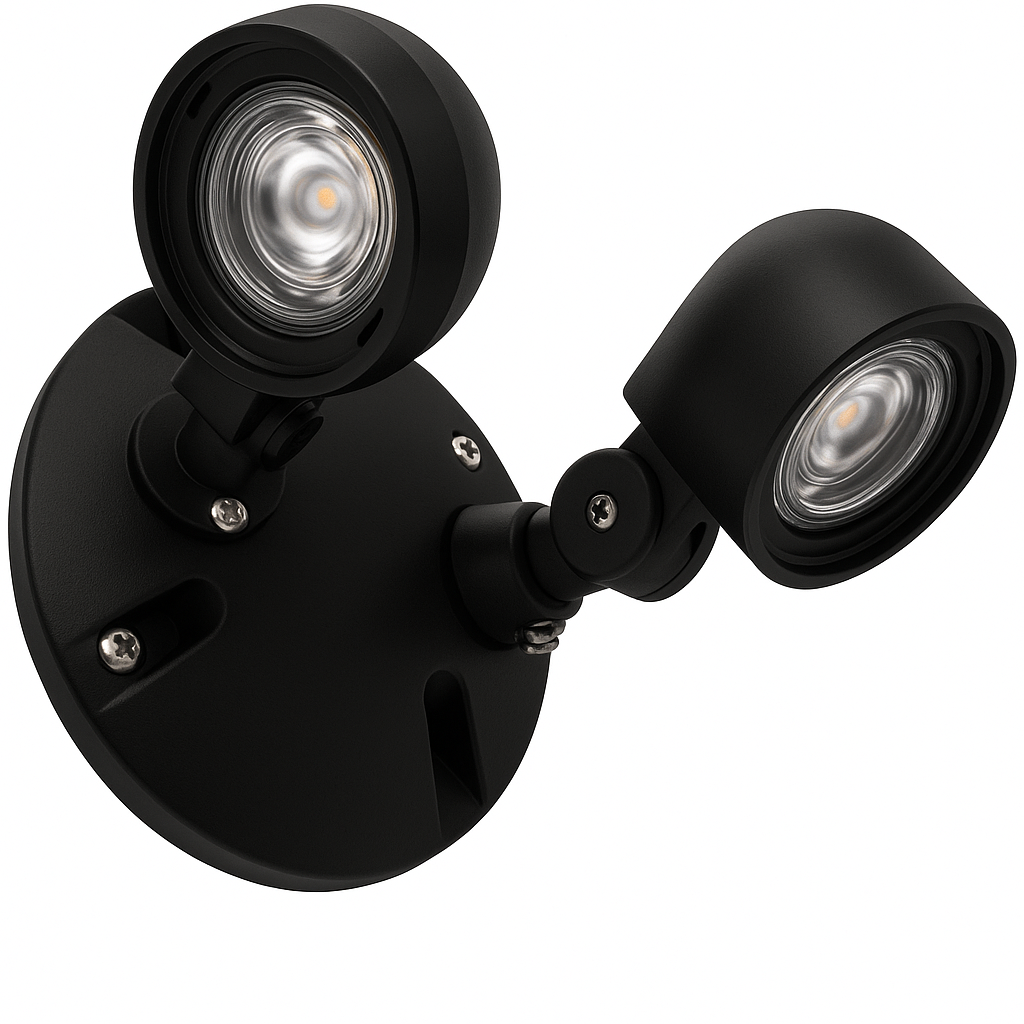

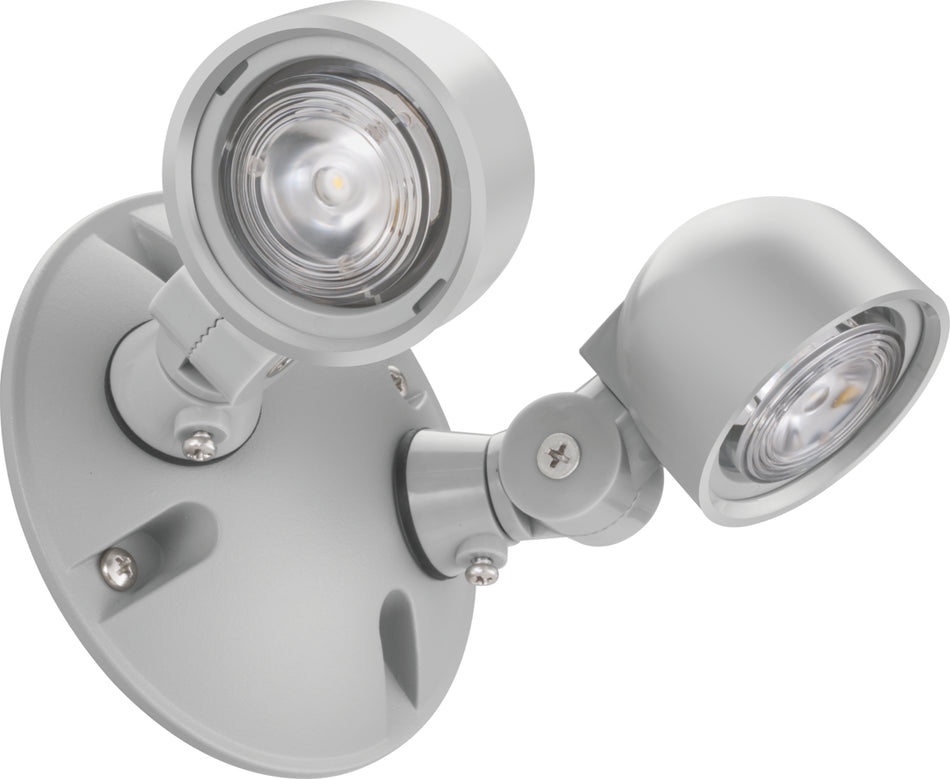

• MRHLED2-PWP-3.6V — twin head, gray
• B suffix — optional black finish (e.g., MRHLED2-B-3.6V)

Fixture Compatibility

• Compatible with remote-capable emergency light units such as CEU-RC, CEM-RC, CKXTE-RC, E-1-RC, EM-RC, CTXTE-RC

Warranty / Listings

• 5-year warranty on housing and electronics
• UL 924 listed for wet locations (operating temp: -30 °C to 50 °C); complies with NFPA 101, NEC, OSHA

Dimensions

• 6 ¾" H × 4 ½" W × 5" D

Frequently Asked Questions

Can I install this remote head outdoors?

Yes. It is sealed and UL 924 wet-location listed with a temperature rating down to -30 °C, ideal for outdoor and wash-down areas.

Which emergency units are compatible?

Use with 3.6 V remote-capable hosts such as CEU-RC, E-1-RC, CEM-RC, CKXTE-RC, EM-RC, and CTXTE-RC (verify remote wattage and wiring distance).

How many heads can one host power?

Depends on the host’s remote-wattage capacity and voltage-drop limits; each head draws approximately 0.5 W.

Does it include mounting hardware?

Yes. A universal adapter plate is included for single-gang boxes and surface mounting to walls or ceilings.
