Home » Outdoor Lighting » Wall Packs » Mini LED Wall Pack – 20W, Photocell, IP65 (Bronze)

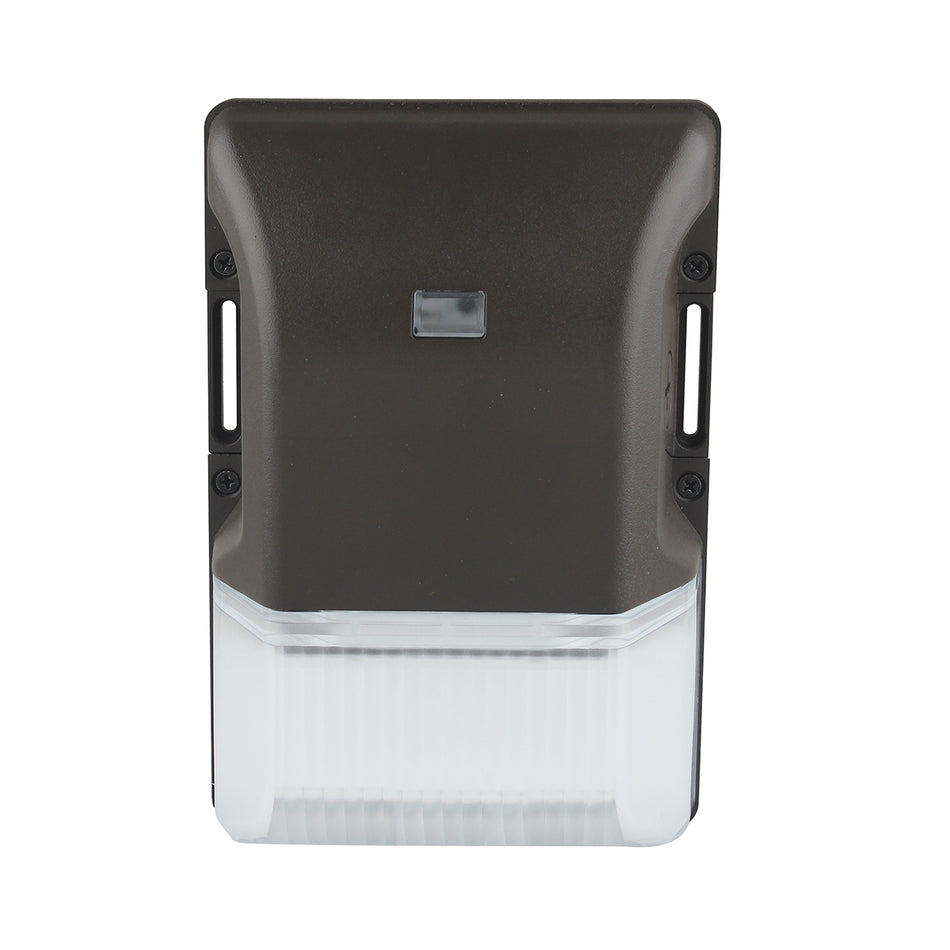

Front view of mini LED wall pack with bronze die-cast housing and prismatic lens

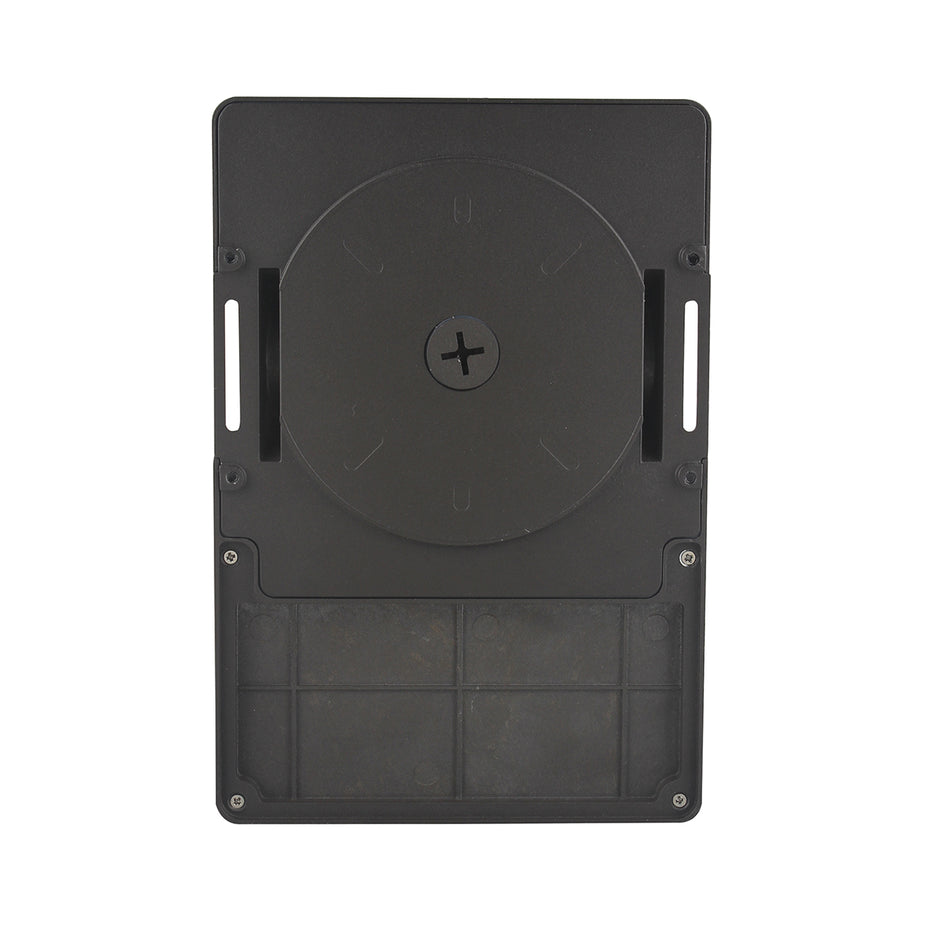

Back view of mini LED wall pack showing mounting plate with J-box alignment and conduit entries
Angled side view of mini LED wall pack highlighting integrated photocontrol and slim profile
Front view of mini LED wall pack with bronze die-cast housing and prismatic lens
Back view of mini LED wall pack showing mounting plate with J-box alignment and conduit entries
Angled side view of mini LED wall pack highlighting integrated photocontrol and slim profile

Mini LED Wall Pack – 20W, Photocell, IP65 (Bronze)

SKU: MWQ-20-C-BR
$55.77

Got questions?

Give us a call 800-847-1955!

Mini LED Wall Pack – Die-Cast Outdoor Fixture with CCT Selectable Output

The Mini LED Wall Pack is a compact, cost-effective fixture featuring a bronze die-cast aluminum housing, built-in photocontrol, and selectable color temperature (3000K / 4000K / 5000K). Delivering up to 2,800 lumens at just 20W, this wall-mounted unit is ideal for pathways, building exteriors, commercial sites, and apartment complexes. Fully gasketed and IP65-rated for outdoor durability, it combines energy efficiency, long life, and field adjustability in a sleek low-profile design. Explore more wall pack lights for outdoor security and architectural lighting.

20W Mini Up to 2,800 lm 3000K / 4000K / 5000K Dusk-to-Dawn IP65 Wet Die-Cast Housing

Key Features

  • Compact 20W design with bright output—up to 2,800 lm (~140 lm/W max)
  • Selectable CCT: 3000K / 4000K / 5000K to match site aesthetics
  • Integral dusk-to-dawn photocell (bypassable)
  • Fully gasketed construction; IP65 wet-location rated
  • Durable bronze die-cast aluminum, low-profile form factor

Related Wall Pack Guides

Code Compliance: UL, DLC & Title 24 Installation Checklist

Spec Sheet

Download Mini LED Wall Pack Spec Sheet (PDF)

Applications

Pathways, entries, building perimeters, small façades, commercial sites, and apartment exteriors.

Specifications (Overview)

  • Wattage: 20W
  • Lumens: up to 2,800 lm
  • CCT: 3000K / 4000K / 5000K
  • Housing: bronze die-cast aluminum; fully gasketed
  • Rating: IP65 wet location
  • Controls: built-in photocell (dusk-to-dawn)

Illumination

  • Type IV distribution with down-facing LEDs to reduce glare
  • Prismatic polycarbonate lens for soft, even illumination
  • Color rendering index (CRI) = 80
  • L70 rated lifetime >100,000 hours

Electrical

  • Universal 120–277 VAC input, 50/60 Hz
  • 0–10V dimming capable
  • Integral 120/277V photocontrol switch included

Mounting

  • Installs to standard 3" or 4" J-box
  • Surface conduit entries on both sides
  • Ideal for building exteriors and perimeter lighting

Housing / Finish

  • Precision die-cast aluminum with bronze powder-coated finish
  • UV-stabilized polycarbonate prismatic lens
  • Dimensions: 8.6" H × 5.8" W × 3.1" D

Warranty / Listings

  • 5-year limited warranty
  • cULus listed for wet locations
