NEMA 4X LED Exit Sign – IP66, UL-EPH, Food-Zone & Wet Location Rated
Regular price
$289.81
Couldn't load pickup availability
Got questions?
Give us a call 1-888-959-1965!
NEMA 4X / UL-EPH LED Exit Sign - IP66, Universal Mount, 90 min Battery - Features & Specs
The NXFX Series NEMA 4X / UL-EPH LED Exit Sign is purpose-built for hose-down, industrial, and food-service spaces. Browse our
NEMA Rated Exit Signs
for related models. A sealed polycarbonate enclosure protects high-intensity red or green LEDs behind a fully illuminated legend. The IP66-rated housing is UL-EPH classified and CEC Title 20 compliant. Battery models (WB) include a touchless magnetic test switch and 90-minute runtime; AC-only (LB) models ship without a battery. Universal mounting hardware is included, and single-face or double-face configurations are available. For replacements and accessories, see
exit signs with emergency battery backup.
UL 924
IP66 / Wet Location
NEMA 4X
Battery Backup
120/277 VAC
Face: Single / Double
Chevron Knockouts
Tamper-Resistant (opt.)
Universal Mount
CEC Title 20
Key Features
- NEMA 4X sealed polycarbonate enclosure with stainless hardware; IP66 for hose-down areas.
- UL-EPH Classified for food-service/splash-zone environments; UL 924 listed for wet locations.
- High-intensity red or green LEDs; fully illuminated 6" legend with 3/4" stroke; field-selectable chevrons.
- Power: LB (AC-only) or WB (Ni-Cd battery) with 90-minute emergency runtime; 24-hour recharge.
- Touchless magnetic test switch and bi-color status LED on non-AC (WB) models.
- 120/277 VAC dual-primary input; low-voltage disconnect and solid-state charger.
- Universal mounting: back / end / top; polycarbonate canopy included.

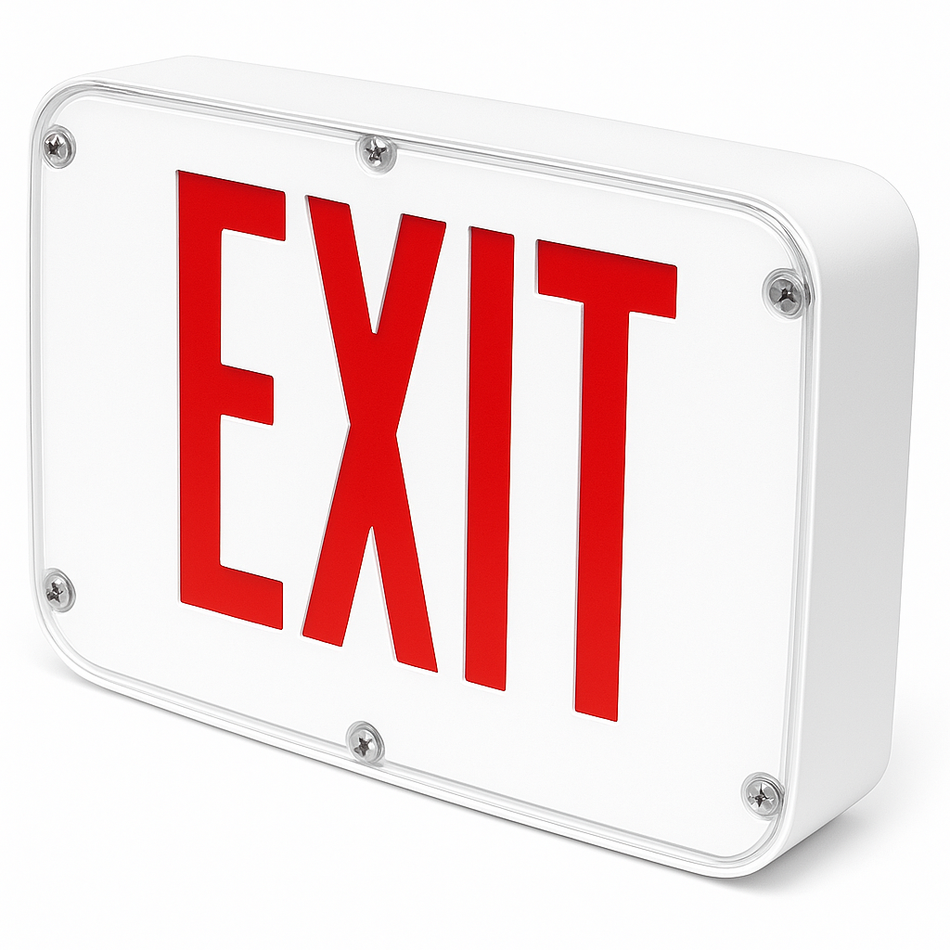

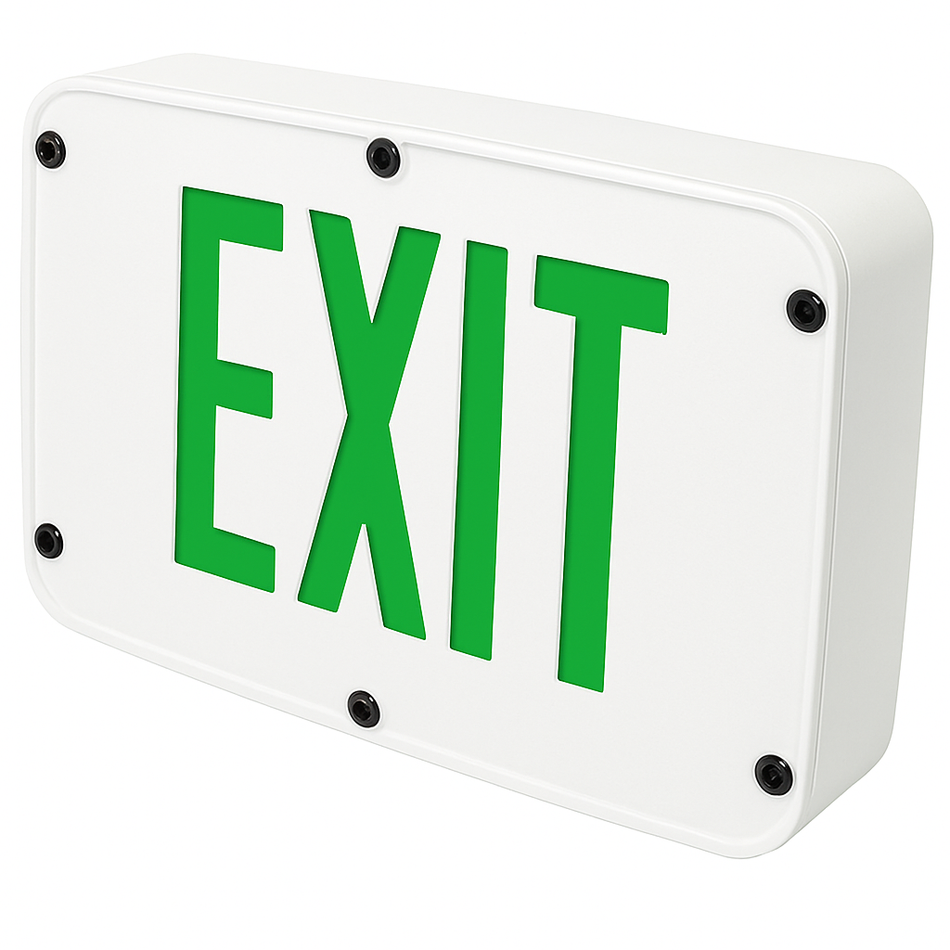

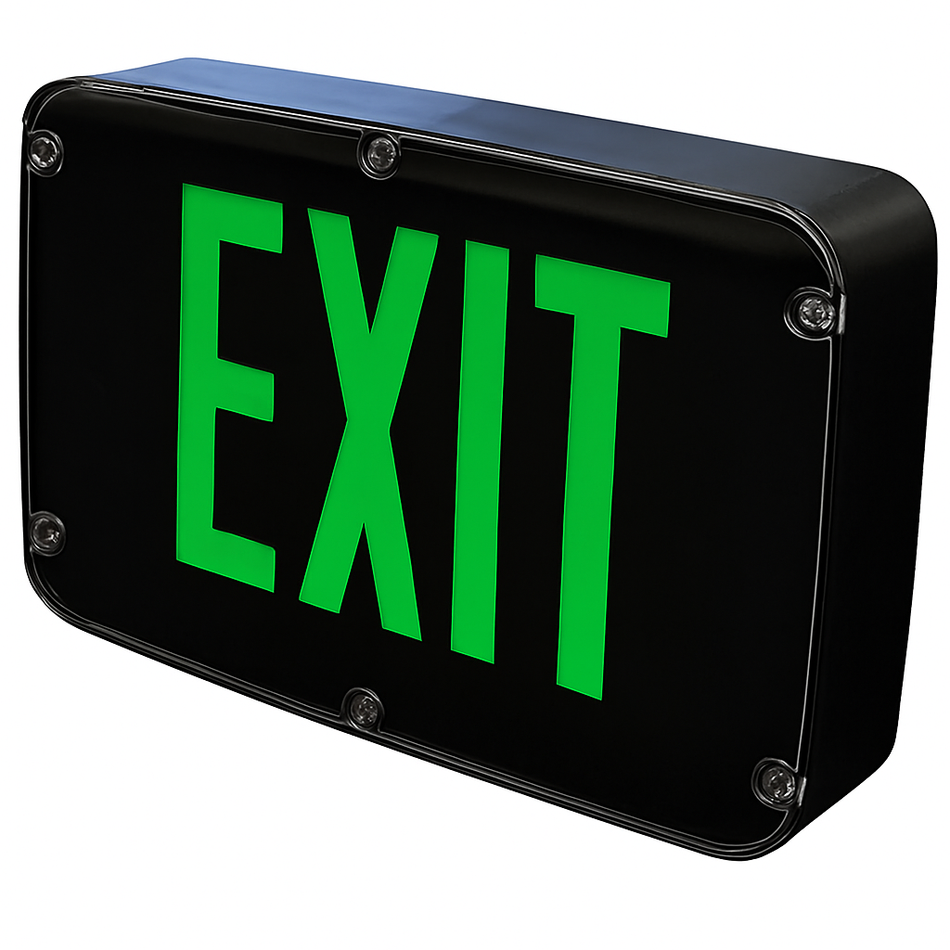

- Finishes: Black (BL) or White (WH); single-face or double-face configurations.
Related Exit Sign Guides
Spec Sheet
Download NEMA 4X LED Exit Sign Spec Sheet (PDF)
Illumination
- Long-life, high-intensity red or green LEDs exceed UL 924 brightness and uniformity requirements.
- 6" letters with 3/4" stroke; field-selectable chevrons.
Electrical
- Dual-voltage input: 120/277 VAC, 60 Hz.
- WB battery models: maintenance-free Ni-Cd, 90-minute emergency runtime; 24-hour recharge; touchless magnetic test switch.
- Operating temperature: -20 °C to 50 °C (-4 °F to 122 °F).
Construction
- Impact-resistant, UV-stable polycarbonate housing and lens.
- Sealed NEMA 4X rated exit sign enclosure with corrosion-resistant hardware.
- Finishes: Black (BL) or White (WH).
Mounting
- Universal mounting: wall, ceiling, or end via included polycarbonate canopy.
- Pre-gasketed backplate knockouts for watertight wall installs. Supports single-face or double-face configurations.
Options
-
2CI1— Dual-circuit input 120 V (AC-only). -
2CI7— Dual-circuit input 277 V (AC-only). -
G2— Guardian™ self-test / self-diagnostics (WB only). -
TRH— tamper-resistant exit sign hardware kit.
Dimensions
- 14.8" W × 10.0" H × 6.0" D (overall); housing depth 6.0".
Warranty / Listings
- UL 924 listed for wet locations; UL-EPH classified; NEMA 4X and IP66 rated; meets NFPA 101, NEC, OSHA; CEC Title 20 compliant.
- 5-year limited warranty on components; 5-year prorated warranty on battery.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- IP66 / Wet Location
- NEMA 4X
- Battery Backup
- 120/277 VAC
- Face: Single / Double
- Chevron Knockouts
- Tamper-Resistant (opt.)
- Universal Mount
- CEC Title 20
Key features
- NEMA 4X sealed polycarbonate enclosure with stainless hardware; IP66 for hose-down areas.
- UL-EPH Classified for food-service/splash-zone environments; UL 924 listed for wet locations.
- High-intensity red or green LEDs ; fully illuminated 6" legend with 3/4" stroke; field-selectable chevrons .
- Power: LB (AC-only) or WB (Ni-Cd battery) with 90-minute emergency runtime; 24-hour recharge.
- Touchless magnetic test switch and bi-color status LED on non-AC ( WB ) models.
- 120/277 VAC dual-primary input; low-voltage disconnect and solid-state charger.
- Universal mounting: back / end / top ; polycarbonate canopy included.
- Finishes: Black (BL) or White (WH) ; single-face or double-face configurations.
Documents
Related Exit Sign Guides
Exit Signs for Outdoor/Wet Areas Wet vs Damp – Exit Signs
Spec Sheet
Download NEMA 4X LED Exit Sign Spec Sheet (PDF)
Illumination
- Long-life, high-intensity red or green LEDs exceed UL 924 brightness and uniformity requirements.
- 6" letters with 3/4" stroke; field-selectable chevrons.
Electrical
- Dual-voltage input: 120/277 VAC , 60 Hz .
- WB battery models: maintenance-free Ni-Cd , 90-minute emergency runtime; 24-hour recharge; touchless magnetic test switch.
- Operating temperature: -20 °C to 50 °C ( -4 °F to 122 °F ).
Construction
- Impact-resistant, UV-stable polycarbonate housing and lens .
- Sealed NEMA 4X rated exit sign enclosure with corrosion-resistant hardware.
- Finishes: Black (BL) or White (WH) .
Mounting
- Universal mounting: wall, ceiling, or end via included polycarbonate canopy.
- Pre-gasketed backplate knockouts for watertight wall installs. Supports single-face or double-face configurations.
Options
- 2CI1 — Dual-circuit input 120 V (AC-only).
- 2CI7 — Dual-circuit input 277 V (AC-only).
- G2 — Guardian™ self-test / self-diagnostics (WB only).
- TRH — tamper-resistant exit sign hardware kit.
Dimensions
- 14.8" W × 10.0" H × 6.0" D (overall); housing depth 6.0" .
Warranty / Listings
- UL 924 listed for wet locations; UL-EPH classified; NEMA 4X and IP66 rated; meets NFPA 101 , NEC , OSHA ; CEC Title 20 compliant.
- 5-year limited warranty on components; 5-year prorated warranty on battery.
Compliance notes
- Confirm final fixture placement, runtime, and local code approval for the project.
- Verify the selected model is rated for the final environment before ordering.
