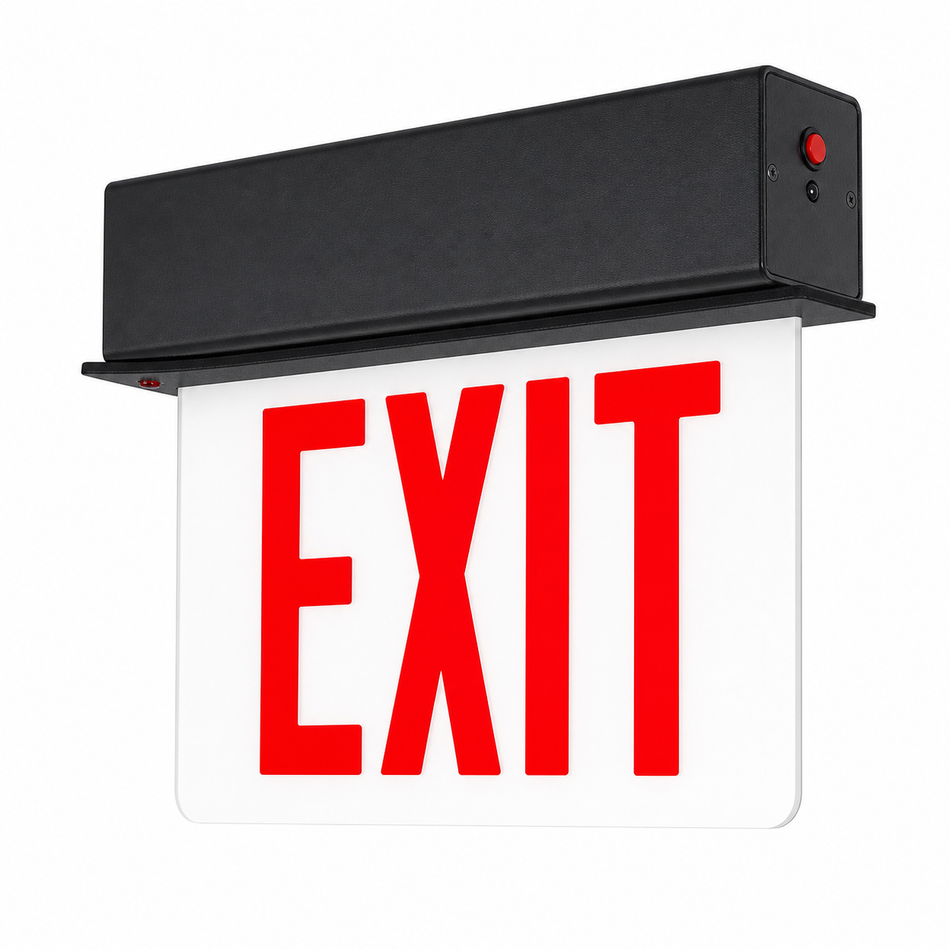

New-York-City-Compliant Edge-Lit Exit Sign

New York City inspectors look for 8-inch red letters , chevrons that actually match the travel path, and evidence that the sign is UL 924-listed with a 90-minute emergency source. The NYELXTEU is engineered for exactly that: a high-efficacy LED board that evenly feeds a laser-etched legend, a durable metal frame that finishes clean against walls or ceilings, and an emergency pack that reliably carries the sign through an outage. Use the SDT option to automate the monthly (˜30-second) and annual (90-minute) tests—maintenance simply confirms the indicator shows “pass” and addresses faults when flagged. For a deeper rundown, see our NYC-specific explainer, New York City Exit Signs: What Are the Requirements? . :contentReference[oaicite:1]{index=1}

Download NYELXTEU Spec Sheet (PDF)

• Laser-etched acrylic panel with evenly distributed LED backfeed for crisp, uniform characters without hotspots.
• 8? high red letters and a full-height stroke comply with NYC legibility and viewing-distance expectations; double-face models include a white or silver mylar backer to maximize contrast on both sides.
• Glare-controlled optics maintain readability in glass-heavy lobbies and polished corridors.

• 120/277 VAC , 60 Hz universal input; bi-color status LED indicates normal/charge/fault conditions; push-to-test supports NFPA 101 checks.
• 4.8 V Ni-Cd battery pack (EM models) with 90-minute minimum emergency duration; solid-state transfer and two-rate charging ( ~24 hours to full).
• SPV option adds 208/220/240 VAC input capability for international or special-mains projects.

• Universal canopy enables top , end , or back mounting to suit corridor sightlines.
• Included stencil and field-applied chevrons simplify directional setup—apply only what you need once the route is finalized with your AHJ.
• Low-profile frame maintains headroom and keeps the ceiling line continuous; suitable for storefronts, hotels, schools, and healthcare interiors.

• Clean, extruded-aluminum frame with tight tolerances; removable faceplate speeds service while preserving fit and finish.
• Crystal-clear acrylic panel resists yellowing; etched legend prevents peel-off failure common to appliqué methods.

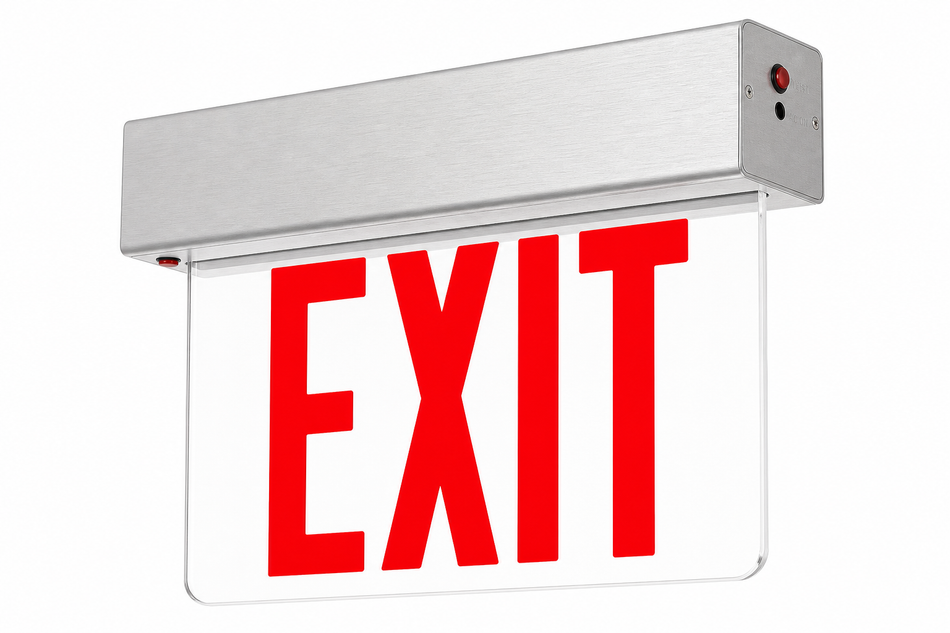

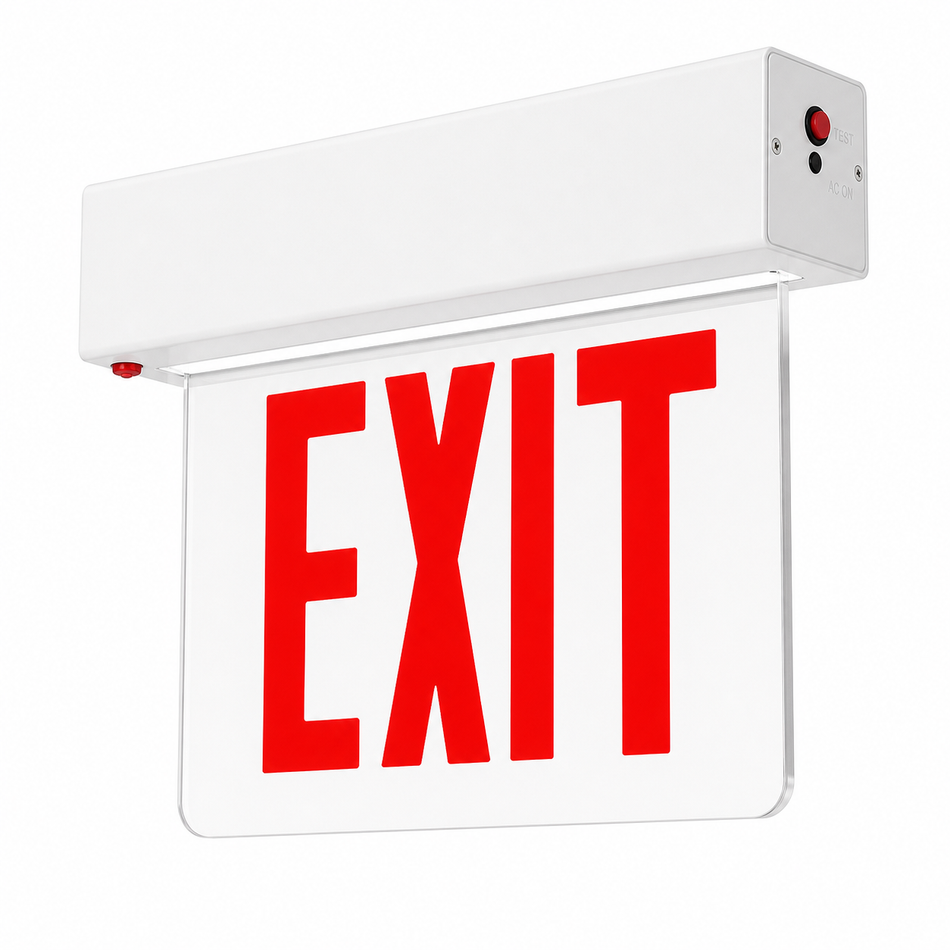

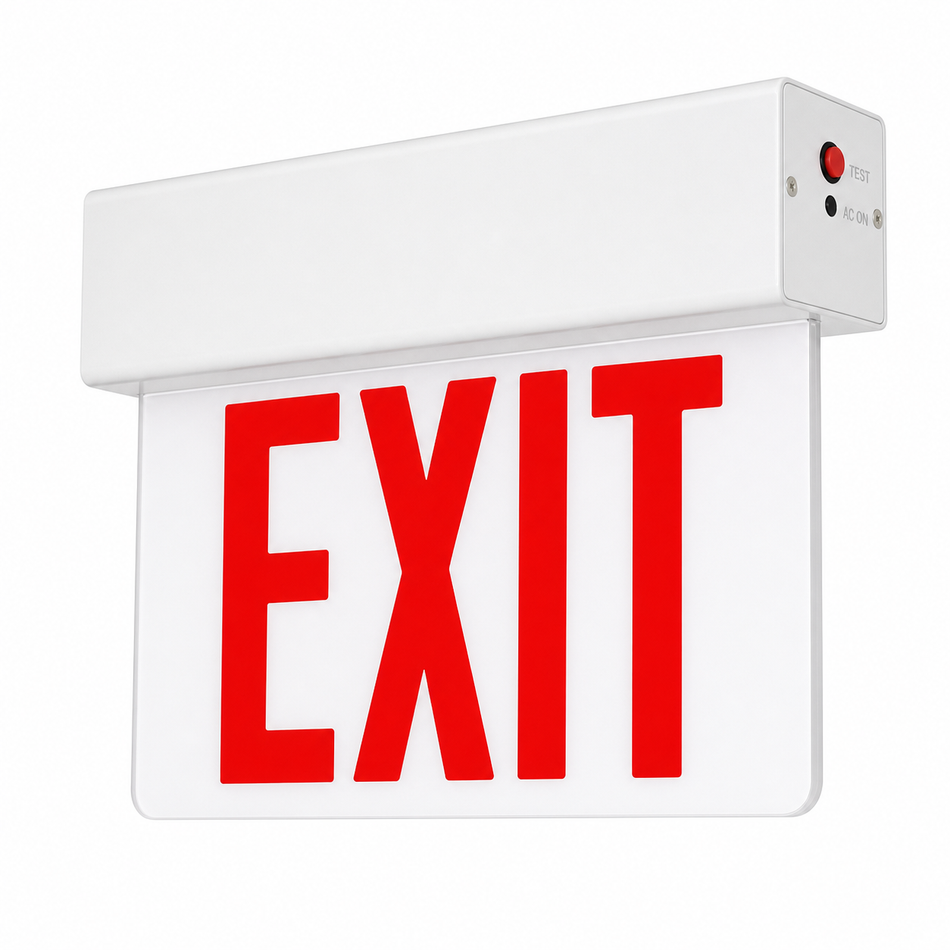

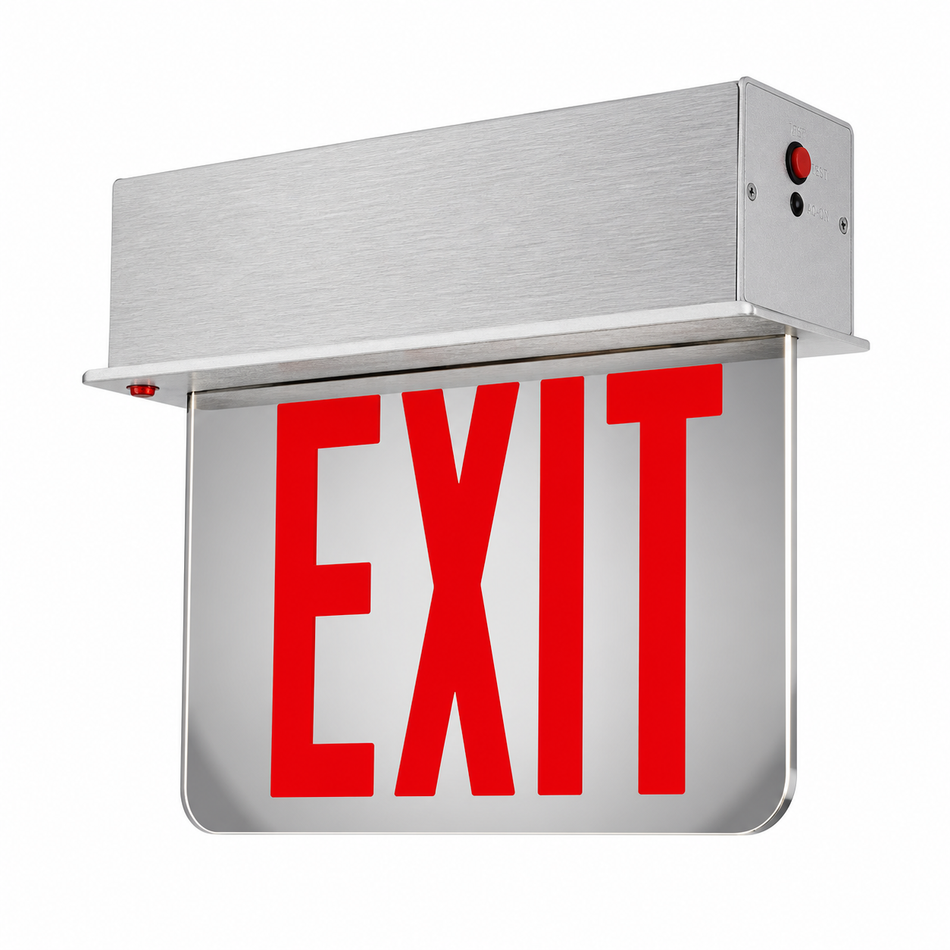

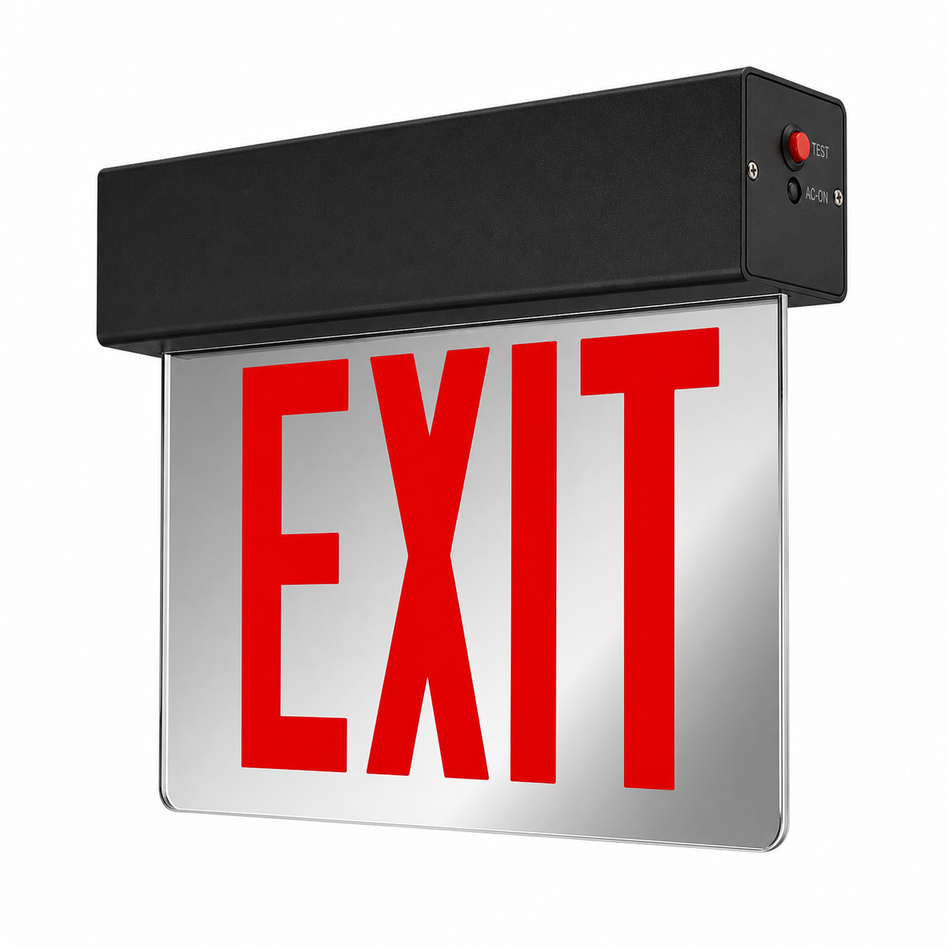

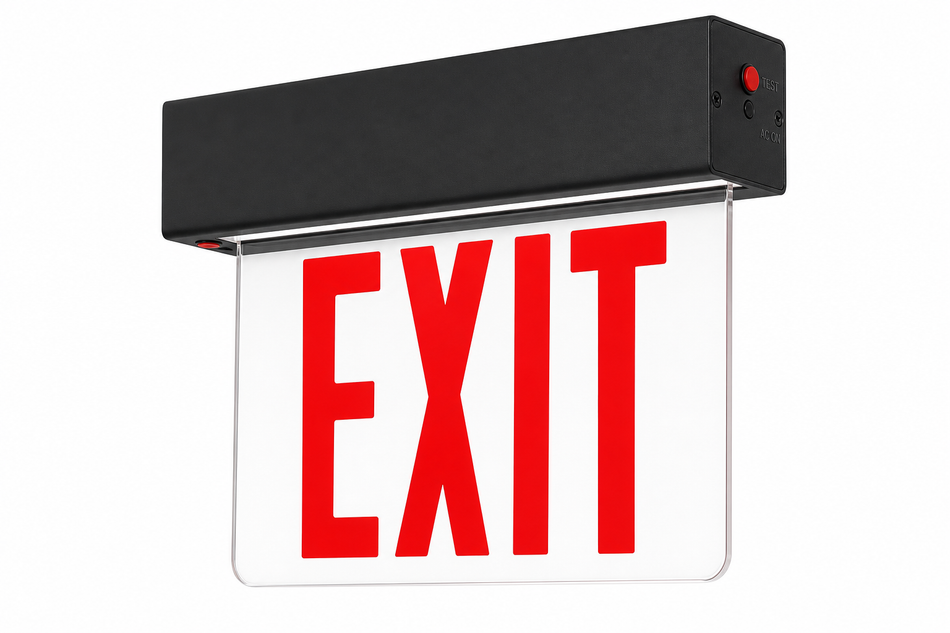

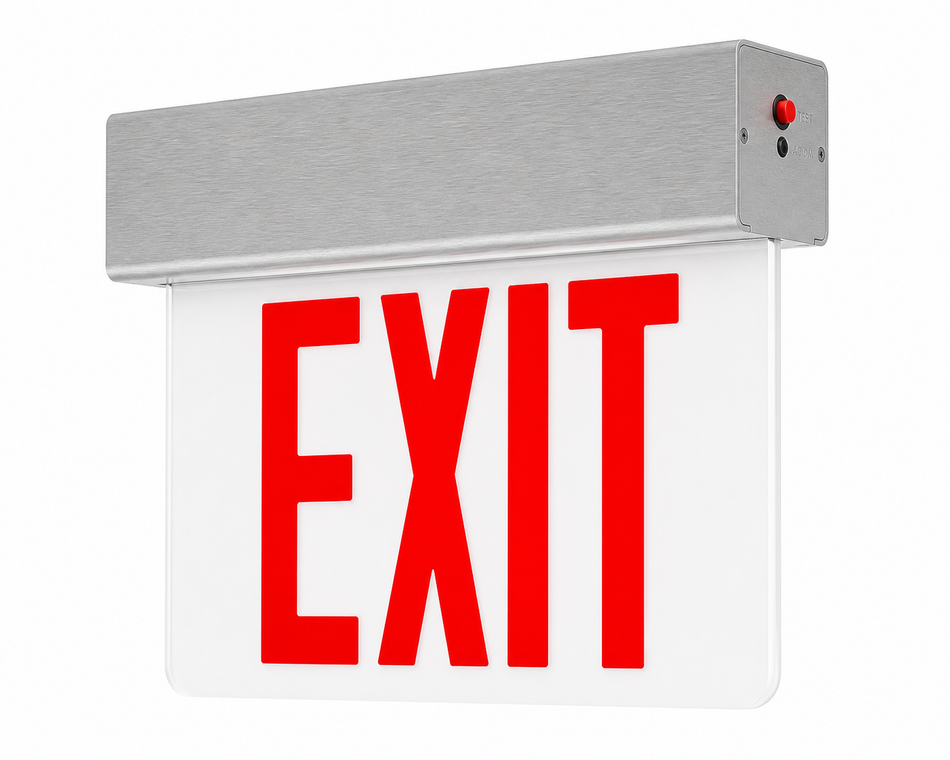

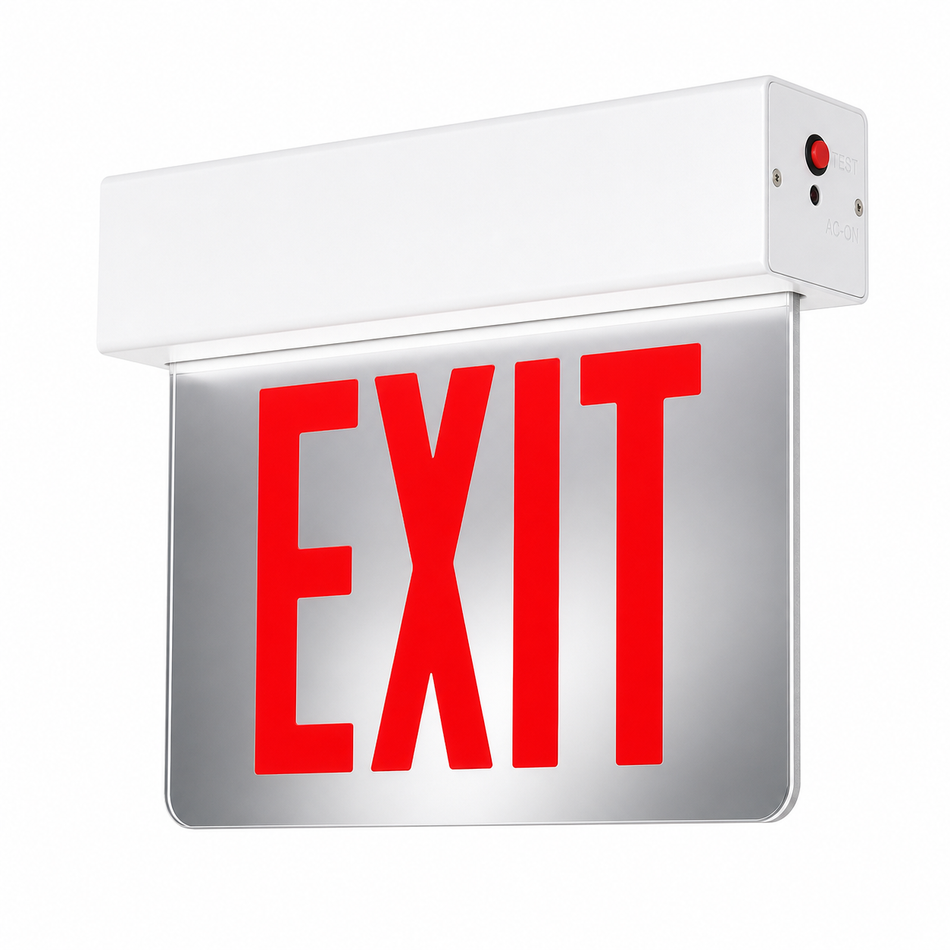

• Finish palette: natural aluminum , white , or black to coordinate with hardware and trim.

• SDT self-diagnostics — adds automated monthly/annual testing with fault display to reduce ladder time; ideal for multi-building campuses and property portfolios (see our explainer Self-Testing Exit Signs—Benefits & Compliance ). :contentReference[oaicite:2]{index=2}
• SPV 208/220/240 VAC — supports alternate mains where required by site electrical.
• Double-face conversion — kit/backer included on DF models; preserves contrast and keeps the legend readable from both directions.

• 5-year limited warranty on electronics and housing; battery prorated 5 years .
• UL 924 listed; damp-location rated for 0 °C–50 °C operation.
• Meets NFPA 101 , NEC , OSHA , CEC Title 20 , and NYC code when installed per instructions.

• Approx. 15¾? W × 14? H × 1¾? D . Verify exacts on the spec sheet for canopy clearance and chevron placement.

• NYC vs. national code: NYC commonly mandates 8? red letters and robust construction; standard 6? legends typical elsewhere usually won’t pass in the five boroughs.
• Sightlines first: At intersections or glass vestibules, specify double-face units to capture both approaches; in long corridors, place reassurance signs at regular intervals per your AHJ.
• Testing logistics: With SDT, staff confirm the indicator LED is showing “pass.” If it shows a fault, address battery, charger, or board as indicated and log the corrective action.

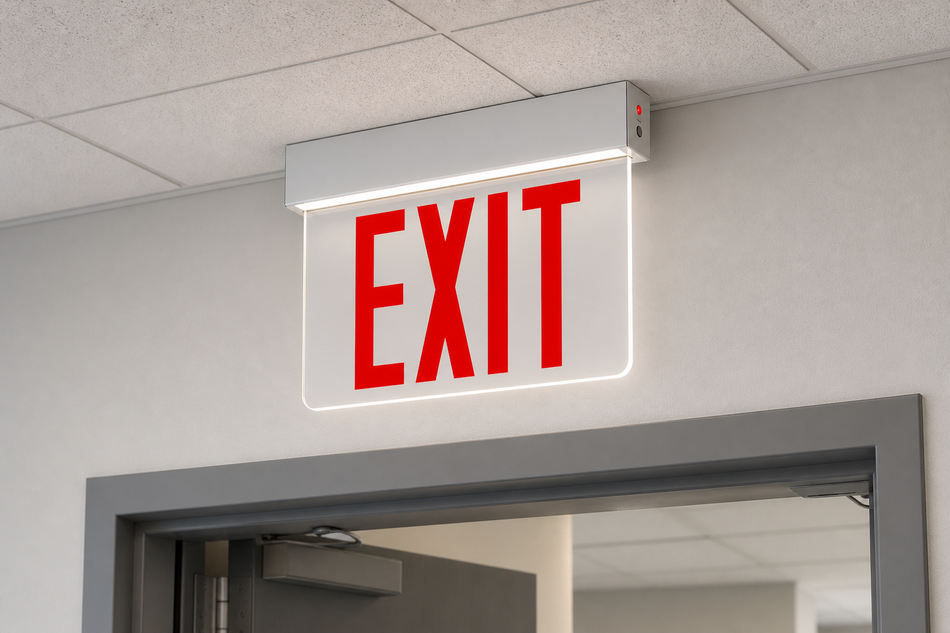

• Mounting choice: Use end mount to throw the legend perpendicular to the corridor; top mount keeps walls clean; back mount is tidy over doors with a J-box.
• Finish & glare: Choose black near dark ceilings or natural aluminum in modern interiors; the etched panel keeps characters readable without harsh edges.

• Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
