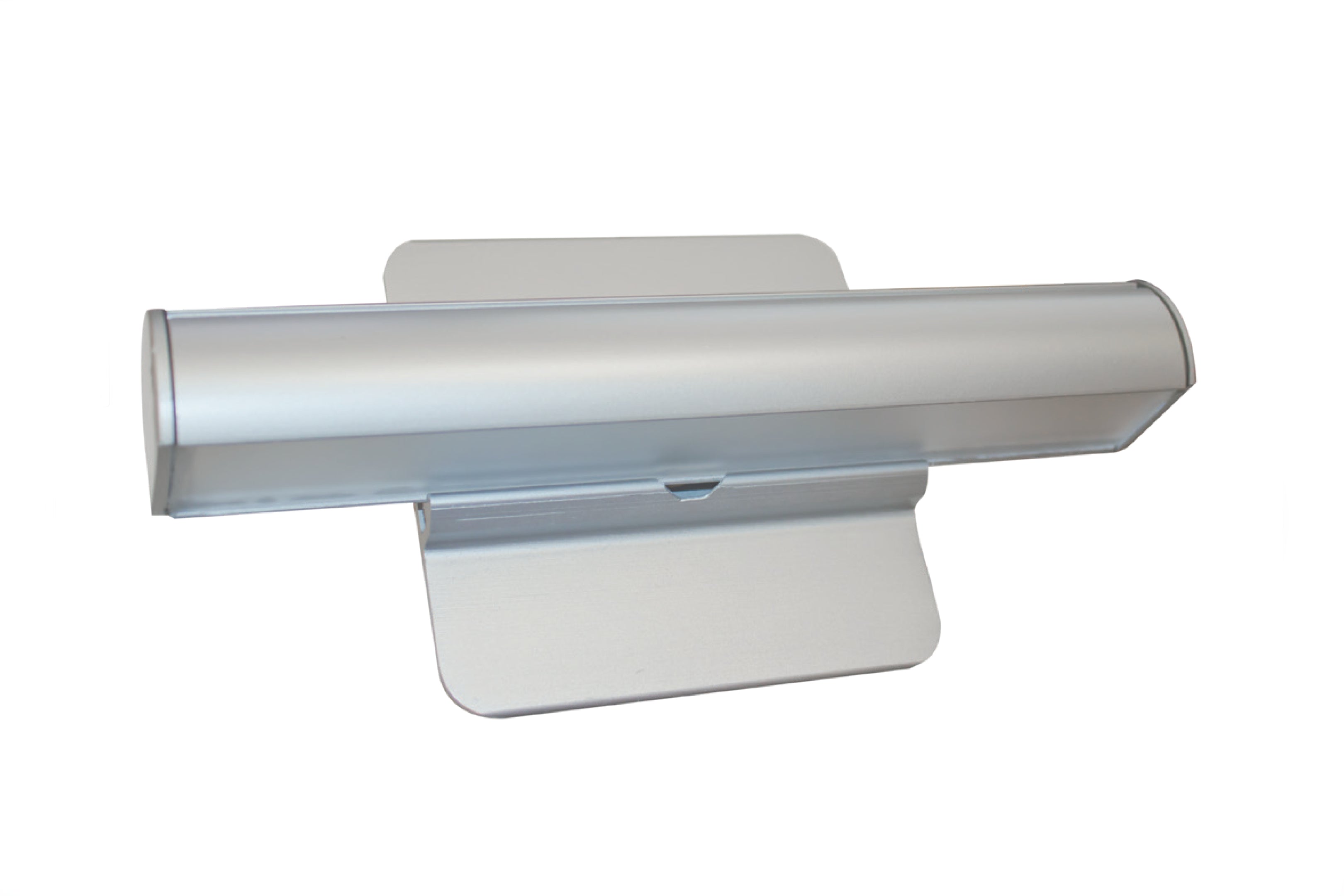

Die-Cast Outdoor LED Egress Emergency Light - Low Profile

Outdoor Linear LED Emergency Egress Light - 12 ft × 25 ft Coverage, IP66, 10W/20W - Features & Specs

Pair with low-profile emergency lights for a cohesive, space-saving egress package. The NF5 Outdoor Linear LED Emergency Egress Light delivers a powerful 12 ft × 25 ft path of illumination from a compact die-cast aluminum emergency light bar that projects just 1.5" from the wall. This ultra-slim, IP66-rated fixture is ideal for over-door installations, glass storefront mullions, or applications where standard “bug-eye” designs would be obtrusive. Options include PathSafe night-light mode and Guardian self-diagnostics for enhanced code compliance.

Key Features

• Uniform 12 ft × 25 ft egress coverage at 8.5 ft mounting height with 90° full cutoff distribution.
• Emergency output options: 10 W or 20 W LED (5300 K standard).
• Extreme low-profile bar projects just 1.5"; fixture lengths: 10" (10W) or 21" (20W); 19" with mullion mount.
• IP66 and wet-location listed; rugged die-cast aluminum body with prismatic lens.
• Operating temp: Standard -20 °C to 40 °C; mullion-mount models to -40 °C to 50 °C (SEC required at -40 °C).
• Options: SEC120/SEC277 PathSafe 50% night-light; G2 self-test/diagnostics (SEC requires G2).
• Mounting: wall or ceiling via deep J-box with 1.5" extension ring; top conduit entry; mullion-mount canopy includes remote power pack.
• Finishes: Brushed Aluminum, Black, Bronze, or White. BABA-compliant.

Related Wet-Location Guides

Spec Sheet

Download NF5 Emergency Egress Light Spec Sheet (PDF)

Features & Benefits

• Ultra-low-profile die-cast bar — projects just 1.5" from surface
• Uniform 12 ft × 25 ft illumination at 8.5 ft mounting height
• 10 W or 20 W emergency output options with prismatic lens
• SEC120 / SEC277 PathSafe 50% night-light circuit
• G2 Guardian self-diagnostics option (required when ordering SEC)
• Mullion canopy kit for storefront or narrow-frame mounting
• BABA-compliant construction

Illumination

• High-output white LEDs (5300 K standard) with wide-angle distribution
• 12 ft × 25 ft egress coverage from one unit (mounted at 8.5 ft height)

Electrical

• Dual-voltage 120/277 VAC, 60 Hz input
• Maintenance-free NiMH battery — 90-minute emergency runtime, ~24-hour recharge
• Low-voltage disconnect, brownout, overload, and short-circuit protection

Mounting

• Surface wall-mount via J-box with gasket and conduit KO; ceiling mount supported
• Mullion-mount canopy kit available (includes remote power pack)

Housing / Finish

• Die-cast aluminum body with integral weather-sealed gasket
• Finishes: Brushed Aluminum, Black, Bronze, White
• Operating temp: -20 °C – 40 °C (standard)  |  to -40 °C with SEC and mullion-mount models

Options

• G2 – Guardian self-test and diagnostics
• SEC120 / SEC277 – PathSafe 50% night-light output (AC mode; requires G2)
• 29K / 32K / 38K – CCT filters for warm-white output

Warranty / Listings

• 5-year warranty on electronics and housing; battery prorated 5 years
• ETL listed to UL 924; NFPA 101 & NEC compliant
• Wet location emergency lights and IP66 certified
